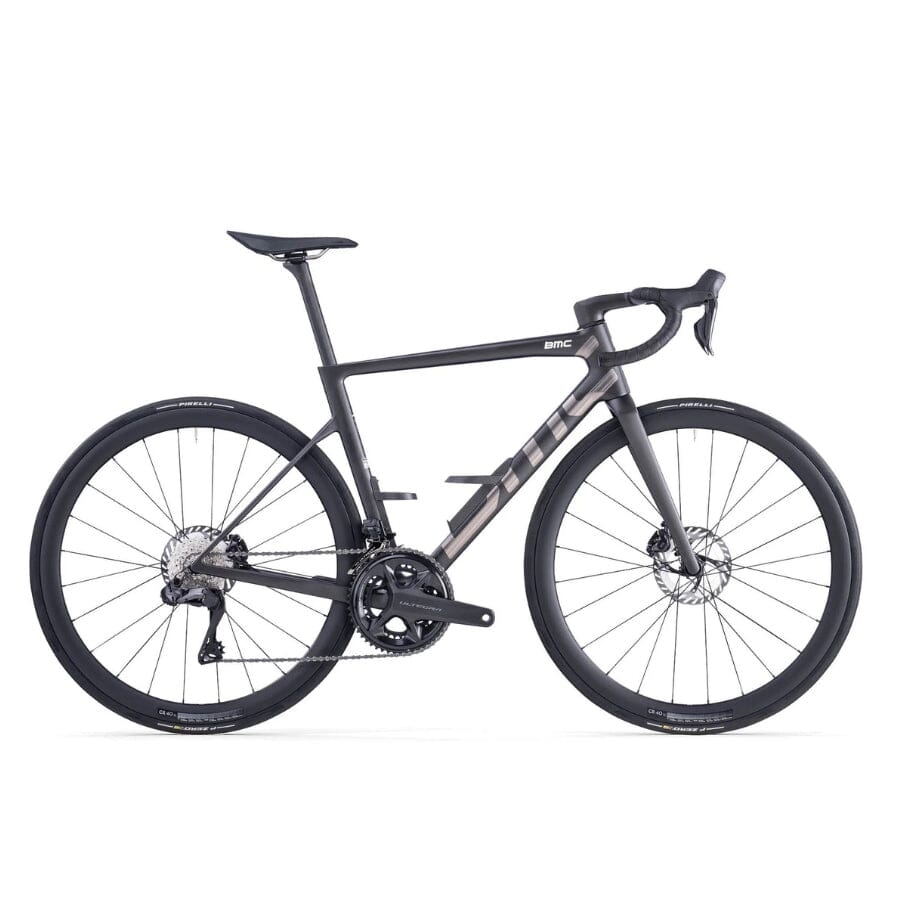

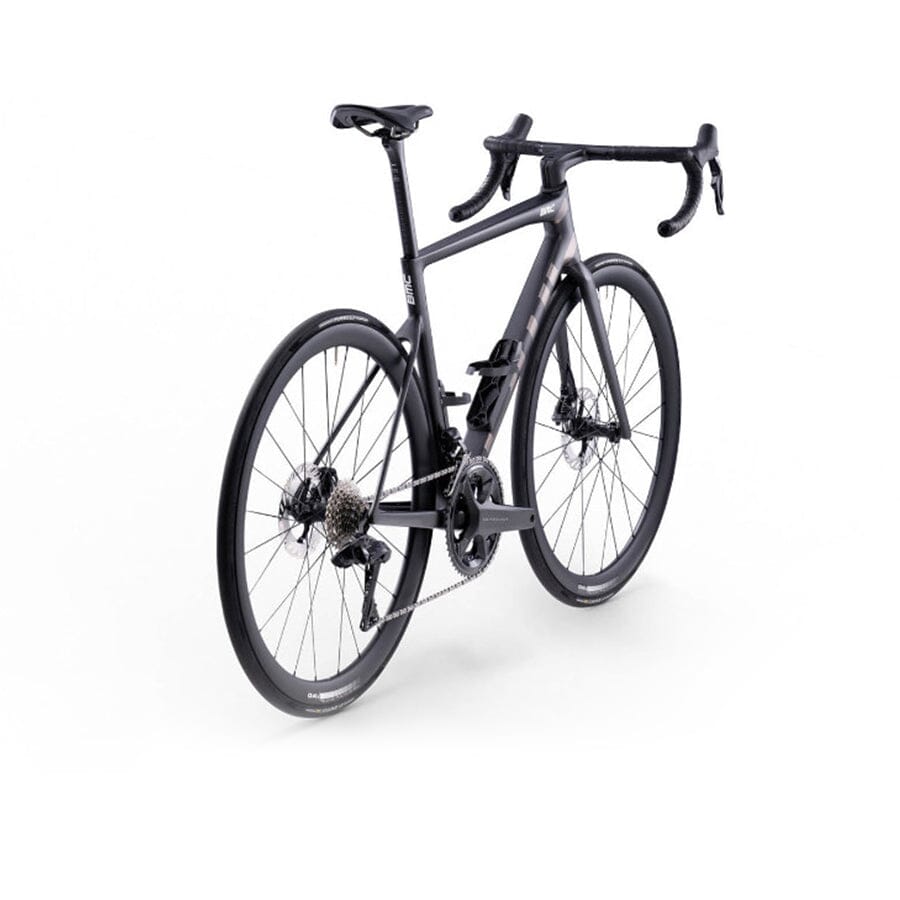

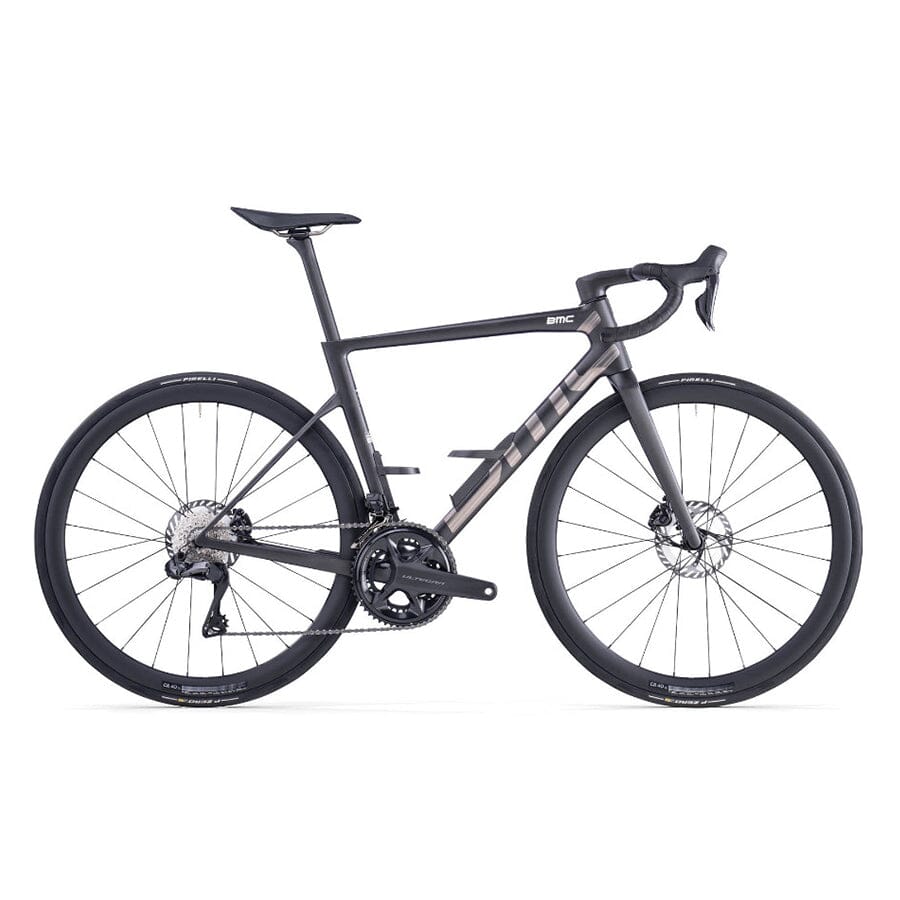

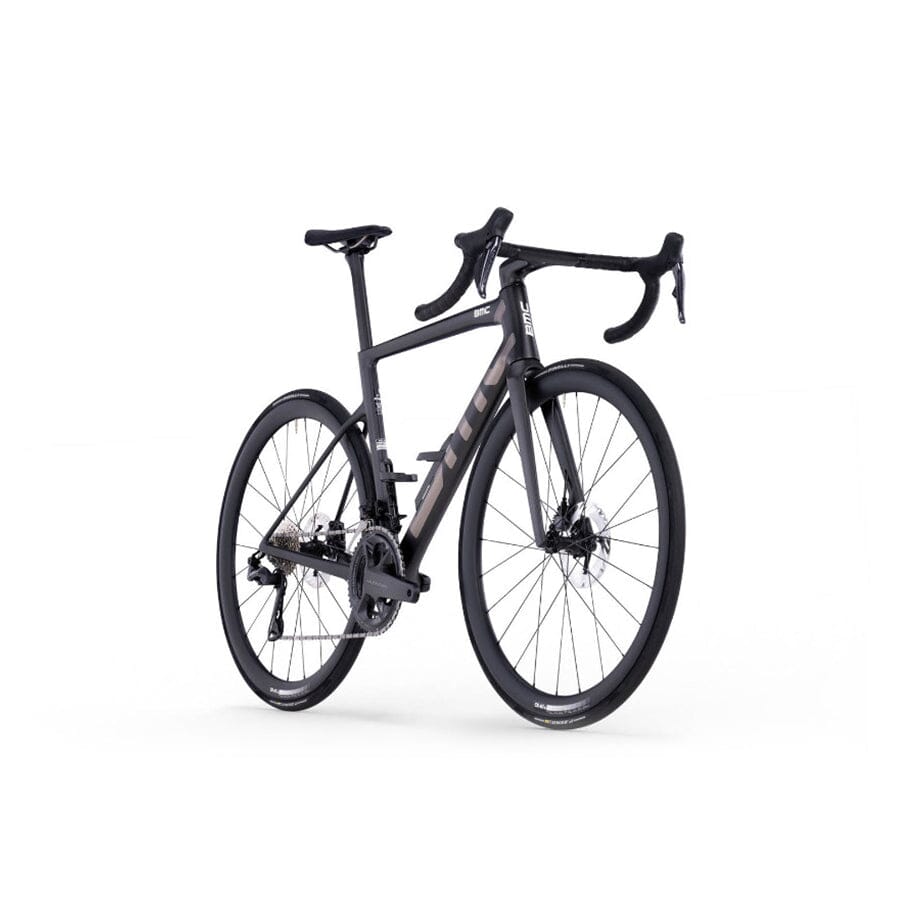

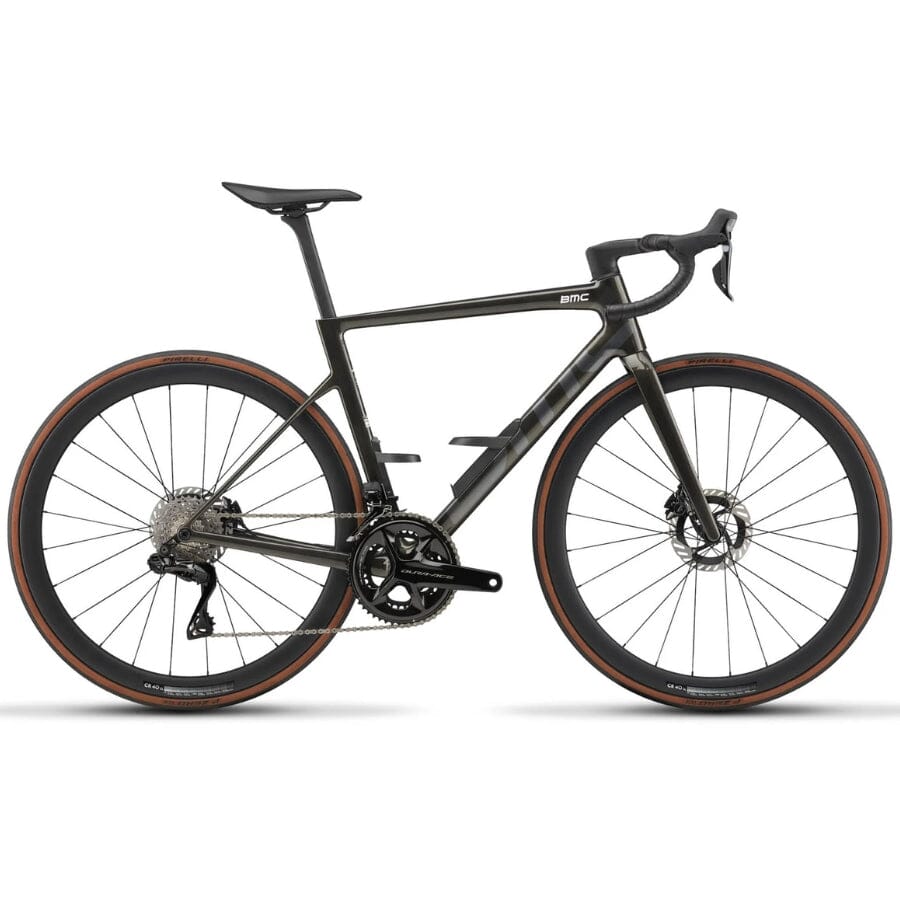

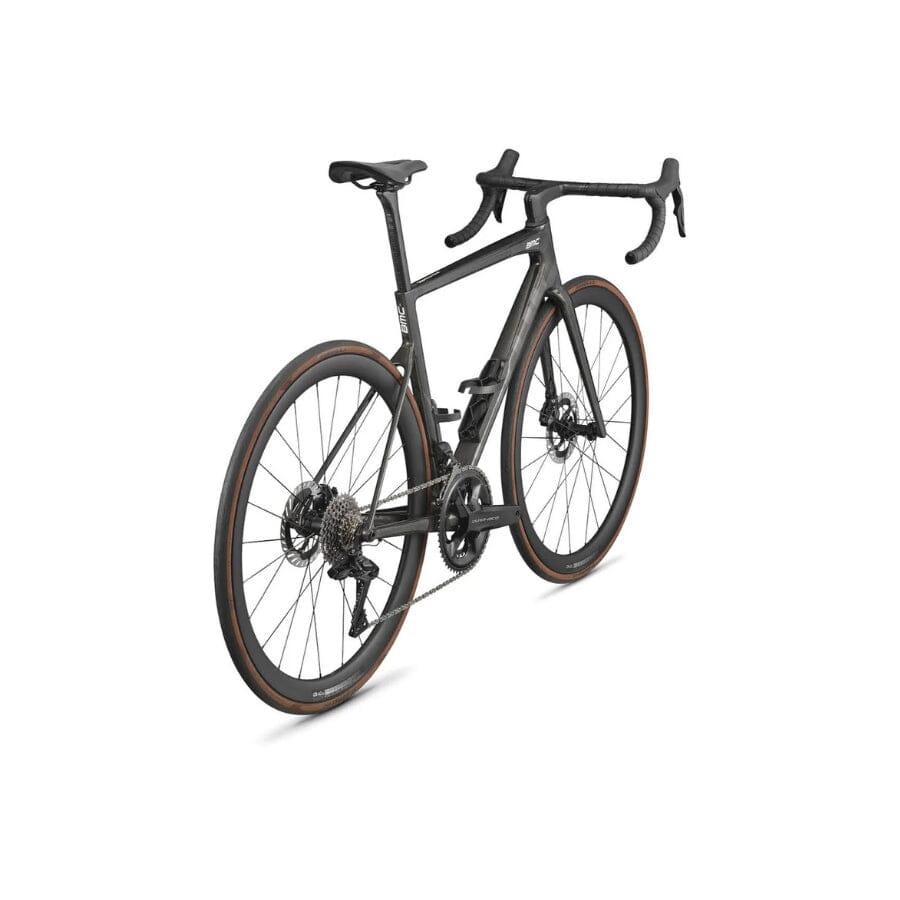

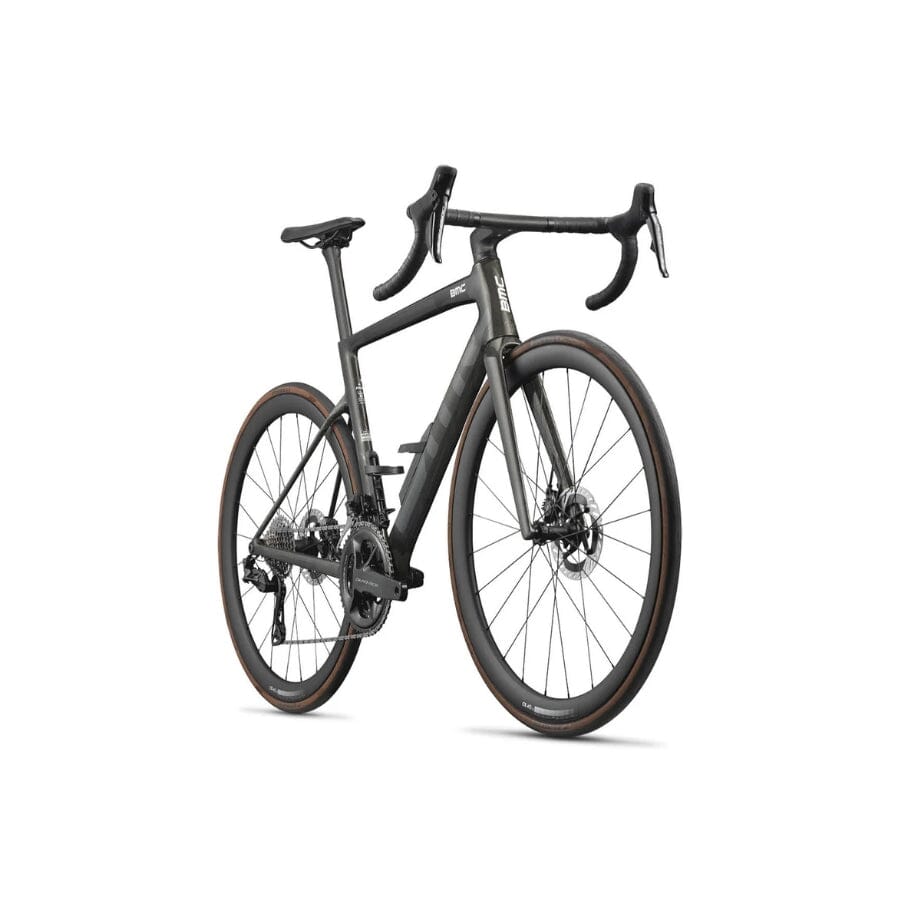

BMC Teammachine SLR 01 Four
Product Details
The BMC Teammachine SLR 01 FOUR keeps the legendary Teammachine formula intact, making it the perfect climbing bike that opens up championship-level performance to a broader range of riders. Built on the fifth-generation platform that has defined climbing performance for over a decade, this machine delivers the unmistakable BMC character, sharp in response, confident at speed, and refined in every detail. Using the 01 Pro Carbon grade, this model mirrors the stiffness and responsiveness of the flagship ONE while offering smarter value without compromising the core DNA that makes BMC bikes legendary.

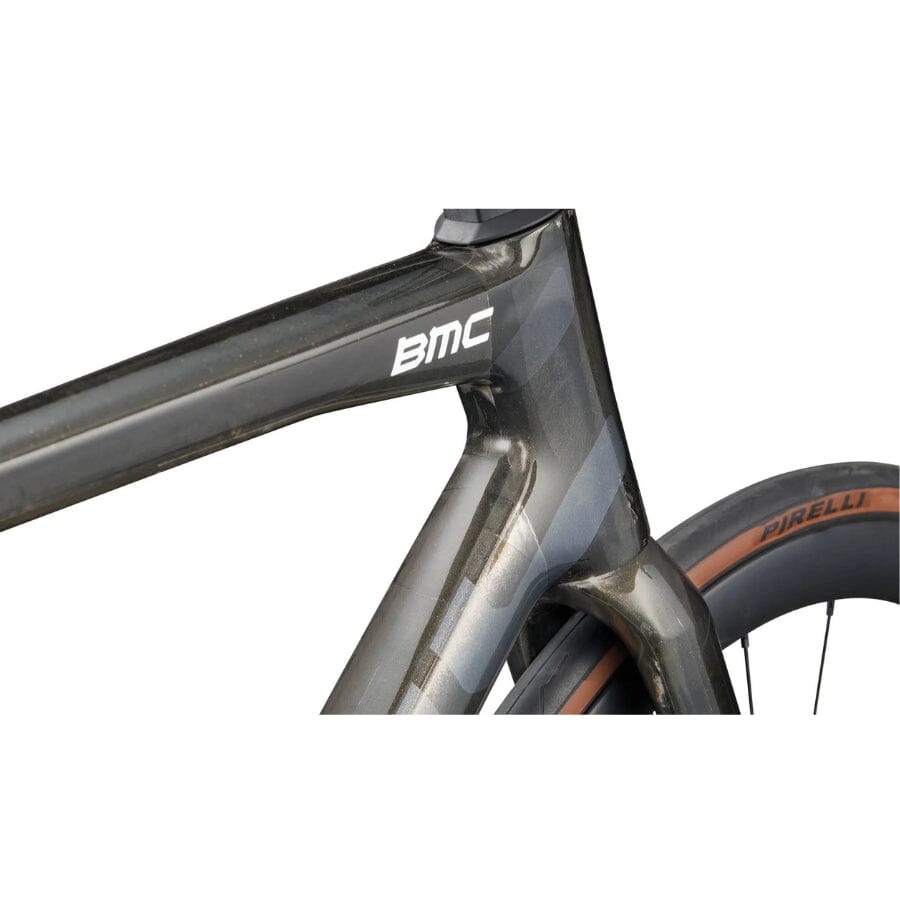

The refined 01 Pro Carbon layup is unapologetically stiff, delivering exceptional power transfer on brutal climbs while maintaining the signature BMC Ride Feel. The frame is light where it counts, aero where it matters, and engineered in a package that brings BMC's SLR 01 level of performance within reach of more ambitious climbers. Refined tube shapes cut through the air while the Aerocore Design seamlessly integrates superlight carbon bottle cages with the reshaped downtube and seat tube. This fifth-generation platform is 2.2 percent faster in system aerodynamics than the previous generation, making it the fastest climbing bike on the market from BMC's testing.
The magic 63mm trail number ensures razor-sharp handling and confidence through high-speed corners, while the race-proven geometry remains confident in descents and efficient on punishing climbs. Tuned Compliance Concept Race technology adds smoothness and compliance without compromising the stiffness required for explosive power transfer. Tire clearance has been increased to 32mm for modern versatility on varied terrain.
The ICS Carbon Evo one-piece full carbon cockpit delivers stiffness and user-focused functionality developed with Tudor Pro Cycling. Shimano Dura-Ace Di2 electronic drivetrain with 4iiii Precision power meter provides instantaneous shifting and detailed power metrics, while CR 40 SL Carbon tubeless-ready wheels deliver lightweight efficiency built for climbing and descending.
Key Features
- Frame - BMC Teammachine SLR 01 Gen 5, 01 Pro Carbon with Aerocore Design
- Drivetrain - Shimano Dura-Ace Di2 with 4iiii Precision Gen3+ Power Meter
- Wheelset - CR 40 SL Carbon tubeless-ready
| Specification | Detail |
|---|---|
| Frame | Teammachine SLR 01 Gen 5 | 01 Pro Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Full Mount - UDH | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle |
| Fork | Teammachine SLR 01 Gen 5 | 01 Pro Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51, 43mm offset Size 54-61 |
| Handlebar | ICS Carbon Evo | One Piece Full Carbon Cockpit | 127mm drop, 70mm reach, 8° flare |
| Grips | BMC Tacky 3mm |

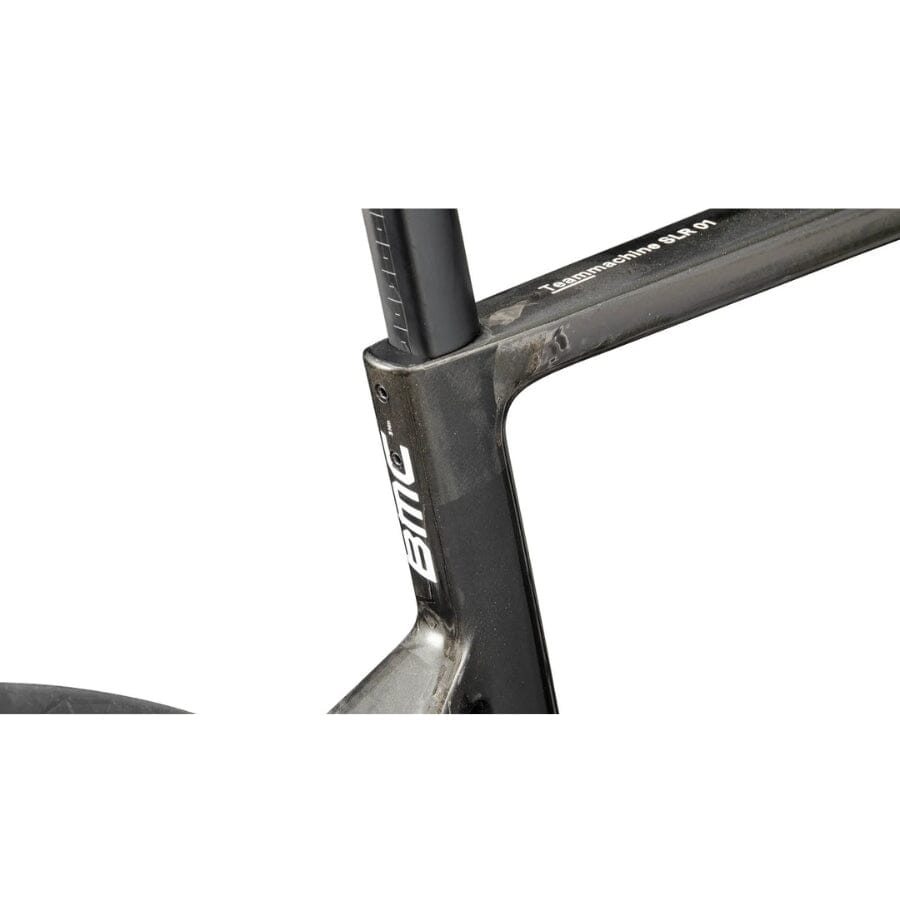

| Seatpost | Teammachine SLR 01 Gen 5 | Advanced Carbon Aero Shaped Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61 |
| Saddle | Fizik Vento Argo R5 | 140mm |
| Crankset | SHIMANO Dura Ace (FC-R9200) |
| Chainrings | 52-36T |
| Power Meter | 4iiii Precision Gen3+ Power Meter (Non-Drive Side) |
| Cassette | SHIMANO Dura Ace (CS-R9200) |
| Cassette Size | 11-34T |
| Chain | SHIMANO CN-M9100 |
| Front Derailleur | SHIMANO Dura Ace Di2 (FD-R9250) |
| Rear Derailleur | SHIMANO Dura Ace Di2 (RD-R9250) |
| Shifters | SHIMANO Dura Ace Di2 (ST-R9270) |
| Gears | 2 x 12 |
| Bottom Bracket | SHIMANO Ultegra Press-Fit Bottom Bracket (SM-BB72-41B) |
| Brake Levers / Calipers | SHIMANO Dura Ace (BR-R9270) |
| Rotors | SHIMANO Dura Ace (RT-CL900) |
| Rotor Size (F/R) | 160 / 160mm |
| Rims | CR 40 SL Carbon | Tubeless Ready | 40mm |
| Hubs (F/R) | TXC-812 & TXC-240A Center Lock |
| Tires | Pirelli P Zero Race TLR | Tubeless | 28mm |
| Tubeless Information | Tubeless Rim | Tubeless Tires |
| In the Box | Aerocore Bottle Cages | Computer mount for Garmin, Wahoo and GoPro mount |
| Tire Clearance | 32mm measured tire |
| Weight without Pedals | 7.4kg | Size 54 as pictured with all accessories |
| ASTM Classification | Level 1 |
| System Weight Limit | 110kg |
| Measurement | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height (cm) | <166 | 166–174 | 172–180 | 178–186 | 184–192 | >190 |
| Reach (mm) | 367 | 377 | 386 | 392 | 401 | 409 |
| Stack (mm) | 506 | 530 | 550 | 565 | 584 | 608 |
| Bar Drop (mm) | 127 | 127 | 127 | 127 | 127 | 127 |
| Bar Reach (mm) | 68 | 68 | 68 | 68 | 68 | 68 |
| Bar Width (mm) | 400 / 436 | 400 / 436 | 400 / 436 | 400 / 436 | 400 / 436 | 400 / 436 |
| BB Drop (mm) | 69 | 69 | 69 | 69 | 69 | 69 |
| Crank Length (mm) | 165 | 170 | 170 | 170 | 172.5 | 172.5 |
| Fork Length (mm) | 369 | 369 | 369 | 369 | 369 | 369 |
| Fork Rake (mm) | 48 | 48 | 43 | 43 | 43 | 43 |
| Front Center (mm) | 568 | 586 | 589 | 599 | 614 | 630 |
| Head Tube (mm) | 108 | 133 | 149 | 165 | 184 | 211 |
| Head Tube Angle | 71.5° | 71.5° | 72.3° | 72.3° | 72.3° | 72.3° |
| Rear Center (mm) | 410 | 410 | 410 | 410 | 410 | 410 |
| Seat Angle | 74° | 74° | 73.5° | 73.5° | 73° | 73° |
| Seat Tube (mm) | 422 | 464 | 491 | 509 | 530 | 555 |
| Seatpost Length (mm) | 335 | 335 | 385 | 385 | 405 | 405 |
| Seatpost Offset (mm) | 0 | 0 | 10 | 10 | 10 | 10 |
| Standover Height (mm) | 717 | 752 | 779 | 797 | 817 | 843 |
| Stem Angle | -12° | -12° | -12° | -12° | -12° | -12° |
| Stem Length (mm) | 70 | 90 | 90 | 100 | 110 | 110 |
| Top Tube (mm) | 515 | 532 | 552 | 562 | 582 | 598 |
| Trail (mm) | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase (mm) | 968 | 986 | 989 | 1000 | 1015 | 1030 |
