Product Details

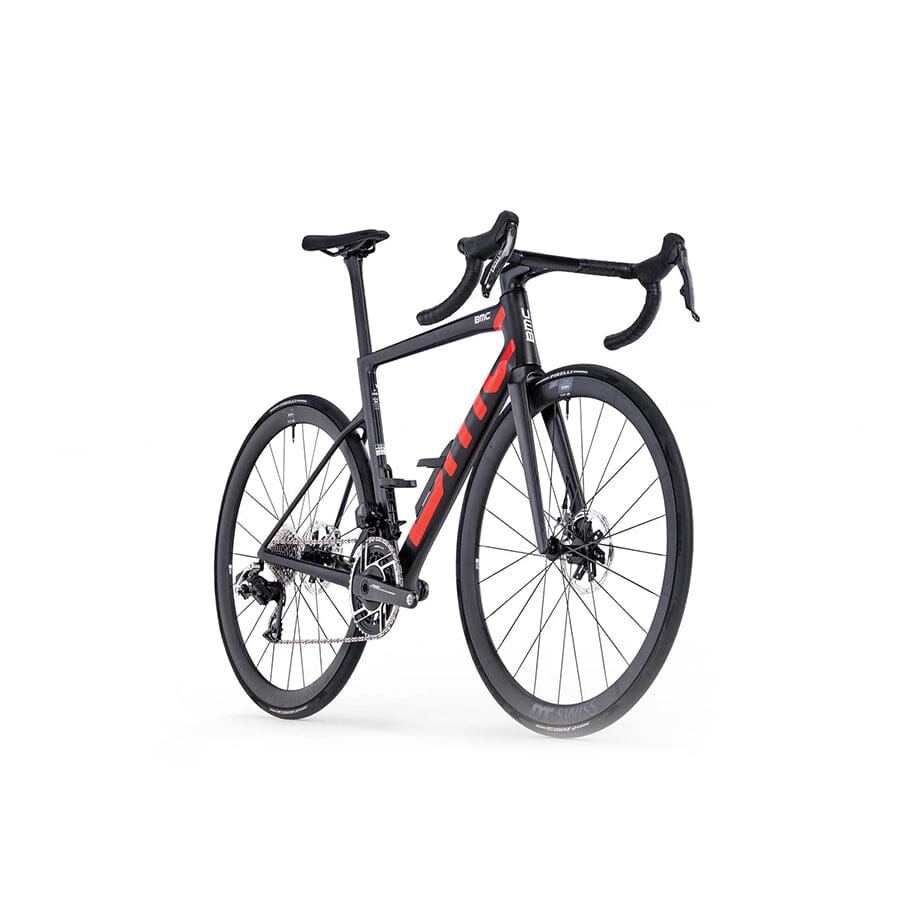

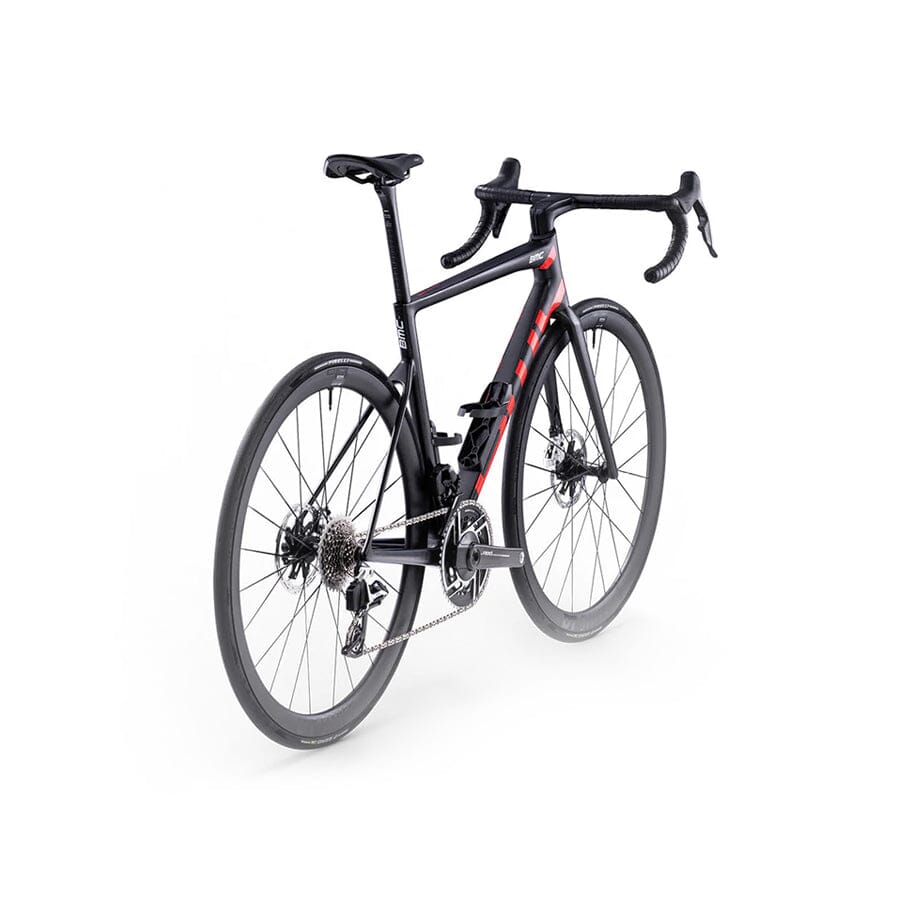

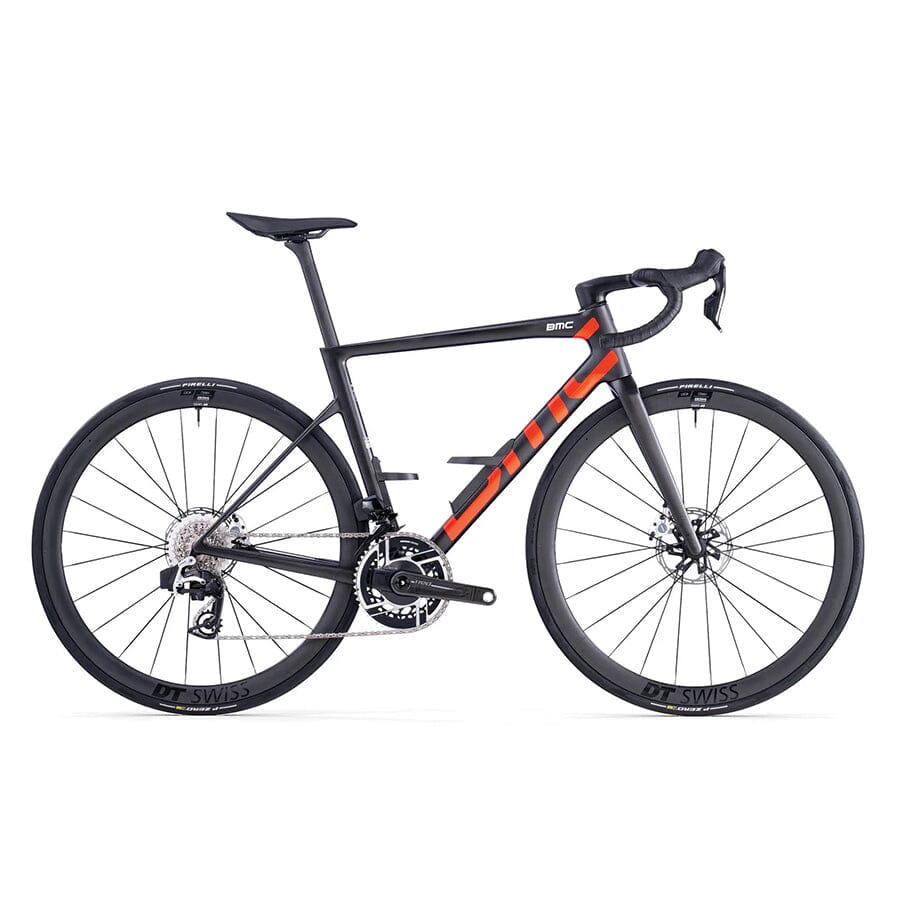

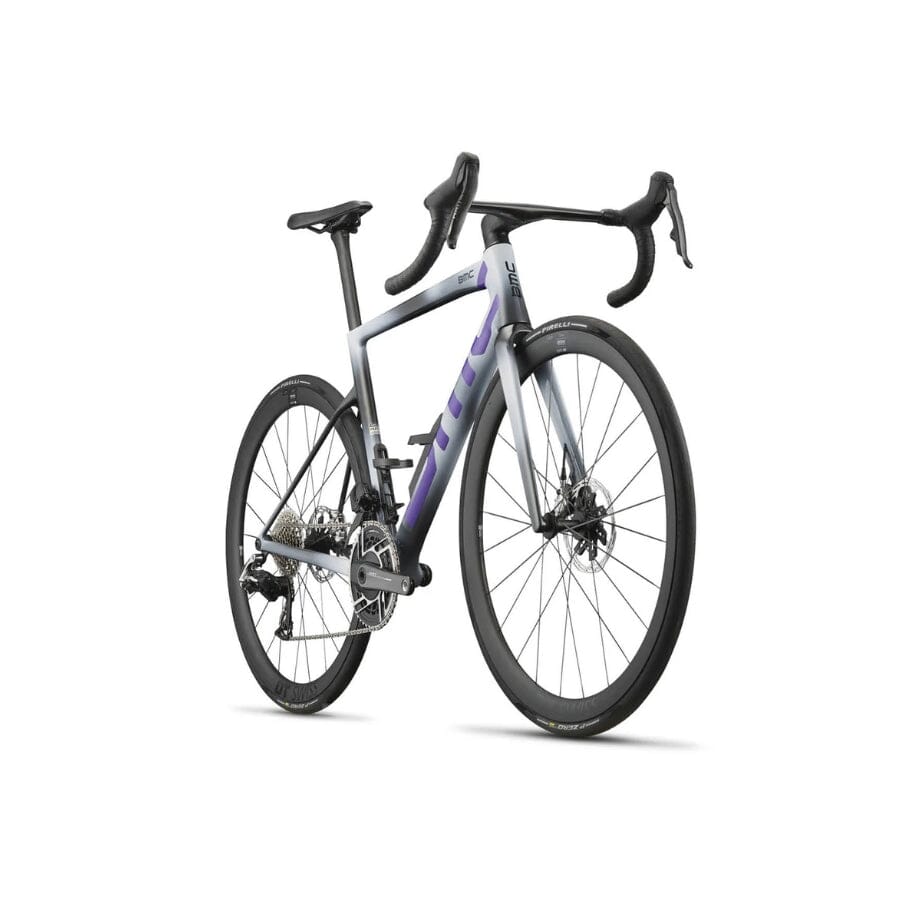

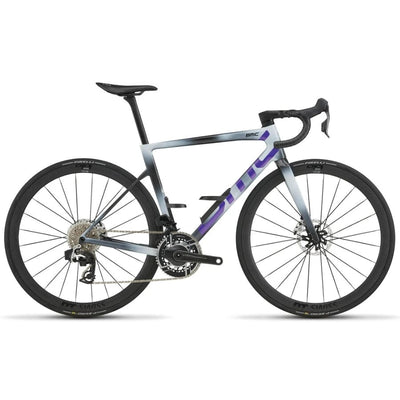

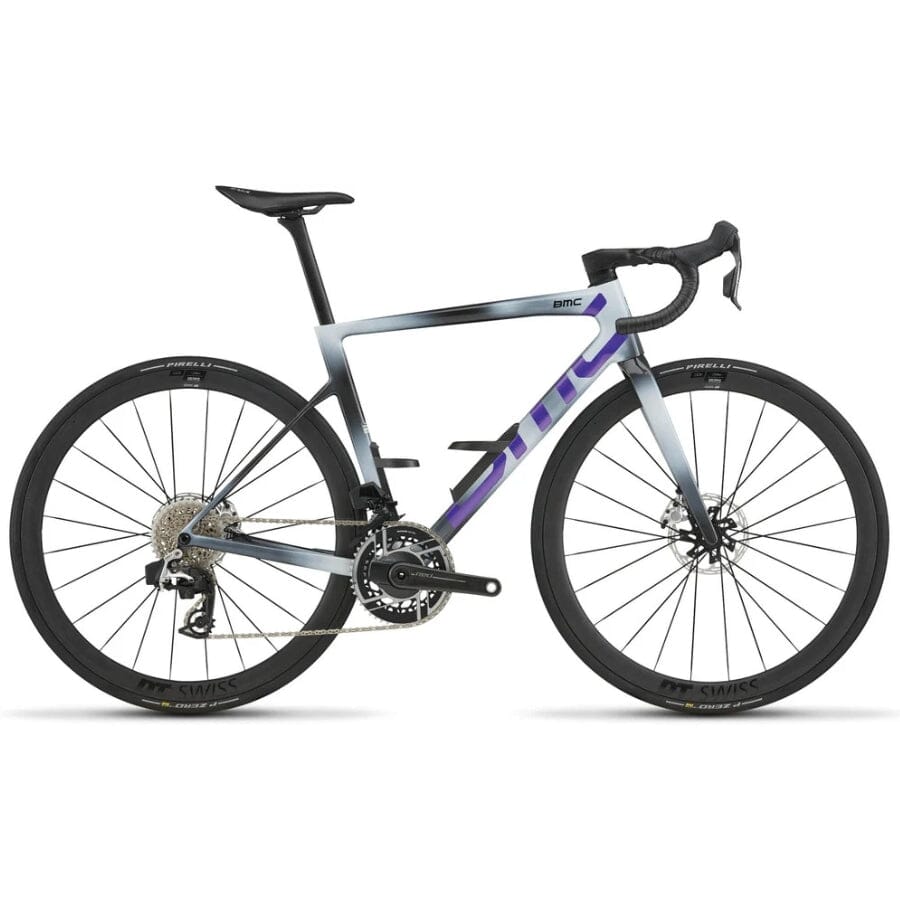

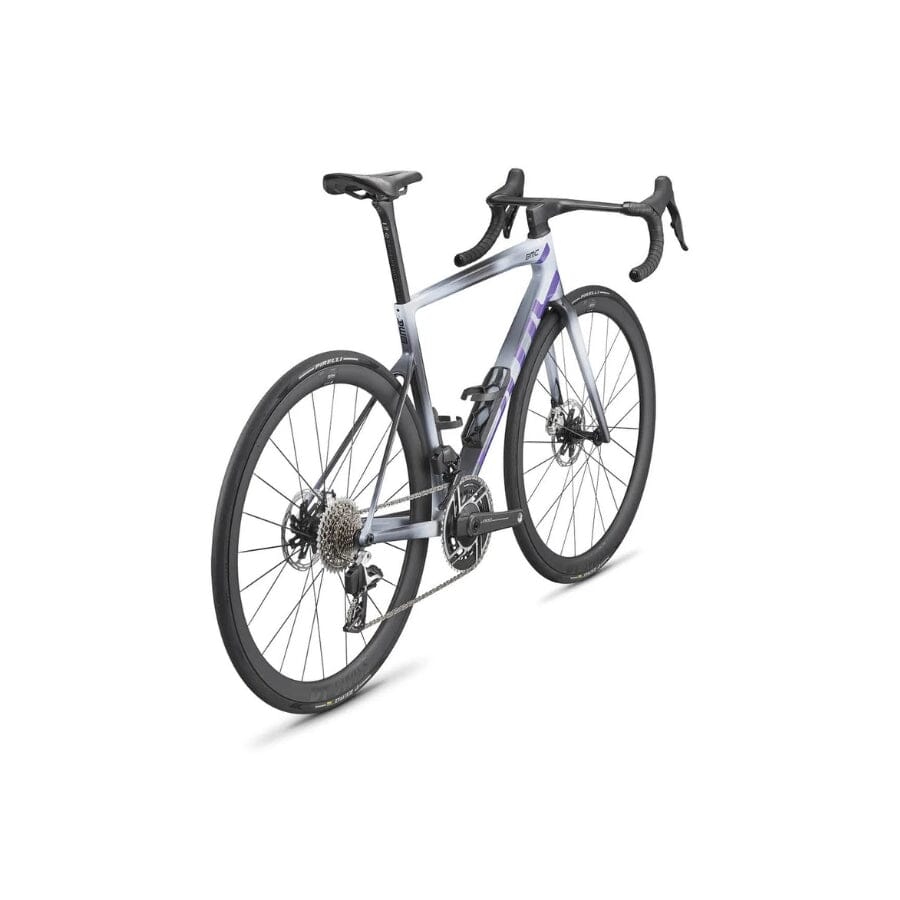

The Teammachine SLR 01 ONE is the lightest road bike in BMC’s lineup, engineered for riders who live to climb. Built on BMC’s fifth-generation 01 Premium Carbon platform, this bike brings together advanced materials, aerodynamic shaping, and pro-level componentry for a ride that excels on steep gradients, winding descents, and punchy sprints.
At 16 percent lighter than the previous generation, the updated SLR 01 frameset features a refined carbon layup, streamlined tube profiles, and reduced paint weight to deliver a total savings of 222 grams without sacrificing stiffness. It maintains the explosive power transfer and responsive handling that the Teammachine is known for.
Aerodynamics were taken directly from the Teammachine R 01, incorporating a reshaped fork, integrated seatpost design, and a more compact frontal area to reduce drag while climbing or descending. Clearance for up to 32mm measured tires gives added versatility across mixed road surfaces, from pristine tarmac to rugged alpine passes.
BMC’s Tuned Compliance Concept (TCC) enhances ride comfort without muting road feedback. The Aero Shape seatpost and one-piece ICS Carbon Evo cockpit help absorb vibration while keeping the front end stiff and responsive for technical control. Internal cable routing ensures clean aesthetics and maximum efficiency.
Highlights:
- 16% Lighter Frame: New carbon layup and paint optimization reduce weight while preserving stiffness
- Aero-Enhanced Design: Features a re-engineered fork, compact frontal profile, and optimized seatpost
- 32mm Tire Clearance: Adds all-road versatility within UCI regulations
- Integrated Cockpit System: ICS Carbon Evo cockpit and full internal routing for clean aesthetics and top performance
Key Features:
- Frame: Teammachine SLR 01 Premium Carbon with Aerocore Design
- Drivetrain: SRAM RED AXS with integrated power meter
- Wheels: DT Swiss ARC 1100 DICUT 38mm carbon wheelset
- Cockpit: ICS Carbon Evo one-piece full carbon handlebar and stem
Specification | Detail |
---|---|
Frame | Teammachine SLR 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle |
Fork | Teammachine SLR 01 Premium Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 | 43mm offset Size 54-61 |
Handlebar | ICS Carbon Evo | One Piece Full Carbon Cockpit | 127mm drop, 70mm reach, 8° flare |
Seatpost | Teammachine SLR 01 Premium Carbon Aero Shaped Seatpost | 10mm Offset |
Saddle | Fizik Argo Vento R1 | 140mm |
Crankset | SRAM RED AXS (FC-RED-P-E1) |
Chainrings | 48-35T |
Power Meter | SRAM Red AXS Power Meter (FC-RED-P-E1) |
Cassette | SRAM RED (CS-XG-1290-E1) |
Cassette Size | 10-33T |
Chain | SRAM RED (CN-RED-E1) |
Front Derailleur | SRAM RED AXS (FD-RED-E-E1) |
Rear Derailleur | SRAM RED AXS (RD-RED-E-E1) |
Shifters | SRAM RED AXS (ED-RED-E1) |
Gears | 2 x 12 |
Bottom Bracket | SRAM Press Fit DUB |
Brake Levers / Calipers | SRAM RED AXS (ED-RED-E1) |
Rotors | SRAM Paceline X | Centerlock |
Rotor Size (F/R) | 160 / 160mm |
Rims | DT Swiss ARC 1100 DICUT | 38mm |
Hubs (F/R) | DT Swiss 180 DICUT | Ratchet EXP 36 |
Tires | Pirelli P Zero Race TLR RS | Tubeless | 26mm |
Tubeless Information | Tubeless Rim | Tubeless Tires |
In the Box | Aerocore Bottle Cages |
Tire Clearance | 32mm |
Weight without Pedals | 6.6kg | Size 54 with all accessories |
ASTM Classification | Level 1 |
System Weight Limit | 110kg |
Size | 47 | 51 | 54 | 56 | 58 | 61 |
---|---|---|---|---|---|---|
Rider Height (cm) | <166 | 166–174 | 172–180 | 178–186 | 184–192 | >190 |
Stack | 506 | 530 | 550 | 565 | 584 | 608 |
Reach | 367 | 377 | 386 | 392 | 401 | 409 |
Seat Tube (st) | 422 | 464 | 491 | 509 | 530 | 555 |
Top Tube (tt’) | 515 | 532 | 552 | 562 | 582 | 598 |
Head Tube (ht) | 108 | 133 | 149 | 165 | 184 | 211 |
Seat Angle ° (sa) | 74° | 74° | 73.5° | 73.5° | 73° | 73° |
Head Angle ° (ha) | 71.5° | 71.5° | 72.3° | 72.3° | 72.3° | 72.30° |
Rear Center (rc) | 410 | 410 | 410 | 410 | 410 | 410 |
Front Center (fc) | 568 | 586 | 589 | 599 | 614 | 630 |
Wheelbase (wb) | 968 | 986 | 989 | 1000 | 1015 | 1030 |
BB Drop (drop) | 69 | 69 | 69 | 69 | 69 | 69 |
Fork Length (fI) | 369 | 369 | 369 | 369 | 369 | 369 |
Fork Rake (fr) | 48 | 48 | 43 | 43 | 43 | 43 |
Trail | 63 | 63 | 63 | 63 | 63 | 63 |
Standover Height (sh) | 717 | 752 | 779 | 797 | 817 | SaRI |
Seatpost Length | 335 | 335 | 385 | 385 | 405 | 405 |
Seatpost Offset | 10 | 10 | 10 | 10 | 10 | 10 |
Seatpost Max Insertion | 130 | 170 | 200 | 220 | 235 | 250 |
