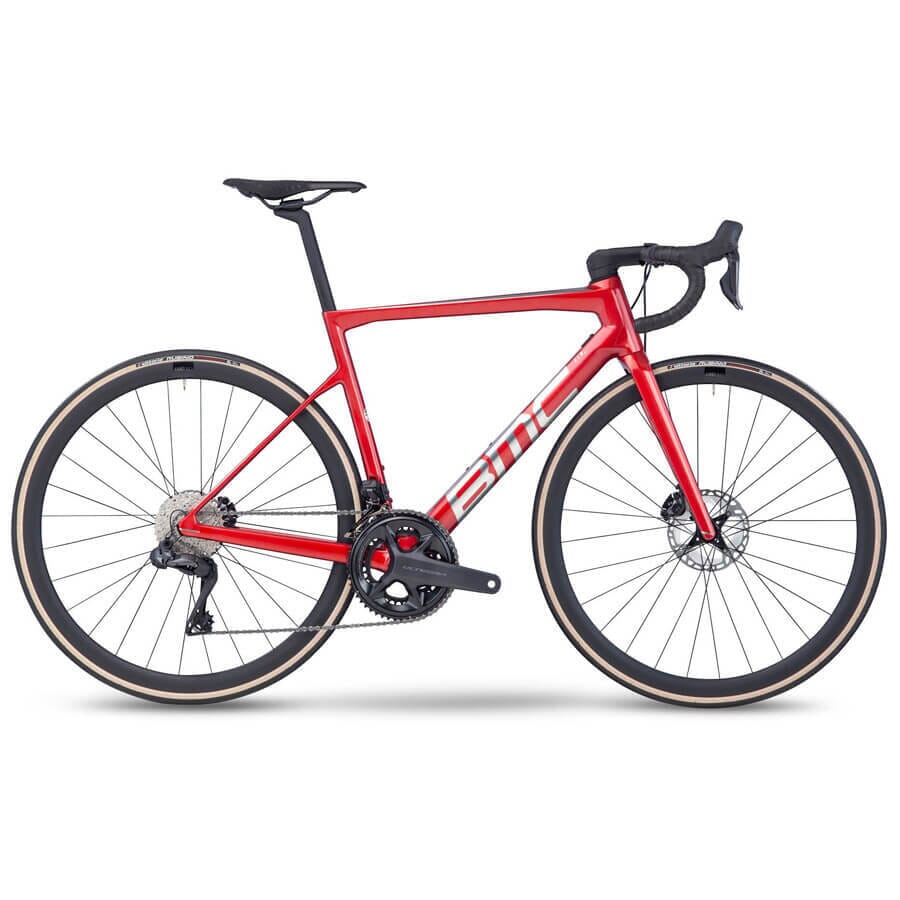

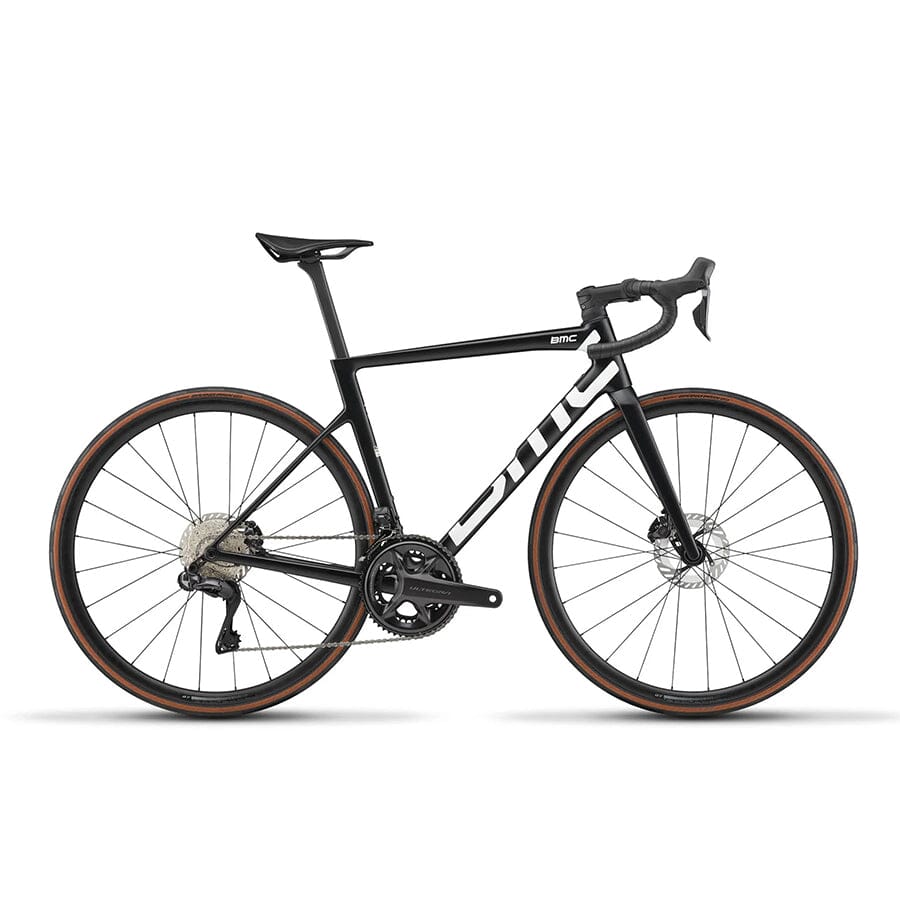

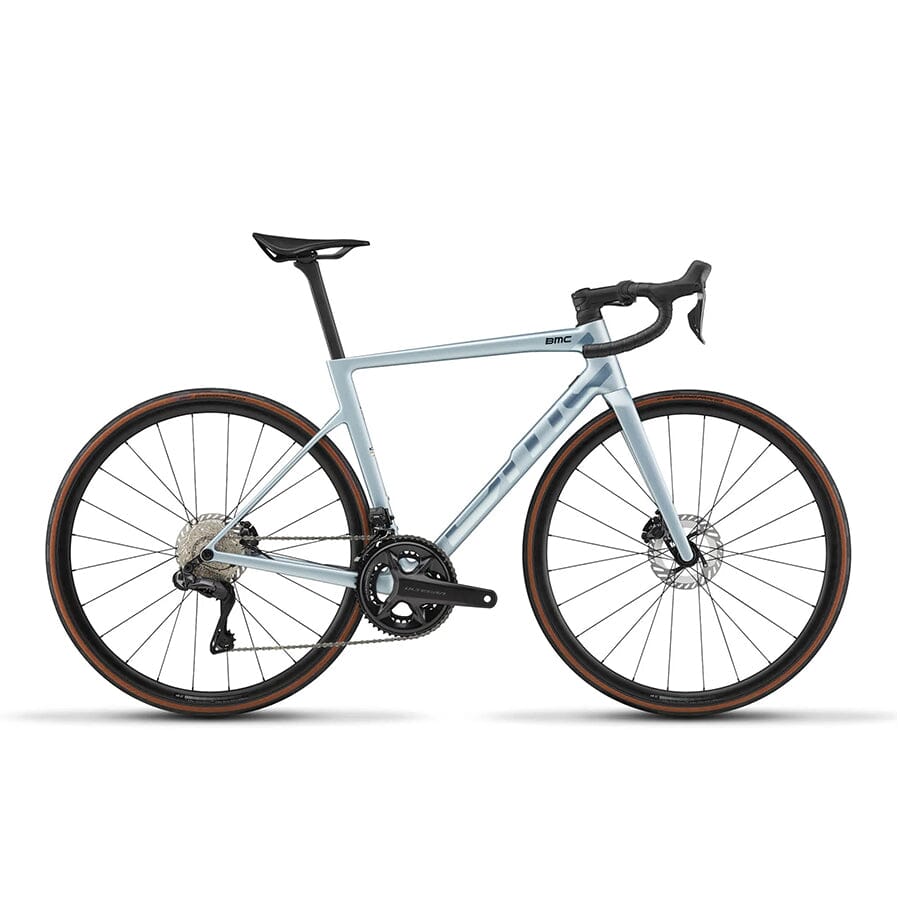

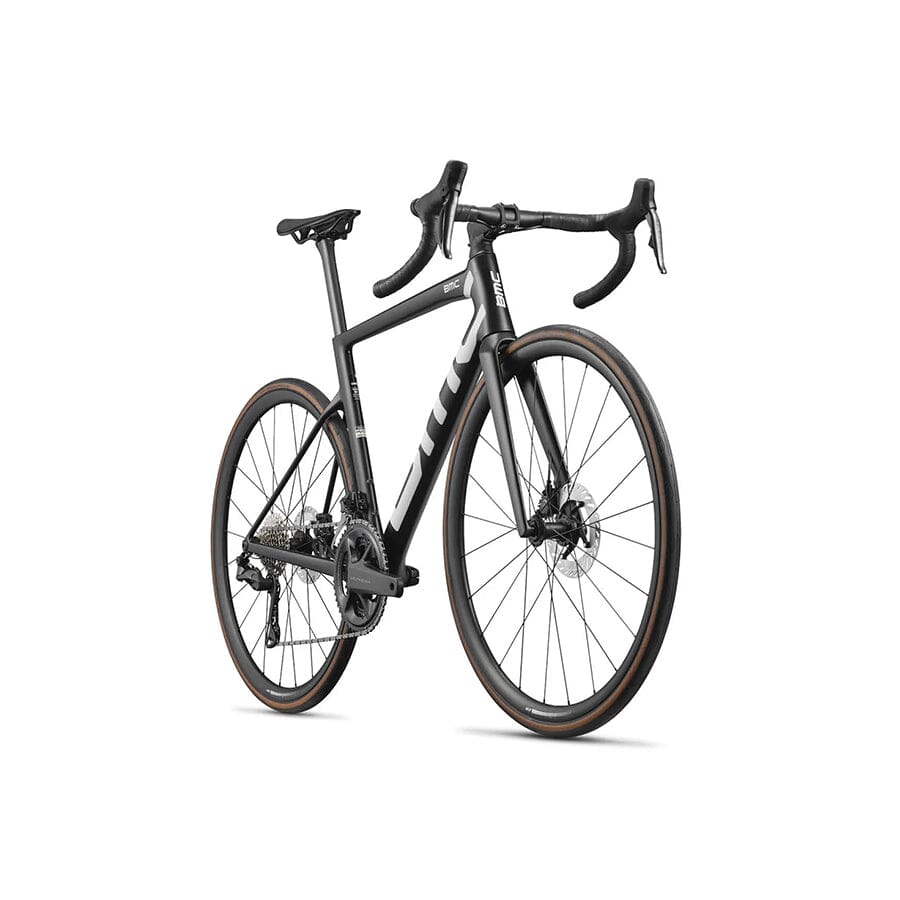

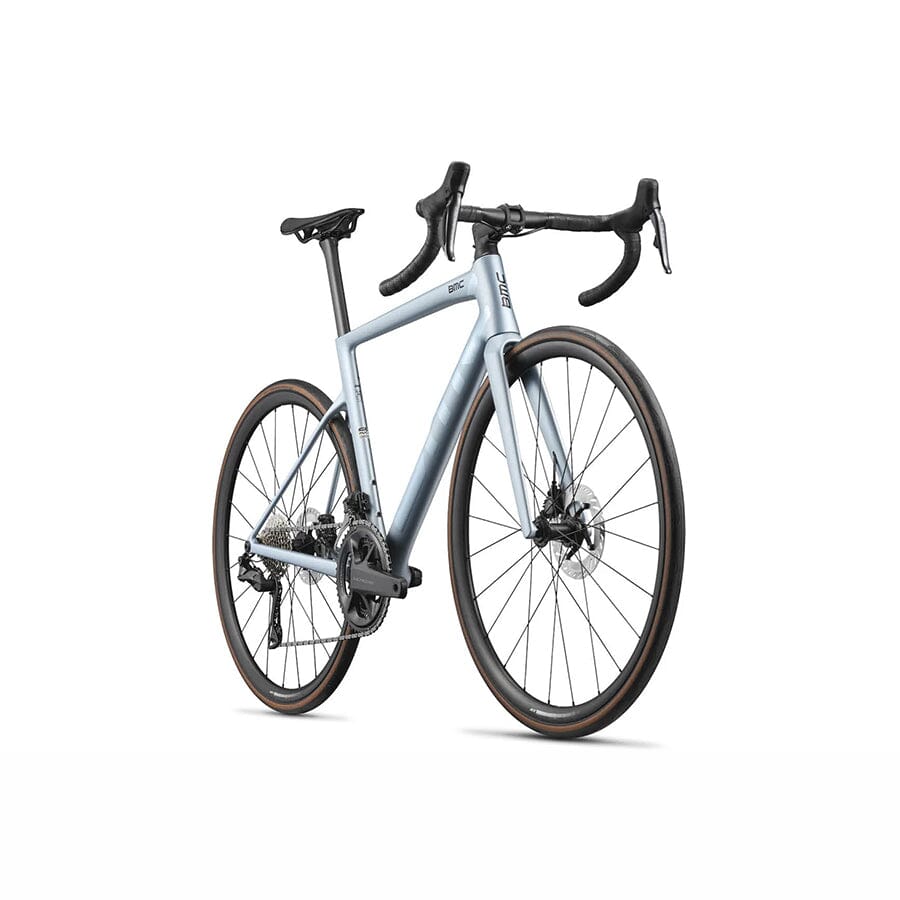

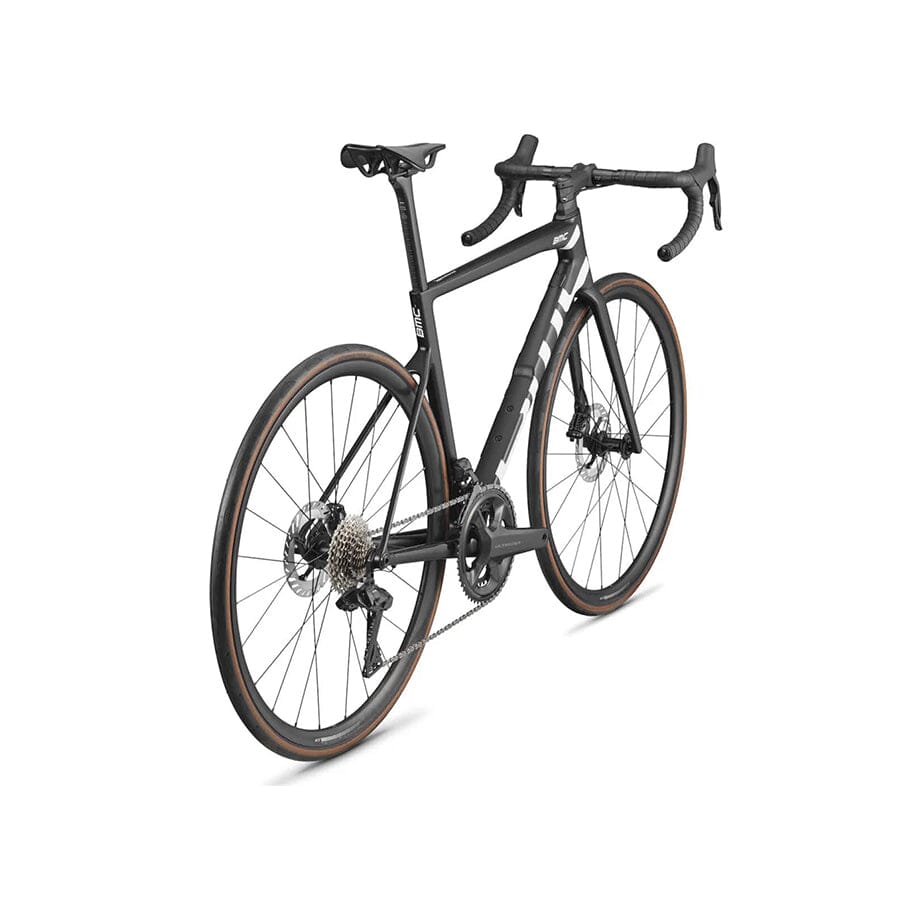

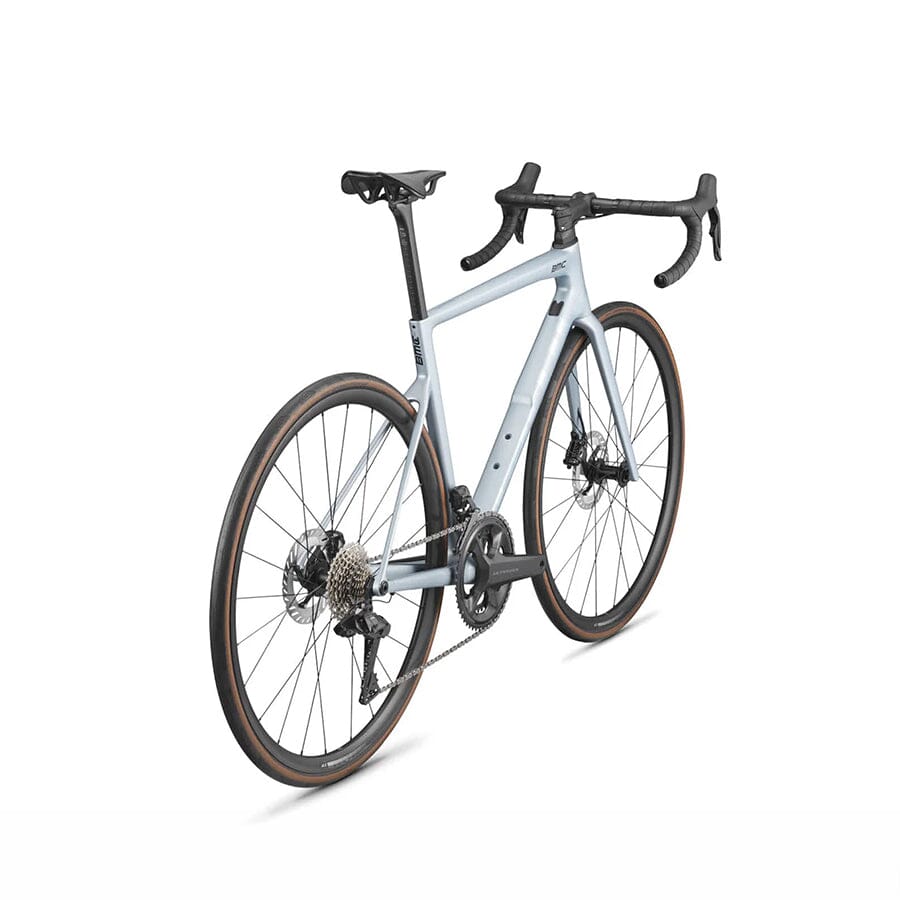

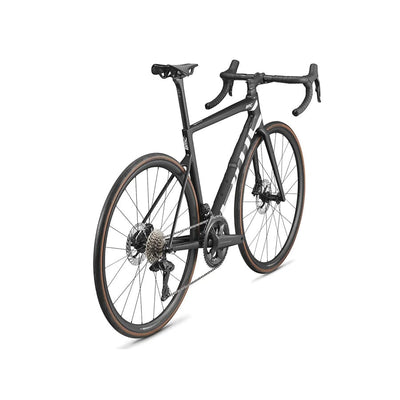

BMC Teammachine SLR ONE

BMC Teammachine SLR ONE
SKU: 210000136612

BMC Teammachine SLR ONE

$5,524.00 $6,499.00
Brand: BMC
Categories: Road Bikes
More Information
Notify Me When Available

Product Description

BMC's Teammachine SLR ONE provides all the performance you expect from a BMC in a widely accessible package. The Teammachine SLR Carbon frame and fork have been designed using TCC Race Technology. The compliance system is designed to optimize power transfer and rolling resistance on every road surface. The carbon layup of the Teammachine Road filters road vibration through the fork and the design of the dropped seatstays to improve efficiency.

 Stealth Dropouts give the frame a sleek look and increased aerodynamics with an axle situated to perfectly fit into the frame using a captive nut. Internal routing further emphasizes this bike's clean look and keeps cables out of the way.

The superb specs include an ICS1 stem, D-Shape carbon seatpost, Shimano’s new Ultegra Di2 12-speed groupset, and 35mm CRD-351 Carbon tubeless ready wheels. So hop on the BMC Teammachine SLR ONE and hit the wide open road!
Key Specifications:
  • Shimano Ultegra Di2 Groupset
  • BMC Teammachine Premium Carbon Frame
  • CRD-351 Carbon Tubeless Wheels
  • Integrated Seatpost hardware and Bottle Cages for Aero Gains

REVIEWS

Specifications

ModelTeammachine SLR ONE
FrameTeammachine SLR Carbon with Aerocore Design, Stealth Dropout Design, TCC Race Compliance Level, PF86 Bottom Bracket, Integrated Seatpost Clamp, Flat Mount Disc, 12x142mm Thru-Axle, Optimized for Aerocore Bottle Cages
ForkTeammachine SLR Carbon, TCC Race Compliance Level, Internal Cable Routing, Flat Mount Disc, Stealth Dropout Design, 12x100mm Thru-Axle, 48mm Offset (Size 47-51), 43mm Offset (Size 54-61)
ChainwheelSHIMANO Ultegra 52-36T
CassetteSHIMANO Ultegra 11-34T
ChainSHIMANO Ultegra
Rear DerailleurSHIMANO Ultegra Di2
ShiftersSHIMANO Ultegra Di2
BrakesSHIMANO Ultegra RT-MT800 Rotors (160/140)
HandlebarBMC RAB 02 Ergo Top Shape Compact Bend
StemBMC ICS1 - Integrated Cockpit Design
SeatpostTeammachine SLR Carbon D-Shaped Seatpost, 15mm Offset
SaddleFizik Antares R7
HubsCRD-351
RimsCRD-351 Carbon Tubeless Ready 35mm
TiresVittoria Rubino 25mm
Tire Clearance30mm (Measured Width)
Weight7.73kg / 17.04lb
Weight Limit110kg / 242lb
ASTM ClassificationLevel 1

Geometry

BMC Roadmachine Geometry Image

SIZE 47 51 54 56 58 61
Rider Height CM 166 166-174 172-180 178-186 184-192 >190
Top Tube MM (tt) 517 534 549 559 574 589
Wheelbase MM (wb) 968 986 989 1000 1015 1030
Seat Angle (sa) 73.5 73.5 73.5 73.5 73.5 73.5
Seatpost Length MM 330 380 380 380 380 380
Stack MM 506 530 550 565 584 608
Trail MM (trail) 63 63 63 63 63 63
Rear Center MM (rc) 410 410 410 410 410 410
Reach MM (reach) 367 377 386 392 401 409
Head Tube MM (ht) 110 130 145 165 184 210
Head Angle (ha) 71.5 71.5 72.3 72.3 72.3 72.3
BB Drop MM (drop) 69 69 69 69 69 69
Stem Length MM 90 90 100 110 110 120
Seat Tube MM (st) 423 468 504 524 545 574
Stem Angle -12.5 -12.5 -12.5 -12.5 -12.5 -12.5
Post Offset MM 15 15 15 15 15 15
Crank Length MM 170 170 172.5 172.5 175 175
Fork Rake MM (fr) 48 48 43 43 43 43
Front Center MM (fc) 568 586 589 599 614 630
Fork Length MM (fl) 368 368 368 368 368 368
Bar Width MM 400 420 420 420 420 440
Bar Reach MM 70 70 70 70 70 70
Bar Drop MM 125 125 125 125 125 125
