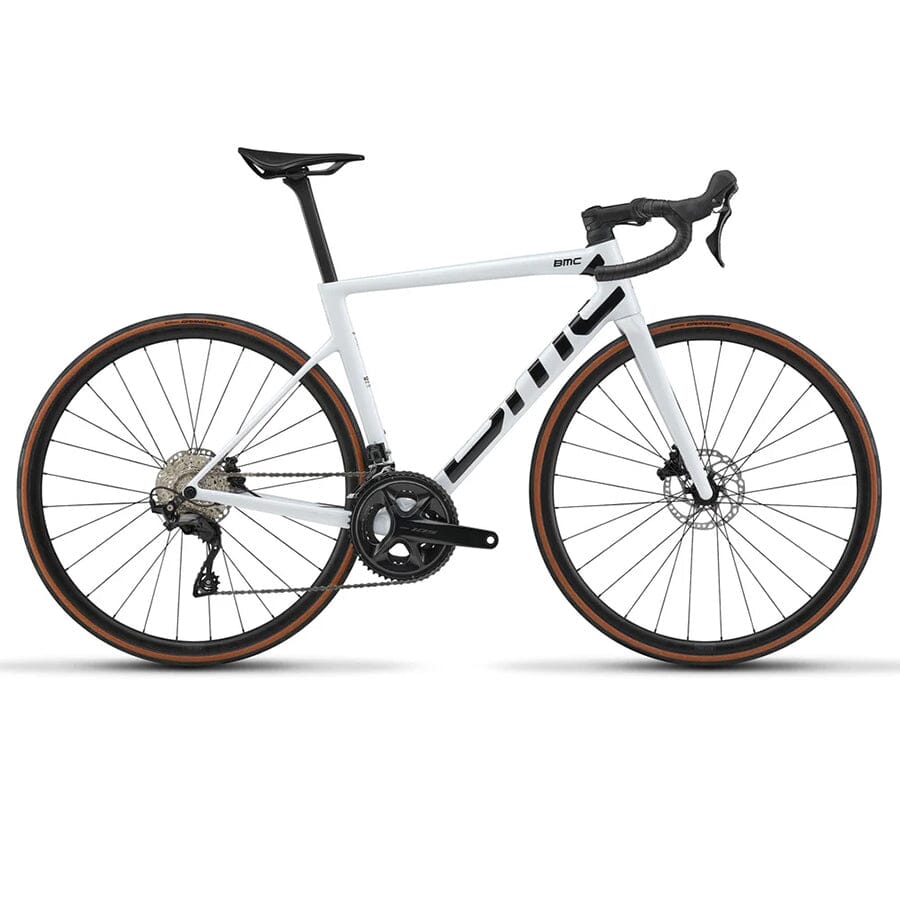

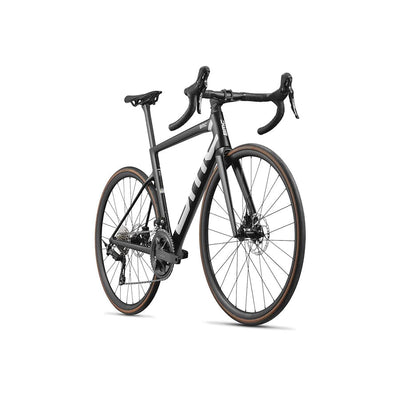

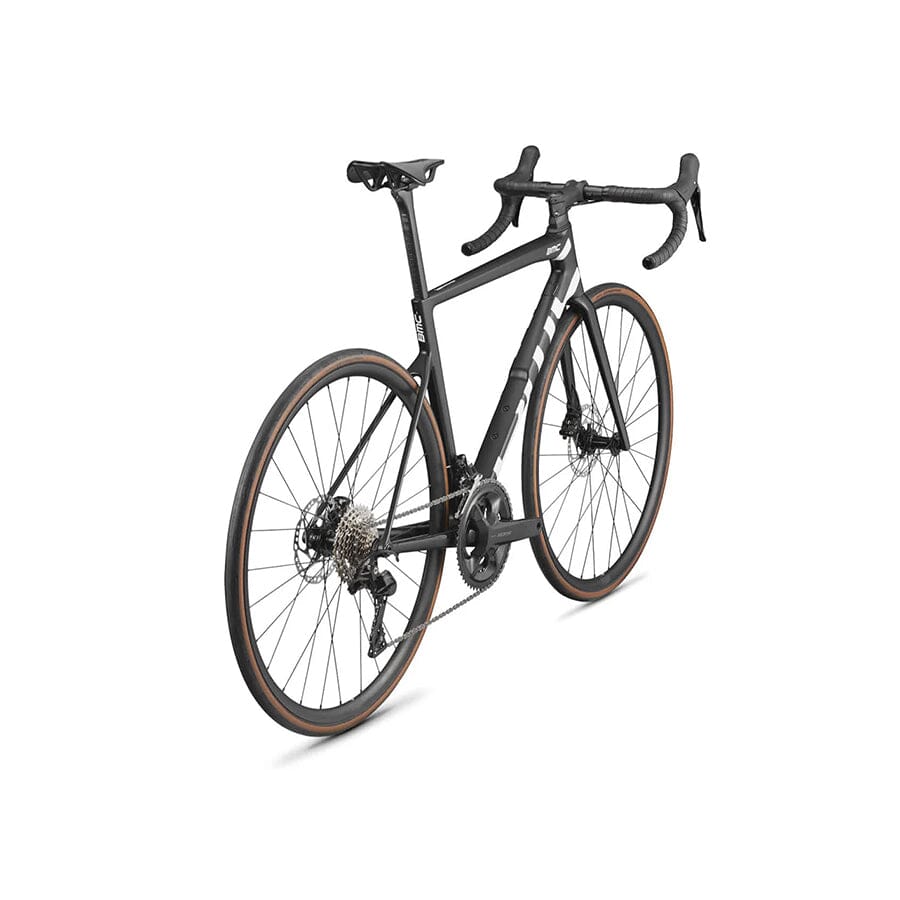

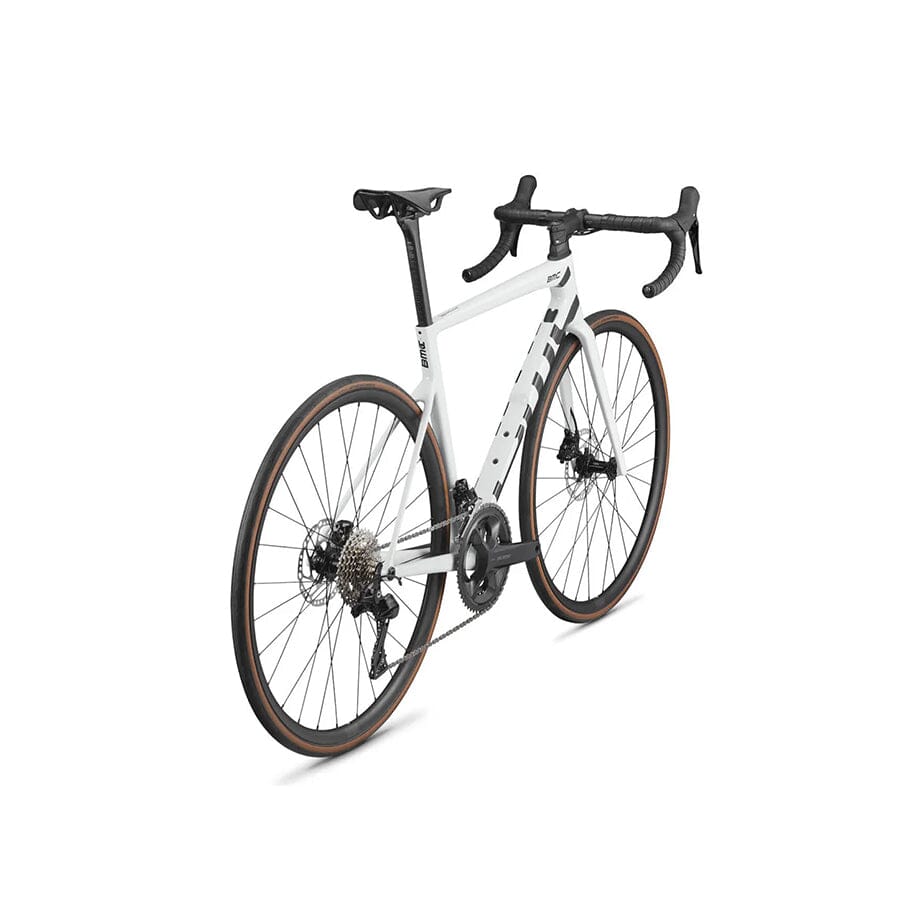

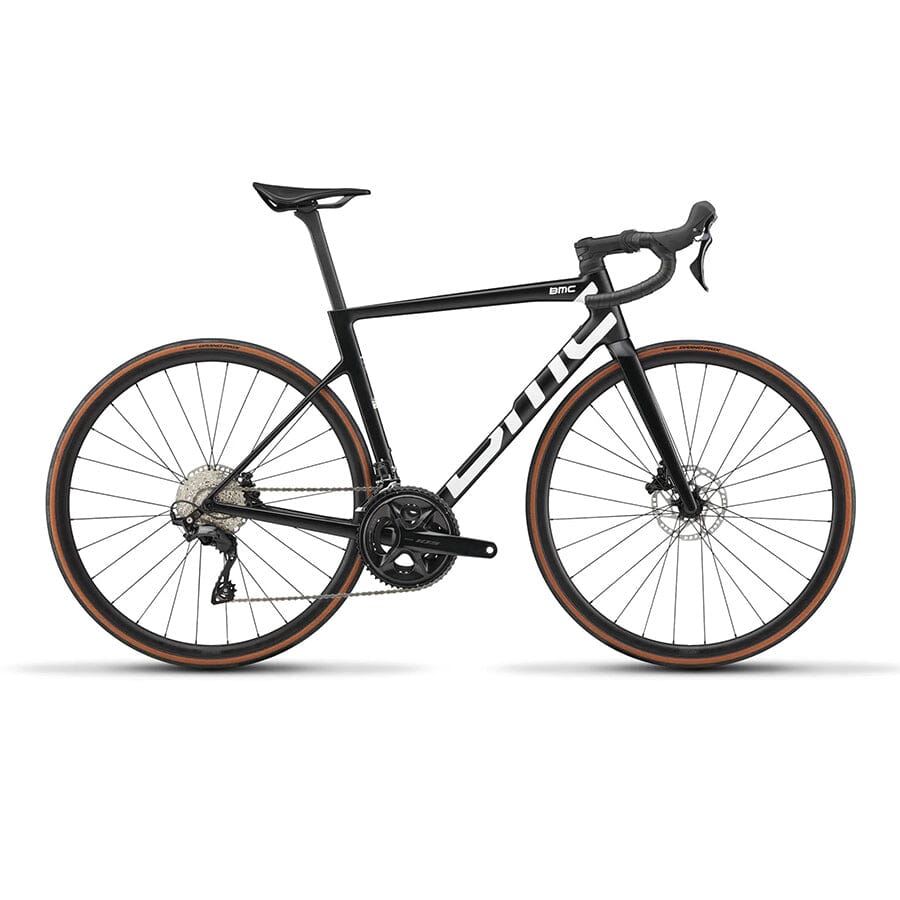

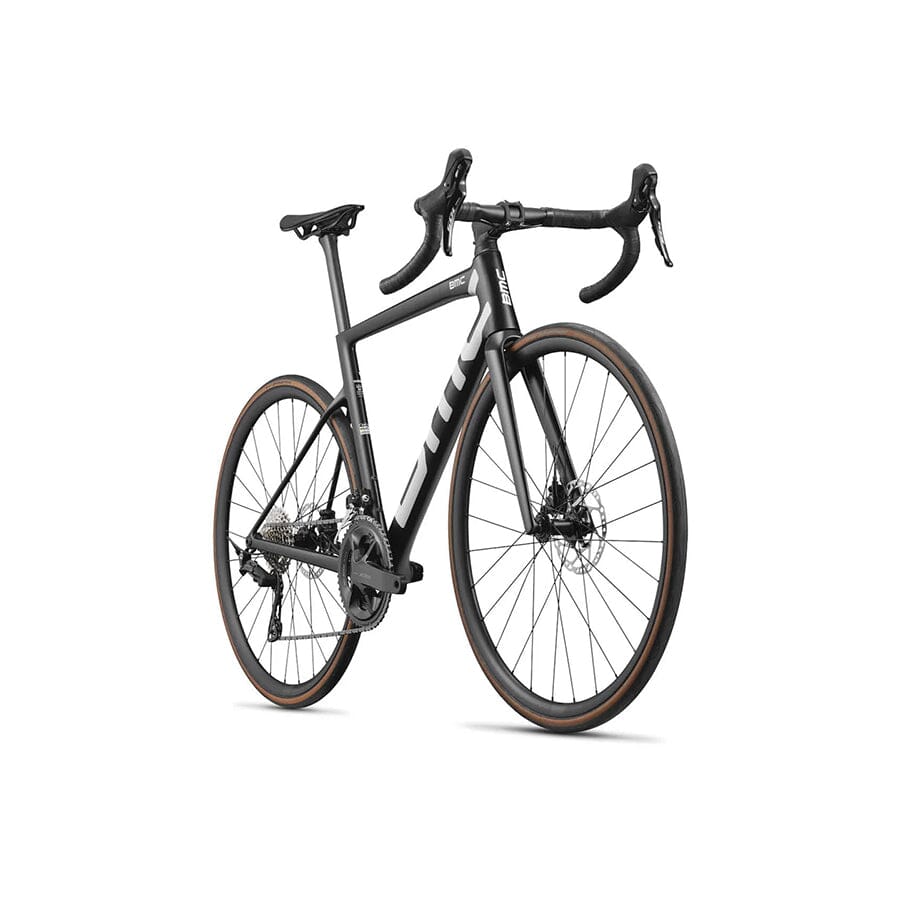

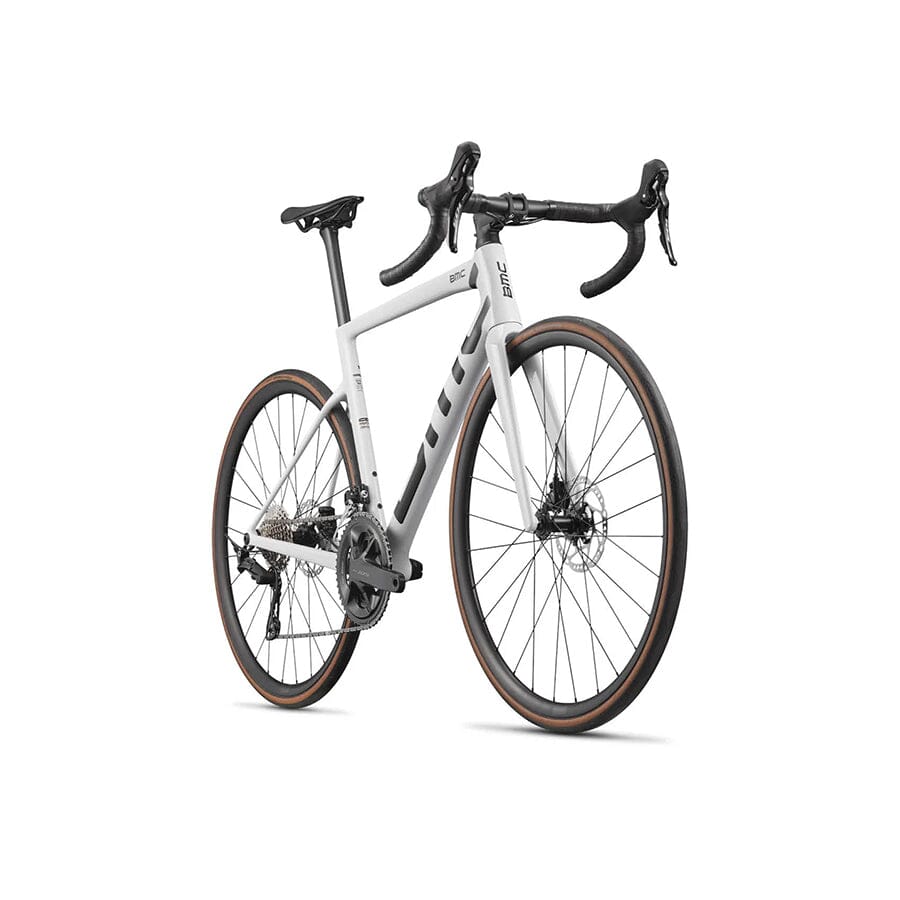

BMC Teammachine SLR THREE
Product Details
The BMC Teammachine SLR THREE is designed to deliver the legendary performance of BMC's flagship climbing platform in a more accessible package. Built on the same Advanced Carbon frame that defines the entire SLR range, this road bike defies gravity with exceptional efficiency, stability, and precision. Refined over more than a decade, the Teammachine SLR continues to set the standard for stiffness-to-weight performance, delivering ultra-efficient power transfer on climbs and responsive handling on descents.

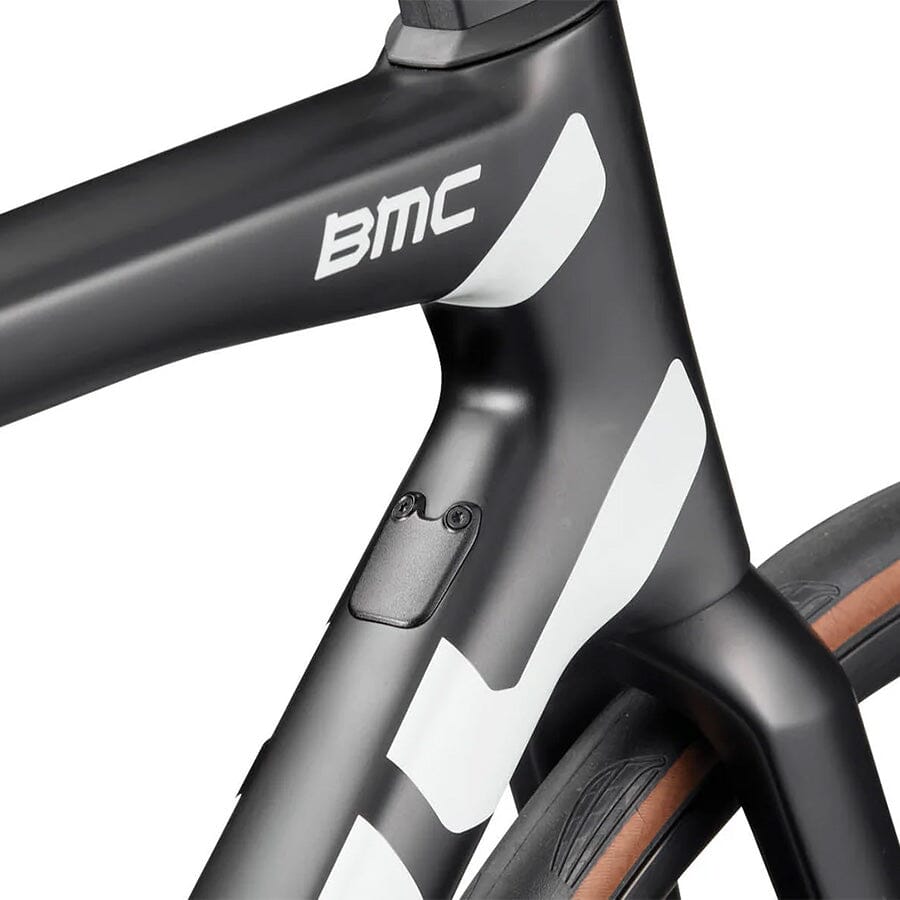

The latest generation of Teammachine SLR introduces full cable integration through BMC's renowned Integrated Cockpit System (ICS), hiding cables from wind and sight to improve both aerodynamics and aesthetics. Developed using BMC's advanced ACE+ technology, the frame optimizes four critical parameters, Stiffness, Weight, Compliance, and Aerodynamics, through thousands of virtual prototypes to achieve the perfect balance of performance for fast riding.

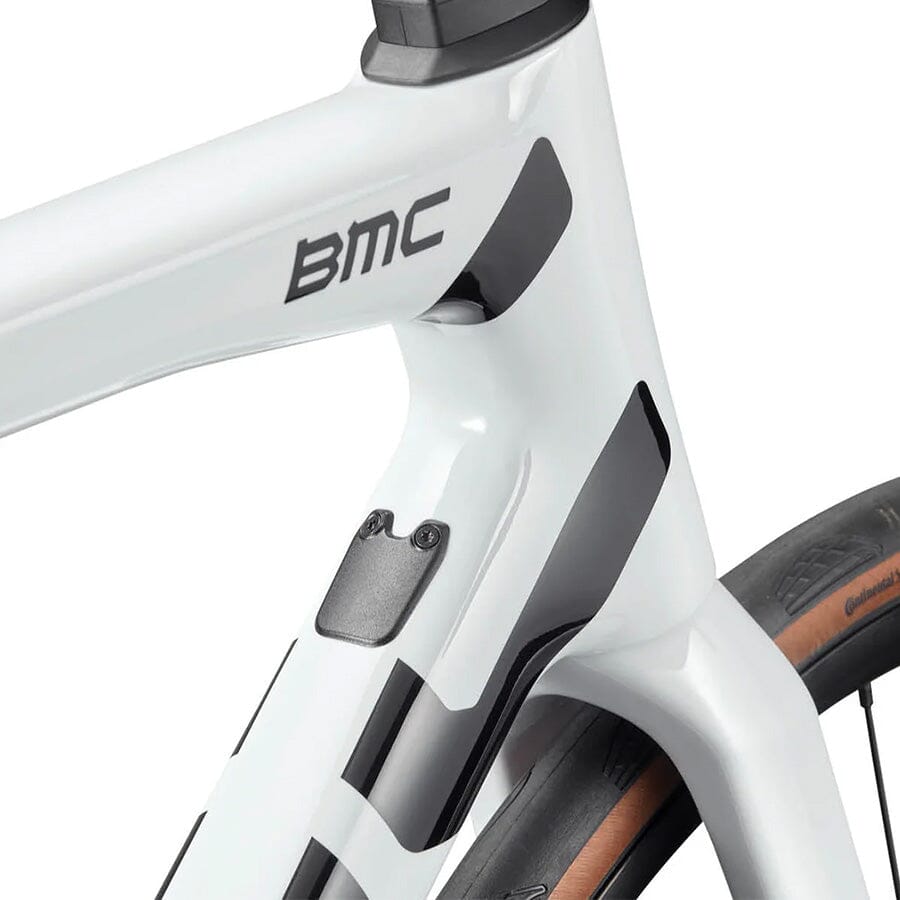

The SLR THREE delivers the same signature BMC ride feel as the high-end SLR 01 series, maintaining consistent stiffness targets across the platform. The Tuned Compliance Concept (TCC) Race construction paired with BMC's signature D-shape carbon seatpost ensures comfort doesn't compromise control, keeping the ride composed on deteriorating surfaces while maintaining precision when it matters most. The Aerocore design with optional bottle cages seamlessly enhances aerodynamic efficiency.
Perfect for riders seeking race-proven performance with the confidence to corner and descend like a pro, the Teammachine SLR THREE features reliable Shimano 105 2x12 shifting, dependable PRD23 wheels with 23mm profile, and BMC's RSM01 stem with alloy handlebars. This is all-round brilliance that keeps focus on the road ahead and the climbs already committed to.
Key Features
- Frame – Teammachine SLR Gen 5 Advanced Carbon with Aerocore Design
- Drivetrain – Shimano 105 2x12
- Wheelset – PRD23 23mm Profile
| Specification | Detail |
|---|---|
| Frame | Teammachine SLR Gen 5 | Advanced Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Full Mount - UDH | TCC Race compliance level | Flat Mount Disc | 12 x 142mm Thru-Axle | Optimized for Aerocore Bottle Cages |
| Fork | Teammachine SLR Gen 5 | Advanced Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset (Size 47-51) | 43mm offset (Size 54-61) |
| Stem | BMC RSM 01 | Integrated Cockpit System Technology |
| Handlebar | BMC HB D4 03, 0, 6 | Alloy 6061 | Race Geometry | 135mm drop, 70mm reach, 6° flare |
| Grips | BMC Tacky 3mm |

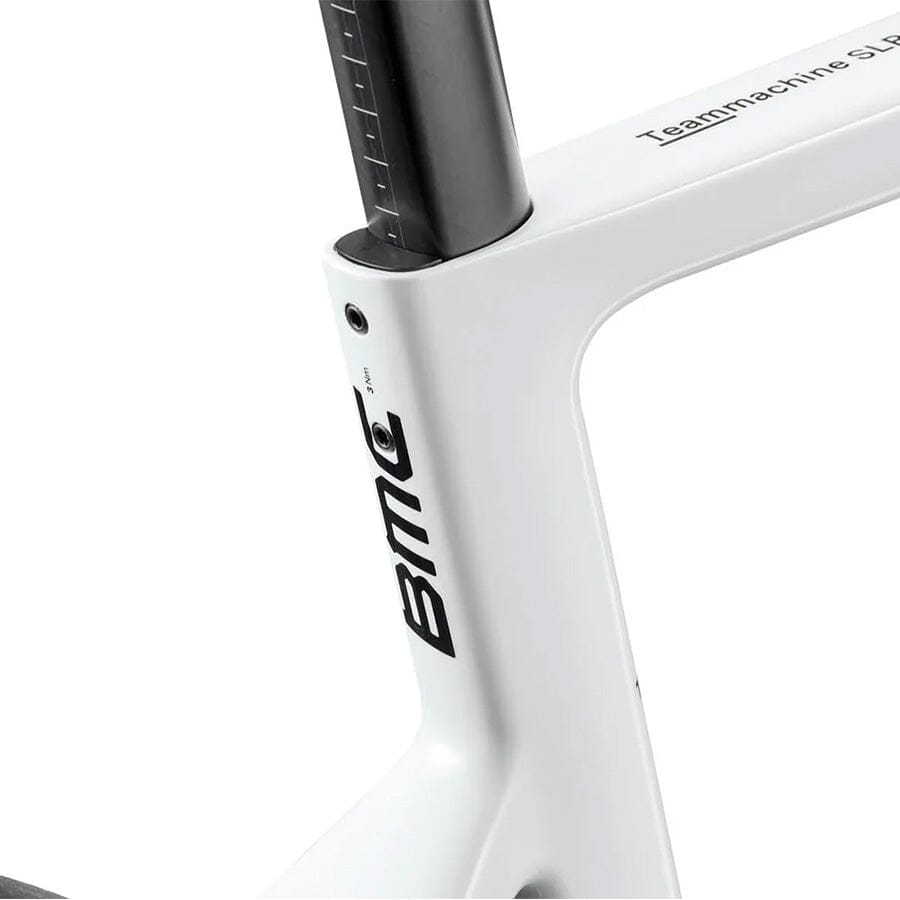

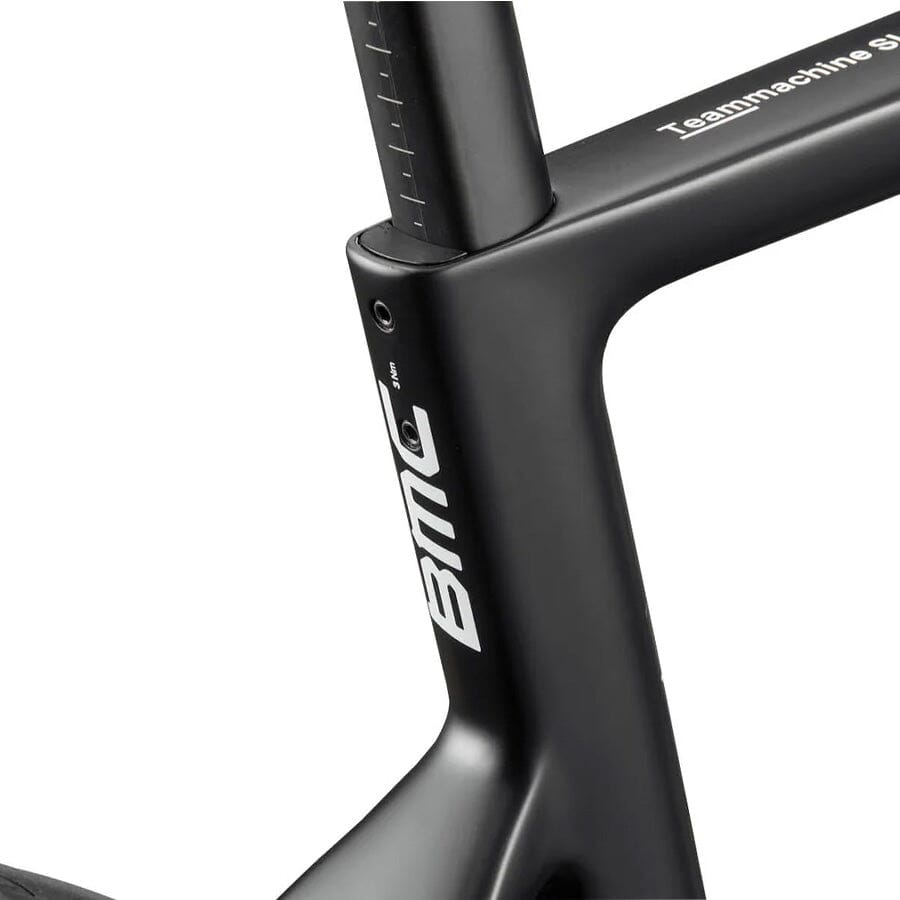

| Seatpost | Teammachine SLR 01 Gen 5 | Advanced Carbon Aero Shaped | 0mm offset (Size 47-51) | 10mm offset (Size 54-61) |
| Saddle | Selle Italia Model X Greentech | FeC Alloy Rail | 145mm |
| Crankset | Shimano 105 (FC-R7100) | 52-36T |
| Cassette | Shimano (CS-HG710) | 11-36T |
| Chain | Shimano CN-M6100 |
| Front Derailleur | Shimano 105 (FD-R7100) |
| Rear Derailleur | Shimano 105 (RD-R7100) |
| Shifters | Shimano 105 (ST-R7120) |
| Gearing | 2 x 12 |
| Bottom Bracket | Shimano Press-Fit Bottom Bracket (BB-RS500-PB) |
| Brakes | Shimano 105 (BR-R7170) |
| Rotors | Shimano SM-RT54 | Centerlock | 160mm front and rear |
| Rims | PRD23 | 23mm |
| Hubs | Shimano HB-TC500-12 & FH-TC500-HL | Center Lock | 28H |
| Tires | Continental Grand Prix | Tube type | 28mm |
| Tubeless Compatibility | Non-Tubeless rims | Tubeless clincher tires |
| Tire Clearance | 32mm measured tire |
| Weight | 8.7kg (Size 54 without pedals) |
| ASTM Classification | Level 1 |
| System Weight Limit | 110kg |
| Measurement | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height (cm) | <166 | 166–174 | 172–180 | 178–186 | 184–192 | >190 |
| Reach (mm) | 367 | 377 | 386 | 392 | 401 | 409 |
| Stack (mm) | 506 | 530 | 550 | 565 | 584 | 608 |
| Bar Drop (mm) | 125 | 125 | 125 | 125 | 125 | 125 |
| Bar Reach (mm) | 80 | 80 | 80 | 80 | 80 | 80 |
| Bar Width (mm) | 390 / 414 | 390 / 414 | 390 / 414 | 410 / 434 | 410 / 434 | 410 / 434 |
| BB Drop (mm) | 69 | 69 | 69 | 69 | 69 | 69 |
| Crank Length (mm) | 165 | 170 | 170 | 170 | 172.5 | 172.5 |
| Fork Length (mm) | 369 | 369 | 369 | 369 | 369 | 369 |
| Fork Rake (mm) | 48 | 48 | 43 | 43 | 43 | 43 |
| Front Center (mm) | 568 | 586 | 589 | 599 | 614 | 630 |
| Head Tube (mm) | 108 | 133 | 149 | 165 | 184 | 211 |
| Head Tube Angle | 71.5° | 71.5° | 72.3° | 72.3° | 72.3° | 72.3° |
| Rear Center (mm) | 410 | 410 | 410 | 410 | 410 | 410 |
| Seat Angle | 74° | 74° | 73.5° | 73.5° | 73° | 73° |
| Seat Tube (mm) | 422 | 464 | 491 | 509 | 530 | 555 |
| Seatpost Length (mm) | 335 | 335 | 385 | 385 | 405 | 405 |
| Seatpost Offset (mm) | 0 | 0 | 10 | 10 | 10 | 10 |
| Standover Height (mm) | 717 | 752 | 779 | 797 | 817 | 843 |
| Stem Angle | -8° | -8° | -8° | -8° | -8° | -8° |
| Stem Length (mm) | 70 | 90 | 90 | 100 | 110 | 110 |
| Top Tube (mm) | 515 | 532 | 552 | 562 | 582 | 598 |
| Trail (mm) | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase (mm) | 968 | 986 | 989 | 1000 | 1015 | 1030 |
