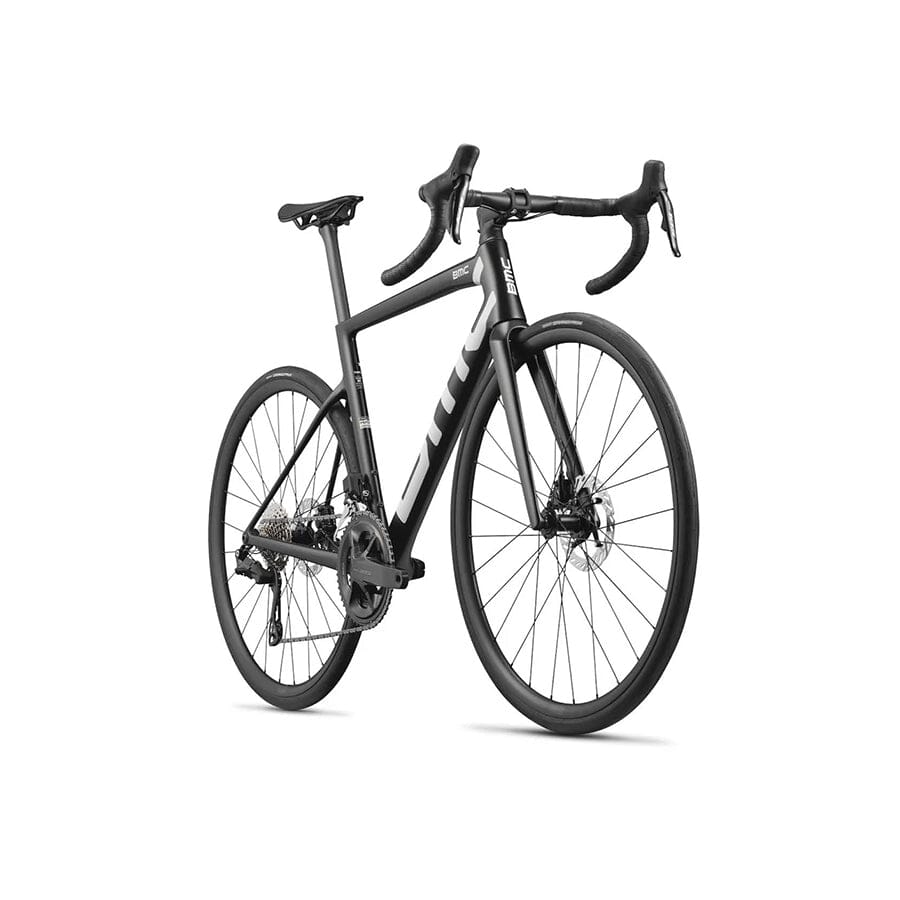

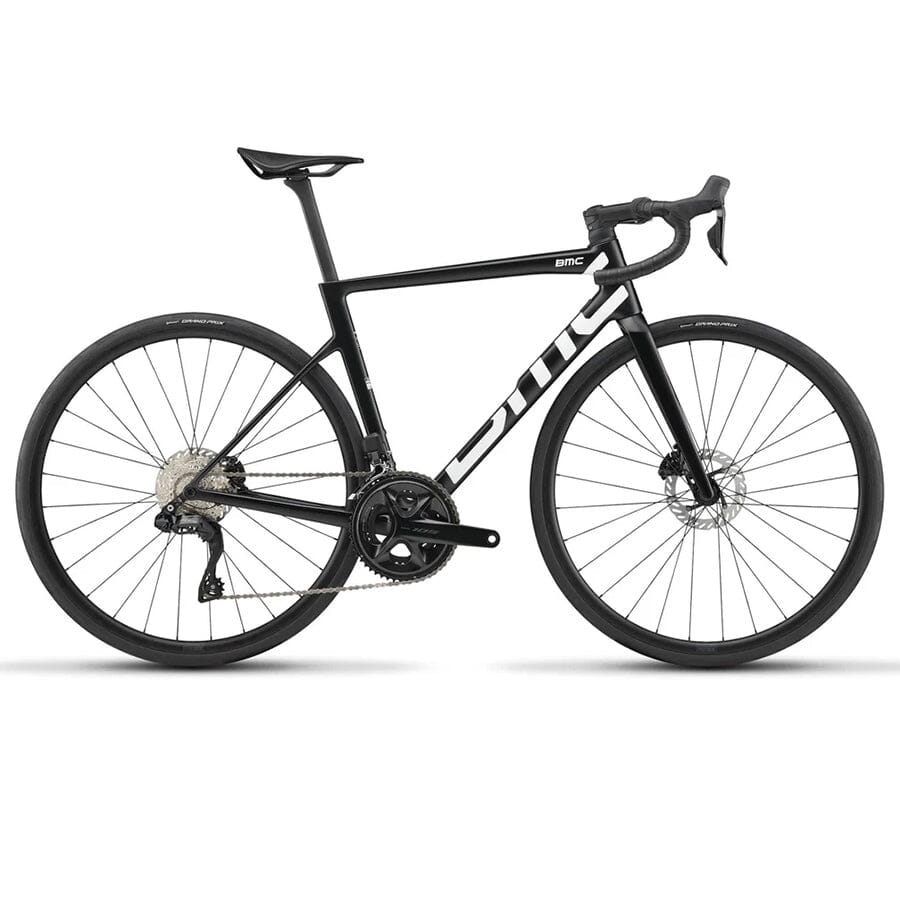

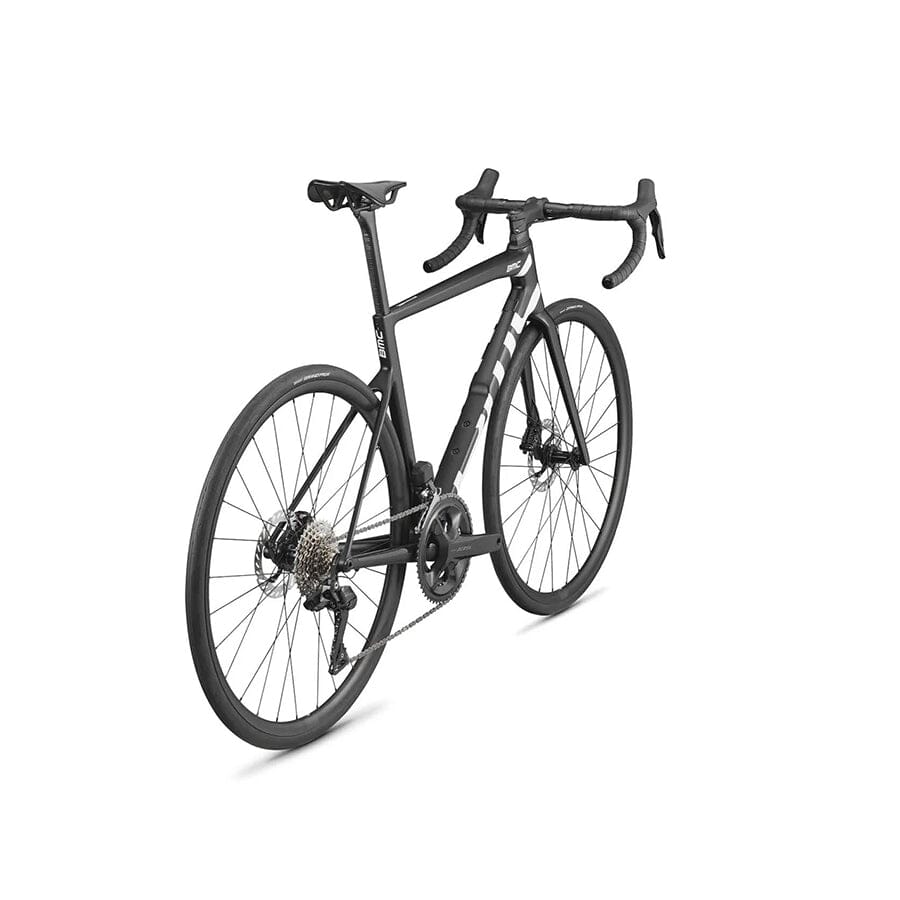

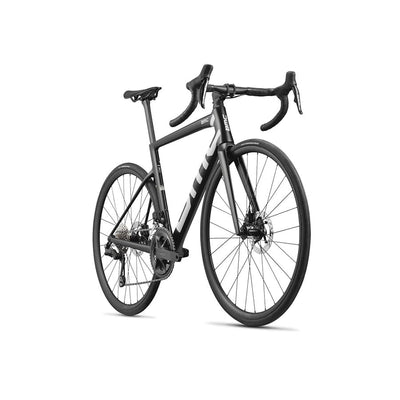

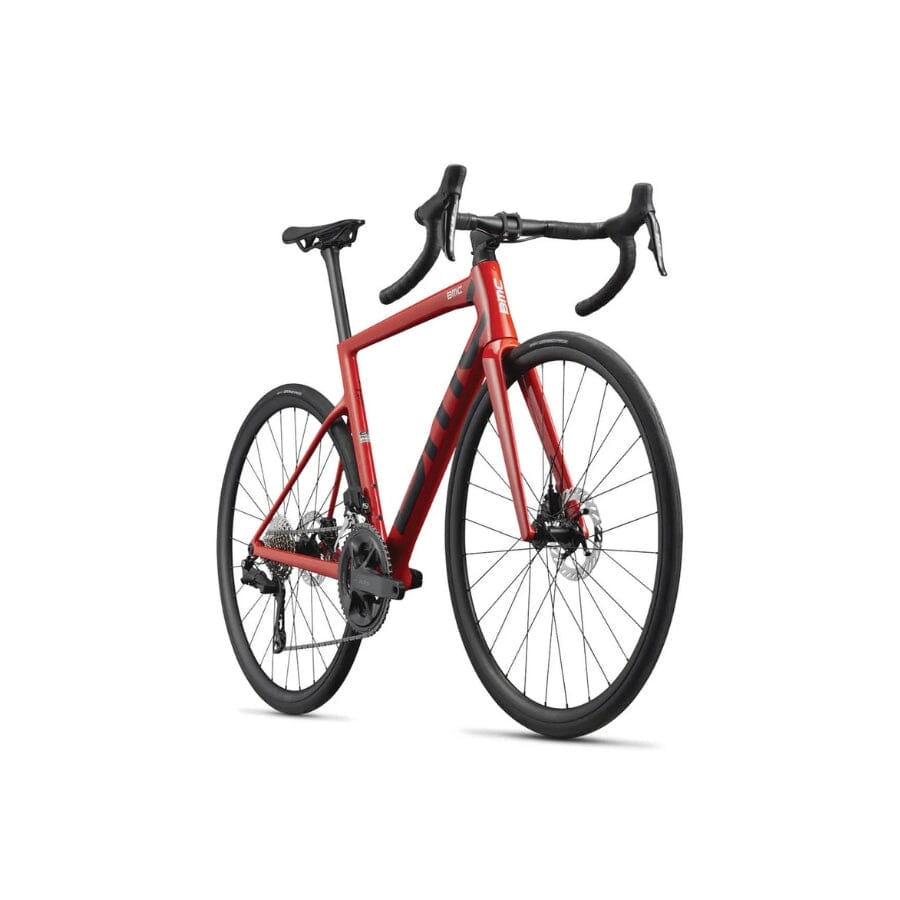

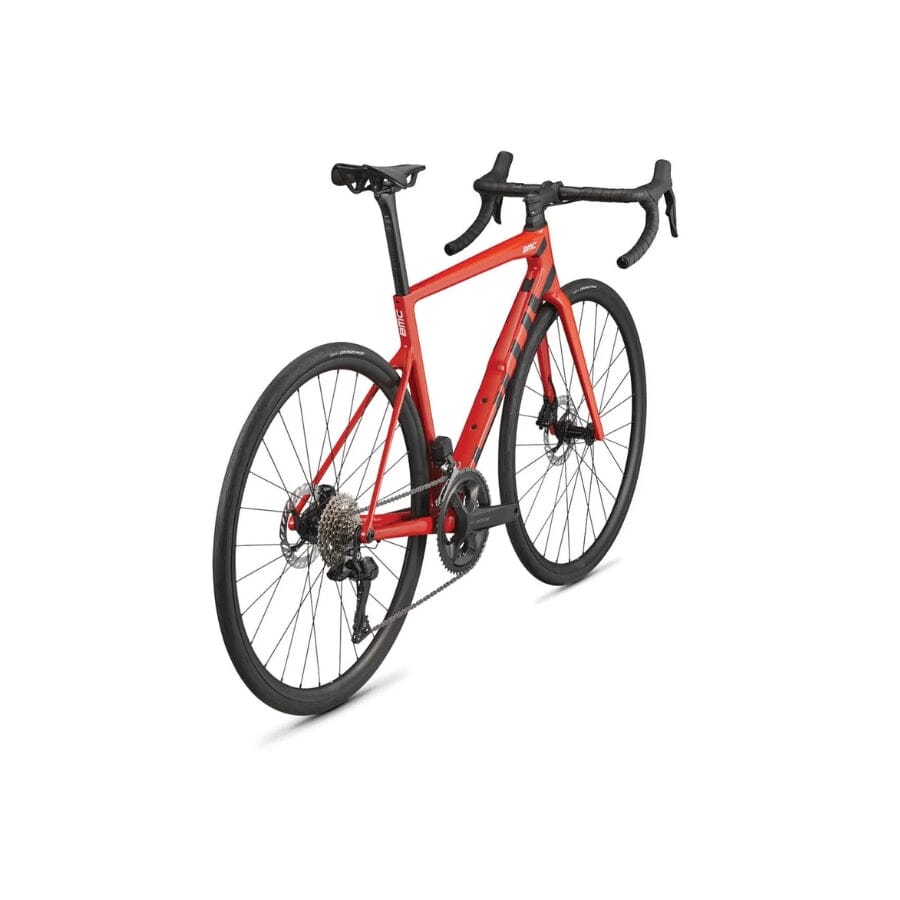

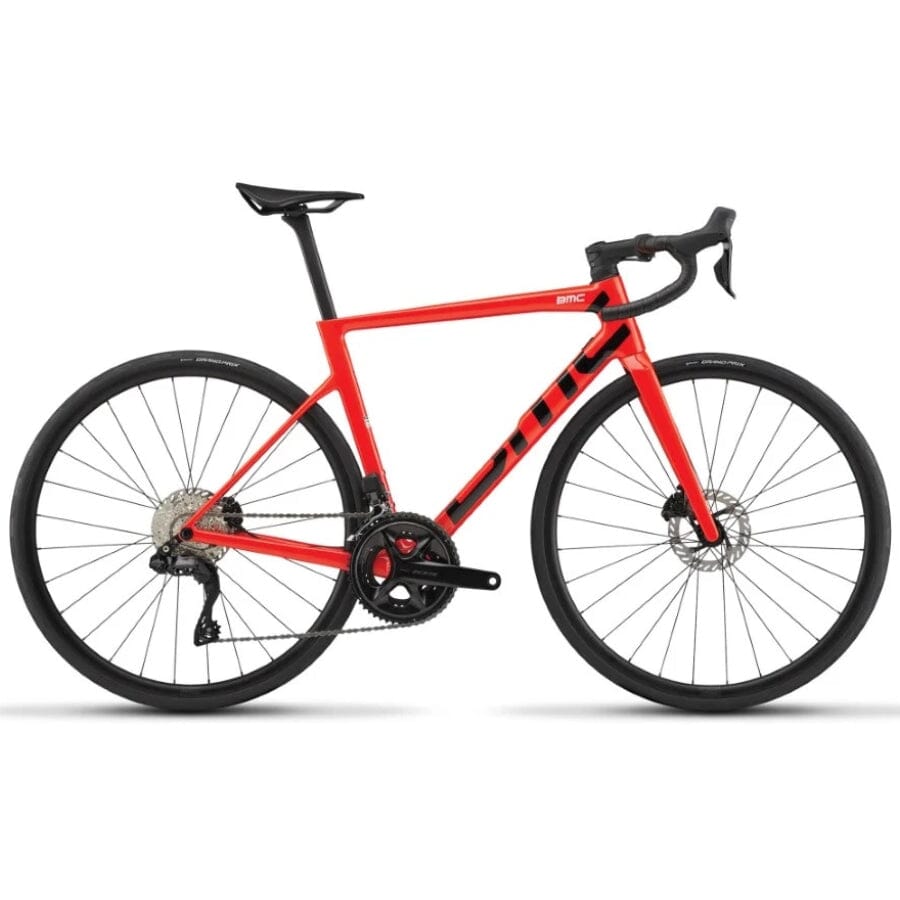

BMC Teammachine SLR TWO
Product Description

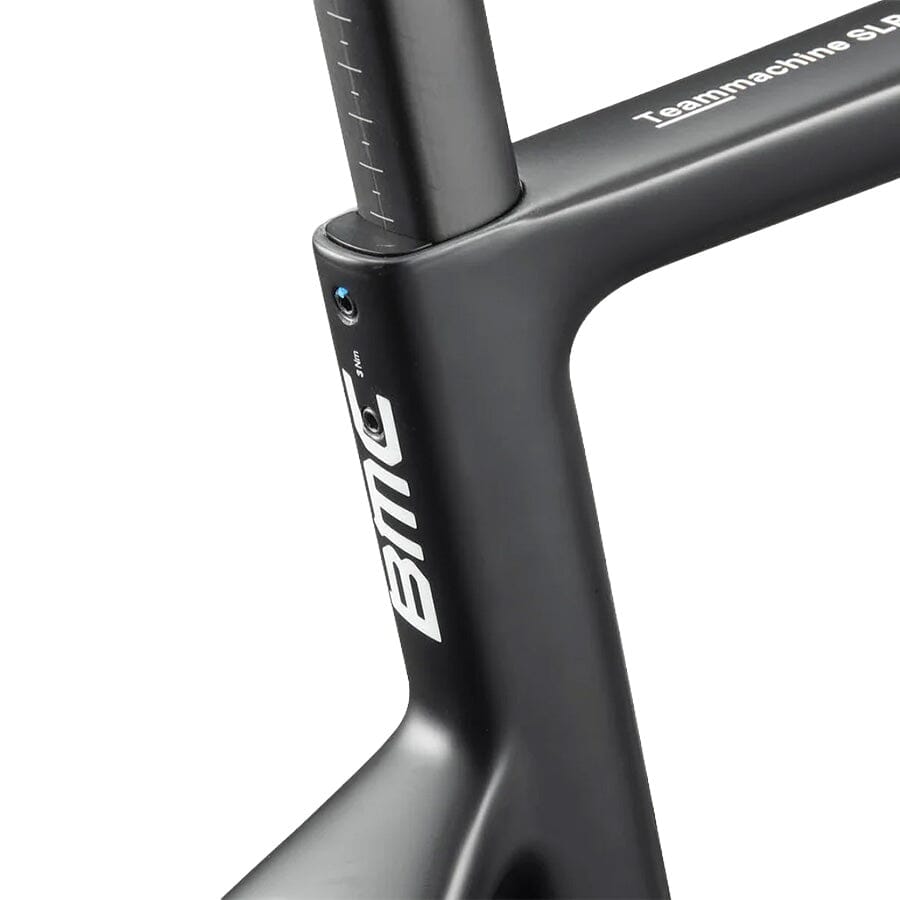

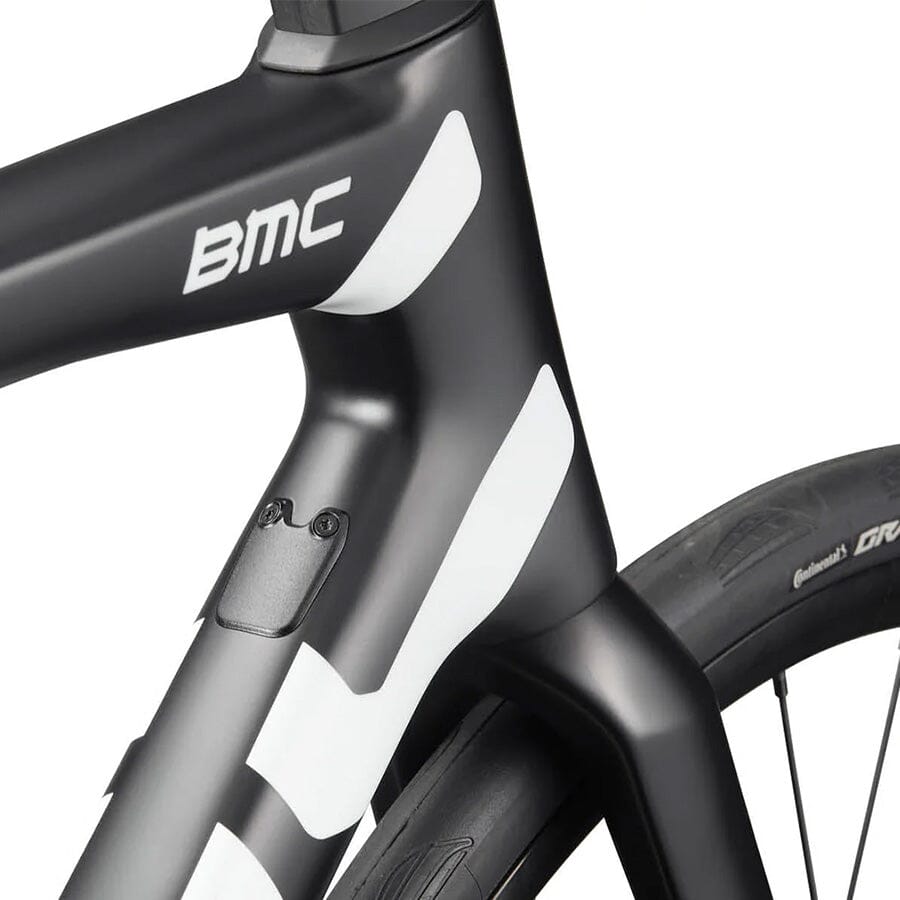

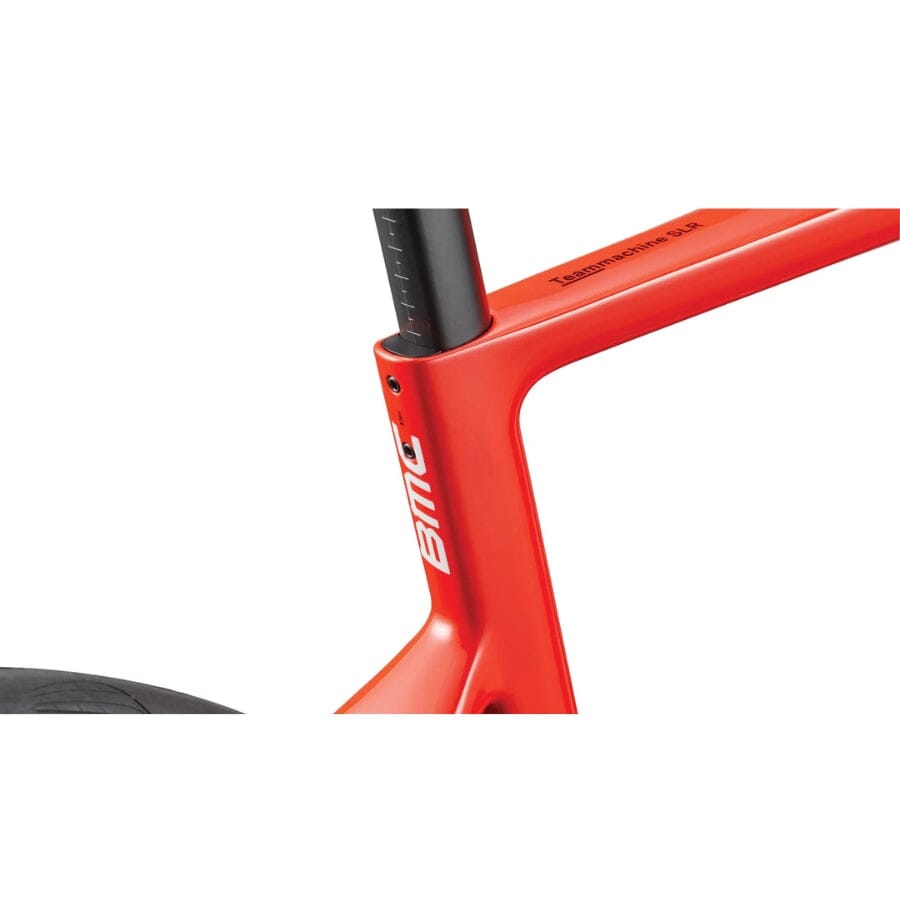

BMC's Teammachine SLR TWO provides all the performance you expect from a BMC in a widely accessible package. The Teammachine SLR Carbon frame and fork have been designed using TCC Race Technology. The compliance system is designed to optimize power transfer and rolling resistance on every road surface. The carbon layup of the Teammachine Road filters road vibration through the fork and the design of the dropped seatstays to improve efficiency.

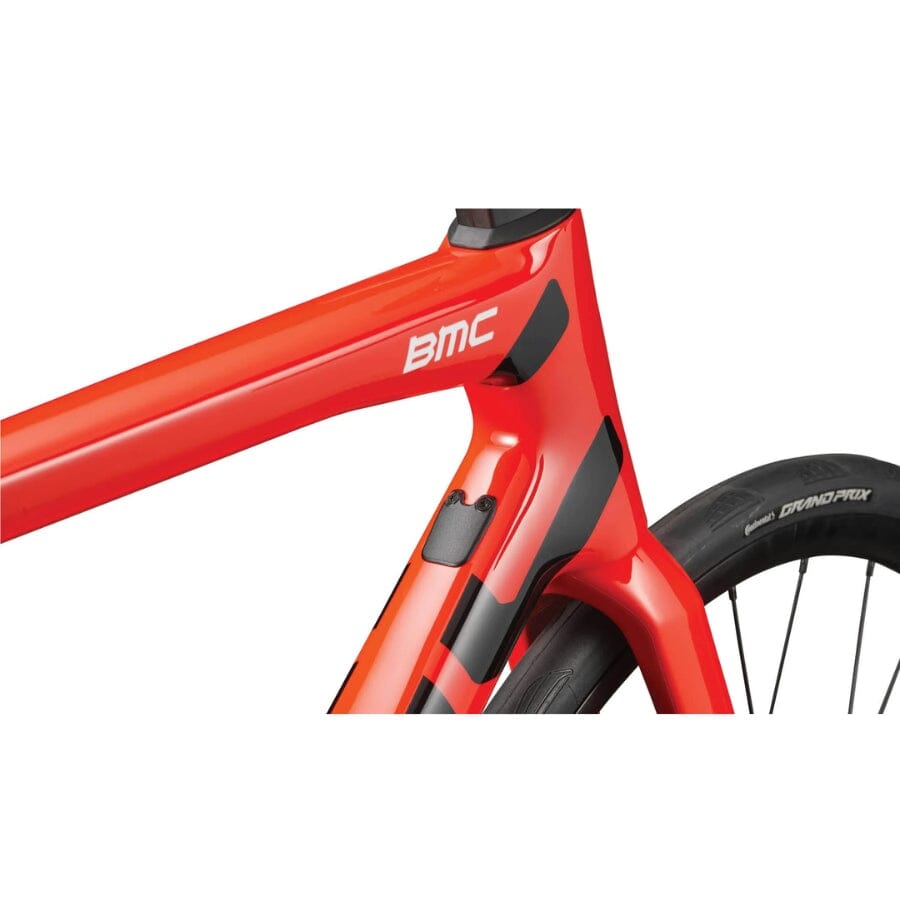

Stealth Dropouts give the frame a sleek look and increased aerodynamics with an axle situated to perfectly fit into the frame using a captive nut. Internal routing further emphasizes this bike's clean look and keeps cables out of the way.
BMC adds a integrated bottle cage and mount to preserve all the aerodynamics they can for your fast descents. Nothing was overlooked making this bike the fastest it can be. Now it is time to see if you can keep up.
- Sram Force AXS
- DT Swiss Tubeless wheelset
- Sram Force Carbon Crankset
- Teammachine Premium Carbon Frameset
REVIEWS (1)
Customer Reviews
Specifications
| FRAME | Teammachine SLR Carbon with Aerocore Design / Stealth Dropout Design / TCC Race Compliance Level / PF86 Bottom Bracket / Flat Mount Disc / 12x142mm Thru-Axle / Optimized for Aerocore Bottle Cages |
| FORK | Teammachine SLR Carbon / TCC Race Compliance Level / Internal Cable Routing / Flat Mount Disc / Stealth Dropout Design / 12x100mm Thru-Axle |
| GEARS | 2x12 |
| CHAINWHEEL | SRAM FORCE AXS 48-35T |
| CASSETTE | SRAM FORCE XG-1270 10-33T |
| CHAIN | SRAM FORCE 12 Speed |
| REAR DERAILLEUR | SRAM FORCE eTap AXS |
| FRONT DERAILLEUR | SRAM FORCE eTap AXS |
| SHIFTERS | SRAM FORCE eTap AXS HRD |
| BRAKES | SRAM FORCE eTap AXS HRD / Centerline XR Rotors (160/160) |
| HANDLEBAR | BMC RAB 02 / Ergo Top Shape / Compact Bend |
| STEM | BMC RSM01 |
| SEATPOST | Teammachine SLR Carbon D-Shaped Seatpost / 15mm Offset |
| SADDLE | Fizik Antares R7 |
| HUBS | DT Swiss 370 Spline Disc |
| RIMS | DT SWISS P1800 Disc / 35mm |
| TIRES | Vittoria Rubino / 25mm |
| TIRE CLEARANCE | 30mm (Measured Width) |
| WEIGHT LIMIT | 110 Kg |
| ASTM CLASSIFICATION | Level 1 |
Geometry
| SIZE | 47 | 51 | 54 | 56 | 58 | 61 |
| Rider Height CM | 166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Top Tube MM (tt) | 517 | 534 | 549 | 559 | 574 | 589 |
| Wheelbase MM (wb) | 968 | 986 | 989 | 1000 | 1015 | 1030 |
| Seat Angle (sa) | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Seatpost Length MM | 330 | 380 | 380 | 380 | 380 | 380 |
| Stack MM | 506 | 530 | 550 | 565 | 584 | 608 |
| Trail MM (trail) | 63 | 63 | 63 | 63 | 63 | 63 |
| Rear Center MM (rc) | 410 | 410 | 410 | 410 | 410 | 410 |
| Reach MM (reach) | 367 | 377 | 386 | 392 | 401 | 409 |
| Head Tube MM (ht) | 110 | 130 | 145 | 165 | 184 | 210 |
| Head Angle (ha) | 71.5 | 71.5 | 72.3 | 72.3 | 72.3 | 72.3 |
| BB Drop MM (drop) | 69 | 69 | 69 | 69 | 69 | 69 |
| Stem Length MM | 90 | 90 | 100 | 110 | 110 | 120 |
| Seat Tube MM (st) | 423 | 468 | 504 | 524 | 545 | 574 |
| Stem Angle | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 | -12.5 |
| Post Offset MM | 15 | 15 | 15 | 15 | 15 | 15 |
| Crank Length MM | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Fork Rake MM (fr) | 48 | 48 | 43 | 43 | 43 | 43 |
| Front Center MM (fc) | 568 | 586 | 589 | 599 | 614 | 630 |
| Fork Length MM (fl) | 368 | 368 | 368 | 368 | 368 | 368 |
| Bar Width MM | 400 | 420 | 420 | 420 | 420 | 440 |
| Bar Reach MM | 70 | 70 | 70 | 70 | 70 | 70 |
| Bar Drop MM | 125 | 125 | 125 | 125 | 125 | 125 |
