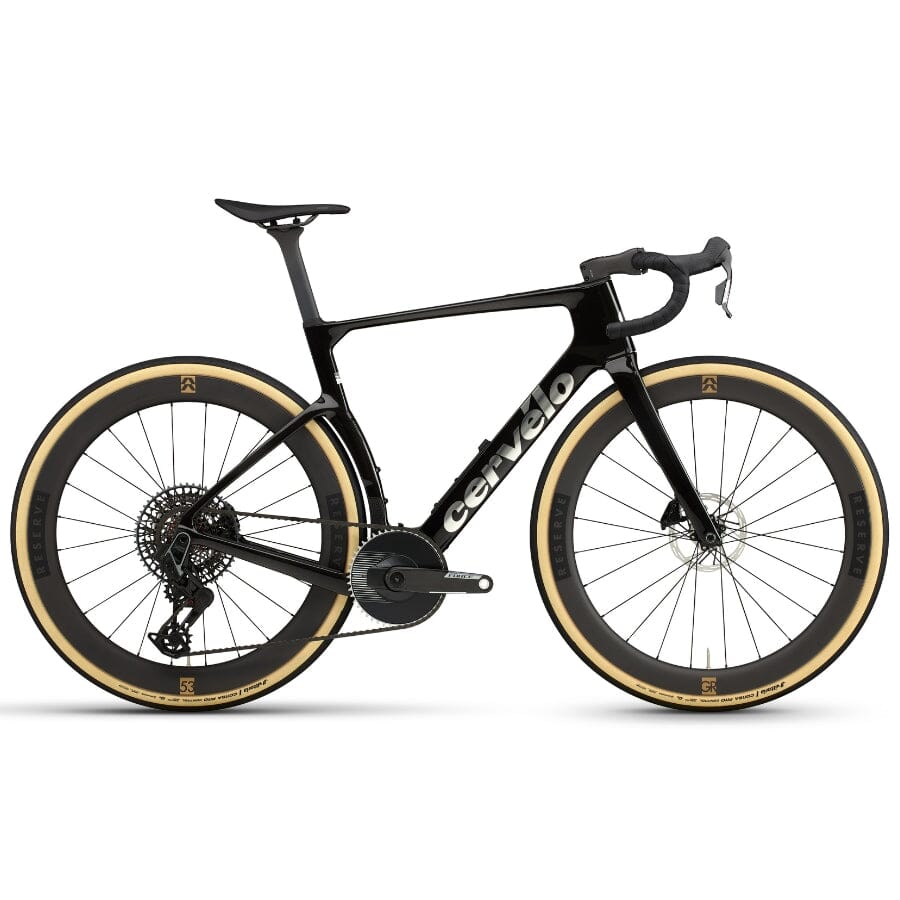

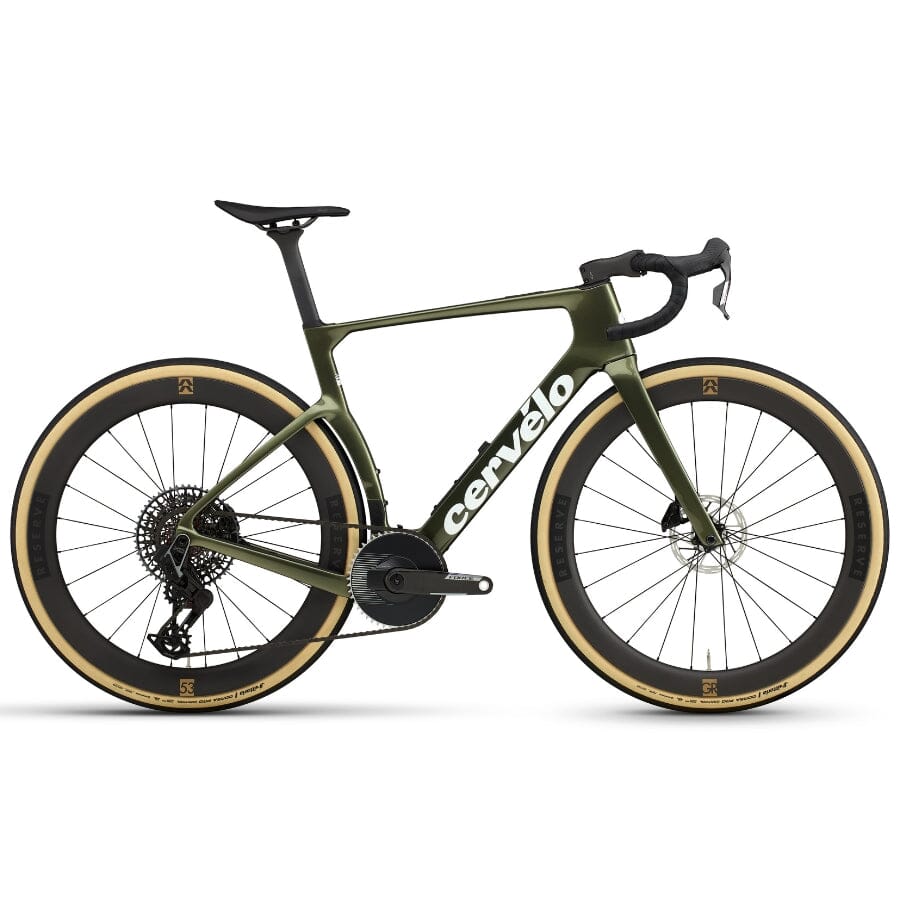

Cervélo Áspero-5 Force AXS 1
Product Details
The Cervélo Áspero-5 represents 30 years of aerodynamic expertise applied directly to gravel racing. Built specifically for the front end of the race, this machine is the most aerodynamic gravel bike ever created, delivering a stunning 37 watts advantage over its predecessor and 34 watts over its nearest competitor. Proven on the world's biggest stage, it made its rainbow-jersey debut and won under UCI Gravel World Champion Marianne Vos, the Áspero-5 is now campaigned by some of the most elite bike racers in the world.
Every detail has been engineered for speed. The aero handlebar and stem combination alone accounts for nearly 6 watts of savings, while the completely internal housing and optimized aero tube shapes work together to deliver free speed against the wind. Despite adding significant surface area to improve aerodynamic performance, the Áspero-5 weighs 66 grams less than its predecessor, a remarkable achievement that demonstrates precision carbon engineering at its finest.
Gravel racing demands versatility, and the Áspero-5 delivers through intelligent geometry options. When fitted with equally-sized tires, the handling is stable and confidence-inspiring across the roughest courses. For less-technical terrain, the geometry has been optimized for a 4mm tire width differential—say 40mm front and 44mm rear—to increase aerodynamics further while sharpening handling. The frame accommodates up to 45mm tires, giving you total freedom in tire choice for any surface.
The industry-leading downtube storage door, first seen on Cervélo's P-Series triathlon platform, keeps a tube, tools, and flat kit inside the frame and out of the wind—the lightest and most aerodynamically efficient storage system on the market. A threaded bottom bracket ensures compatibility and ease of maintenance, while the tapered Aspero fork provides responsive handling and tire clearance.
SRAM Force X0 Eagle drivetrain with integrated power meter delivers responsive, wireless shifting and real-time power data, while Reserve 48/53GR wheels with DT Swiss 350 hubs provide reliable performance across demanding terrain.
Key Features
- Frame - Cervélo All-Carbon
- Drivetrain - SRAM Force/X0 Eagle with integrated power meter
- Wheelset - Reserve 48/53GR carbon with DT Swiss 350 hubs
| Specification | Detail |
|---|---|
| Sizes | 48cm, 51cm, 54cm, 56cm, 58cm, 61cm |
| Weight | 7.89 kgs |
| Fork | Cervélo All-Carbon, Tapered Aspero-5 Fork |
| Handlebar | Cervélo HB16 Carbon, 31.8mm clamp |
| Handlebar Sizing | Size 48 - 36cm Size 51 - 38cm Size 54 - 40cm Size 56 - 40cm Size 58 - 42cm Size 61 - 42cm |
| Stem | Cervélo ST31 Carbon |
| Stem Sizing | Size 48 - 80mm Size 51 - 80mm Size 54 - 90mm Size 56 - 90mm Size 58 - 100mm Size 61 - 100mm |
| Seatpost | Cervélo SP27 Carbon |
| Seatpost Sizing | Size 48 - 0mm Size 51 - 0mm Size 54 - 0mm Size 56 - 0mm Size 58 - 0mm Size 61 - 0mm |
| Saddle | Fizik Vento Argo X3 |
| Bottom Bracket | SRAM DUB Wide Ceramic, T47 BBright |
| Headset | FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45° |
| Front Thru Axle | Cervélo Aero Thru Axle Front, M12x1.5mm, 122mm length |
| Rear Thru Axle | Cervélo Aero Thru Axle Rear, M12x1.0mm, 169mm length |
| Front Wheel | Reserve 48 GR, DT Swiss 350, 12x100mm, 24H, centerlock, tubeless compatible |
| Rear Wheel | Reserve 53 GR, DT Swiss 350, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible |
| Tires | Vittoria Corsa Pro Control TLR G2.0 700x42c |
| Shifter/Brake Levers | SRAM Force AXS E1 |
| Crankset | SRAM Force 1 AXS E1, 48T Aero, DUB Wide, with power meter |
| Chainring | |
| Power Meter | |
| Crank Sizing | Size 48 - 165mm SRAM, 170mm Shimano Size 51 - 165mm SRAM, 170mm Shimano Size 54 - 170mm Size 56 - 170mm Size 58 - 172.5mm Size 61 - 172.5mm |
| Chain | SRAM X0 Eagle, T-Type |
| Cassette | SRAM X0 Eagle, T-Type, 10-52T, 12-Speed |
| Rear Derailleur | SRAM X0 Eagle AXS, T-Type |
| Brake Rotors | SRAM Paceline Centerlock |
| Accessories | Cervélo Rear Accessory Mount Cervélo In-Frame Storage Rolls - Inner Tube Storage Cervélo In-Frame Storage Rolls - Flat Kit Storage Cervélo Smartpak Top Tube Storage Bag 400A Arundel Mandible Water Bottle Cage, Matte UD Carbon finish (2 qty) Cervélo Front Computer/Accessory Mount 266 |
| Size | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Reach (mm) | 369 | 377 | 386 | 395 | 404 | 413 |
| Stack (mm) | 500 | 525 | 550 | 575 | 600 | 625 |
| Head Tube Angle | 70.6° | 71.1° | 71.6° | 71.6° | 71.6° | 71.6° |
| Front Center (mm) | 584 | 593 | 602 | 619 | 636 | 653 |
| Bottom Bracket Drop (mm) | 80 | 80 | 80 | 80 | 78 | 78 |
| Head Tube Length (mm) | 75 | 99 | 122 | 148 | 177 | 203 |
| Top Tube Length (mm) | 516 | 531 | 552 | 574 | 591 | 607 |
| Seat Tube Angle | 74.1° | 73.6° | 73.1° | 72.6° | 72.6° | 72.6° |
| Standover Height (mm) | 720 | 753 | 779 | 801 | 826 | 851 |
| Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
| Fork Offset (mm) | 57.5 | 54.5 | 51.5 | 51.5 | 51.5 | 51.5 |
| Wheelbase (mm) | 993 | 1002 | 1012 | 1029 | 1047 | 1064 |
| Chainstay Length (mm) | 422.5 | 422.5 | 422.5 | 422.5 | 422.5 | 422.5 |
