Cervélo Caledonia 105 Di2
Product Details

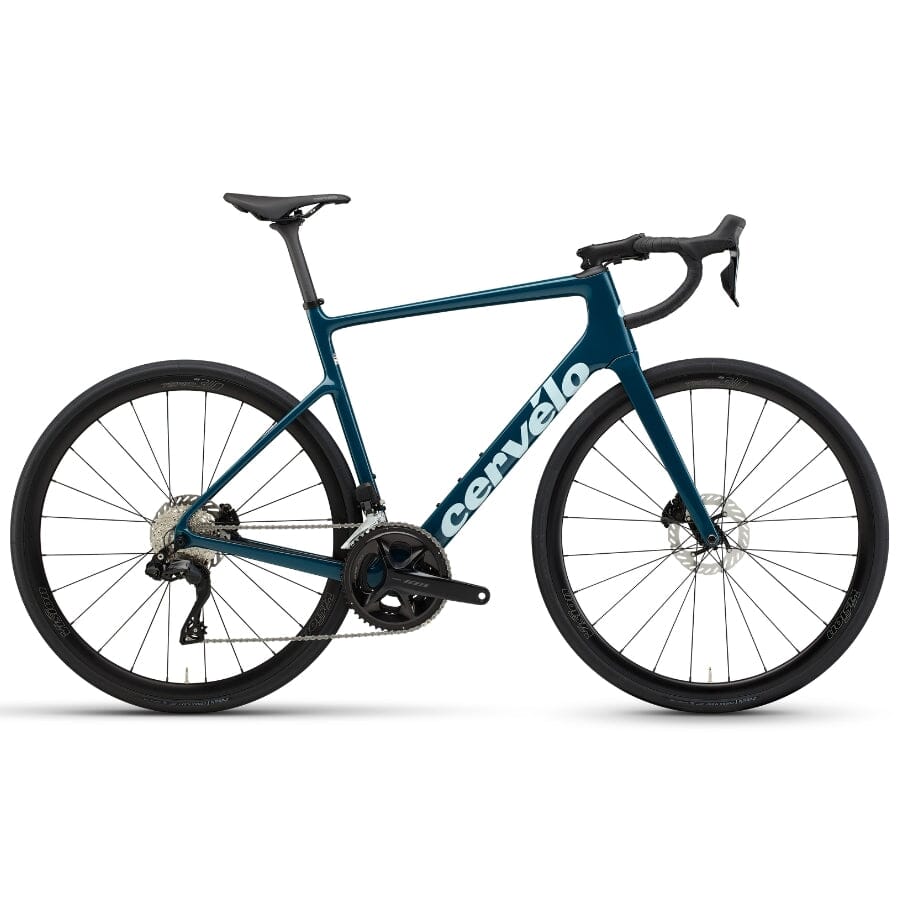

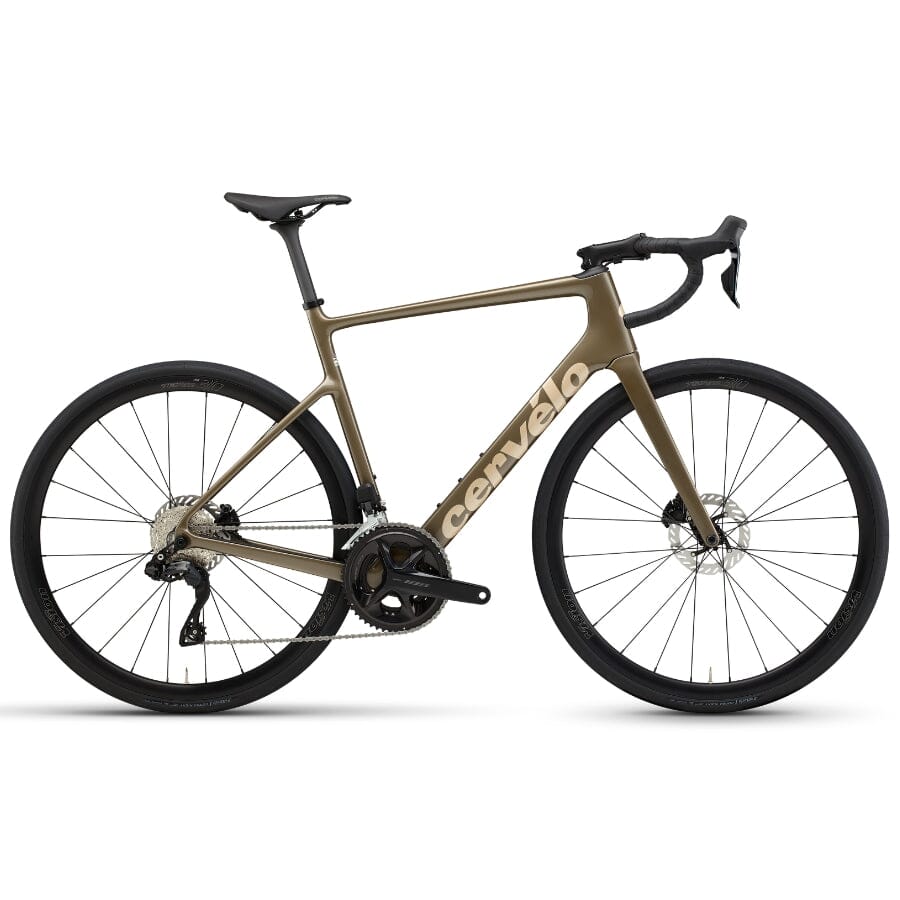

The Cervélo Caledonia 105 Di2 is the modern road bike for riders who refuse to choose between speed and comfort. Built with endurance-oriented geometry that prioritizes all-day capability, this machine delivers everything you'd expect from a Cervélo: clean aerodynamic lines, hidden cables, and a highly-tuned carbon fiber layup that's fast enough for spirited group rides yet comfortable enough for extended efforts. Whether you're an all-season rider, chasing fondo and brevet glory, or newly bitten by the cycling bug, the Caledonia is engineered to excel across every riding scenario.
The all-carbon frame balances responsive handling with the stability required for predictable, composed riding across varied terrain. The carefully optimized geometry features a 1013mm wheelbase, 415mm chainstays, and 72-degree head tube angle that delivers stable and predictable control whether you're rolling through weekend group rides or pushing distance on longer adventures. The geometry has been updated to work seamlessly with modern 32mm tire widths, ensuring your setup matches contemporary riding standards. The T47a threaded bottom bracket simplifies home maintenance while ensuring long-term performance reliability.
Mechanically, the Caledonia prioritizes practicality without sacrificing aesthetics. The cable and hose routing is mechanic-friendly, supporting both fully-integrated setups with compatible shifters and brake levers, as well as standard semi-external routing. This flexibility means you have real options for customization and future upgrades. The 36mm tire clearance accommodates the road-smoothing, comfortable rubber that makes an enormous difference during extended efforts, while integrated fender mounts prepare you for year-round, all-weather riding.
The Shimano 105 R7150 electronic drivetrain delivers responsive, shifting across 12 speeds with the precision and reliability that Shimano is known for. Vision Team i23 Disc wheels provide dependable performance and aerodynamic sensibility for all-day riding at any pace.
Key Features
- Frame - Cervélo All-Carbon
- Drivetrain - Shimano 105 R7150 Di2 electronic 12-speed
- Wheelset - Vision Team i23 Disc
| Specification | Detail |
|---|---|
| Sizes | 48cm, 51cm, 54cm, 56cm, 58cm, 61cm |
| Weight | 8.43 kgs |
| Fork | Cervélo All-Carbon, Tapered Caledonia Fork |
| Handlebar | Cervélo HB23 alloy 400mm |
| Alternate Handlebar | Cervélo AB07 Alloy, 31.8mm clamp |
| Handlebar Sizing | 48cm - 38cm 51cm - 38cm 54cm - 40cm 56cm - 40cm 58cm - 42cm 61cm - 42cm |
| Stem | Cervélo ST36 Alloy |
| Stem Sizing | Size 48 - 80mm Size 51 - 90mm Size 54 - 100mm Size 56 - 100mm Size 58 - 110mm Size 61 - 110mm |
| Seatpost | Cervélo SP19 Carbon 27.2 |
| Seatpost Sizing | Size 48 - 0mm Size 51 - 0mm Size 54 - 0mm Size 56 - 0mm Size 58 - 15mm Size 61 - 15mm |
| Saddle | Cervélo Saddle |
| Bottom Bracket | FSA, T47 BBright for 24mm spindle |
| Headset | FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45° |
| Front Thru Axle | Cervélo Aero Thru Axle Front, M12x1.5mm, 127mm length |
| Rear Thru Axle | Cervélo Aero Thru Axle Rear, M12x1.75mm, 170.5mm length |
| Front Wheel | Vision Team i23 Disc, 23mm IW, direct pull, 12x100mm, centerlock, tubeless compatible |
| Rear Wheel | Vision Team i23 Disc, 23mm IW, direct pull, 12x142mm, HG freehub, centerlock, tubeless compatible |
| Tires | Vittoria Corsa N.EXT TLR G2.0 700x32c |
| Shifter/Brake Levers | Shimano 105, R7170 |
| Crankset | Shimano 105, R7100, 52/36T |
| Crank Sizing | Size 48 - 165mm Size 51 - 165mm Size 54 - 170mm Size 56 - 170mm Size 58 - 172.5mm Size 61 - 172.5mm |
| Chain | Shimano M7100 |
| Cassette | Shimano 105, R7101, 11-34T, 12-Speed |
| Front Derailleur | Shimano 105, R7150 |
| Rear Derailleur | Shimano 105, R7150 |
| Brake Rotors | Shimano CL700 Centerlock |
| Accessories | Cervélo Removeable Fender Mounts Cervélo Front Computer/Accessory Mount 810 Cervélo Rear Accessory Mount |
| Size | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Reach | mm | 360 | 369 | 378 | 387 | 396 | 405 |
| Stack | mm | 505 | 530 | 555 | 580 | 605 | 630 |
| Head Tube Angle | 70.5° | 71.5° | 72° | 72° | 72° | 72° |
| Front Center | mm | 579.4 | 581.7 | 591.5 | 608.5 | 626 | 643 |
| Bottom Bracket Drop | mm | 76.5 | 76.5 | 74 | 74 | 71.5 | 71.5 |
| Head Tube Length | mm | 89.5 | 109.9 | 136 | 162.3 | 191.2 | 217.5 |
| Top Tube Length | mm | 502 | 522 | 543 | 565 | 581 | 598 |
| Seat Tube Angle | 74.5° | 74° | 73.5° | 73° | 73° | 73° |
| Standover Height | mm | 701 | 741 | 773 | 796 | 823 | 847 |
| Trail | mm | 60 | 60 | 60 | 60 | 60 | 60 |
| Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
| Fork Offset | mm | 59 | 53 | 50 | 50 | 50 | 50 |
| Wheelbase | mm | 982.2 | 984.5 | 995.2 | 1012.3 | 1030.7 | 1047.8 |
| Chainstay Length | mm | 415 | 415 | 415 | 415 | 415 | 415 |
