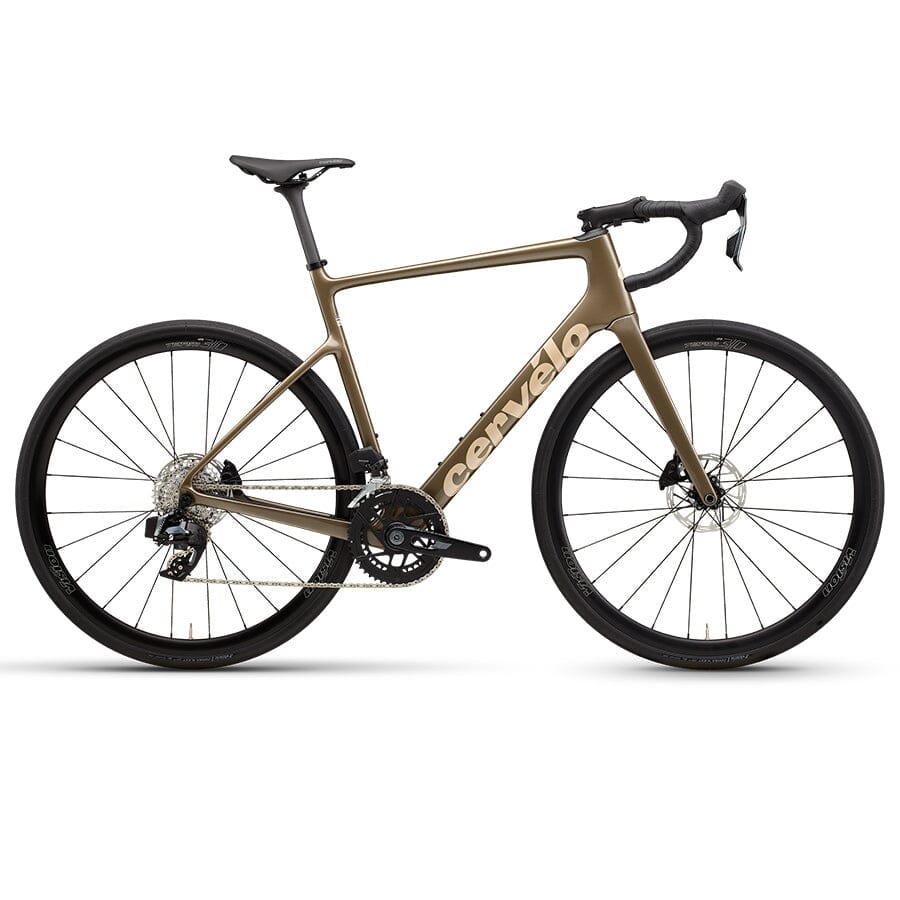

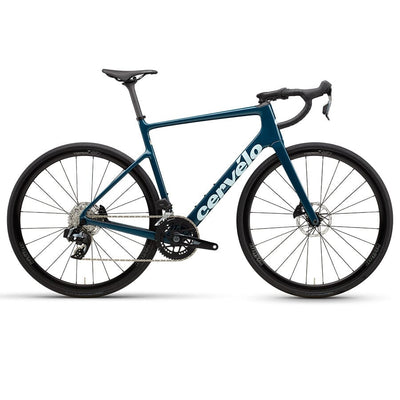

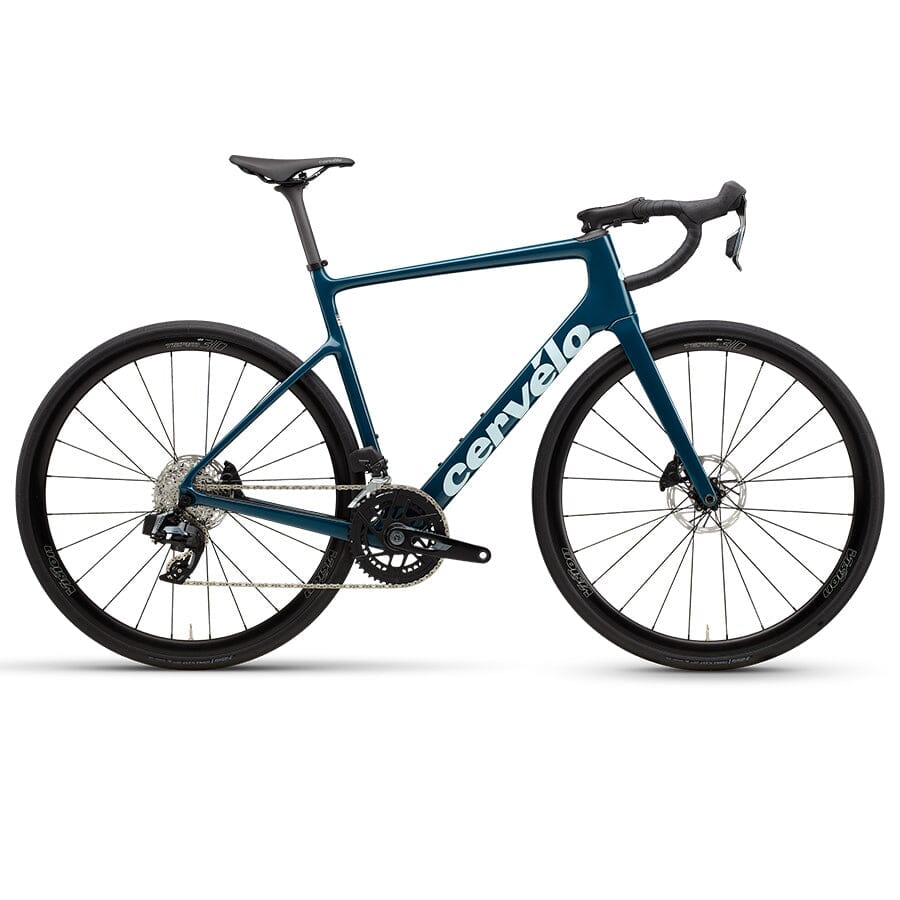

Cervélo Caledonia Rival AXS
Product Details
The Cervélo Caledonia Rival AXS delivers fast, premium, and compliant performance engineered specifically for the modern road rider who demands true Cervélo quality without compromise. Designed for all-season riders, fondo racers, and those just bitten by the cycling bug, this endurance platform combines clean aerodynamic lines, hidden cables, and high-performance engineering, creating the perfect bike for riders seeking style, performance, and ride quality at an approachable price point.
Built on the Caledonia Carbon frame, this platform represents a modern take on endurance geometry with mechanic-friendly cable and hose routing that supports both fully-integrated setups and standard semi-external routing—unlike the Caledonia-5's fully internal system. The generous 36mm tire clearance allows for road-smoothing, comfortable rubber that makes a significant difference when the odometer hits triple digits, while fender mounts accommodate full-coverage protection for year-round, all-weather riding. The T47A threaded bottom bracket simplifies service for home mechanics and ensures long-term reliable performance.
The Caledonia's stable and predictable handling makes it suitable for both casual riders and those hunting fondo and brevet glory. With a 1013mm wheelbase, 415mm chainstays, and 72° head tube angle, the geometry delivers composed confidence across varied terrain. The updated trail figure optimized for 32mm-wide tires ensures precision handling whether tackling long climbs, technical descents, or less-than-maintained roads that inevitably appear on big rides.
Perfect for riders seeking Cervélo performance engineering in a versatile, approachable package, the Caledonia Rival AXS pairs its capable carbon platform with SRAM's Rival AXS wireless electronic shifting and dependable Vision Team i23 SP wheels. This is high-performance road riding made accessible—fast enough for spirited group rides, comfortable enough for all-day efforts, and looking right at home at every coffee stop.
Key Features
- Frame - Caledonia Carbon with T47A Threaded Bottom Bracket
- Drivetrain - SRAM Rival AXS Wireless Electronic
- Wheelset - Vision Team i23 SP
| Specification | Detail |
|---|---|
| Fork | Cervélo All-Carbon, Tapered Caledonia Fork |
| Headset | FSA IS2 1-1/8, 36° x 45° / 1-1/2, 36° x 45° |
| Front Thru Axle | Cervélo Aero Thru Axle Front, M12 x 1.5mm, 127mm length |
| Rear Thru Axle | Cervélo Aero Thru Axle Rear, M12 x 1.5mm, 170.5mm length |
| Front Wheel | Vision Team i23 Disc, 23mm IW, direct pull, 12x100mm, centerlock, tubeless compatible |
| Rear Wheel | Vision Team i23 Disc, 23mm IW, direct pull, 12x142mm, XDR freehub, centerlock, tubeless compatible |
| Tires | Vittoria Corsa N.EXT TLR G2.0 700x32c |
| Crankset | SRAM Rival AXS E1, 48/35T, DUB |
| Bottom Bracket | SRAM DUB, T47 BBright |
| Chain | SRAM Rival E1 |
| Derailleurs | SRAM Rival AXS E1 |
| Cassette | SRAM Rival D1, 10-36T, 12-Speed |
| Shifter / Brake | SRAM Rival AXS E1 |
| Handlebar | Cervélo HB23 Alloy |
| Stem | Cervélo ST36 Alloy |
| Saddle | Cervélo Saddle |
| Seatpost | Cervélo SP19 Carbon 27.2mm |
| Brake Rotors | SRAM Paceline Centerlock |
| Accessories | Cervélo Front Computer/Accessory Mount 810, Cervélo Removable Fender Mounts, Cervélo Rear Accessory Mount |
| Sizes | 48, 51, 54, 56, 58, 61 |
| Measurement | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Stack (mm) | 505 | 530 | 555 | 580 | 605 | 630 |
| Reach (mm) | 360 | 387 | 396 | 405 | 405 | 405 |
| Seat Tube Angle (°) | 74.5 | 74 | 73.5 | 73 | 73 | 73 |
| Effective Top Tube Length (mm) | 502 | 522 | 543 | 565 | 581 | 598 |
| Head Tube Angle (°) | 70.5 | 71.5 | 72 | 72 | 72 | 72 |
| Fork Offset (mm) | 60 | 54 | 51 | 51 | 51 | 51 |
| Head Tube Length (mm) | 89.8 | 110.3 | 136.3 | 162.6 | 191.5 | 217.8 |
| BB Drop (mm) | 76.5 | 76.5 | 74 | 74 | 71.5 | 71.5 |
| Front Center (mm) | 580.5 | 582.7 | 592.5 | 609.5 | 627 | 644.1 |
| Chainstay Length (mm) | 415 | 415 | 415 | 415 | 415 | 415 |
| Standover Height (mm) | 701 | 743 | 775 | 798 | 824 | 847 |
| Wheelbase (mm) | 983.3 | 985.6 | 996.3 | 1013.4 | 1031.8 | 1048.9 |
