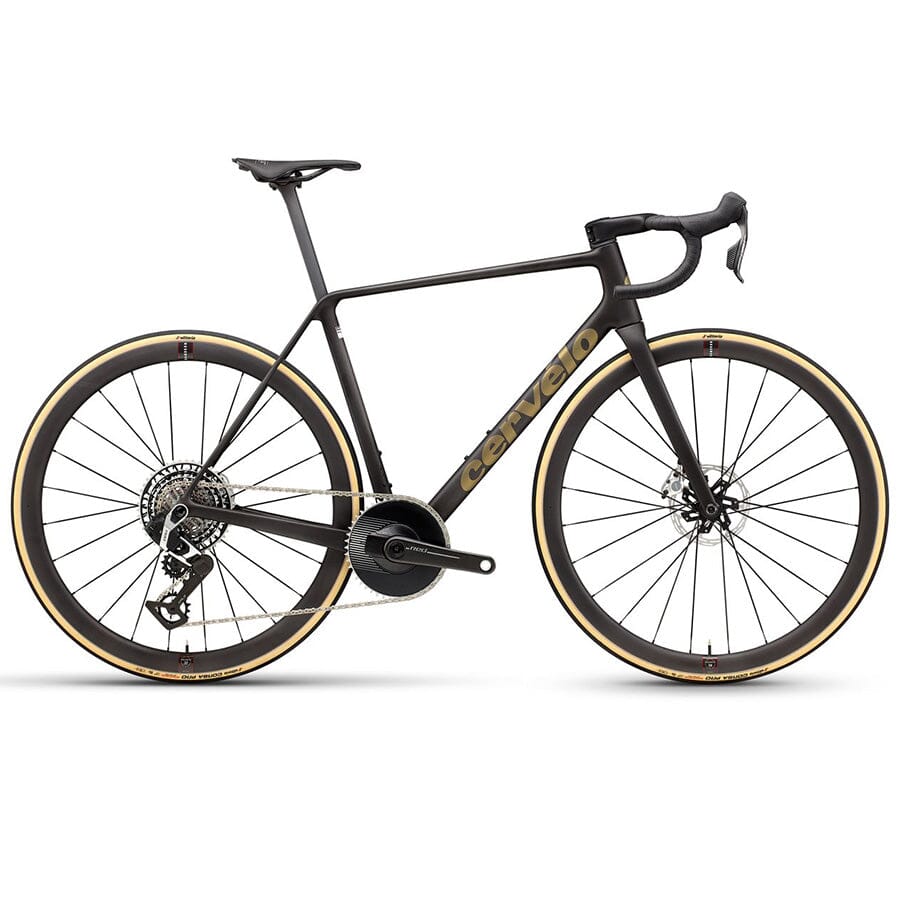

Cervélo R5 Red XPLR AXS 1 2026
Product Details
The Cervélo R5 Red XPLR AXS 1 was built for one thing: reaching the summit first. But while mountain-top finishes get all the attention, they're just part of the equation on race day. Descents might not win races, but they sure can lose them, and everything that goes up eventually comes down. The R5 handles technical descents and tight switchbacks with the same confidence it attacks steep gradients. This newest iteration maintains the razor-sharp handling and downhill composure that has made the R5 legendary.
This completely redesigned R5 frameset sheds an incredible 73g compared to the previous generation. The frame tips the scales at just 651g (size 56) while boosting stiffness in critical areas and improving compliance where riders need it most. Cervélo rethought every single component, razor-thin seat stays, sculpted tube profiles, and precision-engineered joints that eliminate excess material while maintaining rock-solid strength. The attention to detail extends everywhere: ditched brake adapters, refined fork construction, and optimized cable routing all add to the dramatic weight savings.
The standout innovation is the integrated one-piece handlebar and stem that alone saves 134g while borrowing wind-cheating design elements from the flagship S5. The geometry itself now mirrors the S5, creating an identical fit across both platforms for riders who want consistency between their climbing and aero setups. Engineering refinements like the new bearing cap design enable easy component changes without brake bleeding, and the direct-mount brake system works flawlessly with 160mm rotors.
The new R5 rides noticeably better thanks to 13% stiffer bottom bracket area for improved power delivery and 8% more forgiving head tube for enhanced comfort during long efforts. The repositioned bottom bracket perfectly suits 29c tires, unlocking better aerodynamics, improved grip, and reduced rolling resistance.
Key Features
- Frame – Cervélo All-Carbon R5 Frame and Fork
- Drivetrain – SRAM Red AXS E1 with Red XPLR AXS E1 Derailleur and Power Meter
- Wheelset – Reserve 34|37TA with DT Swiss 180 Hubs
| Specification | Detail |
|---|---|
| Fork | Cervélo All-Carbon, Tapered R5 Fork |
| Headset | FSA SL IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45° |
| Seatpost | Cervélo SP33 Carbon |
| Seatpost Sizing | Size 48 - 0mm Size 51 - 0mm Size 54 - 0mm Size 56 - 0mm Size 58 - 15mm Size 61 - 15mm |
| Left Shifter/Brake | SRAM Red AXS E1 |
| Right Shifter/Brake | SRAM Red AXS E1 |
| Rear Derailleur | SRAM Red XPLR AXS E1 |
| Brake Rotors | SRAM Paceline X Centerlock |
| Front Thru Axle | Cervélo Aero Thru Axle Front, M12x1.5mm, 122mm length |
| Rear Thru Axle | Cervélo Aero Thru Axle Rear, M12x1.0mm, 169mm length |
| Bottom Bracket | SRAM DUB Ceramic, BBright |
| Crankset | SRAM Red 1 AXS E1, 48T Aero, DUB, with power meter |
| Crank Sizing |
Size 48 - 165mm Size 51 - 165mm Size 54 - 170mm Size 56 - 170mm Size 58 - 172.5mm Size 61 - 172.5mm |
| Handlebar Sizing |
Size 48 - 36cm Size 51 - 38cm Size 54 - 40cm Size 56 - 40cm Size 58 - 40cm Size 61 - 40cm |
| Stem Sizing |
Size 48 - 80mm Size 51 - 90mm Size 54 - 100mm Size 56 - 100mm Size 58 - 110mm Size 61 - 120mm |
| 1-piece Handlebar/Stem | Cervélo HB18 Carbon |
| Saddle | Prologo Nago R4 PAS Nack Lightweight |
| Cassette | SRAM Red XPLR E1, 10-46T, 13-Speed |
| Chain | SRAM Red E1 |
| Front Wheel | Reserve 34TA, DT Swiss 180, 12x100mm, 24H, centerlock, tubeless compatible |
| Rear Wheel | Reserve 37TA, DT Swiss 180, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible |
| Tire | Vittoria Corsa Pro Speed TLR G2.0 700x26c |
| Max Tire Width | 34mm |
| Accessories | Cervélo Front Computer/Accessory Mount 887, Cervélo Rear Accessory Mount, Hammerhead Karoo 3 |
| Size | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Stack | 496.1 | 520.2 | 544.6 | 567.5 | 590.7 | 610.7 |
| Reach | 368.7 | 376.5 | 383.3 | 391.1 | 400.3 | 408.3 |
| Seat Tube Angle | 74.5 | 74 | 73.5 | 73 | 73 | 73 |
| Effective TT Length | 506 | 526 | 544 | 565 | 581 | 595 |
| Head Tube Angle | 71 | 72 | 73 | 73 | 73 | 73 |
| Fork Offset | 57.5 | 51.5 | 45.5 | 45.5 | 45.5 | 45.5 |
| Head Tube Length | 89.6 | 109.3 | 132 | 156 | 182.8 | 203.7 |
| BB Drop | 76.5 | 76.5 | 74 | 74 | 71.5 | 71.5 |
| Front Centre | 579.1 | 579.9 | 579.5 | 594.2 | 610.8 | 624.8 |
| Chain Stay Length | 410 | 410 | 410 | 410 | 410 | 410 |
| Standover* | 699.7 | 731 | 757.4 | 779.1 | 803.4 | 822.2 |
| Wheelbase | 976.8 | 977.6 | 978 | 992.8 | 1010.3 | 1024.5 |
*5cm in front of BB
