Colnago G5-X SRAM Red XPLR
Product Details

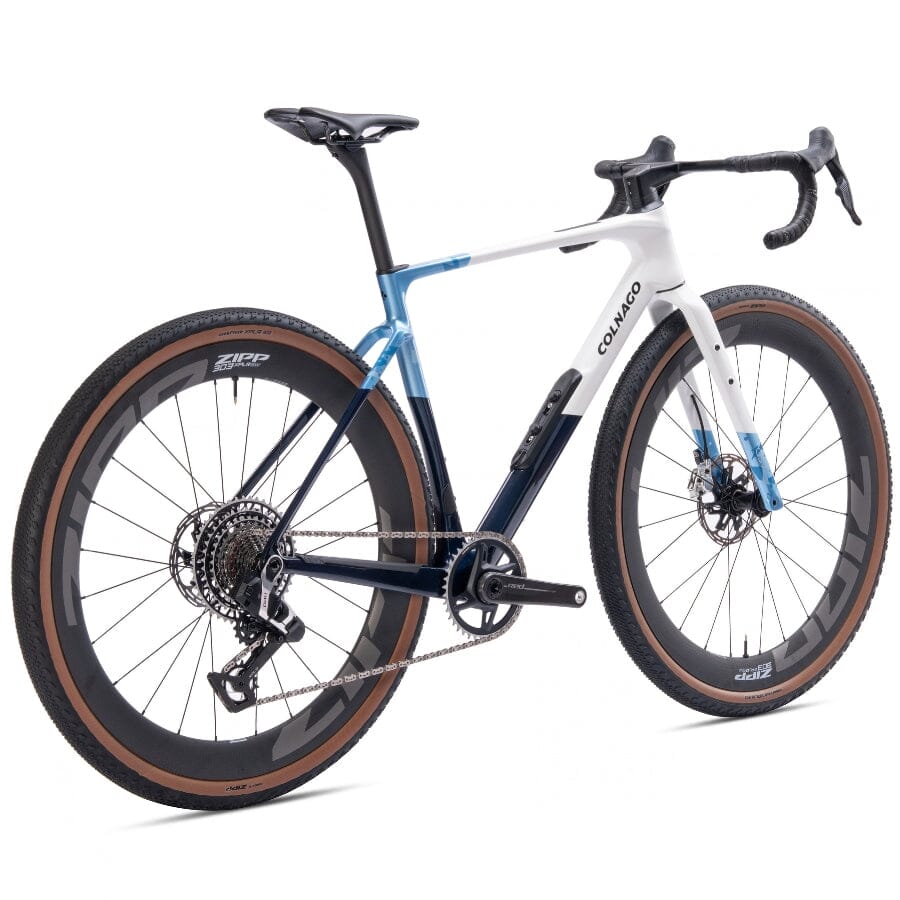

The Colnago G5-X SRAM Red XPLR is a carbon gravel bike for riders looking to combine a dedicated gravel drivetrain with a wide-rim wheel setup and an integrated cockpit. Its monocoque carbon frame and carbon fork belong to an entirely new G5-X platform, developed around the demands of modern gravel riding rather than as a revision of the G4-X. Revised geometry is intended to support control on rough gravel and challenging descents.
The SRAM RED XPLR AXS E1 1x13 drivetrain uses a 40T chainring and a 10-46T cassette. This single-chainring configuration provides a range of ratios for changing gradients without a front derailleur. RED disc brakes are paired with 160 mm rotors front and rear, while the frame's component interfaces include a BSA 68 mm bottom bracket and a UDH-compatible rear end.
Zipp 303 XPLR SW wheels distinguish this build from the Vision-equipped G5-X options. Their carbon hookless rims have a 54 mm height and 32 mm internal width, with Zipp ZR1 Disc Brake hubs and Centerlock rotor interfaces. The supplied tires are Goodyear XPLR Inter TLR 700x50. The frame accommodates up to 53 mm nominal tire width, providing generous clearance for gravel use; frame clearance and wheel-specific tire compatibility remain separate considerations when changing tires.
The CC.01 Wide integrated cockpit carries the controls and routes cables internally for a tidy arrangement. A Selle Italia Novus saddle is supported by a round 27.2 mm Colnago carbon seatpost.

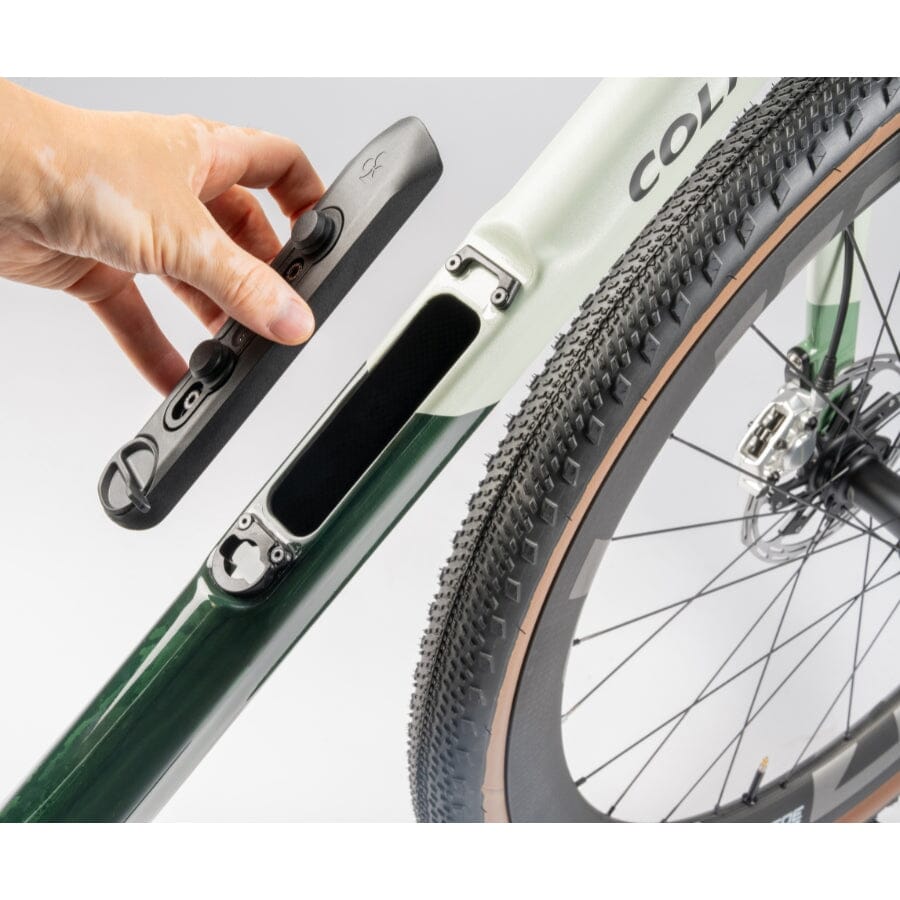

The G5-X also makes space for the practical side of a long ride. Internal downtube storage sits behind a removable access plate, and mounting points on the top tube, downtube and fork expand carrying options beyond the standard bottle positions. These provisions let the rider configure the bike around racing, a long mixed-surface route or a bikepacking trip while retaining the RED drivetrain, Zipp wheels and integrated cockpit that define this version.
Key Features
- Frame - Monocoque carbon fibre
-
Drivetrain - SRAM RED XPLR AXS E1 1x13
- Wheelset - Zipp 303 XPLR SW
Please note: Images are for color reference only, please refer to the specifications for accurate representation.
| Specification | Detail |
|---|---|
| Series | G Series |
| Model | Colnago G5-X |
| Frame (material) | Monocoque carbon fibre |

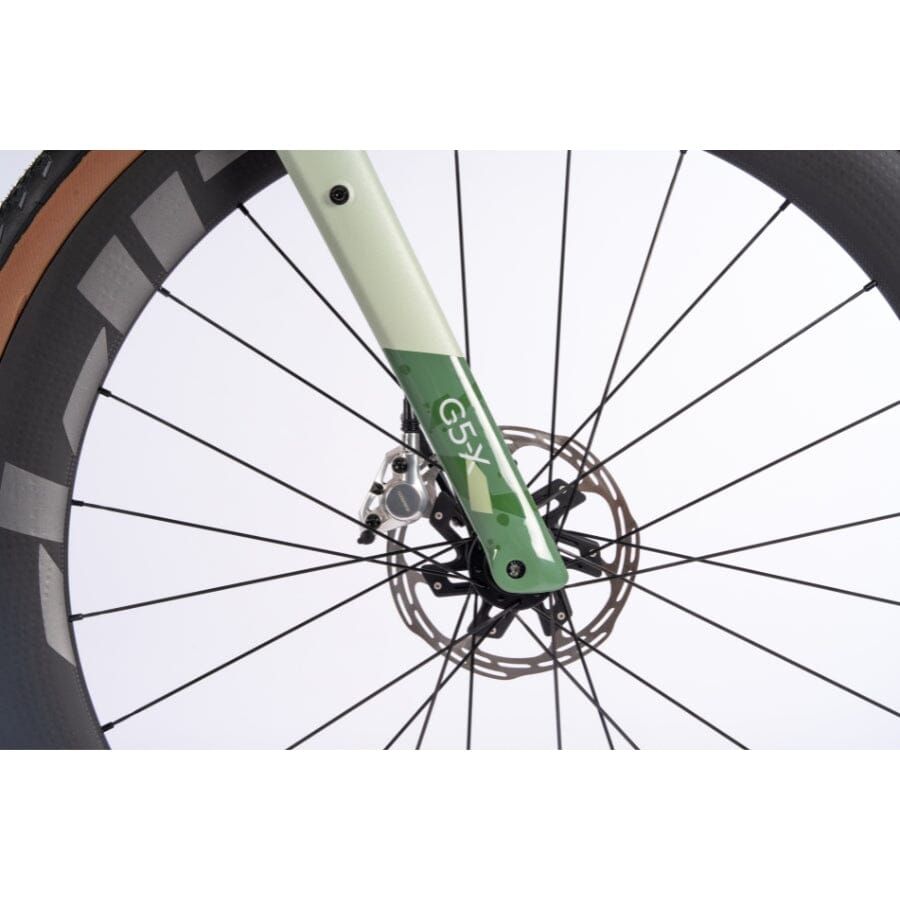

| Fork (material, section notes) | Colnago G5-X carbon fork for disc brakes. Fully integrated cables. 28.6 mm steerer tube |
| Headset bearings | Integrated headset. 42x52x7 mm upper and lower bearings; 45°x45° - included in the frame kit |
| Seatpost | Colnago carbon seatpost, 27.2 mm round section, -15 mm offset (potentially dropper-post compatible) |
| Frame kit - Through axles | Colnago Thru-Axles 12x123/170.5 mm. Front: 12 x 100 mm. Rear: 12 x 142 mm UDH standard, threaded Ø12 L170.5 mm |
| Shifting system | SRAM RED XPLR AXS E1 1x13 |
| Rear derailleur | SRAM RED XPLR AXS E1 |
| Chain | SRAM RED XPLR AXS E1 |
| Chainrings | SRAM RED XPLR AXS E1 40T |
| Cassette | SRAM RED XPLR AXS E1 10-46T (13s) |
| Bottom bracket | BSA 68 mm |
| Crank length | Sizes 450 - 480 | 170 mm Sizes 520 - 570 | 172.5 mm |
| Brakes | SRAM RED XPLR AXS E1 disc brakes - SRAM RED XPLR AXS E1 rotors |
| Disc size | 160 mm Front/ 160 mm Rear |
| Brake lever | SRAM RED XPLR AXS E1 |
| Brake caliper | SRAM RED XPLR AXS E1 |
| Wheels | Zipp 303 XPLR SW |
| Material | Carbon – hookless (Tubeless Straight Side) |
| Rim height | 54 mm |
| Internal channel width | 32 mm |
| Hubs | Zipp ZR1 Disc Brake, Centerlock rotor interface, 66 points of engagement |
| Wheels - Through axles | Front: HH12-100 - Rear: HH12-142 |
| Tyres | Goodyear XPLR Inter TLR 700x50 |
| Maximum tyre size | 53 mm max. nominal width (with 6 mm clearance) |
| Saddle | Selle Italia Novus |
| Handlebar | CC.01 Wide integrated cockpit (400–460 mm), fully integrated cables Sizes 450 | Width: 400 mm Sizes 480 - 540 | Width: 420 mm Sizes 570 | Width: 440 mm |
| Stem | Integrated cockpit (CC.01 Wide) Size 450 - 480 | Length: 90 mm Sizes 510 | Length: 100 mm Sizes 540- 570 | Length: 110 mm |
| Handlebar Tape | Colnago Grip Black |
| Bottle cage | Removable Colnago down tube plate for access to the internal storage. Mounts compatible with traditional bottle cages or the FIDLOCK® system - 3 FIDLOCK® Twistlock included |
| Other accessories | Internal down tube storage (storage bag and repair kit not included). 6 mounting points: 2 standard bottle cages, 1 under the down tube, 1 on the top tube, 2 on the fork for bottle/cargo cages. UDH compatible. Chainring clearance: 1x up to 50T; 2x all gravel chainrings, road compact and super-compact only |
| Size | 450 | 480 | 510 | 540 | 570 |
|---|---|---|---|---|---|
| Stack | 536 | 555 | 573 | 591 | 613 |
| Reach | 377 | 385 | 392 | 401 | 411 |
| Head Tube Angle | 70.5 | 70.5 | 71 | 71 | 71.5 |
| Fork Rake | 52 | 52 | 52 | 52 | 52 |
| Steertube Angle | 74.5 | 74 | 73.5 | 73 | 73 |
| Front Center | 599 | 613 | 622 | 637 | 649 |
| Rear Centry | 435 | 435 | 435 | 435 | 435 |
| BB Drop | 80 | 80 | 80 | 77.5 | 77.5 |
| Wheelbase | 1021 | 1036 | 1044 | 1060 | 1073 |
| Trail 40 | 72 | 72 | 68.5 | 68 | 65 |
| Trail 50 | 76 | 76 | 73 | 72 | 69 |
| Standover | 723 | 750 | 780 | 799 | 827 |
| Top Tube | 512 | 530 | 547 | 567 | 584 |
