Mondraker Arid Carbon R
Product Details

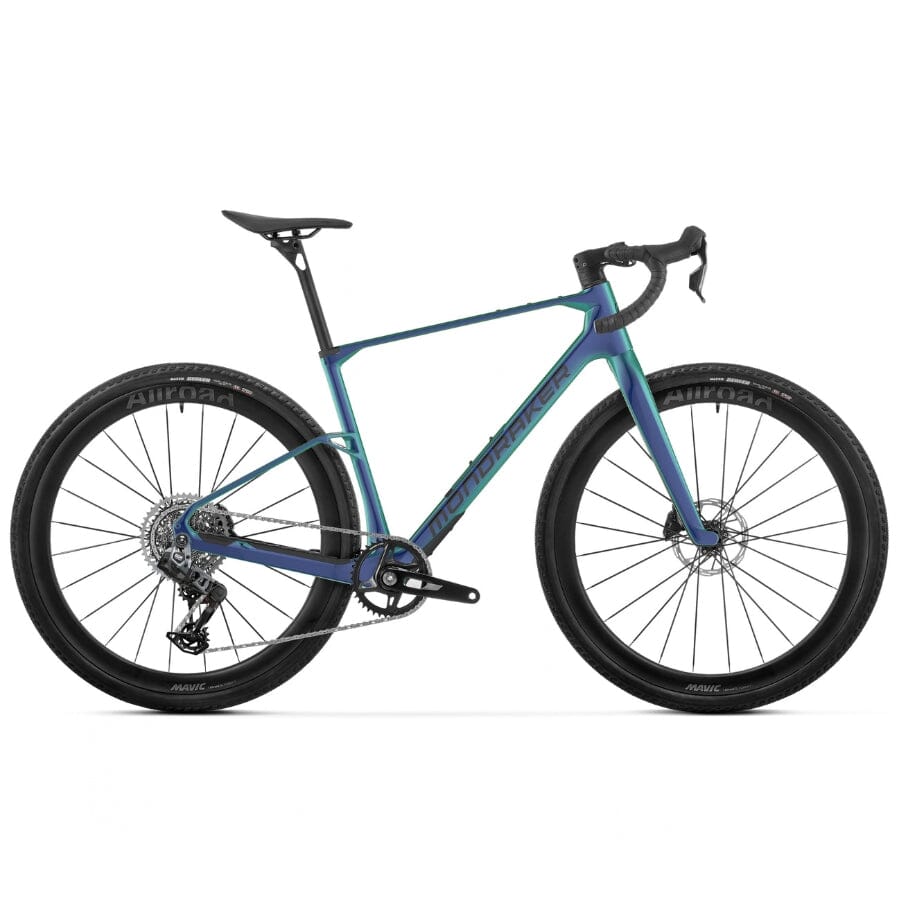

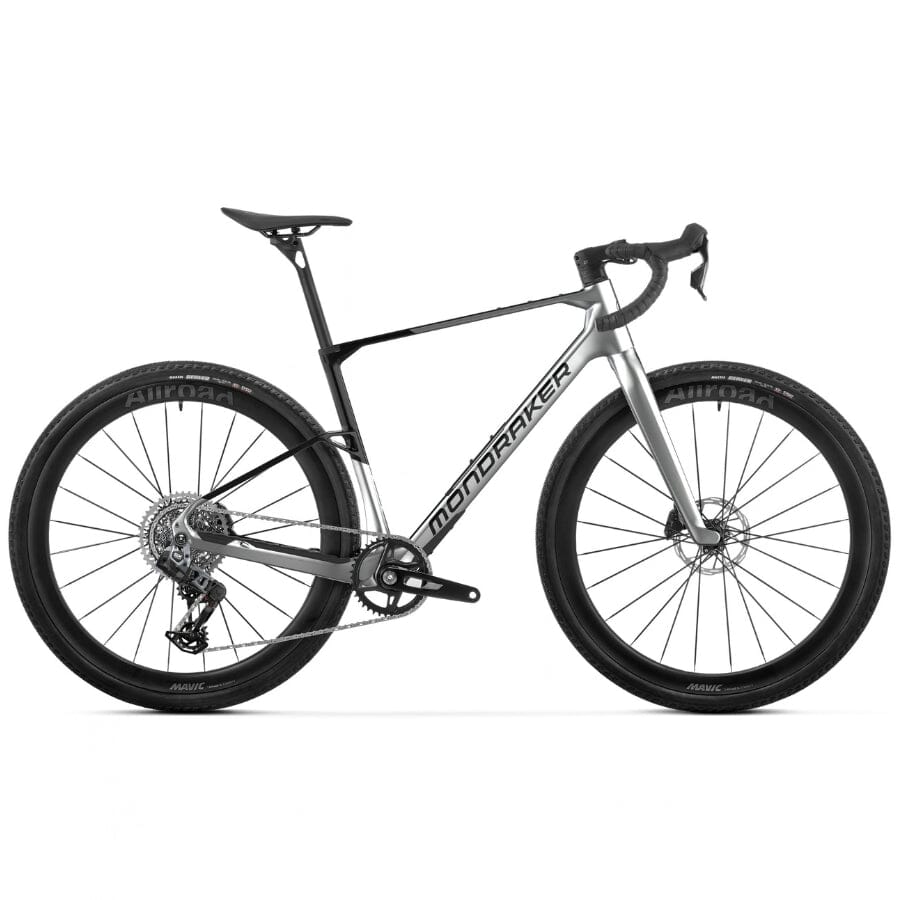

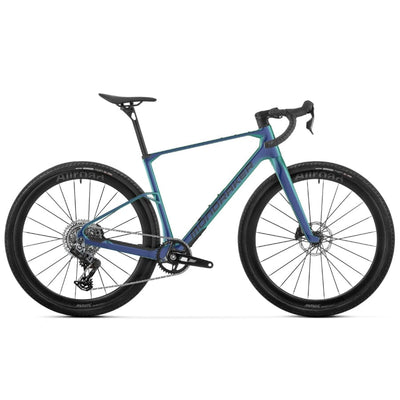

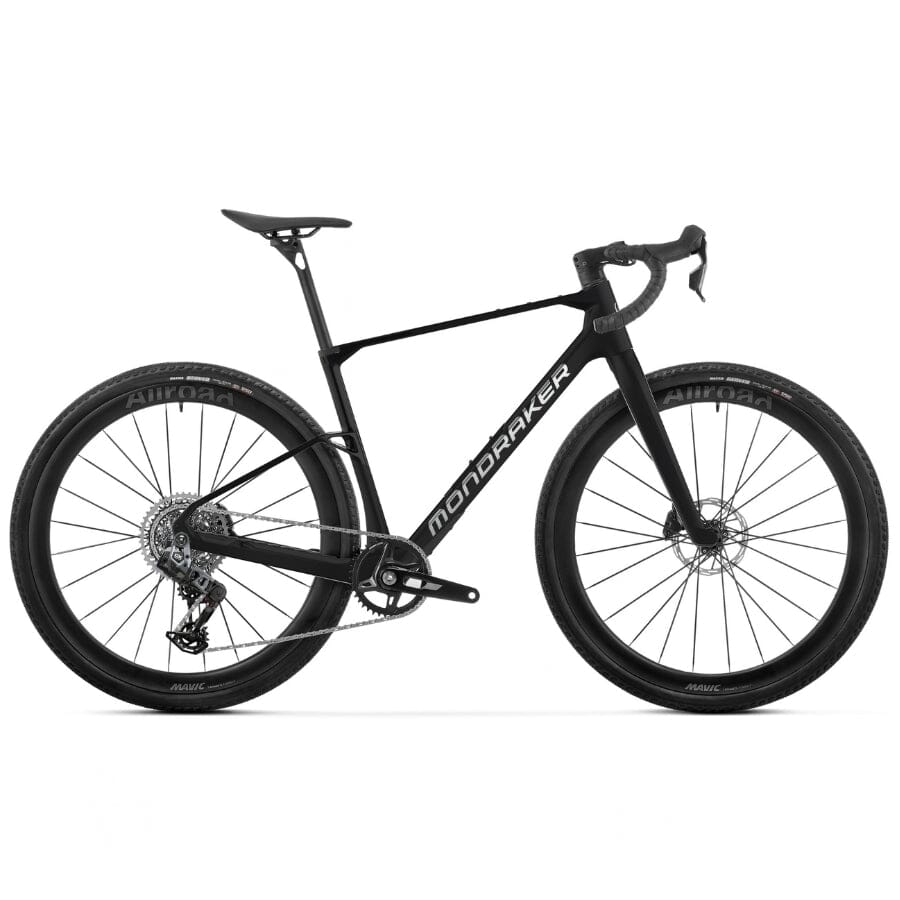

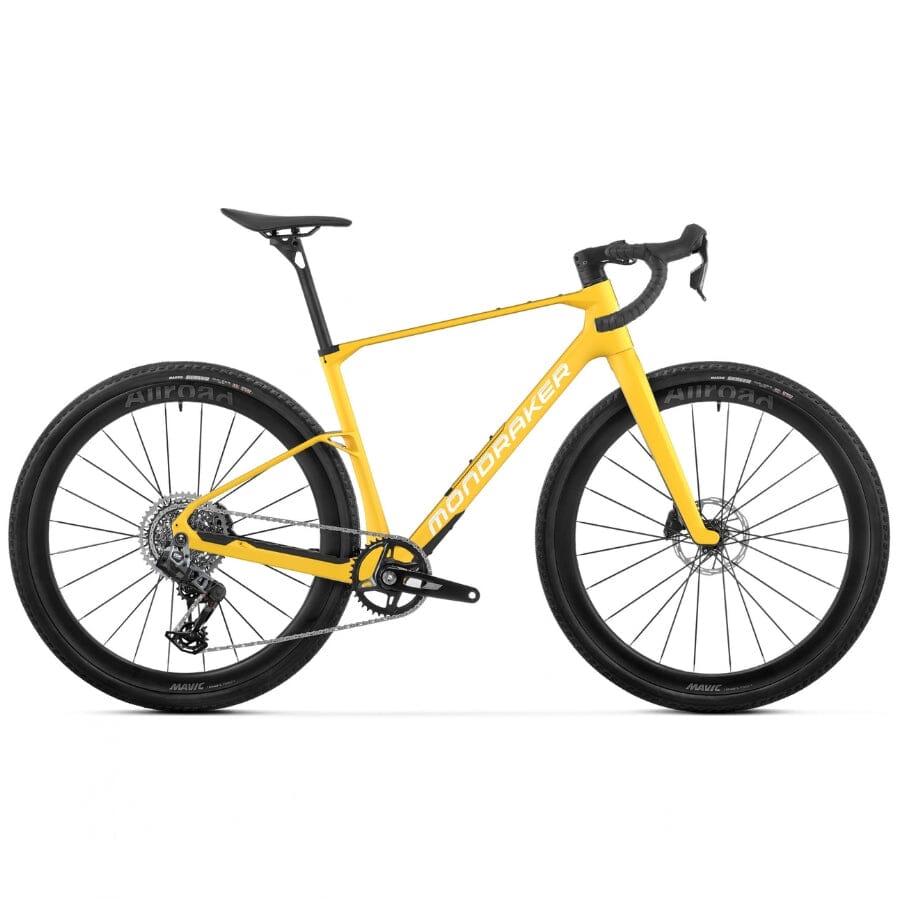

The Mondraker Arid Carbon R is an innovative gravel bike crafted for riders who crave exceptional performance, versatility, and cutting-edge technology across a wide range of terrains. Whether you're competing on hardpack, navigating technical singletrack, or setting out on long gravel adventures, the Arid Carbon R excels in every environment, delivering top-tier adaptability. As a premiere model in Mondraker’s Arid lineup, it brings together advanced carbon construction, optimized geometry, and a collection of thoughtful features to provide an unmatched riding experience.
At the heart of the Arid Carbon R lies the Stealth Air Carbon frame, a true engineering feat. Designed to strike the perfect balance between lateral stiffness for efficient power transfer and vertical compliance for smoothness on rough terrain, this frame offers an outstanding combination of strength and comfort. The 70° headtube angle provides stability on descents, while the 425mm chainstay length ensures nimble handling. Available in sizes from S to XL, with an additional M/L size, the Arid Carbon R ensures a precise fit for riders of various builds. The bike also incorporates Mondraker’s signature Forward Geometry, which enhances handling and responsiveness, providing a fluid and intuitive feel no matter the terrain.
The Arid Carbon R is built for practical performance, featuring several innovative elements to enhance your riding experience. Notable among them is the Carry-On downtube storage system, a clever solution for storing tools, snacks, and other essentials in a secure, easily accessible, and watertight compartment. This system keeps your gear safe and dry even on the toughest, most rugged rides. With tire clearance up to 50mm, the Arid Carbon R offers superior traction and stability, whether on rough trails or gravel roads. Additionally, the frame features multiple mounting points for up to six water bottle cages, making it ideal for long-distance adventures where staying hydrated is essential.
Comfort and control are key to the Arid Carbon R’s design. The bike is equipped with lightweight carbon handlebars and a 27.2mm carbon seatpost, which contribute to excellent comfort and performance on long rides. The custom HEX bar tape offers extra grip and cushioning, while the aluminum stem complements the frame’s sleek and streamlined look. Designed with geometry that prioritizes an optimal riding position, the bike ensures a smooth and efficient ride, with a reach range of 363mm to 446mm and a stack height between 548mm and 642mm, depending on size.
The Mondraker Arid Carbon R is the ultimate gravel bike for those who demand the best. Combining precise design, state-of-the-art engineering, and high-performance features, it’s engineered to handle everything from racing to long-distance exploration. With its advanced technology and versatile capabilities, the Arid Carbon R is ready to take on any road or trail, empowering you to tackle your next gravel adventure with confidence.
KEY FEATURES
- Stealth Air Carbon Frame
- Forward Geometry
- Carry-On Downtube Storage System
- Clearance for Up to 50mm Tires
- ONOFF Carbon Handlebars and Seatpost
- Multiple Mounting Points for Water Bottles and Gear
| *Please note that bike specifications are subject to change without prior notice |
| Frame | Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible |
|---|---|
| Sizes | S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm |
| Fork | Stealth Air Carbon tapered steerer tube, HHG, flat mount integrated fork |
| Headset | Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing |
| Stem | Onoff Semi-Integrated, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm |
| Handlebar | OnOff S3 GR 16º bar flare. Width sizes S size: 440mm M size: 440mm ML size: 460mm L size: 460mm XL size: 460mm |
| Grips | OnOff HEX Bartape |
| Seatpost | Onoff S9 Carbon 0-R, diameter 27.2mm, length 400mm |
| Saddle | FIZIK Terra Argo X5 140mm |
| Front Brake | Sram Rival Etap AXS 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad |
| Rear Brake | Sram Rival Etap AXS, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad |
| Brake Lever | Sram Rival, contact point adjustment, tooled reach adjust, plastic levers |
| Rims | Mavic Allroad SL, UST, 25mm internal width, hookless, infinity hubs, 24 spokes |
| Spokes | Mavic Steel double butted flat spokes |
| Front Hub | Mavic, 12x100mm, IS 6 bolts |
| Rear Hub | Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, XDR Freehub |
| Front Tire | Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Rear Tire | Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Crankset | Sram Rival 1 DUB GLS Wide, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 47,5 |
| Rings | Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide |
| Bottom Bracket | Sram DUB T47 BSA, sealed bearings, 85,5mm |
| Chain | Sram Rival, 12s, Powerlock |
| Rear Derailleur | Sram Rival XPLR Etap AXS, 12s |
| Shift Levers | Sram Rival Etap AXS 12s |
| Cassette | Sram XG-1251 10-44T, 12s |
| Derailleur Hanger | Sram UDH |
| Others | Carry-On Bags System |
| Weight | 19.6 lbs |
| Size | S | M | M/L | L | XL |
|---|---|---|---|---|---|
| Seattube Length | 410 mm | 450 mm | 480 mm | 510 mm | 540 mm |
| Toptube Length | 520 mm | 550 mm | 580 mm | 600 mm | 630 mm |
| Bottom Bracket Drop | -75 | -75 | -75 | -75 | -75 |
| Bottom Bracket Height | 269 mm | 269 mm | 269 mm | 269 mm | 269 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Seat Tube Angle | 73° | 73° | 73° | 73° | 73° |
| Effective Seattube Angle | 74° | 74° | 74° | 74° | 74° |
| Headtube Angle | 70° | 70° | 70° | 70° | 70° |
| Fork Offset | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Wheelbase | 1003 mm | 1035 mm | 1067 mm | 1089 mm | 1121 mm |
| Headtube Length | 100 mm | 125 mm | 145 mm | 175 mm | 200 mm |
| Reach | 363 mm | 386 mm | 411 mm | 423 mm | 446 mm |
| Stack | 548 mm | 572 mm | 591 mm | 619 mm | 642 mm |
| Stem Length | 60 mm | 70 mm | 70 mm | 80 mm | 90 mm |
| Fork Height | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
