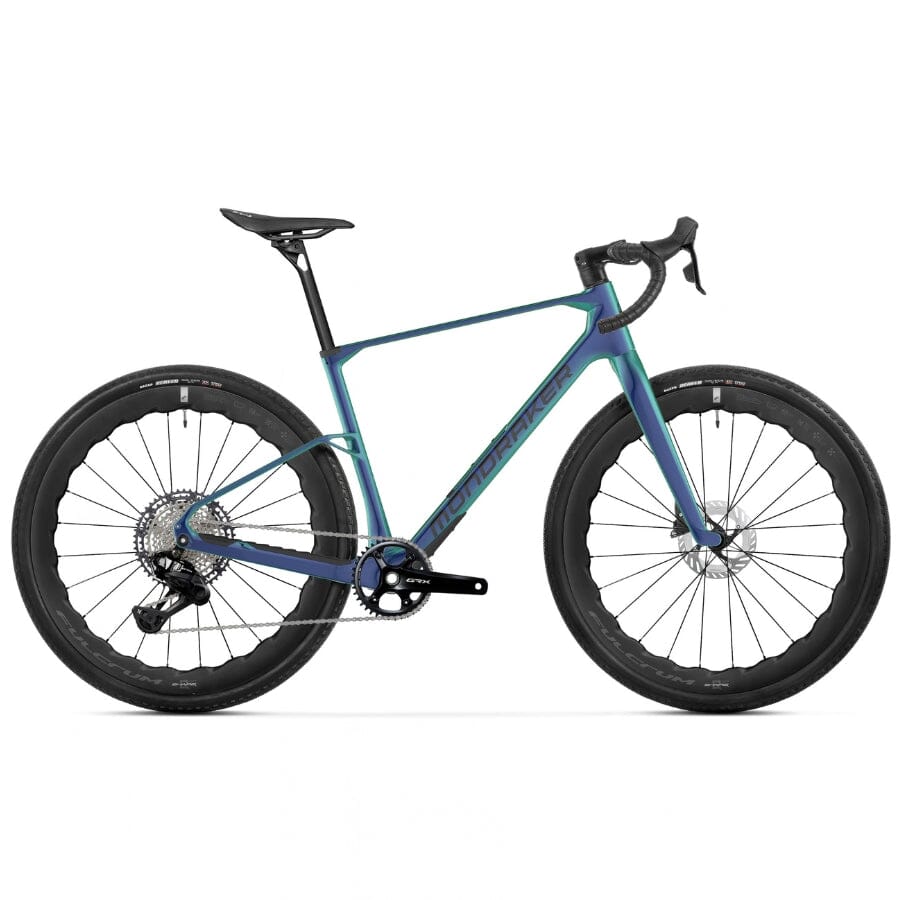

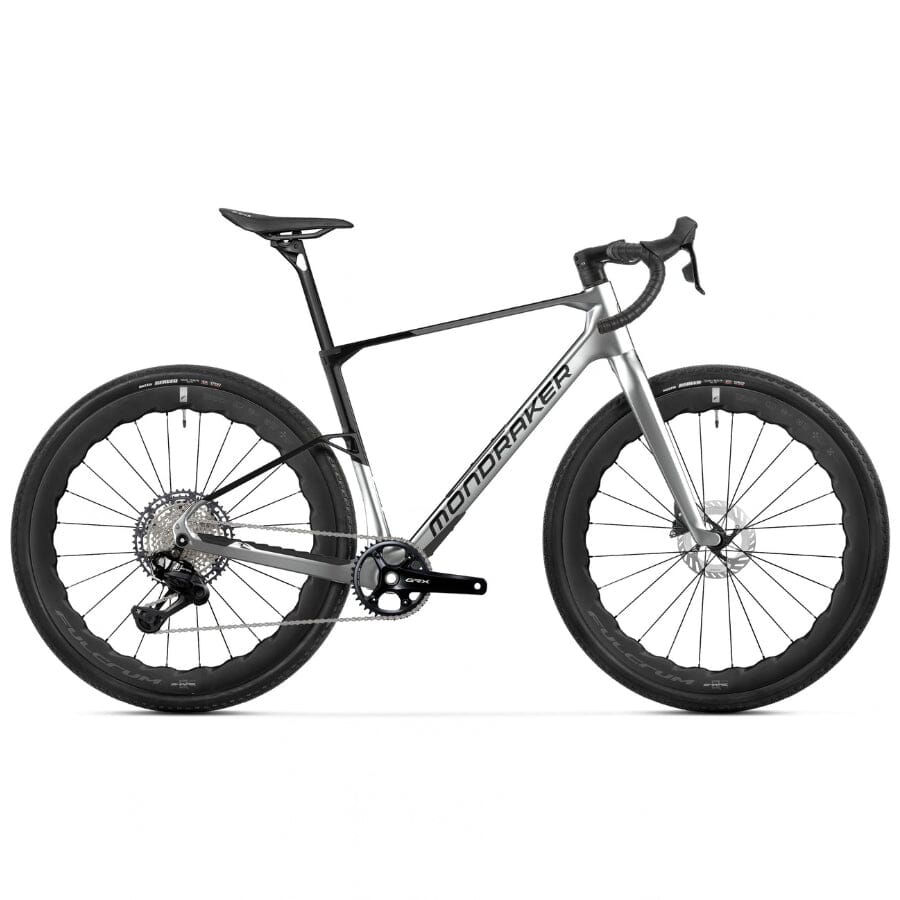

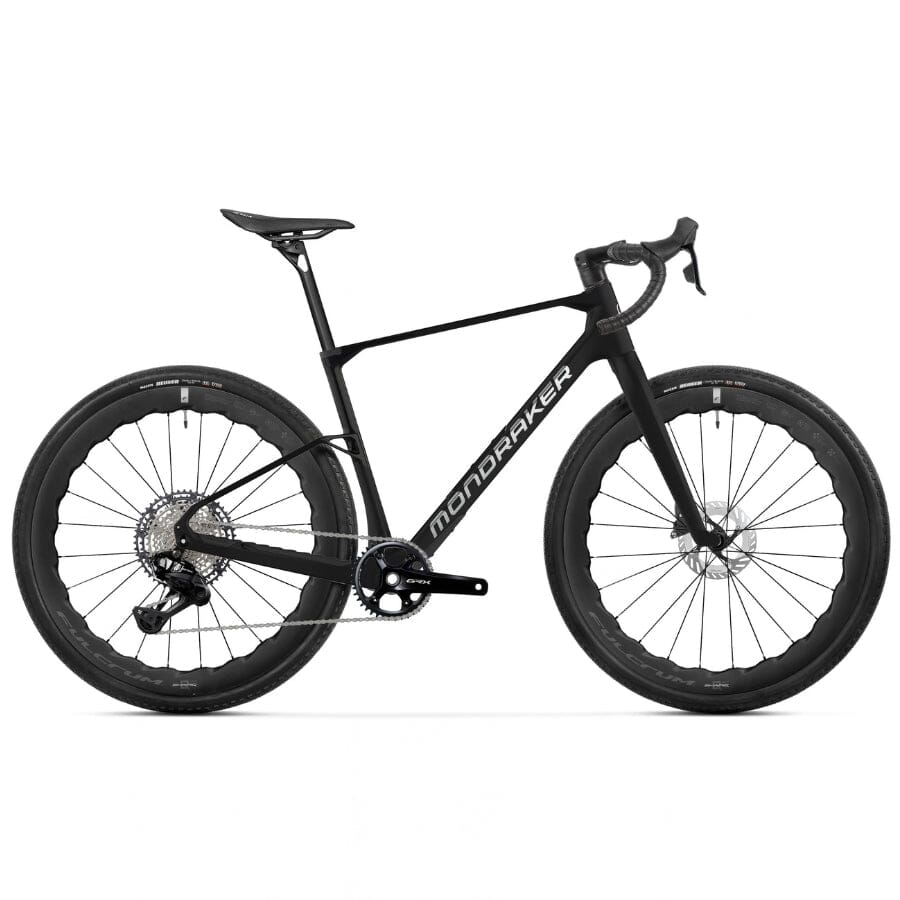

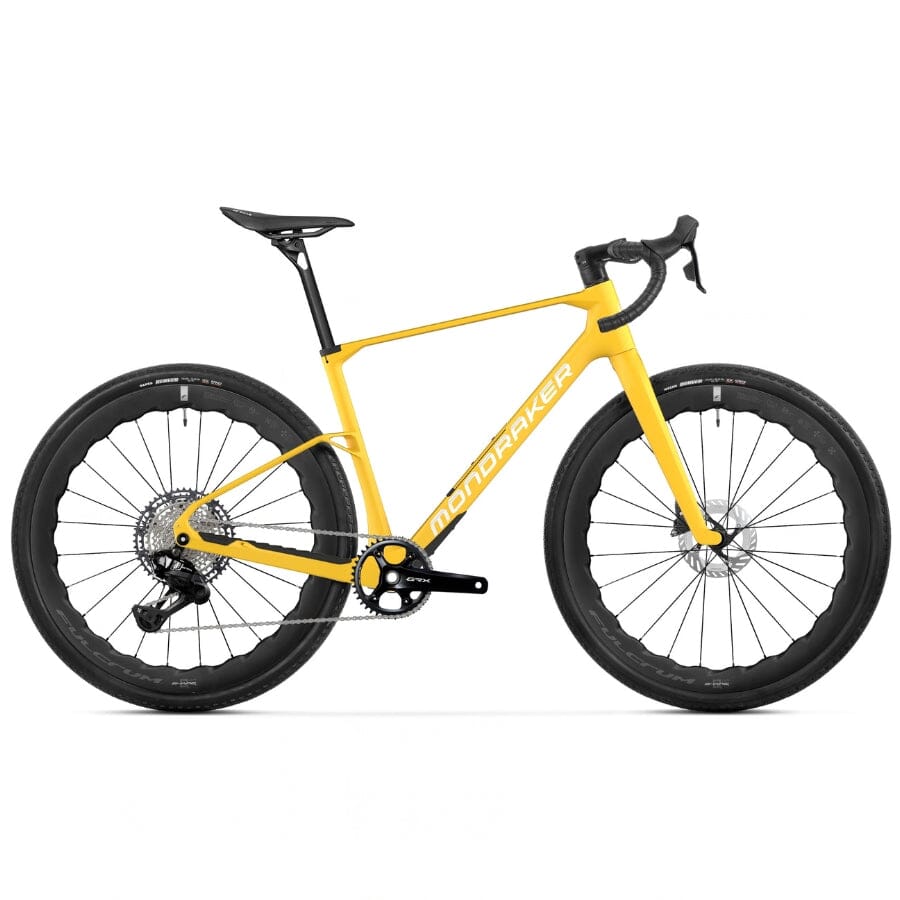

Mondraker Arid Carbon RS
Product Details
The Mondraker Arid Carbon RS pairs a versatile carbon gravel chassis with Shimano GRX Di2 shifting and Fulcrum carbon wheels. It is designed for riders who appreciate a responsive bike on faster sections but also want comfort and control when smooth tracks give way to rougher ground. Wide tire clearance and built-in storage help the bike adapt to distance as readily as changing surfaces.
The frame's Stealth Air Carbon layup is tailored for a firm pedaling platform without an unnecessarily harsh ride. Stiffness around the head tube and bottom bracket works alongside a more compliant rear triangle, helping the bike maintain its rhythm on broken surfaces. Forward Geometry guides the handling, while a T47 bottom bracket, UDH interface and 12x142mm rear axle define the build standards. HHG internal routing keeps cables neatly integrated into the frame.
A rigid Stealth Air Carbon fork complements the frame, with a tapered steerer, HHG routing and an integrated flat-mount brake interface. Clearance for tires up to 50mm wide gives riders room to favor faster rolling or greater rough-surface comfort. The rigid layout keeps the connection to the ground direct, with the carbon construction and tire setup shaping the ride feel.
Shimano GRX RX827 Di2 supplies 12-speed shifting. Fulcrum Sharq GR wheels use hooked carbon 2-Wave rims with a varying 47-52mm height and a 30mm internal width. The Fulcrum rear hub has steel cup-and-cone bearings, Centerlock rotor mounting and an MS freehub. This Shimano-equipped build brings a different drivetrain and wheel choice to the same versatile Arid carbon platform.
Longer days benefit from the Carry-On storage system, which places three organized pouches inside the downtube behind a watertight, dustproof cover. Tools and small essentials can stay with the bike instead of filling pockets. Mounts on the frame and fork support flexible bottle and accessory arrangements, including positions beneath the downtube and on the top tube. The five-size range includes S, M, M/L, L and XL, with an intermediate option for riders between medium and large.
Key Features
- Frame - Arid Stealth Air Carbon
-
Drivetrain - Shimano GRX RX827 Di2, 12-speed
- Wheelset - Fulcrum Sharq GR carbon with Fulcrum hubs
| Specification | Detail |
|---|---|
| Frame | Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible. |
| Sizes | S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm |
| Fork | Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork |
| Headset | Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing. |
| Stem | Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm |
| Handlebar | Onoff S9 GR Carbon 16º bar flare Width sizes S size: 400mm M size: 420mm ML size: 420mm L size: 440mm XL size: 460mm |
| Grips | Fizik Terra Solocush Tacky Bartape |
| Seatpost | Onoff S9 Carbon 15-R, diameter 27.2mm, length S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm |
| Saddle | Fizik Vento Argo X5 140mm |
| Front Brake | Shimano GRX RX825, RX820 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad |
| Rear Brake | Shimano GRX RX825, RX820 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad |
| Brake Lever | Shimano GRX RX825, contact point adjustment, tooled reach adjust, aluminium lever. |
| Rims | Fulcrum Sharq GR, Carbon 2-Wave Rim, 47-52mm height, 30mm internal width, Hooked Rim |
| Spokes | Fulcrum A3RO 3mm |
| Front Hub | Fulcrum, 12x100mm, Steel Cup & Cone Bearings, Centerlock |
| Rear Hub | Fulcrum, 12x142mm, Steel Cup & Cone Bearings, Centerlock, MS Freehub |
| Front Tire | Maxxis Reaver 700x45, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead |
| Rear Tire | Maxxis Reaver 700x45, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead |
| Crankset | Shimano GRX RX820 S size: 170mm M size: 170mm ML size: 170mm L size: 172,5mm XL size: 175mm, CL 49,7 |
| Rings | Shimano 40T, alloy |
| Bottom Bracket | Token T47 BSA sealed bearings, 85,5mm |
| Chain | Shimano XT CN-M8100, 12s, Quick-Link |
| Rear Derrailleur | Shimano GRX RX827 DI2, 12s |
| Shift Levers | Shimano GRX RX825 DI2 dual lever |
| Cassette | Shimano XT CS-M8200 ,10-51T, Hyperglide+, 12s |
| Derailleur Hanger | Sram UDH |
| Weight | 19.6 lbs |
| Frame Size | S | M | M/L | L | XL |
|---|---|---|---|---|---|
| Seat Tube Length (mm) | 410 | 450 | 480 | 510 | 540 |
| Top Tube Length (mm) | 520 | 550 | 580 | 600 | 630 |
| Bottom Bracket Drop (mm) | -75 | -75 | -75 | -75 | -75 |
| Bottom Bracket Height (mm) | 269 | 269 | 269 | 269 | 269 |
| Chainstay Length (mm) | 425 | 425 | 425 | 425 | 425 |
| Seat Tube Angle | 73° | 73° | 73° | 73° | 73° |
| Effective Seat Tube Angle | 74° | 74° | 74° | 74° | 74° |
| Headtube Angle | 70° | 70° | 70° | 70° | 70° |
| Fork Offset (mm) | 45 | 45 | 45 | 45 | 45 |
| Wheelbase (mm) | 1003 | 1035 | 1067 | 1089 | 1121 |
| Headtube Length (mm) | 100 | 125 | 145 | 175 | 200 |
| Reach (mm) | 363 | 386 | 411 | 423 | 446 |
| Stack (mm) | 548 | 572 | 591 | 619 | 642 |
| Stem Length (mm) | 60 | 70 | 70 | 80 | 90 |
| Fork Height (mm) | 420 | 420 | 420 | 420 | 420 |
