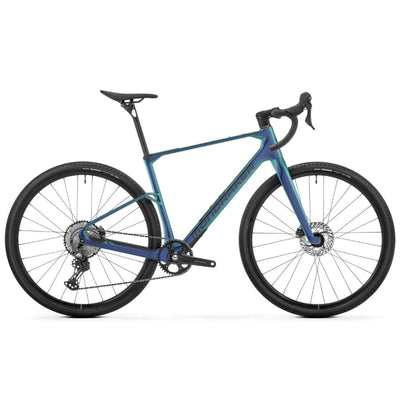

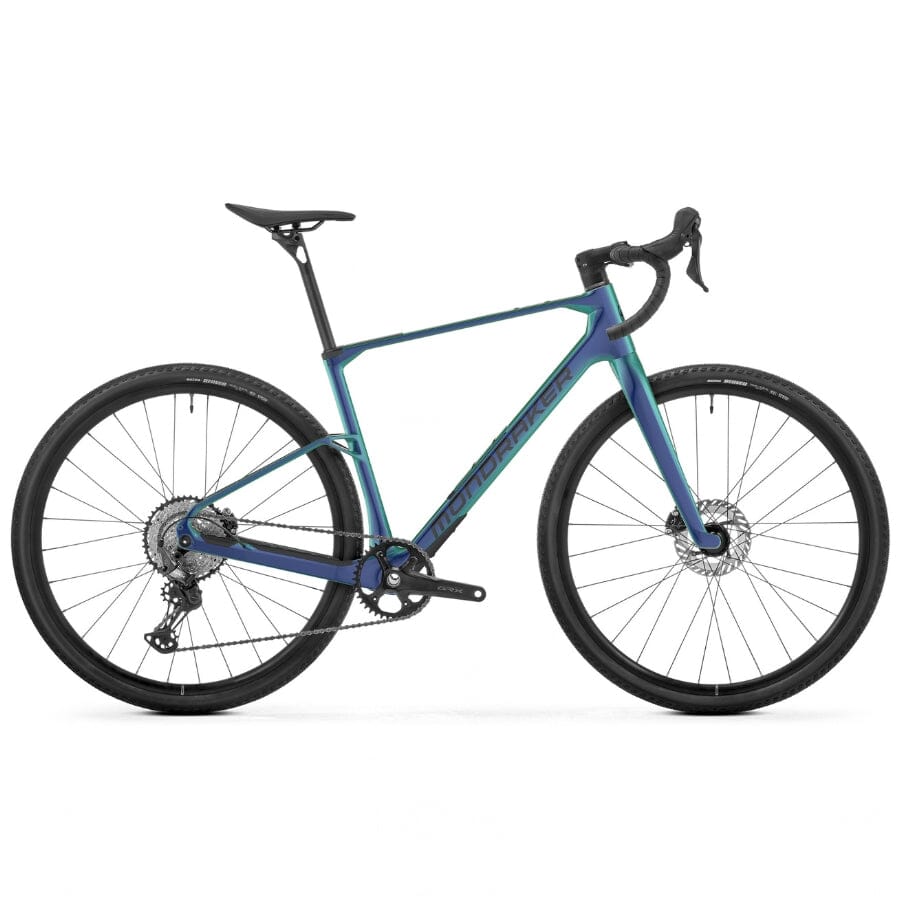

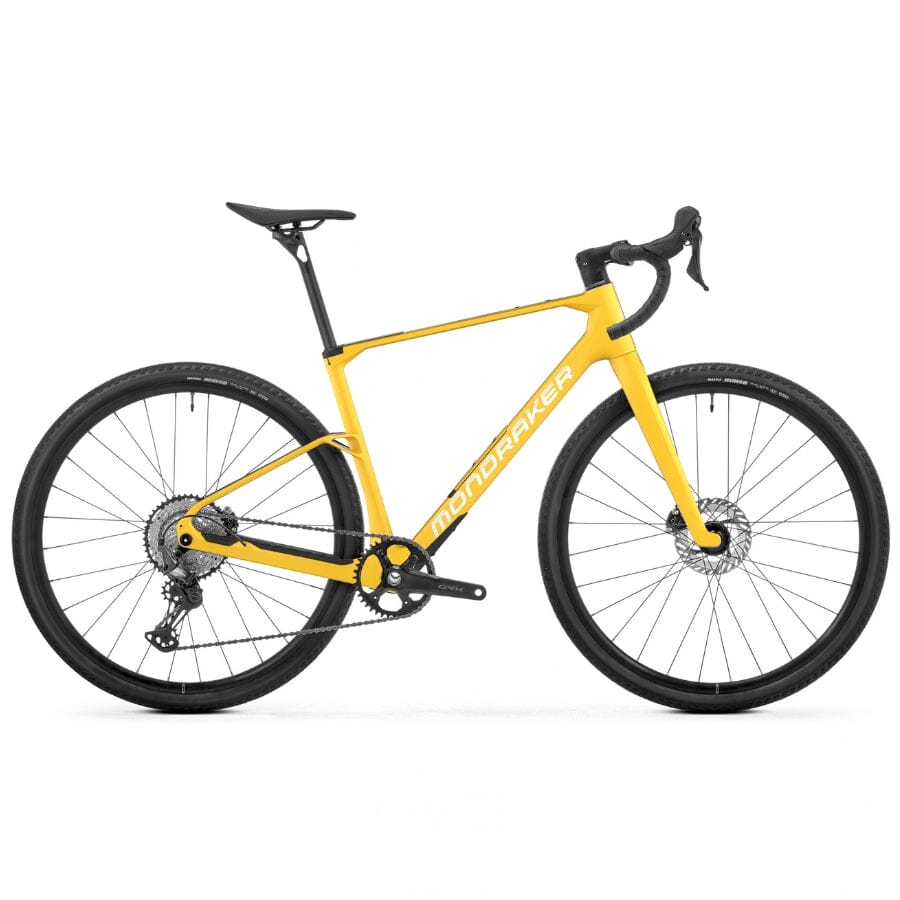

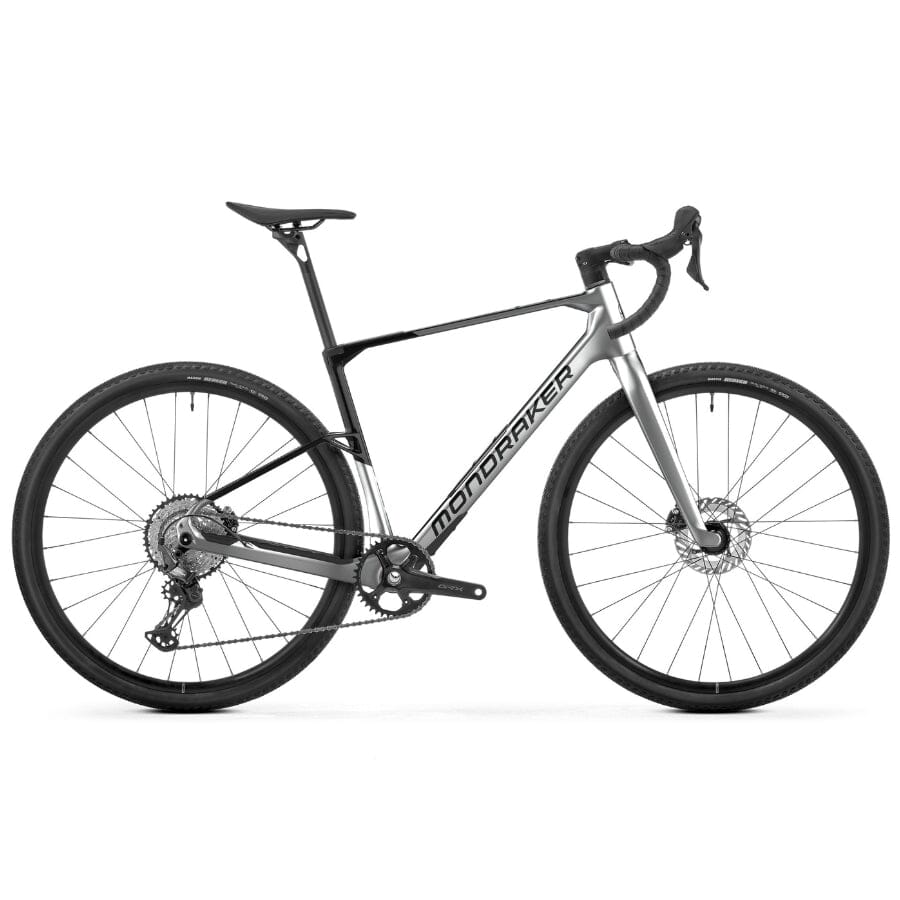

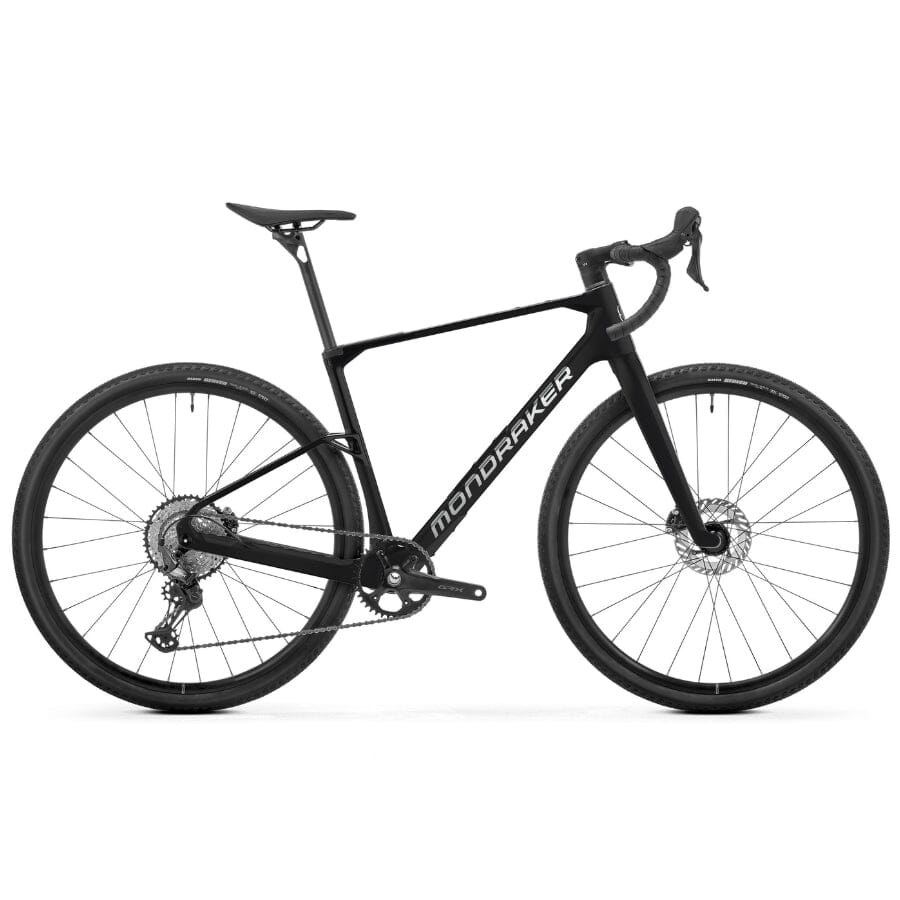

Mondraker Arid Carbon S GRX
Product Details
The Mondraker Arid Carbon S GRX offers a focused gravel build around Shimano GRX 12-speed shifting and Mavic Allroad wheels. A Stealth Air Carbon frame supplies the balance of stiffness and compliance, making the bike suited to steady endurance miles as well as faster outings on hardpack. Practical frame features keep that performance grounded in the needs of everyday riding.
Mondraker's Stealth Air Carbon construction gives different parts of the frame different jobs. The head tube and bottom bracket areas emphasize stiffness for a direct response to pedaling and steering, while the rear triangle allows vertical compliance over uneven ground. Forward Geometry shapes the fit and handling. A T47 bottom bracket, UDH interface and 12x142mm rear axle provide the structural details, with HHG internal routing and a dedicated 1x layout keeping the design clean.
A rigid Stealth Air Carbon fork complements the frame, with a tapered steerer, HHG routing and an integrated flat-mount brake interface. Clearance for tires up to 50mm wide gives riders room to favor faster rolling or greater rough-surface comfort. The rigid layout keeps the connection to the ground direct, with the carbon construction and tire setup shaping the ride feel.
Shimano GRX RX822-SGS provides 12-speed shifting. The Mavic Allroad Disc wheel specification includes hookless rims with a 25mm internal width and 28 spokes, paired with Infinity hubs. At the rear, ID360 ratchet engagement, Centerlock rotor mounting and an MS freehub complete the details. It is a gravel-focused drivetrain and wheel combination on a frame built to accommodate a wide range of routes.
The Carry-On downtube compartment adds a practical advantage on longer outings. Its watertight, dustproof cover protects three removable, hook-and-loop-secured pouches for tools and other small essentials. Bottle and accessory mounts extend beyond the main triangle to the underside of the downtube, fork legs and top tube. Five sizes, S, M, M/L, L and XL, give riders an intermediate fit option and room to configure the bike for the way they ride.
Key Features
- Frame - Arid Stealth Air Carbon
-
Drivetrain - Shimano GRX RX822-SGS, 12-speed
- Wheelset - Mavic Allroad Disc with Infinity hubs
| Specification | Detail |
|---|---|
| Frame | Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible. |
| Sizes | S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm |
| Fork | Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork |
| Headset | Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing. |
| Stem | Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm |
| Handlebar | Onoff S3 GR 16º bar flare. Width sizes S size: 400mm M size: 420mm ML size: 420mm L size: 440mm XL size: 460mm |
| Grips | Onoff HEX Bartape |
| Seatpost | Onoff S9 Carbon 15-R, diameter 27.2mm, length S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm |
| Saddle | Fizik Vento Argo X5 140mm |
| Front Brake | Shimano GRX RX610, RX410 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad |
| Rear Brake | Shimano GRX RX610, RX410 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad |
| Brake Lever | Shimano GRX RX610, tooled reach adjust, aluminium lever. |
| Rims | Mavic Allroad Disc, 25mm internal width, hookless, 28 spokers |
| Spokes | Mavic Steel J Bent spokes |
| Front Hub | Mavic, 12x100mm, Centerlock |
| Rear Hub | Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, Centerlock, MS Freehub |
| Front Tire | Maxxis Reaver 700x45, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead |
| Rear Tire | Maxxis Reaver 700x45, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead |
| Crankset | Shimano GRX RX610 S size: 165mm M size: 170mm ML size: 170mm L size: 172,5mm XL size: 175mm, CL 49,7 |
| Rings | Shimano 40T, direct mount, steel |
| Bottom Bracket | Token T47 BSA sealed bearings, 85,5mm |
| Chain | Shimano SLX CN-M7100, Quick-Link |
| Rear Derrailleur | Shimano GRX RX822-SGS, 12s |
| Shift Levers | Shimano GRX RX610 dual control, alloy lever |
| Cassette | Shimano SLX CS-M7100, Hyperglide+, 10-51, 12s |
| Derailleur Hanger | Sram UDH |
| Weight | 22lbs |
| Frame Size | S | M | M/L | L | XL |
|---|---|---|---|---|---|
| Seat Tube Length (mm) | 410 | 450 | 480 | 510 | 540 |
| Top Tube Length (mm) | 520 | 550 | 580 | 600 | 630 |
| Bottom Bracket Drop (mm) | -75 | -75 | -75 | -75 | -75 |
| Bottom Bracket Height (mm) | 269 | 269 | 269 | 269 | 269 |
| Chainstay Length (mm) | 425 | 425 | 425 | 425 | 425 |
| Seat Tube Angle | 73° | 73° | 73° | 73° | 73° |
| Effective Seat Tube Angle | 74° | 74° | 74° | 74° | 74° |
| Headtube Angle | 70° | 70° | 70° | 70° | 70° |
| Fork Offset (mm) | 45 | 45 | 45 | 45 | 45 |
| Wheelbase (mm) | 1003 | 1035 | 1067 | 1089 | 1121 |
| Headtube Length (mm) | 100 | 125 | 145 | 175 | 200 |
| Reach (mm) | 363 | 386 | 411 | 423 | 446 |
| Stack (mm) | 548 | 572 | 591 | 619 | 642 |
| Stem Length (mm) | 60 | 70 | 70 | 80 | 90 |
| Fork Height (mm) | 420 | 420 | 420 | 420 | 420 |
