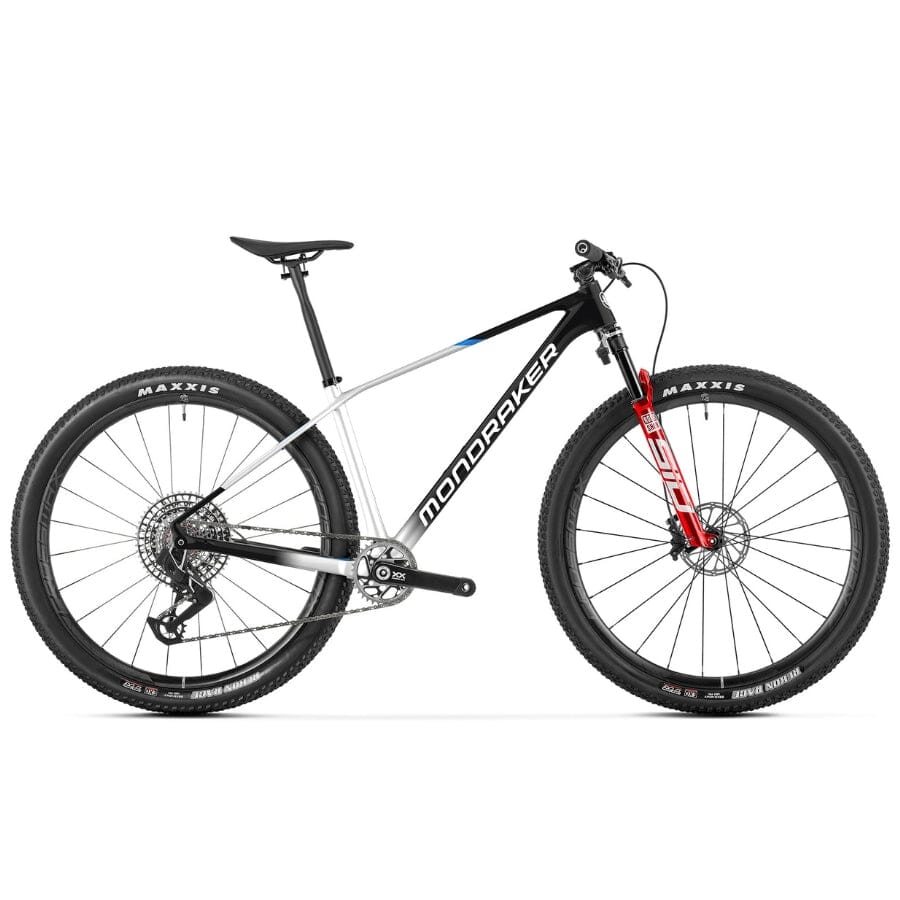

Mondraker Podium RR SL
Product Details
The Mondraker Podium RR SL puts a sharply focused component package on a lightweight carbon hardtail platform. RockShox Flight Attendant front suspension, SRAM XX SL Eagle AXS T-Type shifting and Mavic Crossmax Ultimate Carbon wheels give the build its racing character. It is a bike for riders who want an immediate response on climbs and accelerations, especially on courses where a direct trail feel takes priority over rear suspension.
Mondraker lists a 775g frame weight for the Podium platform in size medium, a figure that refers to the frame rather than the complete bike. Its Stealth Air Carbon construction is designed to preserve stiffness while keeping weight low. The 29-inch format supports momentum across XC terrain, and the hardtail layout provides the direct pedaling feel that defines the bike's purpose.
XC Forward Geometry pairs a longer reach with a 68.5-degree head angle, 74.5-degree effective seat tube angle and 430mm chainstays. Those dimensions balance room to move with a purposeful climbing position and responsive changes of direction. HHG internal routing keeps the cable layout tidy, while a threaded BSA bottom bracket, tapered head tube, Boost 12x148mm rear axle and UDH interface define the chassis. The frame is designed for a 1x drivetrain and flat-mount brakes.
The RockShox SID SL Ultimate Flight Attendant fork delivers 100mm of travel through a DebonAir+ spring and Charger Race Day 2 damper. It uses 32mm aluminum stanchions, a 44mm offset and Boost 15x110mm axle. External rebound adjustment and electronically controlled open, pedal and lock compression settings let the suspension response suit different sections of the ride, from sustained climbs to rougher stretches of trail.
SRAM XX SL Eagle AXS T-Type provides 12-speed shifting. Mavic Crossmax Ultimate Carbon 29 wheels feature hookless, tubeless-ready rims with a 30mm internal width and 24 spokes. The MX1001 Ultralight rear hub adds ceramic bearings and ID360 freewheel technology, along with six-bolt rotor mounting and an XD freehub. This wheel specification reinforces the build's race-focused approach.
Key Features
- Frame - Podium 29 Stealth Air Carbon
-
Suspension - RockShox SID SL Ultimate Flight Attendant fork, 100mm
-
Drivetrain - SRAM XX SL Eagle AXS T-Type, 12-speed
- Wheelset - Mavic Crossmax Ultimate Carbon 29 with MX1001 Ultralight hubs
| Specification | Detail |
|---|---|
| Frame | Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, UDH, dedicated 1X drivetrain design, Flatmount brake compatible, |
| Sizes | S: 390mm / M: 420mm / L: 470mm / XL: 510mm |
| Fork | RockShox SID SL Ultimate Flight Attendant, 100mm, Debon Air+, Charger Race Day 2, tapered steerer tube, Boost 15x110mm axle, 32mm aluminum stanchions, offset 44mm. Settings: Extl rebnd, E-cont. 3 pos comp (open/pedal/lock) |
| Fork Remote | Flight Attendant controlled |
| Headset | Onoff IS42/IS52, 1-1/8", 1.5" head tube, sealed bearings |
| Stem | Onoff S9 Integrated Carbon Handlebar, width: 760mm, 8º Backsweep, 0º Upsweep S size: 55mm length -12º rise M size: 55mm length -12º L size: 65mm length -14º rise, XL size: 75mm length -15º rise |
| Grips | Ergon GXR black |
| Seatpost | Onoff S9 Carbon 0-R, diameter 27.2mm, length 400mm |
| Saddle | Fizik Vento Argo 00 Carbon 140mm |
| Front Brake | Sram Motive Ultimate 4P Stealth, 2 piece caliper, HS2 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Motive Ultimate 4P Stealth, 2 piece caliper, HS2 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Brake Lever | Sram Motive Ultimate, tools-free reach adjust, lever pivot bearings, carbon lever |
| Rims | Mavic Crossmax Ultimate Carbon 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes |
| Spokes | Mavic 20 straight-pull carbon spokes |
| Front Hub | Mavic MX1001 Ultraligth hub, Ceramic bearing Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic MX1001 Ultraligth hub, ID360 freewheel technology, Ceramic bearing, Boost 12x148mm, IS 6 bolts, XD freehub |
| Front Tire | Maxxis Aspen ST 29x2.40, Maxx Speed, EXO protection, tubeless ready, 170TPI, folding bead |
| Rear Tire | Maxxis Aspen ST 29x2.40, Maxx Speed, EXO protection, tubeless ready, 170TPI, folding bead |
| Crankset | Sram XX SL Carbon Eagle T-Type, Boost, DUB axle, Direct mount chain ring S size: 165mm, M size: 165mm, L size: 170mm XL size: 170mm, CL 55 |
| Rings | 34T, CNC-machined alloy, X-SYNC 2 |
| Bottom Bracket | Sram DUB BSA, sealed bearings, 73mm |
| Chain | Sram XX SL Eagle T-Type, 12s Flattop, Powerlock |
| Rear Derrailleur | Sram XX SL Eagle AXS, T-Type, 12s |
| Shift Levers | Sram Eagle AXS Pod Ultimate, 12s |
| Cassette | Sram XS-1299, 10-52T, T-Type, 12s |
| Weight | 18.7 lbs |
| Size | S | M | L | XL |
|---|---|---|---|---|
| Seattube length (mm) | 390 | 420 | 470 | 510 |
| Toptube length (mm) | 590 | 611 | 632 | 650 |
| Bottom bracket drop (mm) | -65 | -65 | -65 | -65 |
| Bottom bracket height (mm) | 300 | 300 | 300 | 300 |
| Chainstay length (mm) | 430 | 430 | 430 | 430 |
| Seat tube angle | 73° | 73° | 73° | 73° |
| Effective seattube angle | 74.5° | 74.5° | 74.5° | 74.5° |
| Headtube angle | 68.5° | 68.5° | 68.5° | 68.5° |
| Fork Offset (mm) | 44 | 44 | 44 | 44 |
| Wheelbase (mm) | 1107 | 1128 | 1150 | 1170 |
| Headtube length (mm) | 85 | 90 | 100 | 115 |
| Reach (mm) | 425 | 444 | 463 | 477 |
| Stack (mm) | 598 | 602 | 611 | 625 |
