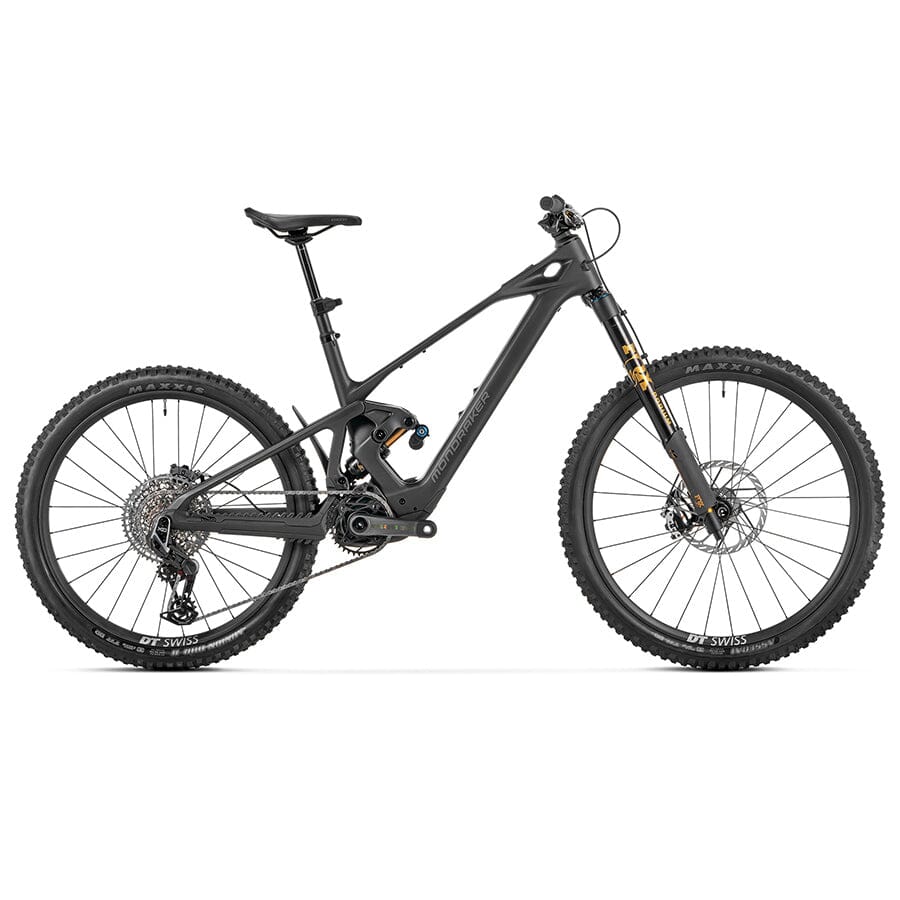

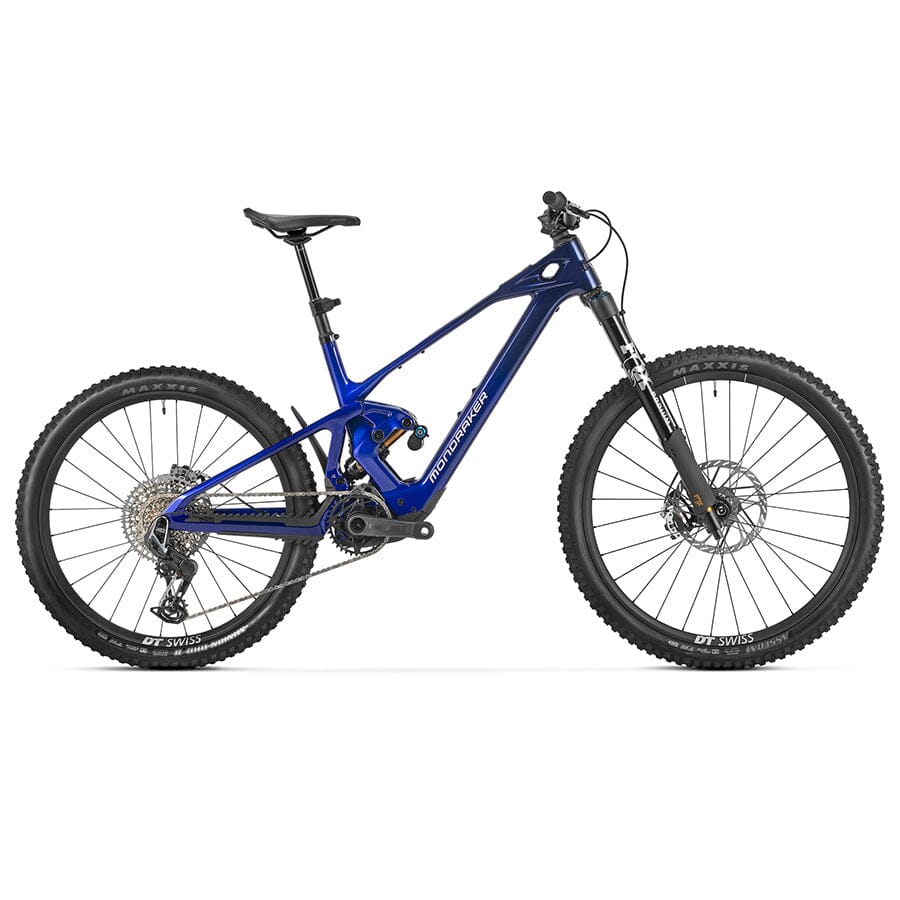

Mondraker Zendit XR
Request Info
Mondraker Zendit XR
Product Details
The Mondraker Zendit XR is designed for riders who refuse to save all the fun for the descent and demand the most capable electric mountain bike ever created. Built from the ground up around the revolutionary Avinox M2S drive system, ZENDIT represents a complete evolution in electric mountain bike design, not an adaptation of an existing platform, but a purpose-built gravity machine that can claw its way up the steepest technical climbs and unleash uncompromising performance on the way down.
Powered by the groundbreaking Avinox M2S motor delivering 130Nm of torque (150Nm in Boost Mode) with 1,300W peak power, ZENDIT features advanced Multi Sensor Fusion Algorithm technology that acts like traction control, seamlessly transferring assistance from pedal to rear tire for predictable traction everywhere. The integrated 800Wh battery maintains 80% capacity after 500 charge cycles, while the intuitive touchscreen control interface pairs with the Avinox Ride app for complete customization of riding modes from Eco to the extreme 60-second Boost mode.
The Stealth Air Carbon frame represents Mondraker's most refined and advanced design yet, weighing exactly 3,000 grams (size M/L) through advanced manufacturing using 6-axis CNC machines for unprecedented precision. With 165mm rear and 170mm front travel, the evolved ZERO suspension platform features 27% progression, 105% anti-squat, and 99% anti-rise, completely revised to handle what the Avinox motor can output. FOX has worked closely with Mondraker to deliver custom-tuned Float X2 Factory shock and Podium GripX2 Factory fork that maximize performance and ride feel, while the new twin-sealed bearing system proven on the Summum DH frame ensures long-lasting durability.
Perfect for riders seeking the ultimate in electric mountain bike performance, ZENDIT features evolved Forward Geometry with adjustable head angle (±0.35°) and flip-chip geometry adjustment, MX wheels as standard with full 29" compatibility via lower flip-chip, proportional chainstay lengths across sizes, and seamlessly integrated display with wireless controllers, action camera control, USB-C fast charging, and digital motor lock with alarm and tracking.
Key Features
- Frame: Stealth Air Full Carbon
- Motor: Avinox M2S 2026 Drive Unit
- Battery: 800Wh
- Suspension: FOX Podium GripX2 Factory 170mm Fork with FOX Float X2 Factory Shock
- Drivetrain: SRAM X0 Eagle AXS T-Type
- Wheelset: DT Swiss Hybrid HXC 1500 Spline
| Specification | Detail |
|---|---|
| Frame | Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. |
| Sizes | S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm |
| Rear Shock | Fox Float X2 Factory Kashima 205x65mm. 2-positions lever compression (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings. |
| Shock Settings | CS 30 compression, 1,1 Bleed, RS40 rebound, Rezi B40, LML, Long MCU, 0 volume spacers. |
| Fork | Fox Podium 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm thru axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload. |
| Headset | Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs, without blocklock. |
| Stem | Onoff S9 30mm 0º, Full CNC, 31.8mm barbore. |
| Handlebar | Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise. |
| Grips | Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size. |
| Seatpost | RockShox Reverb AXS, diameter 31.6mm, w/AXS Pod Controller Rocker Paddle. S: 398.2x125mm, M: 448.2x150mm, ML: 498.2x175mm, L: 548.2x200mm, XL: 548.2x200mm. |
| Saddle | Ergon SM10 E-Mountain Black |
| Front Brake | SRAM Maven Ultimate, 18mm 4-piston caliper, HS2 220mm IS 6-bolt rotor, steel-backed metal sintered pads |
| Rear Brake | SRAM Maven Ultimate, 18mm 4-piston caliper, HS2 200mm IS 6-bolt rotor, steel-backed metal sintered pads |
| Brake Lever | SRAM Maven Ultimate, Carbon lever, SwingLink and lever pivot bearings, tool-free reach adjust |
| Rims | DT Swiss Hybrid HXC 1500 Spline, Carbon, 30mm internal width, tubeless ready, 28 spokes |
| Spokes | DT Swiss Straightpull, DT Hybrid II, black |
| Front Hub | DT Swiss 350, 20x110mm Boost, Disc IS (6-bolt) |
| Rear Hub | DT Swiss 350 Classic with 72T Ratchet DEG System, Boost 12x148mm, IS 6-bolt, XD freehub |
| Front Tire | Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead |
| Rear Tire | Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead |
| Crankset | e*thirteen Helix Race Carbon e*spec, all sizes 155mm |
| Rings | SRAM Eagle 36T T-Type, 104BCD, steel, CL55 |
| Chain | SRAM GX Eagle T-Type, 12s Flattop, w/Powerlock |
| Rear Derailleur | SRAM X0 Eagle AXS T-Type, 12s |
| Shift Levers | SRAM Eagle AXS Pod Controller Rocker Paddle w/discrete clamp, 12s |
| Casette | SRAM XS 1275, 10-52T, T-Type, 12s |
| Others | SRAM AXS Extension Cord / Avinox 12A Charger |
| Weight | 23.1 Kg |
| Display | Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R) |
| Motor | Avinox M2S |
| Battery | Avinox 800Wh Battery |
| Measurement | S | M | M/L | L | XL |
|---|---|---|---|---|---|
| Seat Tube Length (mm) | 380 | 410 | 435 | 460 | 490 |
| Top Tube (mm) | 586 / 586 | 606 / 606 | 628 / 629 | 650 / 651 | 672 / 673 |
| BB Drop (mm) | 6 / 11 | 6 / 11 | 6 / 11 | 6 / 11 | 6 / 11 |
| Chainstay Length (mm)* | 345 / 340 | 345 / 340 | 345 / 340 | 345 / 340 | 345 / 340 |
| Seat Stay Length (mm) | 450 / 451 | 450 / 451 | 450 / 451 | 455 / 456 | 455 / 456 |
| Seat Tube Angle (°) | 73.5° / 73.15° | 73.5° / 73.15° | 73.5° / 73.15° | 73.5° / 73.15° | 73.5° / 73.15° |
| Effective Seat Angle (°) | 77° / 76.65° | 77° / 76.65° | 77° / 76.65° | 77° / 76.65° | 77° / 76.65° |
| Head Tube Angle (°) | 63.5° / 63.15° | 63.5° / 63.15° | 63.5° / 63.15° | 63.5° / 63.15° | 63.5° / 63.15° |
| Fork Rake (mm) | 44 | 44 | 44 | 44 | 44 |
| Wheelbase (mm) | 1241 / 1242 | 1261 / 1262 | 1286 / 1287 | 1315 / 1316 | 1339 / 1340 |
| Head Tube Length (mm) | 110 | 110 | 120 | 130 | 140 |
| Reach (mm) | 440 / 436 | 460 / 456 | 480 / 476 | 500 / 496 | 520 / 516 |
| Stack (mm) | 631 / 633 | 631 / 634 | 640 / 643 | 649 / 652 | 658 / 661 |
