SKU: 210000128086
In Stock
On Sale

OPEN MIND Frameset

Regular price $3,315.00
Regular price $3,900.00 Sale price $3,315.00
Color
Size Guide (Opens in a new tab)
contact us
Your satisfaction is our top priority.

Product Details

This is a very different OPEN yet it answers the same question: What do we want to ride? While we love pushing the envelope, we also love the classic bike aesthetic. In the OPEN MIND road bike, both come together.

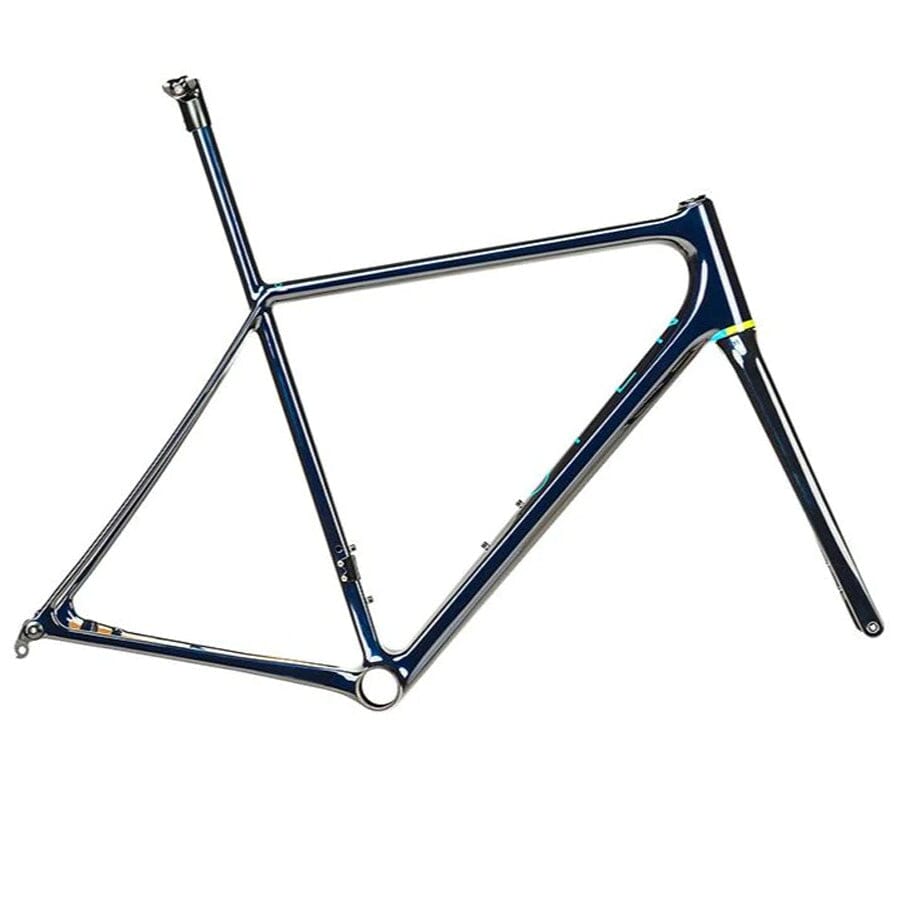

The joy of cycling starts even before the first pedal stroke, as you collect your MIND, feel its lightness, admire the sleek tube profiles, see the shimmering midnight blue, smile at the splash of color from the 4 OPEN logo colors fading into each other on the inside of the fork and chainstays.

Once on the bike, a strange combination of performance and comfort becomes apparent. Every gram of material has a function. Beyond it is nothing, other than the endless draw of roads unknown. This is the MIN.D. (MINimal Design); it exists because it’s the road bike we wanted to ride.

The OPEN MIND Road Bike is currently available in one color and as a frameset. Contact us if you have any questions or want to get started on the Pro-Build of your dreams! Contender Bicycles: (801) 364-0344

Open Mind Geometry image

S M L XL
rider height1 5’3"-5’7" 5’6"-5’11" 5’10"-6’3" 6’2"-6’8"
BB-to-saddle rail max.2 700 740 780 820
Saddle height max2. 740 780 820 860
stack 535 560 585 610
reach 361 373 385 397
standover3 743 769 792 816
headtube angle 71° 72.5° 72.5° 72.5°
headtube length 135 158 184 210
fork offset 50 50 50 50
seattube angle 72.5° 72.5° 72.5° 72.5°
seattube angle (norm.4) 74.0° 73.5° 73.5° 73.5°
toptube length 530 550 569 589
toptube length (norm.4) 515 540 559 589
BB drop 73 71 71 71
front center 578 584 604 623
rear center 405 405 405 405
wheelbase 971 978 998 1018
  1. Estimates; for accuracy use stack/reach of your current gravel/road bike or a fit session.
  2. Maximum when using 5mm spacer, giving 10mm safety margin on top (30mm margin with MOCT seattube top clamp). Assuming 40mm rail-to-saddle deck (40-45mm is standard for most saddles).
  3. Standover to the top of the toptube directly above the BB (varies with tire size).
  4. Normalized dimensions to compare to frames with standard (non-zero-offset) seattubes.
*Please note that bike specifications are subject to change without prior notice
Frame-only size M, ±3% 870g (painted, uncut seatmast, w/o metal parts)
Fork-only weight, ±3% 335g (uncut steerer)
Sizes S/M/L/XL
Stock colors Midnight blue, RTP
RTP (Ready-to-paint) A clearcoat is not needed for UV protection but recommended to protect against scratches and wear. Some customers leave the frame bare.
BB standard BB386EVO pressfit 86.5x46mm BB shell
Front derailleur mount Yes
Rear thru-axle 142x12mm superlight Carbon-Ti X-12
Front thru-axle 100x12mm superlight Carbon-Ti X-12
Front disc rotor size 160mm only
Front brake caliper mount Smartmount 160 system attaches flatmount caliper, without adaptor, for 160mm rotors
Front brake bolts SRAM 2x 37mm ""REAR” brake bolts for 30mm “chainstay” (SRAM part# 00.5318.005.008)
Front brake bolts Shimano 2x 43.2mm “REAR” brake bolts for 30mm “chainstay” (Shimano part# Y8N208030)
Front brake bolts Campagnolo Use Campagnolo SuperRecord “140 mm REAR” disc caliper with 1 bolt “for 20-24 mm rear mount” and 1 bolt “for 25-29mm rear mount” to attach directly to the R-Turn fork
Rear disc rotor size 160mm only
Rear brake caliper mount Smartmount 160 system attaches flatmount caliper, without adaptor, for 160mm rotors
Rear brake bolts SRAM 1x 27mm (SRAM part# 00.5318.005.004), 1x 32mm (SRAM part# 00.5318.005.006)
Rear brake bolts Shimano 1x 33.2mm (part# Y8N208010), 1x 38.2mm (part# Y8N208020)
Rear brake bolts Campagnolo Use Campagnolo SuperRecord “140 mm REAR” disc caliper with 1 bolt “for 20-24 mm rear mount” and 1 bolt “for 25-29mm rear mount”
MultiStop internal system Di2, eTap, EPS, 2x mechanical (Shimano-only), 1x mechanical (all groups)
Headset Cane Creek Integrated IS42/28.6 | OPEN-custom Integrated IS47/38 (complete set part# CAA2011K)
Seatpost Integrated mast 25mm BB to saddle
Seattube top clamp OPEN-custom saddle top clamp with micro-wedge for 25mm seat mast with 15mm adjustment (MOCT top clamp with 15-35mm adjustment available separately)
Rail clamp Ritchey rail clamp with side plates for round 7x7 and oval 7x9.6mm rails included
Indoor trainer compatibility Detailed information here
Installation information ""Brake hose installation
Torque specs""
Included with frameset: Headset, Seattube top clamp, Rail clamp, Thru-axles, 2 RD hangers, 2 MultiStops (Di2, eTap), cable exit stop, noise-reduction foam sleeves, bottle cage bolts, manual
Frameset Price (USD, excl. sales tax) $3,700

Component Sram Force AXS 2x Sram RED AXS 2x Shimano Dura Ace 12 Speed Di2 Shimano Ultegra 12 Speed Di2
Levers/Calipers SRAM Force AXS HRD eTap Shifter / Brake Lever and Caliper D2 SRAM RED eTap AXS HRD Lever/Caliper Shimano Dura-Ace ST-R9270A Di2 Lever with BR-R9270 Disc Brake Caliper Shimano Ultegra ST-R8170/BR-R8170 Di2 Shift/Brake Lever and Hydraulic Disc Caliper
Crankset SRAM Force Crankset - 172.5mm, 2x 12-Speed, 48/35t, Direct Mount, DUB Spindle Interface, Iridescent Gray, D2 SRAM RED 1 AXS Crankset - 175mm, 12-Speed, 42t, 107 BCD, DUB Spindle Interface, Natural Carbon Shimano Dura-Ace Crankset, FC-R9200 12-Speed 172.5mm 50-34t Shimano Ultegra FC-R8100-P Crankset - 2x12s 50-34T 172.5mm
Derailuer F SRAM Force AXS eTap Front Derailleur - 2x12-Speed D2 Red AXS Front eTap Front Derailleur - 2x12 Shimano Dura Ace FD-R9250 12s Braze On Front Derailleur Shimano Ultegra Di2 Front Derailleur, FD-R8150, 12-Speed
Derailuer R SRAM Force eTap AXS Rear Derailleur D2 Medium Cage Red AXS Rear eTap - 2x12 Shimano Dura-Ace RD-R9250 Di2 Rear Derailleur Shimano Ultegra RD-8150 Di2 Rear Derailleur
Chain Sram Force chain RED AXS Chain XTR Chain XT Chain
Cassette SRAM Force AXS XG-1270 12-Speed Cassette 10-36t SRAM Red AXS XG-1290 12-Speed XDR Cassette Shimano Dura-Ace CS-R9200 Cassette - 12-Speed 11-34t Shimano CS-R8100-12 Ultegra Cassette 11-34
Rotors SRAM Force Rotor 160 x 2 Sram XR Rotor x 2 Shimano Dura-Ace SM-RT900S 160mm Shimano Ultegra RT800S 160mm
Battery/Extras Batt/Charger Batt/Charger Wires/Batt/Charger Wires/Batt/Charger
