OPEN UP Rapha Limited Edition Frameset

$1,799.00
$3,400.00 $1,799.00


Contact us for current price.

Color
Size Guide (Opens in a new tab)
Your satisfaction is our top priority.

Product Details

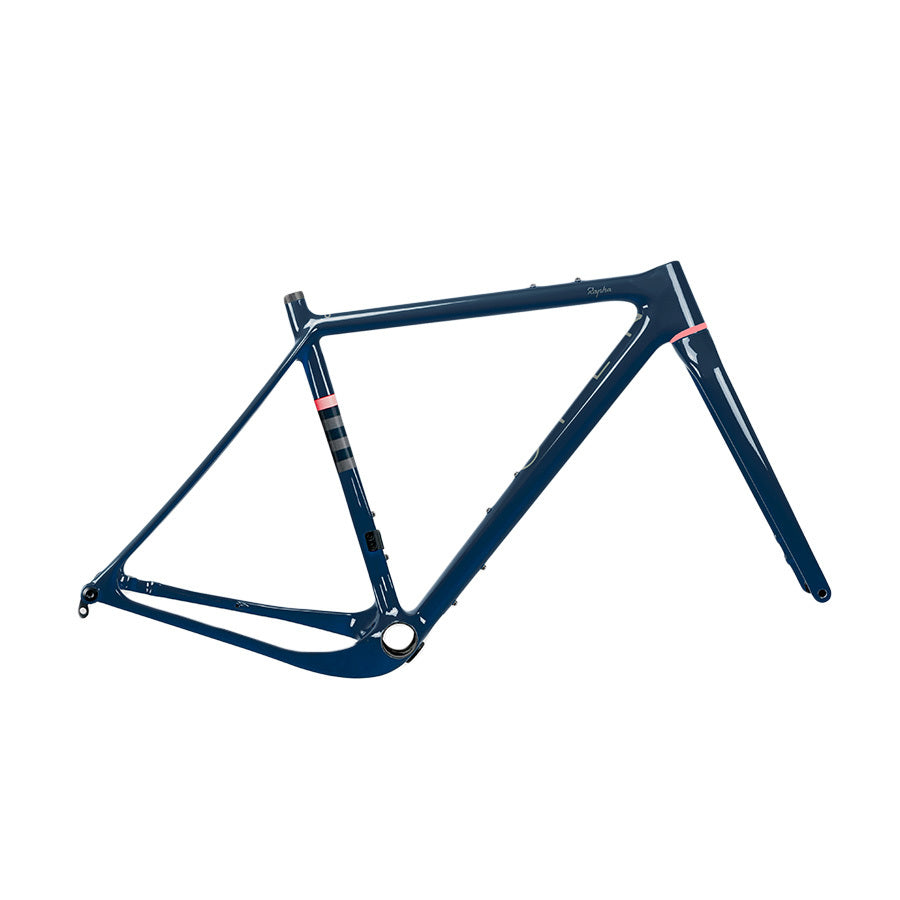

The Open UP Limited Edition Gravel Bike Frameset stands out as a pinnacle of design and performance, combining all the essential elements that make the UP series so exceptional. With its remarkable tire clearance, outstanding ride quality, and the flexibility to customize your build at Contender Bicycles, this frameset offers everything you need to create the gravel bike of your dreams. This limited edition frameset, painted in collaboration with Rapha Cycling Club, is not just about aesthetics; it's engineered to take you anywhere you desire on a fast gravel bike, whether it's smooth roads or rugged trails.

One of the standout features of the Open UP is its ultra-efficient tube shaping, which is meticulously designed to be lightweight while maintaining high strength. This ensures optimal power transfer, allowing you to ride with speed and efficiency. The tire clearance is another key highlight, accommodating large road, cyclocross, and gravel tires ranging from 32mm to 40mm. This versatility makes it perfect for mixed-surface rides, where you might encounter anything from smooth pavement to loose gravel. Additionally, the frameset features a continuous seattube, providing added comfort for long rides, reflecting Open's great attention to detail.

But what if you're looking for more than just a frameset and want a complete bike ready to ride? That's where Contender Bicycles steps in. Once you've selected the size of your OPEN x Rapha UP frame, you can start picking and choosing the components that suit your style. Whether it's Shimano's top-tier Dura-Ace Di2 drivetrain, bomb-proof lightweight ENVE wheels, or a SRAM Red or Campagnolo Ekar groupset, we've got all the premium parts you need to create your perfect bike. If there's a specific component you have in mind that we don't carry, simply reach out to our pro build experts at probuild@contenderbicycles.com, and we'll coordinate every detail of your purchase, build, and delivery. Your dream bike is just a few clicks away.

KEY FEATURES

  • Exclusive Design Collaboration
  • Versatile Tire Clearance
  • Optimized Tube Shaping
    • *Please note that bike specifications are subject to change without prior notice
    Weight Frame-only (Size L, w/o metal parts ±3%) 1040g (For the U.P. Model)
    Weight Fork-only (±3%) 390g (For the U.P. Model)
    Sizes S / M / L / XL
    BB Standard BB386EVO pressfit 86.5x46mm BB shell
    Recommended Groupsets Any Shimano GRX, Any SRAM AXS, Any SRAM 1x, Campagnolo Ekar
    Front Derailleur Mount Bolt-on, removable
    Front Thru-Axle 100x12mm superlight Carbon-Ti X-12
    Front Disc Rotor Size 160mm only with Smartmount
    Front Brake Caliper Mount Smartmount 160 system attaches flatmount caliper, without adaptor, for 160mm rotors
    Rear Thru-Axle 142x12mm superlight Carbon-Ti X-12
    Rear Disc Rotor Size 140mm Smartmount or 160mm with adaptor
    Rear Brake Caliper Mount Smartmount 140 system attaches flatmount caliper, without adaptor, for 140mm rotors or with adaptor for 160mm rotors
    MultiStop Internal System Di2, eTap, EPS, 1x mechanical (all groups)
    Headset Integrated IS42/28.6 | IS52/40 with 45x45 degree lower bearing (e.g., Cane Creek BAA1131 + BAA1161, Chris King DropSet 2, Token Omega A83)
    Seatpost 27.2mm diameter, standard set-up zero-offset
    Fenders Compatible with clip-on style fenders (Recommended: SKS Speedrocker)
    Cage Mounts Seattube, Downtube, Under Downtube
    TT Bag Mount System 100mm front-post-to-headset-edge
    Travel Bag Recommendation Scicon AeroComfort Road 3.0
    Max. Weight (Total Rider + Luggage) 120kg / 264 lbs (EN/ISO/Internal test standard)
    Included with Frameset Headset, Seattube Collar, Thru-Axles, 2 RD Hangers, Cover Bolts for FD Mount Posts, 1 FD Mount, 4 MultiStops (2x, 1x, Di2, eTap [only included with U.P.P.E.R.]), Cable Exit Stop, BB Guide, Cable Liners, Noise-Reduction Foam Sleeves, Bottle Cage Bolts, Manual
    Component Sram Force AXS D2 Sram RED AXS E1 Sram Force AXS D2 1x XPLR Sram Force AXS D2 1x GX Sram Force AXS D2 1x XX1 Shimano GRX 2X DI2 Shimano GRX 1X DI2 Shimano GRX 2x Mechanical Shimano GRX 1x Mechanical
    Levers/Calipers SRAM Force AXS HRD eTap Shifter / Brake Lever and Caliper D2 SRAM RED E1 AXS HRD Lever/Caliper SRAM Force AXS HRD eTap Shifter / Brake Lever and Caliper D2 SRAM Force AXS HRD eTap Shifter / Brake Lever and Caliper D2 SRAM Force AXS HRD eTap Shifter / Brake Lever and Caliper D2 Shimano ST-RX815 GRX Brake/Shift Lever + CALIPER Shimano ST-RX815 GRX Brake/Shift Lever + CALIPER Shimano ST-RX810 GRX Brake/Shift Lever + CALIPER Shimano ST-RX810 GRX Brake/Shift Lever + CALIPER
    Crankset SRAM Force Crankset - 2x 12-Speed SRAM RED 1 AXS Crankset , 12-Speed SRAM Force Crankset - SRAM Force Crankset - SRAM Force Crankset - Shimano GRX FC-RX600 Crankset 46/30t Shimano GRX FC-RX810-1 Crankset 42t Shimano GRX FC-RX600 Crankset 46/30t Shimano GRX FC-RX810-1 Crankset 42t
    Derailuer F SRAM Force AXS eTap Front Derailleur - 2x12-Speed D2 Red AXS Front E1 Front Derailleur - 2x12 NA NA NA Shimano FD-RX815 GRX Di2 Front Derailleur NA Shimano FD-RX810 GRX Front Derailleur NA
    Derailuer R SRAM Force eTap AXS Rear Derailleur D2 Medium Cage Red AXS Rear E1 - 2x12 SRAM Force AXS XPLR Rear Derailleur D2 SRAM GX Eagle AXS Rear Derailleur SRAM, XX1 Eagle AXS, Rear Derailleur Shimano GRX RD-RX815 Rear Derailleur - 11-Speed, Di2 2x GRX 1X DI2 REAR DERAILLEUR Shimano GRX RD-RX810 Rear Derailleur - 11-Speed 2x GRX 1X RD-RX812 REAR DERAILLEUR
    Chain Sram Force chain RED AXS Chain Sram Force chain SRAM GX Chain SRAM X01 Chain HG701 chain HG701 chain HG701 chain HG701 chain
    Cassette SRAM Force AXS XG-1270 12-Speed Cassette 10-36t SRAM Red AXS XG-1290 12-Speed XDR Cassette SRAM Force AXS XPLR 12-Speed Cassette 10-44t GX Cassette 10-50 X01 Cassette 10-50 Shimano HG700 11-Speed Cassette 11-34 Shimano CS-M7000 11-Speed Cassette 11-46 Shimano HG700 11-Speed Cassette 11-34 Shimano CS-M7000 11-Speed Cassette 11-46
    Rotors SRAM Force Rotor 160 x 2 Sram XR Rotor x 2 SRAM Force Rotor 160 x 2 SRAM Force Rotor 160 x 2 SRAM Force Rotor 160 x 2 Shimano GRX SM-RT64 Shimano GRX SM-RT64 Shimano GRX SM-RT64 Shimano GRX SM-RT64
    Battery/Extras Batt/Charger Batt/Charger Batt/Charger Batt/Charger Batt/Charger Battery/Wires/Charger Battery/Wires/Charger N/A N/A

    Open Up Geometry Image

    size S M L XL
    rider height¹ 5’2"-5’8" 5’7"-5’11" 5’10"-6’3" 6’2"-6’7"
    stack 522 551 580 604
    reach 365 376 387 401
    standover² 743 767 791 815
    headtube angle 69.5° 71.0° 72.5° 72.5°
    headtube length 105 130 155 180
    fork offset 50 50 50 50
    seattube length 520 540 560 580
    seattube angle 72.5° 72.5° 72.5° 72.5°
    seattube angle (norm.³) 74° 73.5° 73.5° 73.5°
    toptube length 528 549 570 591
    toptube length (norm.³) 514 540 560 581
    BB drop 70 70 70 70
    front center 592 598 604 622
    rear center 420 420 420 420
    wheelbase 1002 1008 1014 1032
