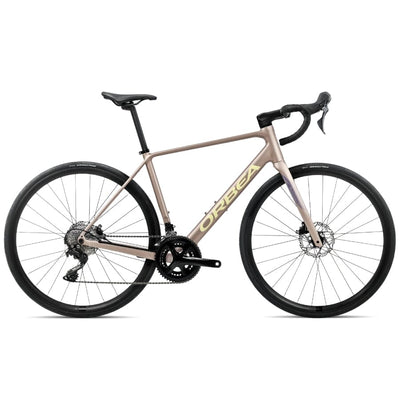

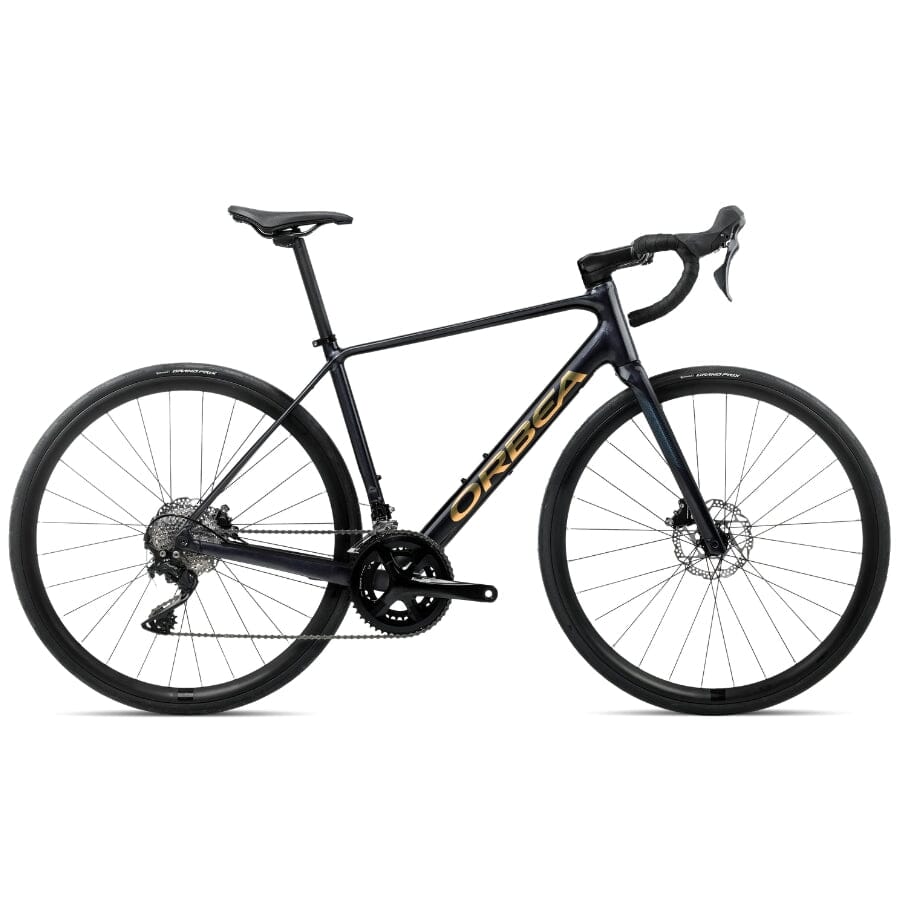

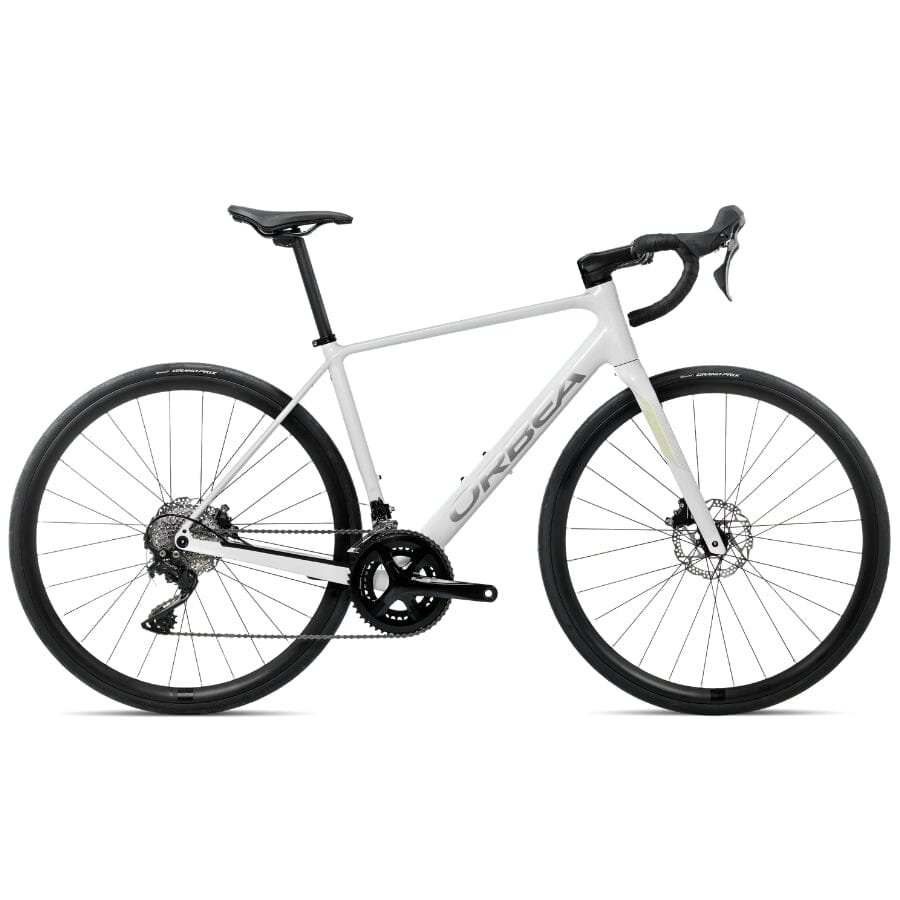

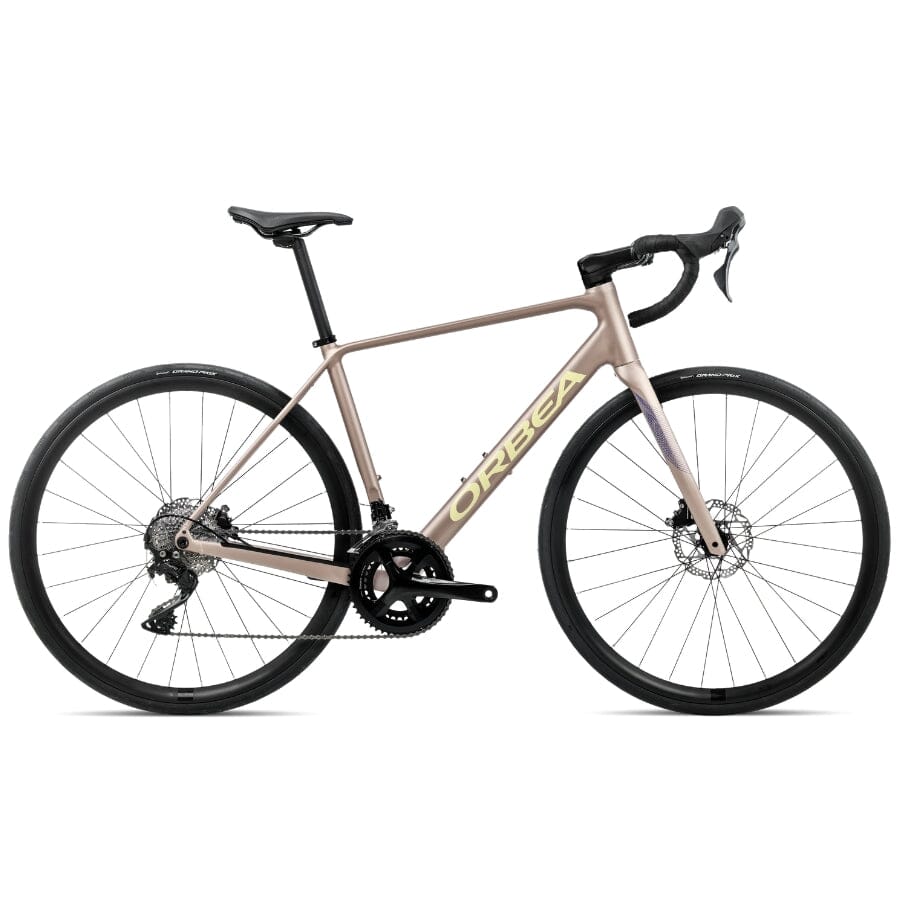

Orbea Avant H40

Regular price $1,899.00
Regular price $1,899.00 Sale price $1,899.00
Color
Size Guide (Opens in a new tab)
contact us
Your satisfaction is our top priority.

Product Details

Experience the thrill of road cycling with the Orbea Avant H40. This bike is designed to make every ride an exhilarating adventure. Its combination of speed, freedom, and the stunning views of quiet roads will leave you craving more time on the saddle. As you set out on your afternoon ride, you'll appreciate how the Avant enhances your journey, offering an unparalleled cycling experience.

The Avant H40 boasts a meticulously crafted carbon fork that delivers the perfect balance of elasticity, tire clearance, and torsional stiffness. With internal cable routing optimized for both traditional and electronic shifting systems, you'll enjoy a smooth, rattle-free ride. The high-polish aluminum frame features hydroformed, butted tubes and polished welds, providing a sleek, aerodynamic look reminiscent of a monocoque frame. Additionally, integrated fender mounts add versatility, making the Avant H40 ready for any road conditions.

*Please note that bike specifications are subject to change without prior notice
FRAME Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1,5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, SP 27,2mm, MMS system
FORK Orbea carbon 2021, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout
HEADSET Acros Alloy 1-1/2" Internal Cable Routing
CRANKSET FSA Omega Megaexo 34x50t
SHIFTERS Shimano Tiagra ST-4700
CASSETTE Sun Race CSMS1 11-34t 10-Speed
REAR DERAILLEUR Shimano Tiagra 4700 GS
FRONT DERAILLEUR Shimano Tiagra 4700
CHAIN KMC X10
HANDLEBAR OC Road Performance RP31-R, Rise 15, Reach 70, Drop 125
STEM OC Road Performance RP21, -6º
BRAKES Jagwire RideRever Mechanical Disc
WHEELS Alloy, Tubeless, 700c, 19c, 28H
TYRES Vittoria Zafiro V Rigid bead 700x28c
FRONT WHEEL AXLE Orbea Thru Axle 12x100mm M12x2 P1 Solid
REAR WHEEL AXLE Orbea Thru Axle 12x142mm M12x2 P1 Solid
SEATPOST Alloy, 27.2mm, Setback 20
SADDLE Fizik Aliante R5
HANDLEBAR TAPE Orbea Eva
SIZE 47 49 51 53 55 57 60
SEAT TUBE (C-T) 420 445 470 495 520 545 575
TOP TUBE (EFF) 511 526 539 553 569 586 597
HEAD TUBE 122 141 161 180 201 221 241
CHAINSTAY 425 425 425 425 425 425 425
BB HEIGHT (25-622) 264 264 264 266 266 266 266
BB DROP 75 75 75 73 73 73 73
WHEELBASE 989 996 1004 1006 1020 1029 1038
HEAD ANGLE 71º 71,5º 71,9º 72,4º 72,6º 72,8º 73º
SEAT ANGLE 74,5º 74º 73,75º 73,5º 73,5º 73º 73º
STANDOVER (25-622) 713 738 761 790 809 833 852
REACH 365 370 375 380 390 395 400
STACK 525 545 565 585 605 625 645
FORK LENGTH 370 370 370 370 370 370 370
RAKE 48 48 48 43 43 43 43
TRAIL 65 62,5 58,1 58,8 58 56,5 56,5
