Orbea Denna H30 28mph BIKES Orbea Bikes Magnetic Bronze L Orbea Denna H30 28mph BIKES Orbea Bikes Blue Stone XS Orbea Denna H30 28mph BIKES Orbea Bikes Ivory White XS

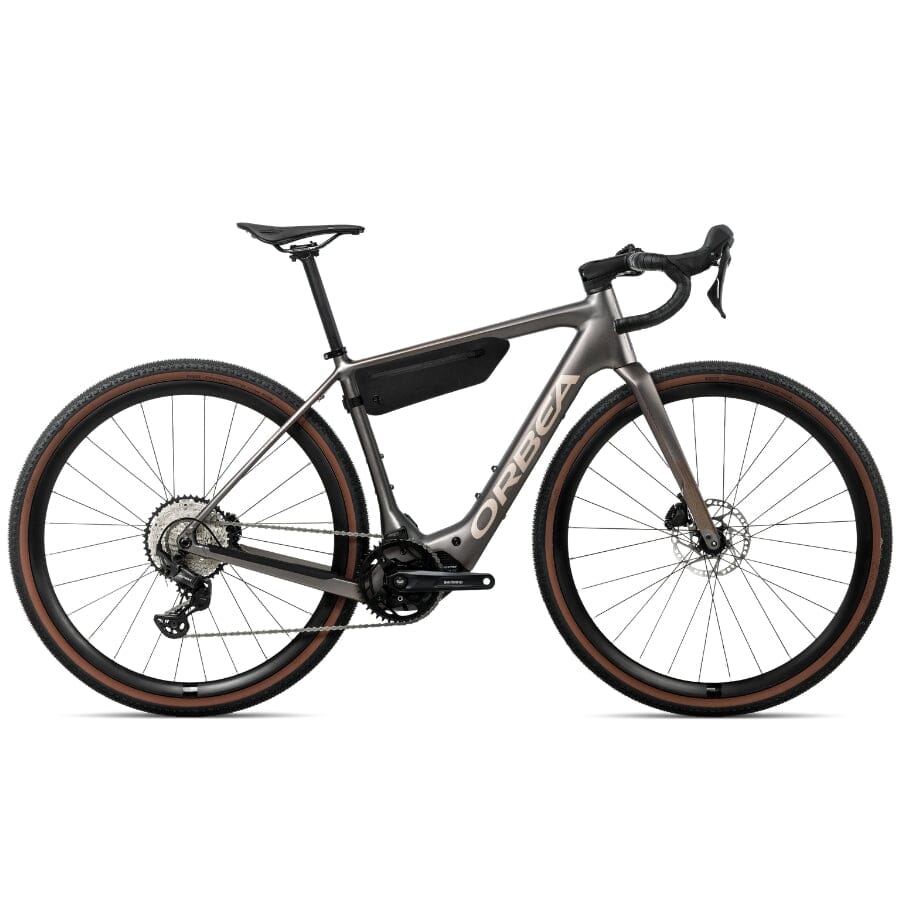

Orbea Denna H30 28mph BIKES Orbea Bikes Magnetic Bronze L

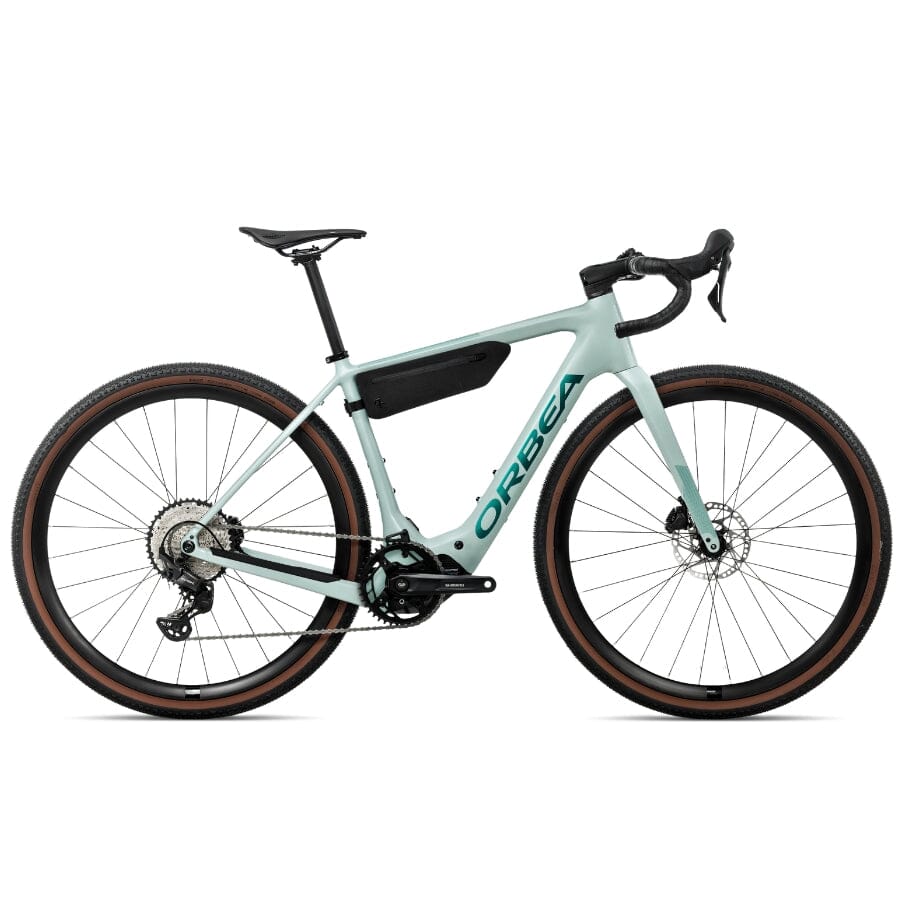

Orbea Denna H30 28mph BIKES Orbea Bikes Blue Stone XS

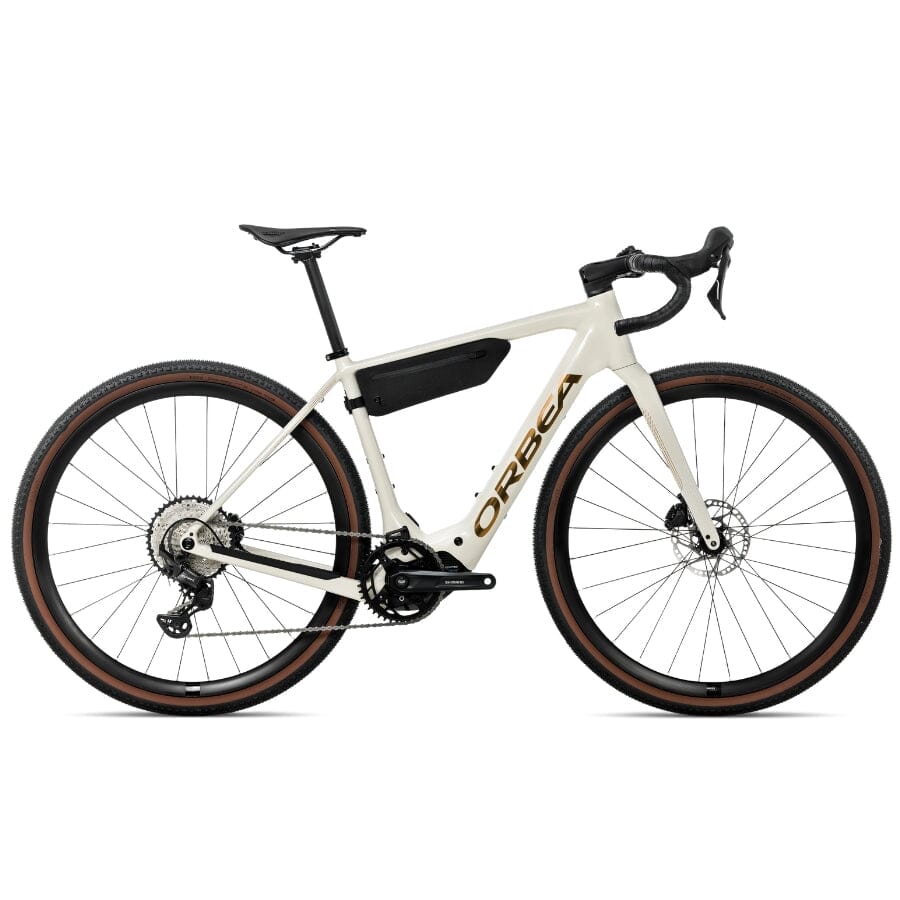

Orbea Denna H30 28mph BIKES Orbea Bikes Ivory White XS
SKU: 210000166058
In Stock
On Sale

Orbea Denna H30 28mph

Regular price $4,199.00
Regular price $4,199.00 Sale price $4,199.00
Color
Size
Your satisfaction is our top priority.

Product Details

The Orbea Denna H30 28mph represents joyful adventure in its purest form, designed for riders who believe the best adventures never end and that there's always something exciting waiting around the next corner or over the next hill. This high-speed electric gravel bike removes limits through gravel-tuned electric assistance that delivers power for the steepest climbs, traction for the loosest surfaces, and range for the longest rides imaginable.

Built around Orbea's hydroformed alloy frame with OMR ICR carbon fork, the Denna H30 features strategic absorption points that deliver controlled flex to quiet trail chatter while maintaining pedaling efficiency and precise handling. The innovative geometry incorporates a shorter seat tube for optimized vibration absorption, balanced chainstay length for smooth yet responsive handling, and generous 50C tire clearance that accommodates everything from narrow road tires to mountain bike rubber for maximum versatility.

The powerful Shimano EP600 motor provides natural, intuitive assistance perfectly tuned for gravel adventures with speeds up to 28mph, while the substantial Orbea Internal 420Wh battery ensures extended range for ambitious routes without anxiety. The Shimano GRX RX822 1x12 drivetrain delivers smooth, reliable shifting across varied terrain, complemented by tubeless-ready alloy wheels that balance durability with performance for demanding gravel conditions.

Built for riders seeking to expand their horizons and discover new possibilities in gravel exploration, the Denna H30 makes big days in the saddle accessible regardless of terrain or fitness level. The horizon beckons with endless possibilities thanks to this bike's powerful motor assistance, capable handling, and thoughtful design that enhances every ride without unnecessary complexity.

Key Features

  • Frame: Hydroformed Alloy with OMR ICR Carbon Fork
  • Motor: Shimano EP600 (28mph Assistance)
  • Battery: Orbea Internal 420Wh
  • Drivetrain: Shimano GRX RX822 1x12
  • Wheelset: Alloy Tubeless-Ready 700c with 50C Tire Clearance
*Please note that specifications are subject to change without prior notice
Specification Detail
Frame Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing
Fork Orbea Denna OMR ICR, full carbon, 1-1/8" - 1.5" tapered head tube compatible, Thru axle 12x100mm, thread M12xP1
Steerer Tube FSA 1-1/2" Integrated Aluminium Cup
Battery Orbea Internal 420Wh
Motor Shimano EP600
Charger Orbea 2nd Generation eBike Smart charger 42V/2-4A
Remote EN600-L
Chainring Alloy EP8 42t
Crank Shimano Steps EM600
Shifters Shimano GRX RX610
Cassette Shimano CS-M7100 10-45t 12-Speed
Rear Derailleur Shimano GRX RX822 GS
Chain Shimano M6100
Chainguide Orbea eBike chainguide
Handlebar OC Gravel GR31, Reach 70, Drop 110
Stem OC Road Performance RP23, -5º
Brakes Shimano RX410 Hydraulic disc
Wheels Alloy, Tubeless, 700c, 21c
Tyres Vittoria Terreno Dry Gravel G2.0 TLR 700x45c
Front Wheel Axle Orbea Thru Axle 12x100mm M12xP1 Hollow
Rear Wheel Axle Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded
Seatpost SP 0.2 Carbon, 27.2mm, Setback 0
Saddle Selle San Marco Shortfit 2.0 Start Up Off Road
Mudguard N/A
Handlebar Tape Orbea Anti-Slippery/Shock Proof
Storage OC Frame Bag for Denna
*Specifications are subject to change without prior notice
Size XS S M L XL XXL
Seat Tube (C-T) 405 438 471 504 537 570
Top Tube (EFF) 531 542 558 570 587 599
Head Tube 110 131 152 178 199 220
Chainstay 425 425 425 425 425 425
BB Drop 78 78 78 76 76 76
BB Height 284.5 284.5 284.5 286.5 286.5 286.5
Wheelbase 1030 1033 1040 1054 1061 1068
Head Angle 70° 70.5° 71° 71° 71.5° 72°
Seat Angle 74.5° 74° 73.5° 73.5° 73° 73°
Rake 55 55 55 55 55 55
Standover 738 765 792 819 846 873
Reach 390 390 395 400 405 410
Stack 526 548 570 592 614 636
Fork Length 390 390 390 390 390 390
Trail 73 70 67 67 63 60
