Product Description

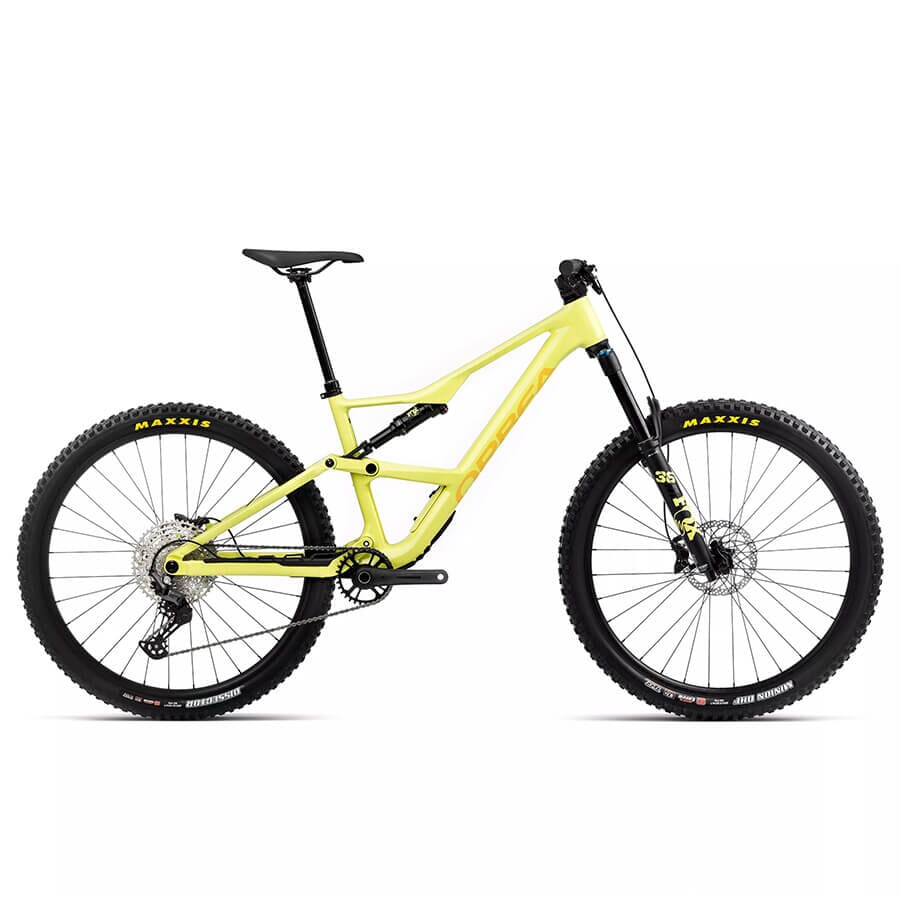

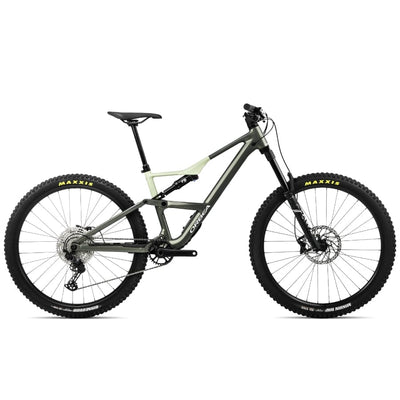

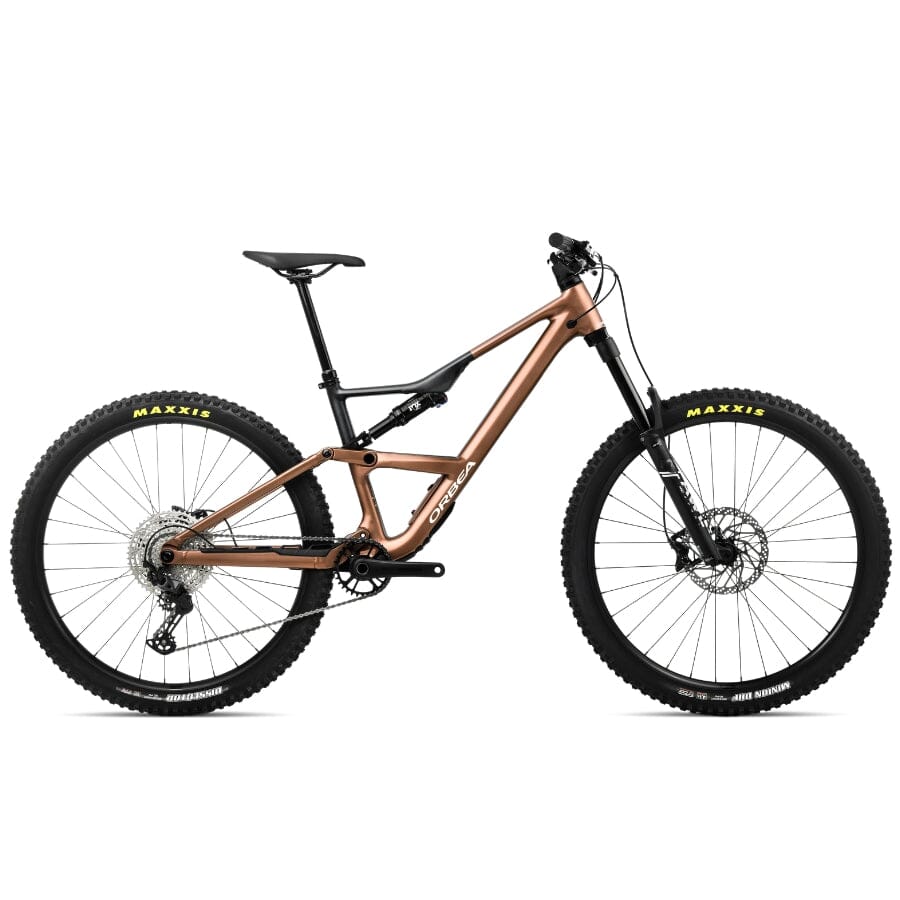

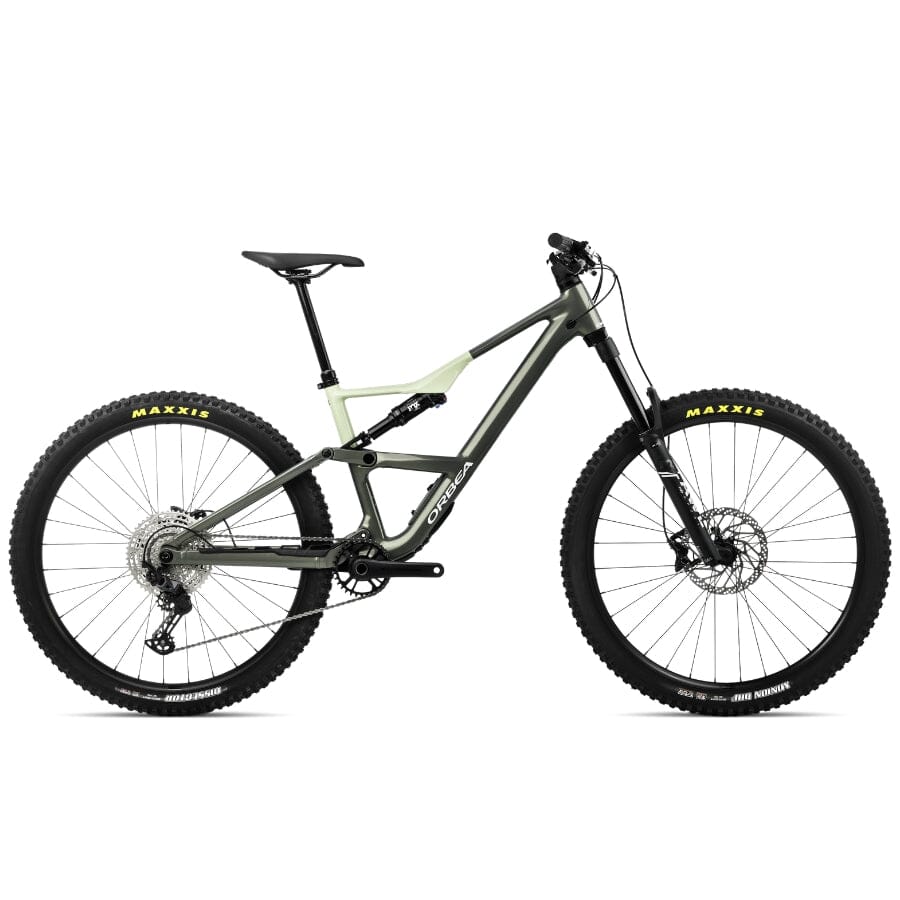

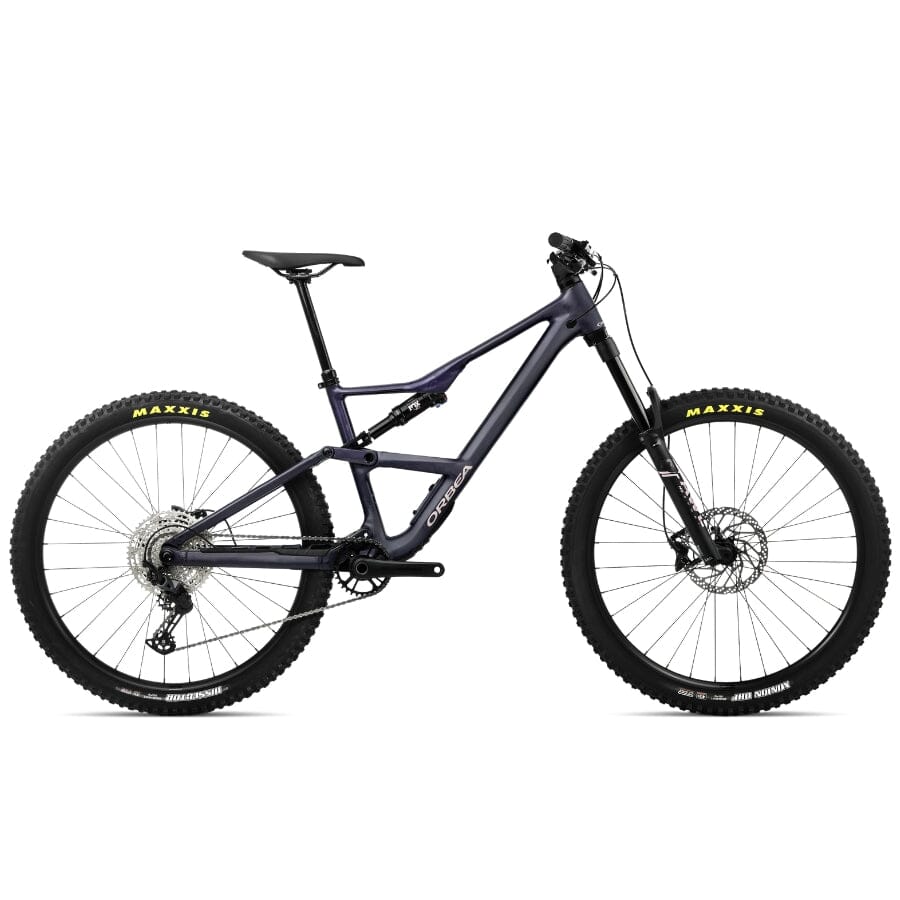

The Orbea Occam LT H30 is a aggressive trail-ready machine, with a hydroformed alloy frame, and progressive trail geometry. With a head angle a full degree and a half slacker then its lightweight brother the Occam SL, the numbers on this bike love to get rowdy and point down steep trail. The Occam LT also takes it being a bigger bike than the Occam SL a step further by coming with bigger tires, longer dropper posts, and no lockout.
The LT H30 is the base alloy model- Fox performance suspension provides all the squish, keeping you planted when things get rough. Shimano Deore drivetrain delivers the reliable shifting Shimano is known for, while tubeless Ready Raceface ARC wheels and Maxxis tires offer thicker casings, excellent traction, and great braking response. For an aggressive riding experience, the Orbea Occam LT H30 combines bigger trail suspension travel with a light alloy frame, for a responsive ride that can still shoot chutes. This bike is perfect for for someone who likes to ride “high country” or high desert riding, as the travel lets you hit some pretty big features, but is more forgiving than an enduro bike to pedal uphill.
REVIEWS
Specifications
*Please note that bike specifications are subject to change without prior notice |
FRAME | Orbea Occam Hydro. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels. Linkage compatible with OC multitool |
SHOCK | Fox FLOAT Performance 2-Position Evol custom tune 210x55mm |
FORK | Fox 36 Float Performance 160 Grip 3-Position QR15x110 |
HEADSET | FSA 1-1/2" Integrated Aluminium Cup |
CRANKSET | Forged alloy, 32t |
SHIFTERS | Shimano Deore M6100 I-Spec EV |
CASSETTE | Shimano CS-M6100 10-51t 12-Speed |
REAR DERAILLEUR | Shimano Deore M6100 SGS Shadow Plus |
CHAIN | Shimano M6100 |
HANDLEBAR | OC Mountain Control MC30, Rise20, Width 800 |
STEM | OC Mountain Control MC20, 0º |
BRAKES | Shimano MT420 Hydraulic Disc |
WHEELS | Alloy, Tubeless, 29", 29c, 32H |
TYRES | Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR |
SEATPOST | OC Mountain Control MC21, 31.6mm, Dropper |
SEATPOST LEVER | Shimano SL-MT500 I-Spec EV |
SADDLE | Selle Royal 2058 DRN |
GRIPS | OC Lock On |
STORAGE | Accessories Containers |
Geometry
Measurement | S | M | L | XL | S-LT | M-LT | L-LT | XL-LT |
---|---|---|---|---|---|---|---|---|
1 - SEAT TUBE (C-T) | 381 | 419 | 457 | 508 | 381 | 419 | 457 | 508 |
2 - TOP TUBE (EFF) | 565 | 592 | 619 | 649 | 565 | 592 | 619 | 649 |
3 - HEAD TUBE | 95 | 105 | 120 | 140 | 95 | 105 | 120 | 140 |
4 - CHAINSTAY | 440 | 440 | 440 | 440 | 440 | 440 | 440 | 440 |
5 - BB HEIGHT | 336 | 336 | 336 | 336 | 336 | 336 | 336 | 336 |
6 - BB DROP | 35 | 35 | 35 | 35 | 32 | 32 | 32 | 32 |
7 - WHEELBASE | 1165 | 1194 | 1224 | 1259 | 1165 | 1194 | 1224 | 1259 |
8 - HEAD ANGLE | 66º | 66º | 66º | 66º | 65.5º | 65.5º | 65.5º | 65.5º |
9 - SEAT ANGLE | 77º | 77º | 77º | 77º | 76.5º | 76.5º | 76.5º | 76.5º |
10 - STANDOVER | 710 | 736 | 766 | 776 | 710 | 736 | 766 | 776 |
11 - REACH | 425 | 450 | 474 | 500 | 425 | 450 | 474 | 500 |
12 - STACK | 604 | 613 | 627 | 646 | 604 | 613 | 627 | 646 |
13 - FORK LENGTH | 554 | 554 | 554 | 554 | 554 | 561 | 561 | 561 |
RAKE | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 |
