Orbea Occam SL M30

SKU: 210000145708

Orbea Occam SL M30

$4,799.00

Brand: Orbea

Categories:

Color

Size

Quantity

More Information

Product Description

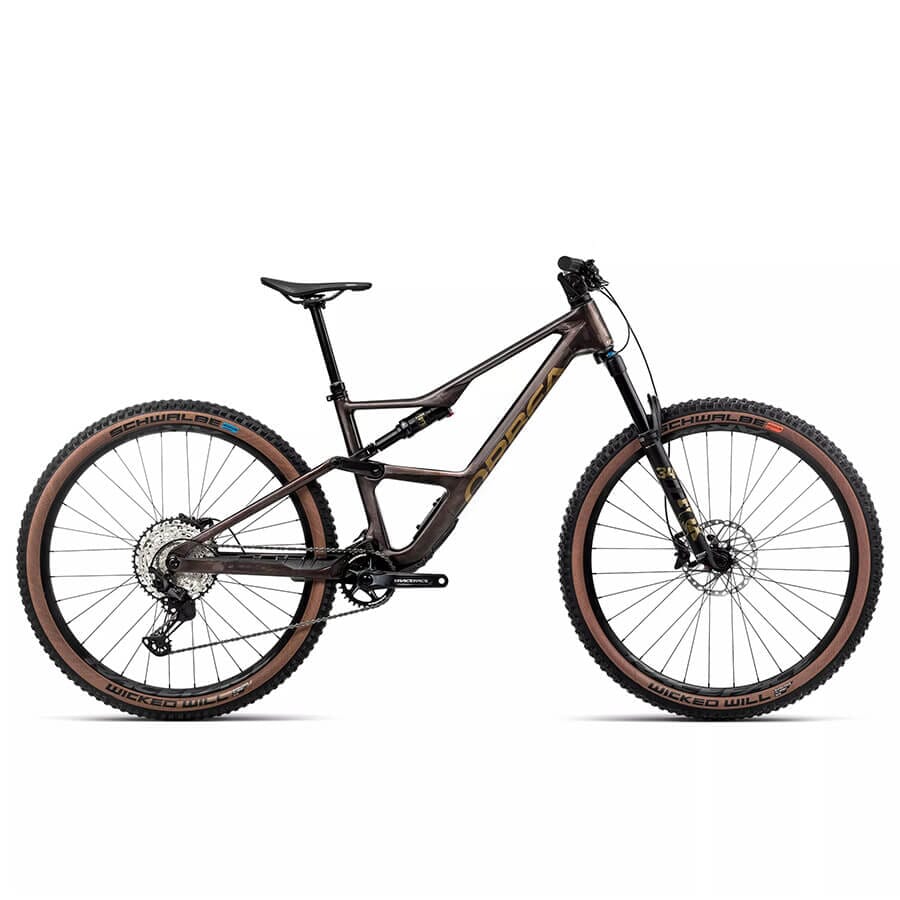

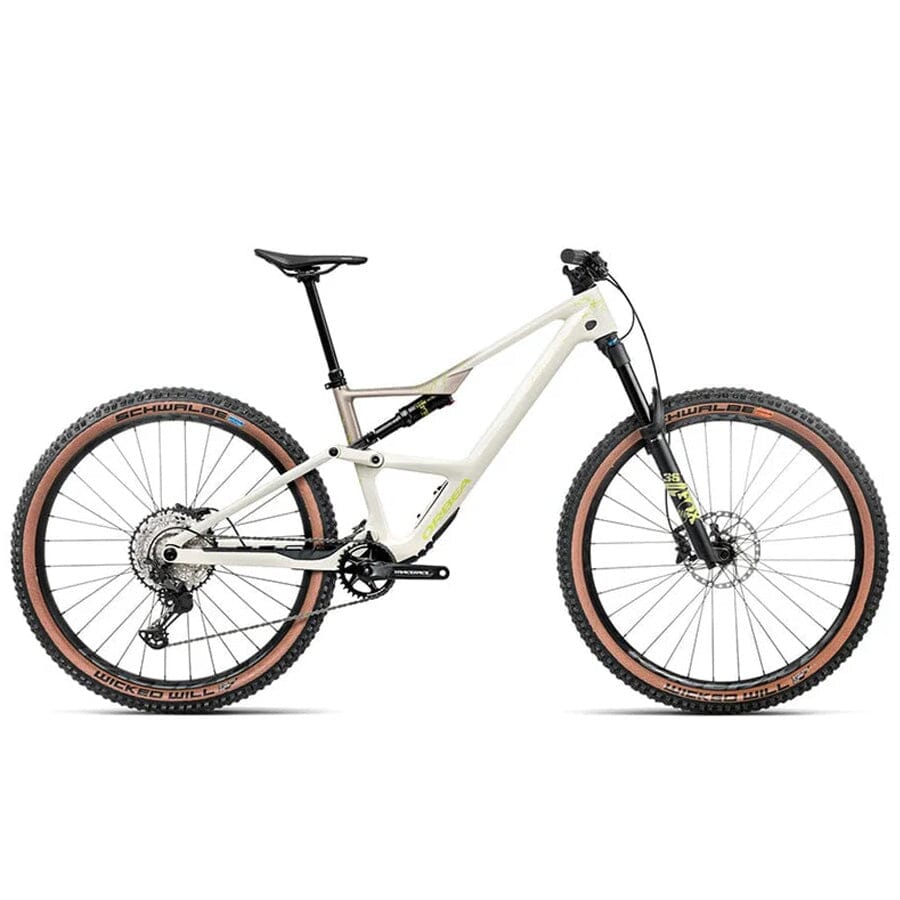

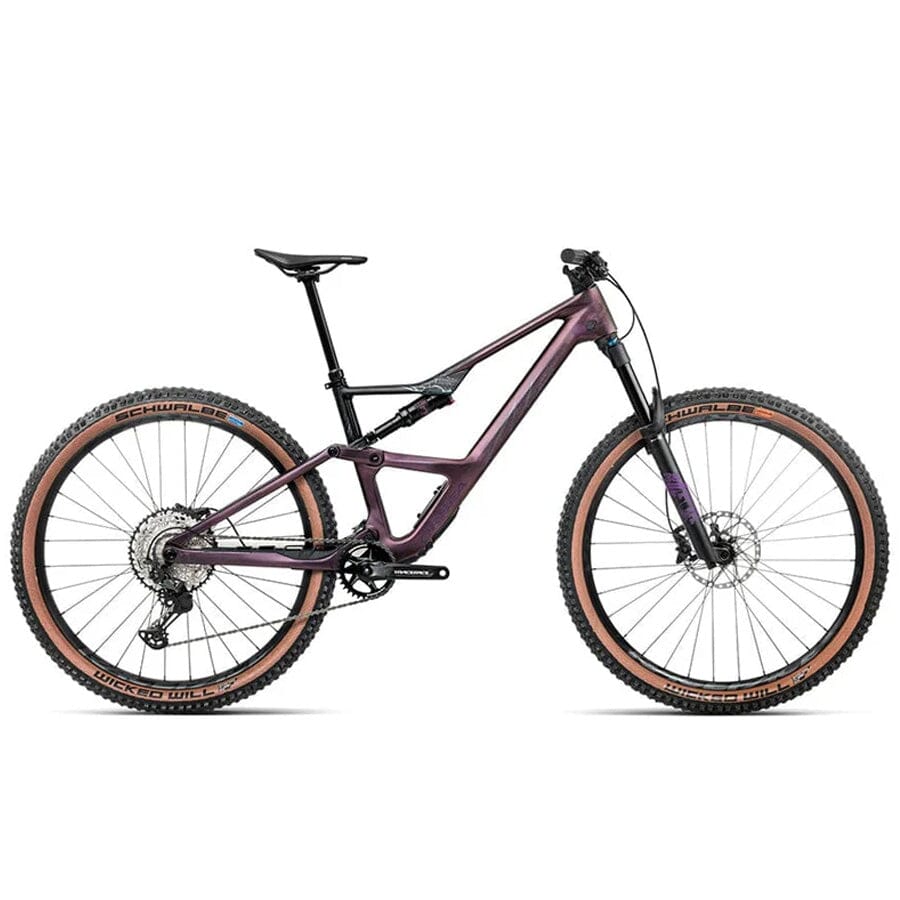

The Orbea Occam SL M30 is a versatile mountain bike tailored for nimble and swift trail adventures. With 140mm of suspension travel both in the front and rear, it offers ample cushioning for conquering a variety of terrains while maintaining the agility associated with smaller-travel trail bikes. To enhance control, it boasts a Squidlock remote lockout system, enabling convenient suspension adjustments - a valuable feature for extended mountain outings. Its lightweight design and dependable suspension make for efficient uphill climbs and confident descents. The Squidlock remote lockout is the perfect tool for on-the-fly suspension adjustments, allowing you to fully exploit the terrain's potential.

The M30 is the base carbon model - Fox performance suspension ensures you get a tunable setup that won't break the bank. A Shimano SLX/XT drivetrain offers Hyperglide+ performance for reliable shifting. For an optimal riding experience, the Orbea Occam SL M30 combines midrange suspension travel with a lightweight frame, for a responsive ride. While the Tubeless Ready Raceface ARC wheels and Schwalbe Wicked Will tires grip the trails and provide decent braking traction, without the weight of bigger trail tires.

REVIEWS

Specifications

Bike Specifications

*Please note that bike specifications are subject to change without prior notice

FRAME	Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels
SHOCK	Fox Float Performance Remote Push-lock Evol custom tune 210x50mm
FORK	Fox 34 Float Performance 140 Remote Push-lock QR15x110
HEADSET	Alloy 1-1/2", Black Oxidated Bearing
CRANKSET	Race Face Aeffect 32t
SHIFTERS	Shimano SLX M7100 I-Spec EV
CASSETTE	Shimano CS-M7100 10-51t 12-Speed
REAR DERAILLEUR	Shimano XT M8100 SGS Shadow Plus
CHAIN	Shimano M6100
HANDLEBAR	OC Mountain Control MC30, Rise20, Width 800
STEM	OC Mountain Control MC20, 0º
COMPUTER MOUNT	OC Computer Mount CM-05, Garmin/Sigma
BRAKES	Shimano M6100 Hydraulic Disc
WHEELS	Race Face AR 30c Tubeless Ready
TYRES	Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown
SEATPOST	OC Mountain Control MC21, 31.6mm, Dropper
SADDLE	Fizik Terra Ridon X5 145mm
GRIPS	OC Lock On
REMOTE LOCKOUT	OC Squidlock MC20 Remote, Dropper, Suspension 2 Pos
STORAGE	Accessories Containers

Geometry

Measurement	S	M	L	XL	S-LT	M-LT	L-LT	XL-LT
1 - SEAT TUBE (C-T)	381	419	457	508	381	419	457	508
2 - TOP TUBE (EFF)	565	592	619	649	565	592	619	649
3 - HEAD TUBE	95	105	120	140	95	105	120	140
4 - CHAINSTAY	440	440	440	440	440	440	440	440
5 - BB HEIGHT	336	336	336	336	336	336	336	336
6 - BB DROP	35	35	35	35	32	32	32	32
7 - WHEELBASE	1165	1194	1224	1259	1165	1194	1224	1259
8 - HEAD ANGLE	66º	66º	66º	66º	65.5º	65.5º	65.5º	65.5º
9 - SEAT ANGLE	77º	77º	77º	77º	76.5º	76.5º	76.5º	76.5º
10 - STANDOVER	710	736	766	776	710	736	766	776
11 - REACH	425	450	474	500	425	450	474	500
12 - STACK	604	613	627	646	604	613	627	646
13 - FORK LENGTH	554	554	554	554	554	561	561	561
RAKE	44	44	44	44	44	44	44	44
