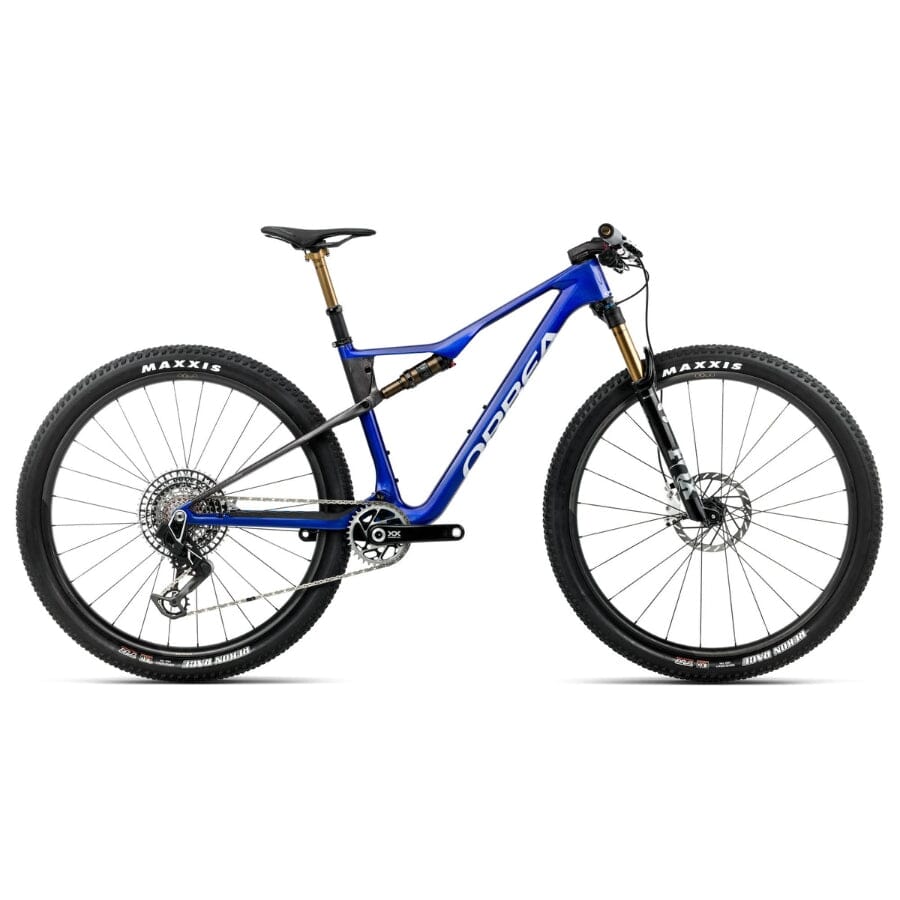

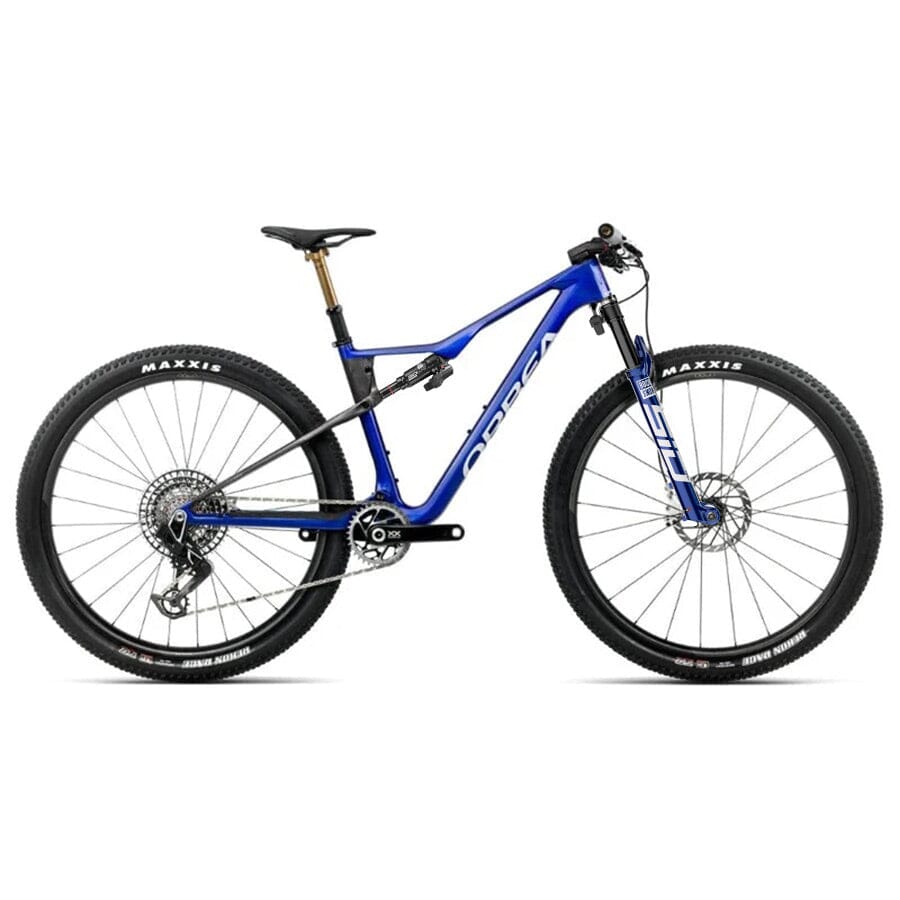

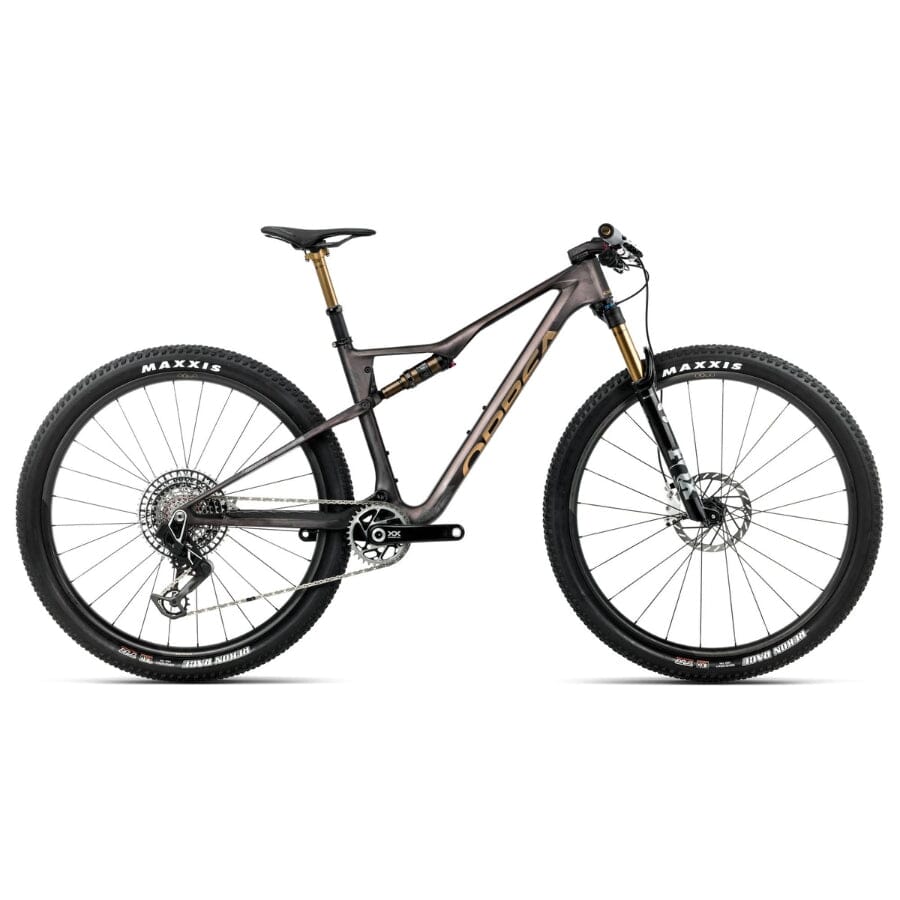

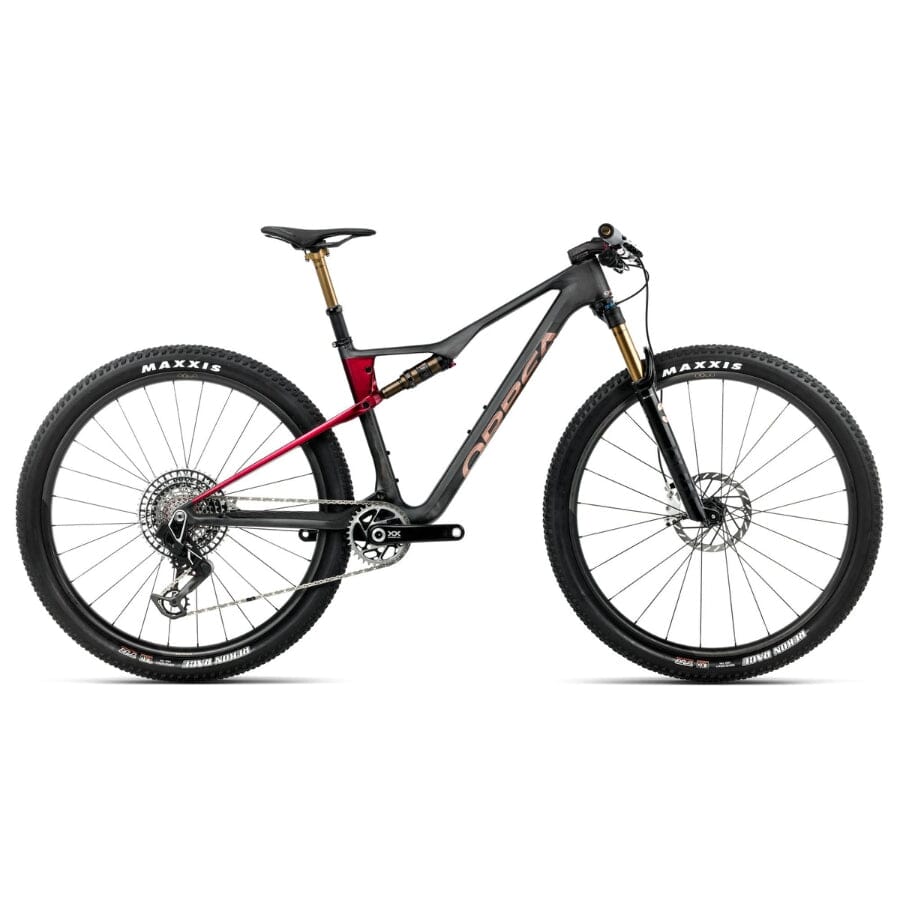

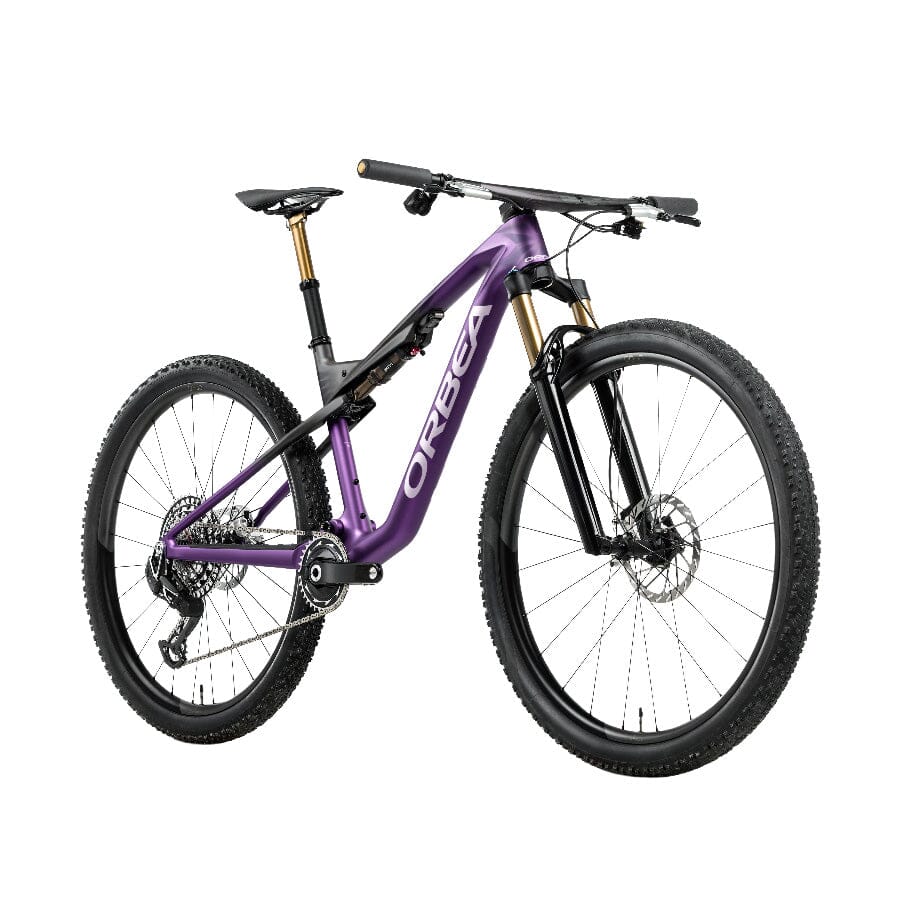

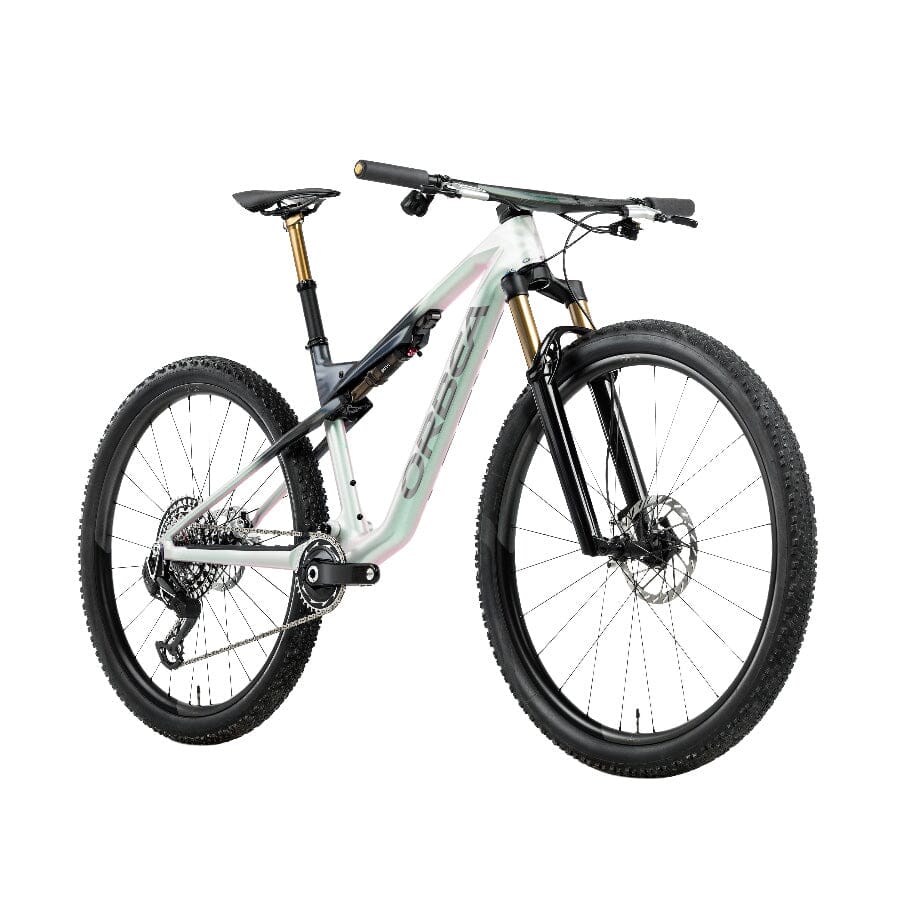

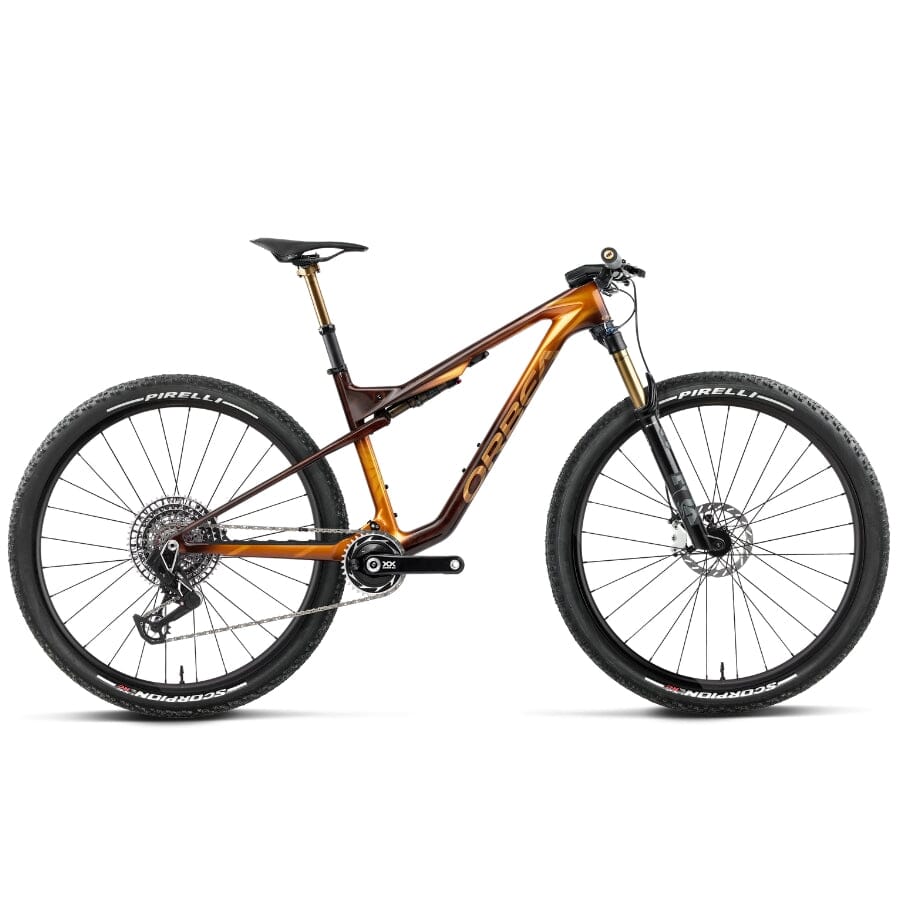

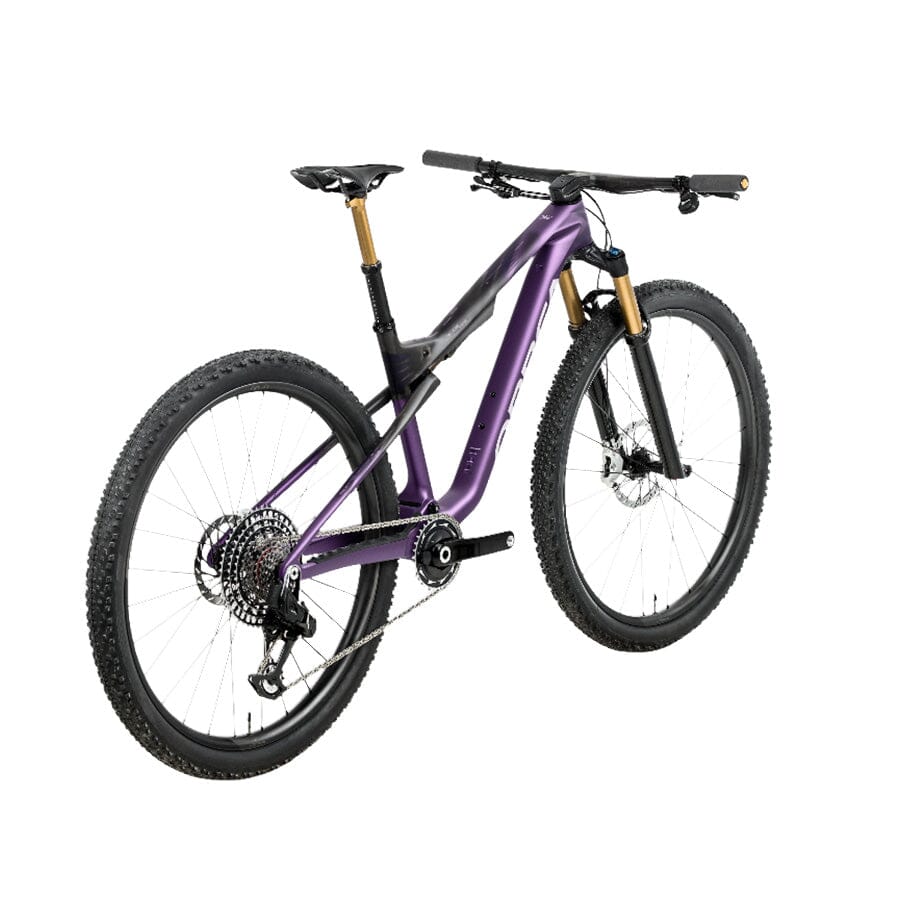

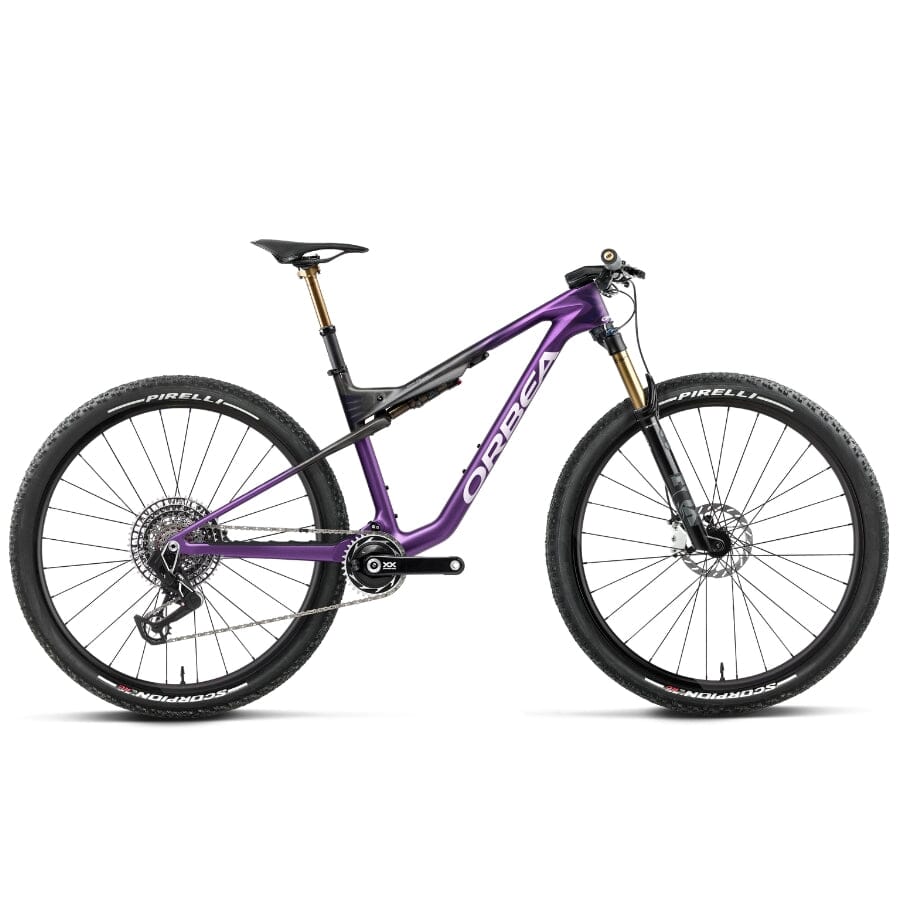

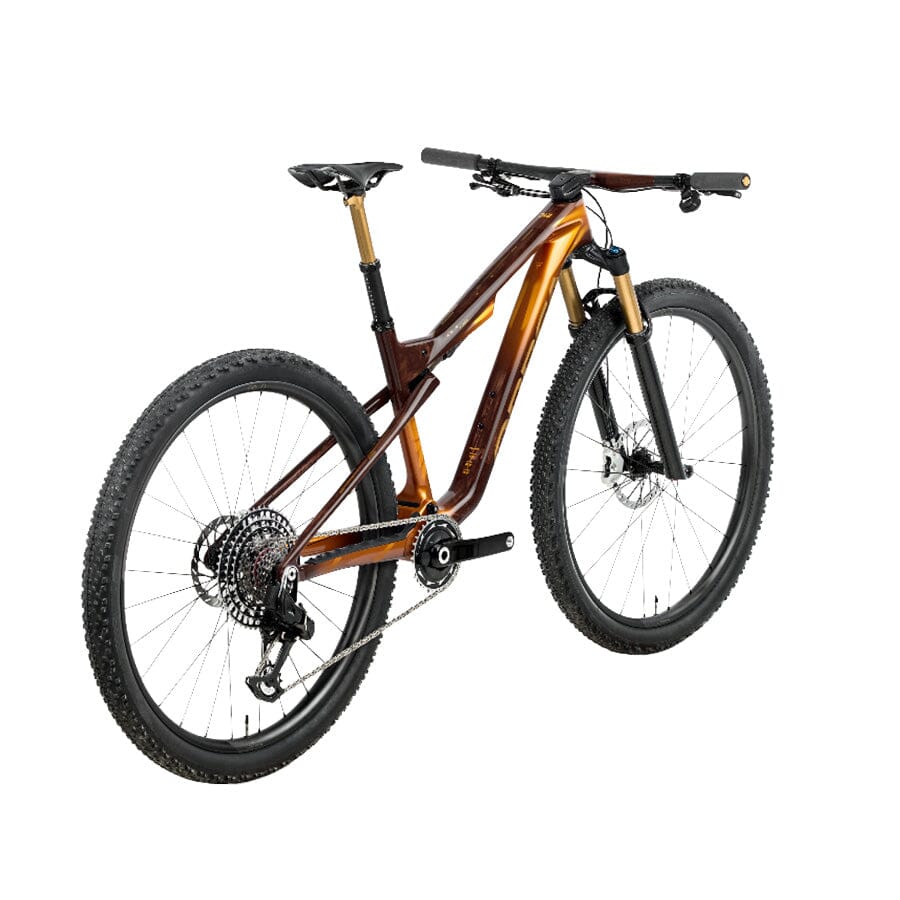

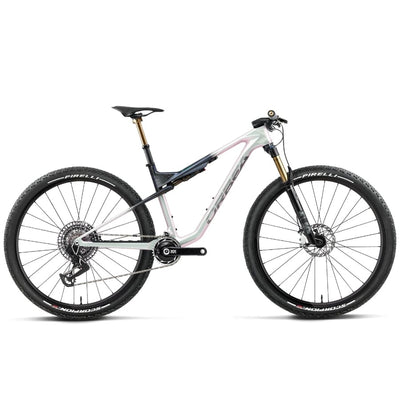

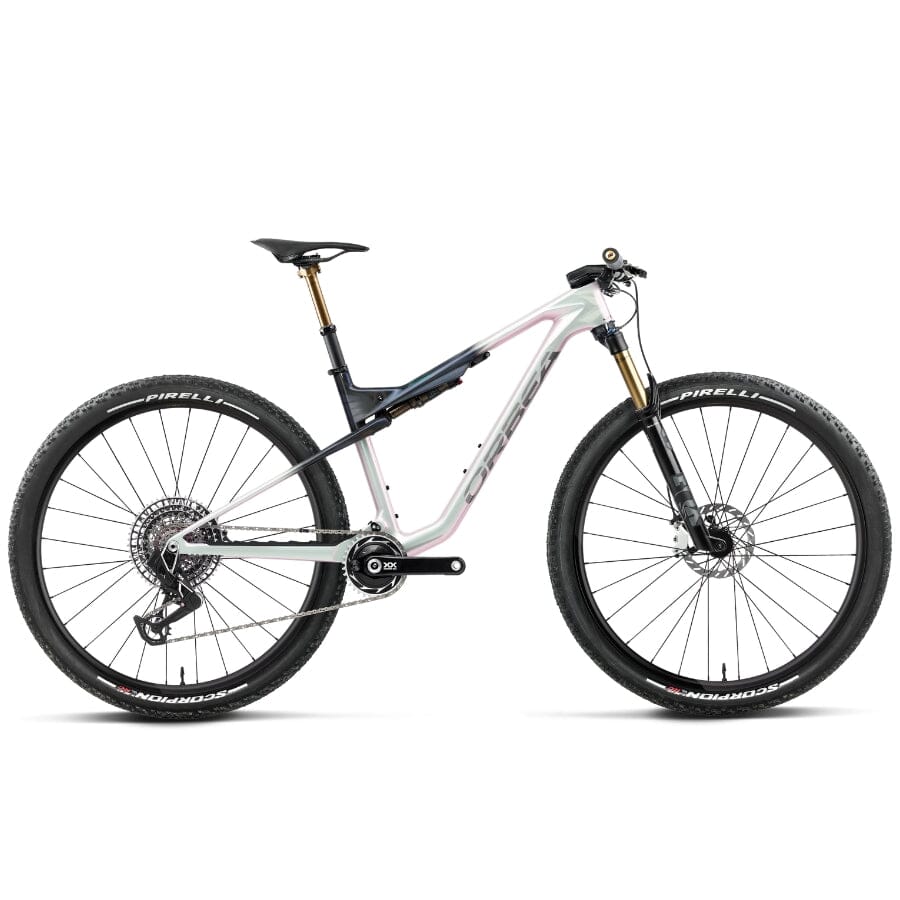

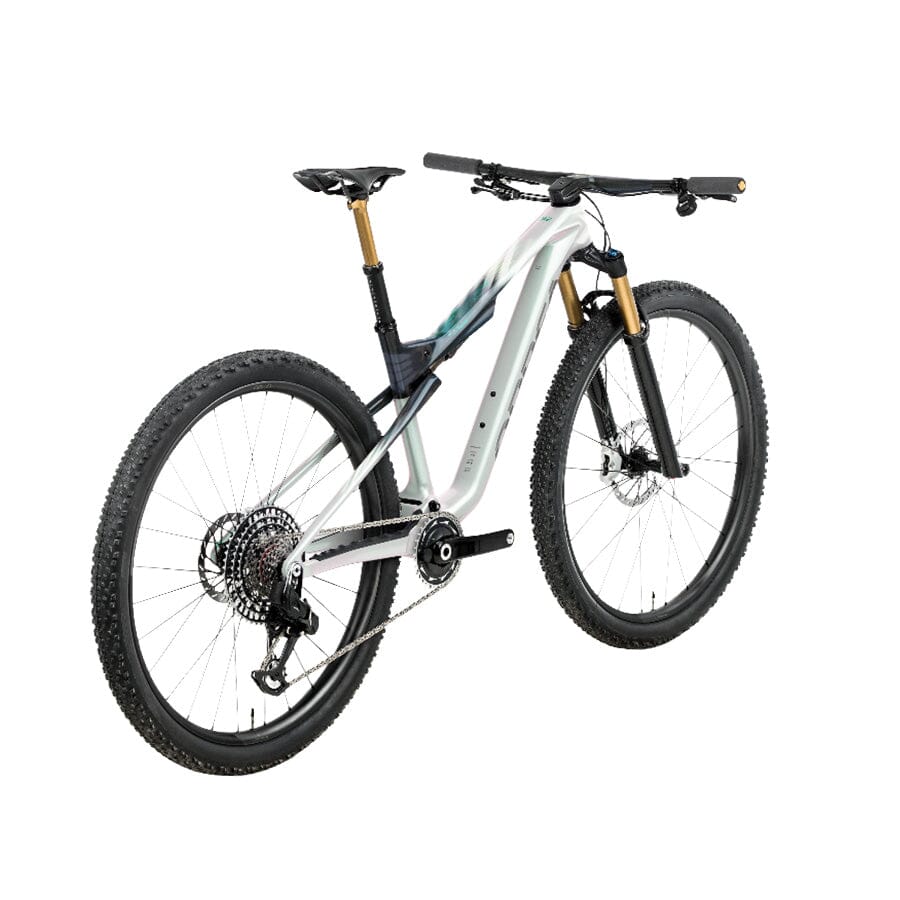

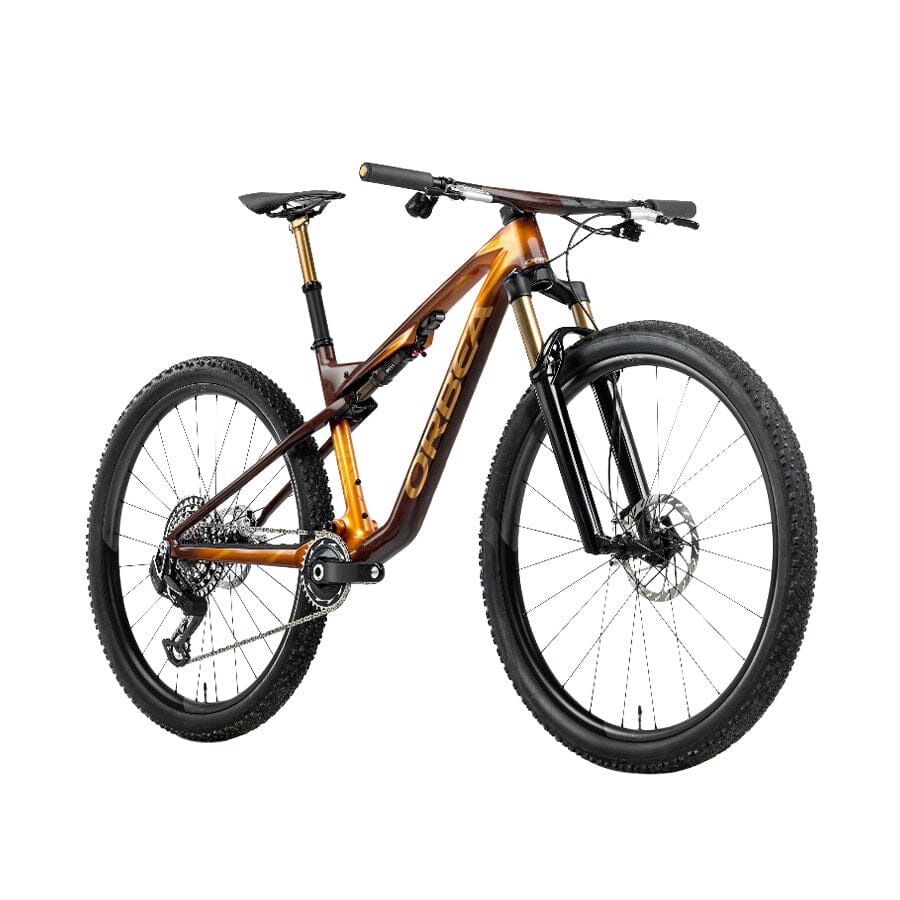

Orbea Oiz M-LTD
Product Details
The Orbea Oiz M-LTD is built to fly and engineered for victory, representing the pinnacle of cross-country racing technology. This feather-light race machine delivers uncompromising performance where every gram matters and every watt counts, combining Orbea's most advanced OMX carbon construction with cutting-edge components that inspire confidence to push harder on climbs and brake later into corners.
The flagship OMX carbon frame with Fiberlink technology showcases Orbea's most sophisticated manufacturing techniques, creating one of the lightest and stiffest XC platforms available. The pivotless rear triangle eliminates unnecessary complexity while maximizing power transfer efficiency, ensuring every pedal stroke translates directly into forward momentum. Advanced features like the integrated I-line shock lockout system and SIC cable integration create the cleanest, most aerodynamic profile possible.
Race-tuned 120mm suspension delivers the perfect balance of efficiency and control, with Fox's premium Factory components featuring Kashima coating throughout. The Fox 34 Float SL Factory fork and custom-tuned Float SL Factory shock work seamlessly together, providing instant lockout control via Orbea's intuitive Squidlock remote system for on-the-fly suspension adjustments without compromising grip or control position.
Equipped with SRAM's ultimate XX Eagle SL AXS wireless drivetrain and Motive Ultimate brakes, the Oiz M-LTD eliminates cables while maximizing precision and stopping power. The exclusive Oquo Mountain Performance MP30LTD wheelset features advanced hub technology that positions spoke heads closer to the rotation axis, minimizing energy loss and maximizing the transfer of every watt from rider to trail.
Key Features
- Frame – Orbea Oiz Carbon OMX with Fiberlink, SIC, UFO, and I-line Shock Technology
- Suspension – Fox 34 Float SL Factory (120mm) and Fox Float SL Factory Custom Kashima Shock
- Drivetrain – SRAM XX Eagle SL AXS 12-Speed Wireless
- Brakes – SRAM Motive Ultimate A2 4-Piston Hydraulic Disc
- Wheelset – Oquo Mountain Performance MP30LTD
| Specification | Detail |
|---|---|
| Frame | Orbea Oiz Carbon OMX, Fiberlink, Boost, BSA, SIC, UFO, I-line shock |
| Shock | Fox Float SL Factory 120mm Remote Push-lock Evol Kashima custom tune 190x45mm |
| Fork | Fox 34 Float SL Factory 120, Grip SL, Remote-Adj Push to Lock, QR15x110, Kashima |
| Steerer Tube | Alloy 1-1/2", Black Oxidated Bearing |
| Crankset | Sram XX SL Eagle Dub Black 34t |
| Shifters | Sram AXS Pod Ultimate |
| Cassette | Sram XX-1299 Eagle SL 10-52t 12-Speed |
| Rear Derailleur | Sram XX Eagle SL AXS |
| Chain | Sram XX-SL Eagle 12-Speed |
| Brakes | Sram Motive Ultimate A2 4 piston Hydraulic Disc |
| Wheels | Oquo Mountain Performance MP30LTD |
| Tires | Maxxis Rekon Race 2.40" WT 120 TPI Exo TLR |
| Front Wheel Axle | Fox Kabolt Boost |
| Seatpost | Fox Transfer SL Factory Kashima Dropper 31.6 |
| Saddle | Selle Italia SLR Boost Carbon Fill, Carbon Rail Ø7x9 mm |
| Remote Lockout | OC Squidlock MP11, Suspension + Dropper |
| Computer Mount | SH-MP10 specific |
| Size | S | M | L | XL |
|---|---|---|---|---|
| Seat Tube (C-T) | 405 | 432 | 460 | 510 |
| Top Tube (EFF) | 575 | 598 | 623 | 650 |
| Head Tube | 90 | 90 | 100 | 115 |
| Chainstay | 432 | 432 | 432 | 432 |
| BB Drop | 42 | 42 | 42 | 42 |
| BB Height | 333 | 333 | 333 | 333 |
| Wheelbase | 1138 | 1163 | 1189 | 1219 |
| Head Angle | 67º | 67º | 67º | 67º |
| Seat Angle | 76.5º | 76.5º | 76.5º | 76.5º |
| Rake | 44 | 44 | 44 | 44 |
| Standover | 731 | 741 | 741 | 750 |
| Reach | 425 | 450 | 472 | 496 |
| Stack | 596 | 596 | 606 | 619 |
| Fork Length | 531 | 531 | 531 | 531 |
| Trail | - | - | - | - |
