Orbea Optima E40 20mph 2022
Product Details

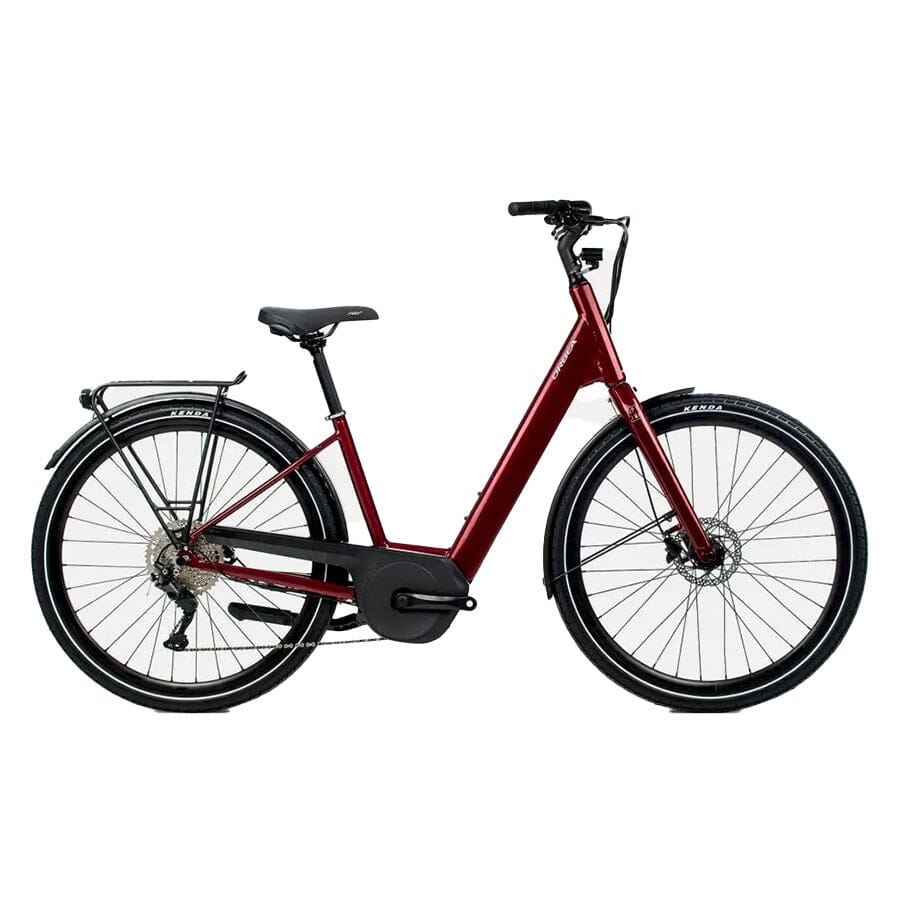

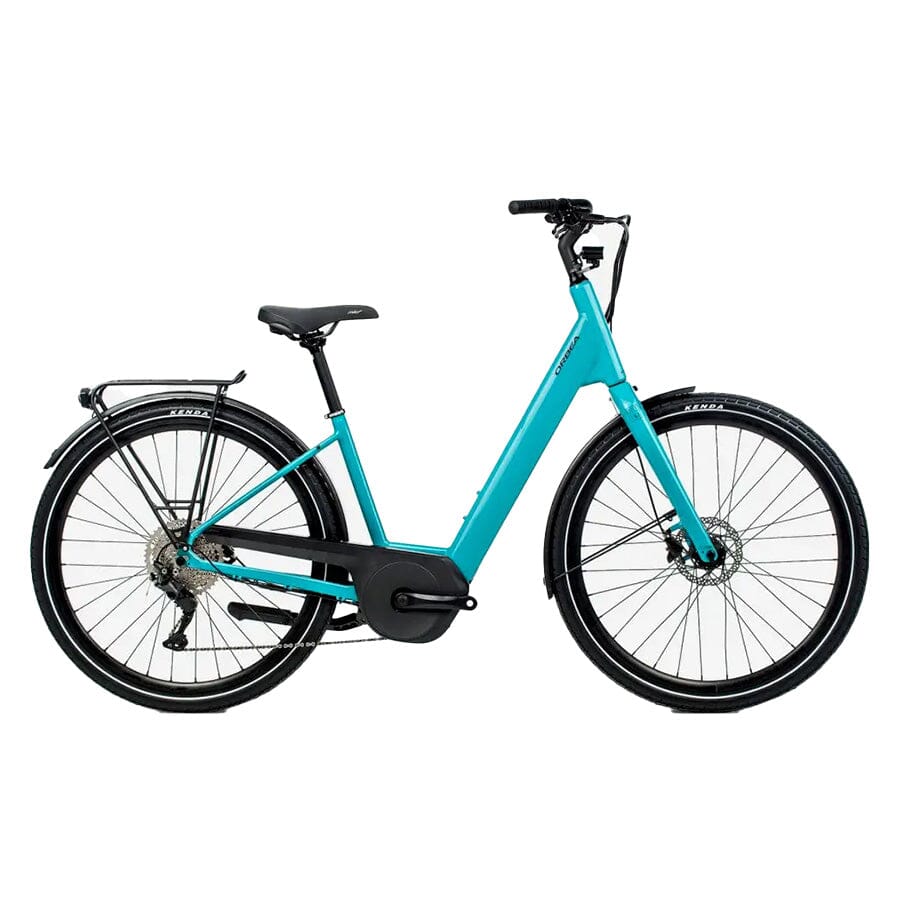

The 2022 Orbea Optima E40 is a practical and capable commuter e-bike built around a lightweight 700c hydroformed aluminum frame and rigid aluminum fork. Powered by a MAHLE hub-drive motor with a 248Wh battery, it delivers smooth pedal assistance up to 20 mph across three levels of support, making it equally at home on city streets, bike paths, and daily errands. The rear hub motor integration keeps the overall weight low and the ride balanced, while the three assist levels let you dial in the right amount of help whether you're cruising flat roads or tackling gentle hills.
The Shimano Deore 1x10 drivetrain offers a wide gear range with reliable, low-maintenance shifting a perfect match for riders who want performance without the fuss. Hydraulic disc brakes deliver consistent stopping power in wet or dry conditions, and integrated lights with a rear fender keep you visible and protected on the daily commute. Kenda tires and ergonomic touches round out a commuter-ready package that's as clean-looking as it is functional.
Key Features
- Orbea Optima Hydroformed Alloy Frame
- MAHLE Hub-Drive Motor, 20 MPH Assist
- 248Wh MAHLE Battery with 3 Assist Levels
- Shimano Deore 1x10 Drivetrain
- Hydraulic Disc Brakes
- Integrated Lights & Rear Fender
- Kenda Tires
| *Please note that bike specifications are subject to change without prior notice |
| Frame | Orbea Optima Hydroformed Alloy, Ebikemotion X35 internal battery |
|---|---|
| Fork | Optima 400mm Alloy Post mount |
| Headset | VP-Z104PD 1-1/8" Semi-Cartridge |
| Stem | Orbea TDS-D617 |
| Handlebar | Orbea City Riser Alu 640mm |
| Saddle | Selle Royal Milo Plus DR |
| Seatpost | Alloy 31.6x400mm Offset 0 |
| Rear Derailleur | Shimano Deore M5120 SGS Shadow Plus |
| Crank | Orbea Alloy 42t |
| Shifters | Shimano Deore M4100 |
| Cassette | Shimano CS-M4100 11-46t 10-Speed |
| Chain | KMC X10 |
| Chain Guide | Sunon A017 |
| Brakes | Shimano MT200 Hydraulic Disc |
| Type | Hydraulic Disc |
| Rims | Ready GR 29-700 C |
| Tires | Kenda 1172 700x50c |
| Motor | Mahle motor hub X35 Plus 20mph |
| Battery | Mahle 36V/6.9A 248Wh ANT+ |
| Remote | Mahle iWoc TRIO |
| Display | OC monochrome ANT+ LEV |
| Charger | Mahle X35 |
| Lights | Front: Lezyne Ebike Power STVZO Pro E115 inverted position 310 lumens, Rear: Joss Spanninga Lineo XDS Dinamo |
| Fenders | SKS EDGE Alloy C56R |
| Racks | Orbea Optima hidden stays |
| Size | S | M | L |
|---|---|---|---|
| Wheels | 700c | 700c | 700c |
| Stack | 662 | 709 | 737 |
| Reach | 397 | 405 | 440 |
| Stack/Reach Ratio | 1.67 | 1.75 | 1.68 |
| Top Tube Length | 625 | 648 | 693 |
| Seat Tube Length | 405 | 450 | 500 |
| Seat Tube Angle | 72.0 | 72.0 | 72.0 |
| Head Tube Length | 190 | 240 | 270 |
| Head Tube Angle | 70.0 | 70.0 | 70.0 |
| BB Drop | 95 | 95 | 95 |
| BB Height | 273 | 273 | 273 |
| Front Center | 669 | 692 | 738 |
| Chainstay Length | 510 | 510 | 510 |
| Wheelbase | 1,163 | 1,187 | 1,233 |
| Rake | 55 | 55 | 55 |
| Trail | 68 | 70 | 68 |
| Stem Length | 60 | 60 | 60 |
| Crank Length | 152 | 152 | 152 |
| Handlebar Width | 640 | 640 | 640 |
