SKU: 210000115897

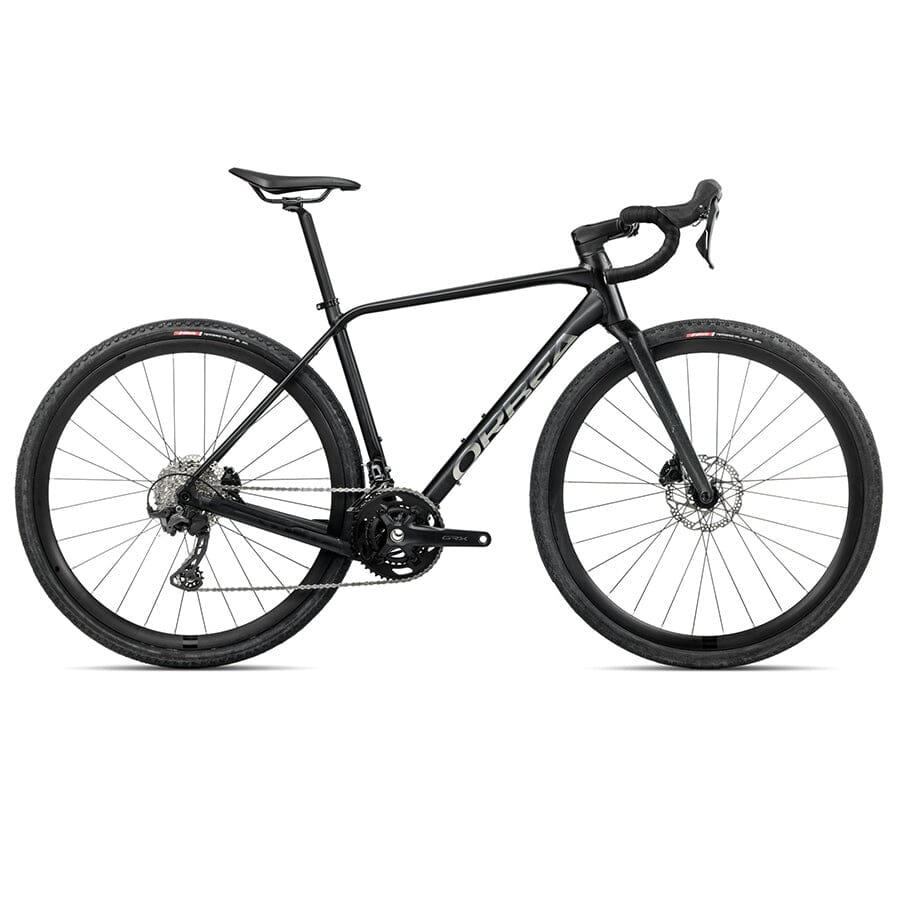

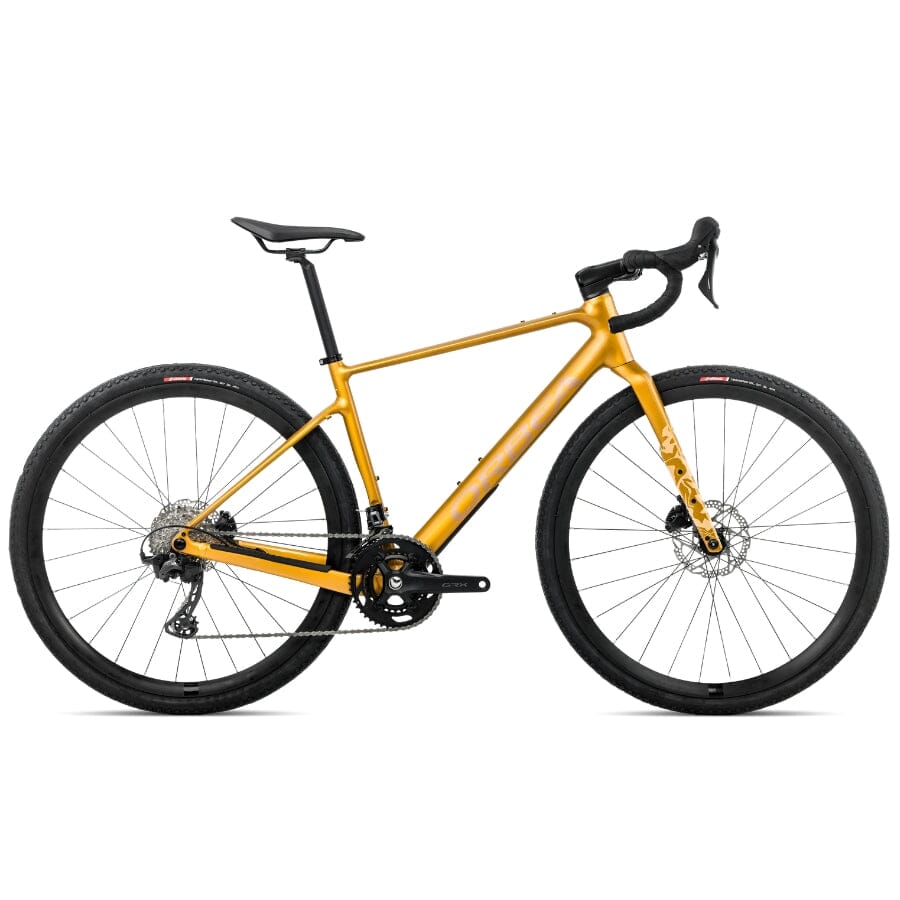

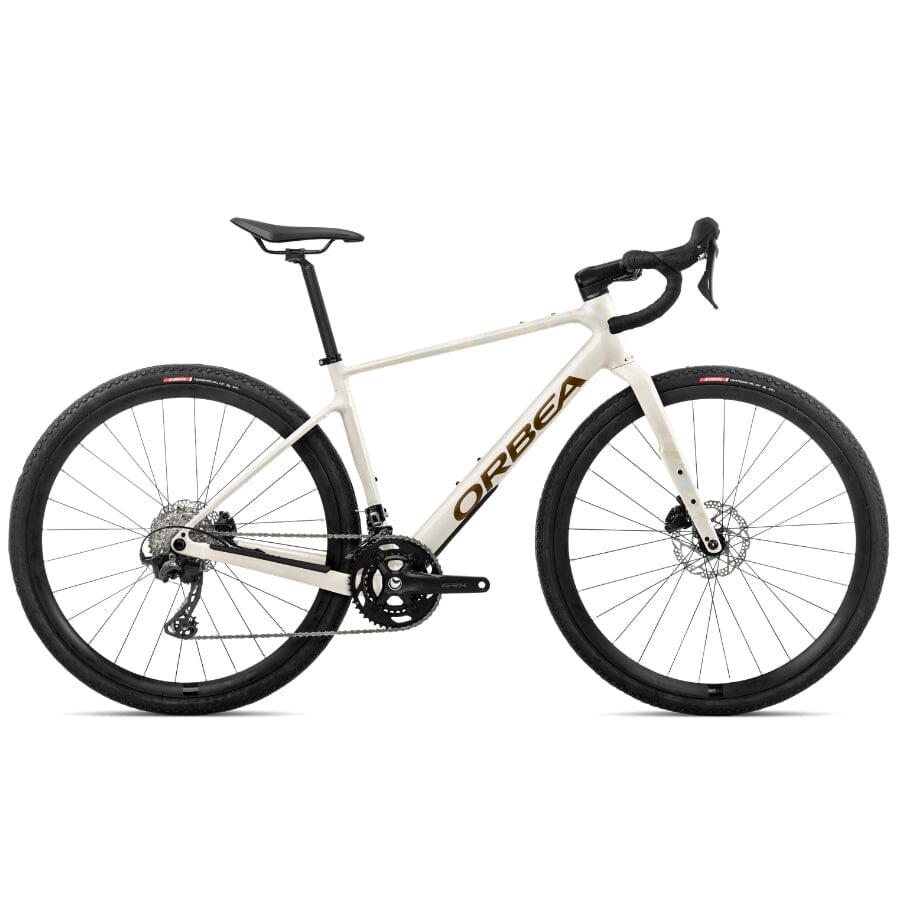

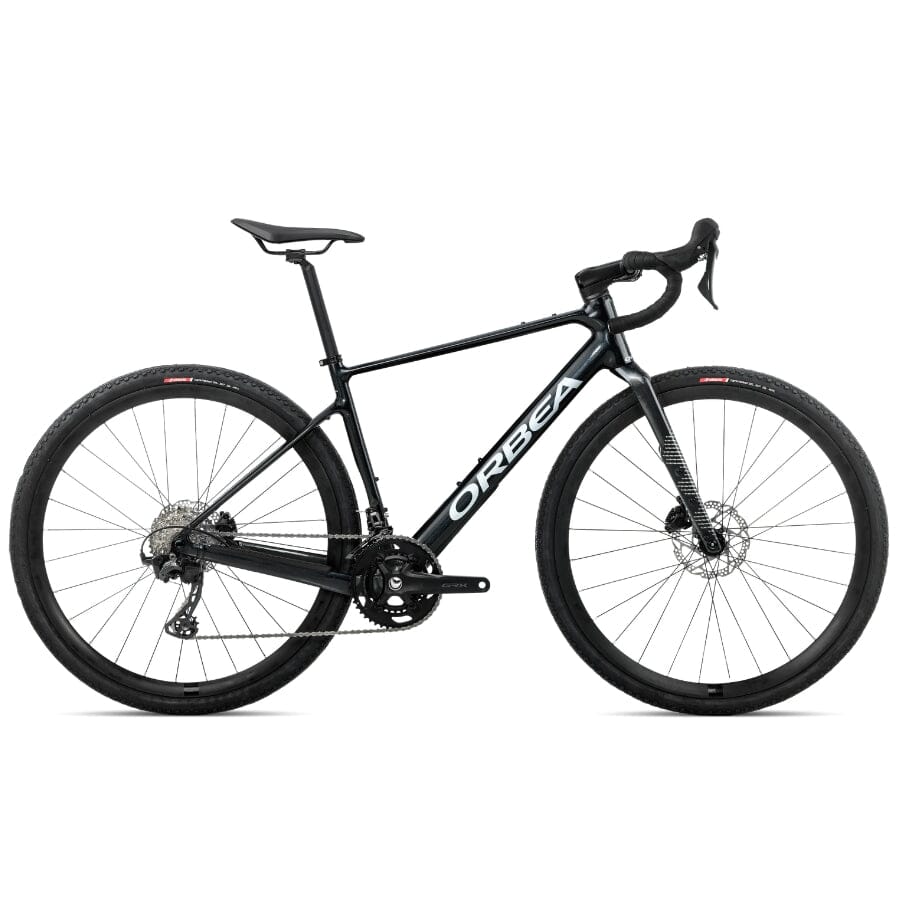

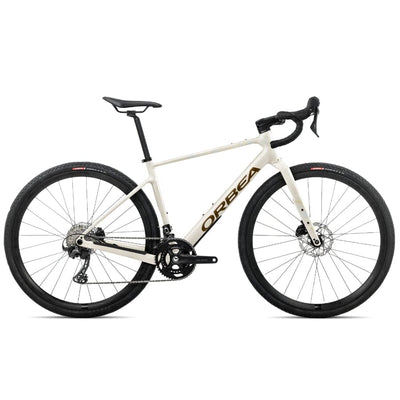

2021 Orbea Terra H30

SKU: 210000115897

2021 Orbea Terra H30

$2,399.00
Brand: Orbea
Categories:
More Information
call to customize
2021 Orbea Terra H30 2021 Orbea Terra H30

2021 Orbea Terra H30

Terra, Mother Earth in ancient Rome, is a wide, wonderful place full of life and beauty. Ride the 2021 Orbea Terra H30 all-road endurance bike and experience all you can see.

Highlights


Product Description

Terra, Mother Earth in ancient Rome, is a wide, wonderful place full of life and beauty. Ride the 2021 Orbea Terra H30 all-road endurance bike and experience all you can see. Call Contender Bicycles at 801-364-0344 for availability.

Ride mountains, valleys, plains and river trails - or maybe just the urban bike path to and from work - on the Orbea Terra H30. An all-road endurance bicycle that’s as at home on a country dirt road as it is the city highway.

With progressive, comfortable ergonomically designed geometry, the Orbea Terra H30  is truly a vehicle for virtually all roads and all rides.

The Orbea Terra H30 uses a specially designed hydroformed alloy frame with a carbon fork to create an ultra comfortable bicycle. There’s no simple widening of the fork and seat stays and slapping a “gravel bike” label on Orbea’s Terra line of bikes. The more upright and relaxed riding position may not be as aggressive and ‘racey’ as some bikes, but the objective with the Orbea Terra H30 is more about exploring the world than it is about crushing it.

Of course, if you’re the crushing kind, go ahead and crush.

Built with a Shimano GRX/105 2x11 speed drivetrain, the Orbea Terra H30 rides like a boss.  Superbly responsive components add to the journey and are complimented by a set of Orbea Ready GR wheels and Vittoria Terreno Dry Gravel tires.

Racing cyclocross or monster gravel events is second nature for the Orbea Terra H30. First nature is, well, it’s nature. Find a forest road and pedal. Just pedal.

Maybe that road is the shortest route to the summit over yonder. Maybe it’s not. Either way, just pedal.

Ride it as a commuter, but remember to take the long way home every now and then.

Visit the shop, give us a call, or send us an email anytime to info@contenderbicycles.com.

REVIEWS

Geometry

Size XS S M L XL
1 - Seat Tube (C-T) 460 510 554 590 630
2 - Top Tube (EFF) 531 543 555 570 585
3 - Head Tube 122 138 156 182 212
4 - Chainstay 430 430 430 430 430
5 - BB Height 283 283 285 285 288
6 - BB Drop 70 70 68 68 65
7 - Wheelbase 1017 1030 1043 1060 1078
8 - Head Angle 70.5º 70.5º 70.5º 70.5º 70.5º
9 - Seat Angle 73.5º 73.5º 73.5º 73.5º 73.5º
10 - Standover 764 796 828 858 893
11 - Reach 370 378 385 392 400
12 - Stack 545 560 575 600 625
13 - Fork Length 400 400 400 400 400

Specifications

  • Frame
    Orbea Terra Hydro disc, hydroformed triple butted aluminium, tapered 1-1/8"" - 1,5"", BB 68mm – BSC English, Thru Axle 12mm x 142mm rear, thread M12x P1.5, DT internal cable routing, 27,2mm seat tube, MMS system
  • Fork
    Orbea Terra OMP carbon disc fork, full carbon steerer, tapered 1-1/8"" - 1,5"", carbon dropouts Thru axle 12mm x 100m, thread M12xP1.5, MMS system
  • Crankset
    Shimano GRX RX600 30x46t
  • Headset
    FSA 1-1/8 - 1-1/2"" Integrated Carbon Cup ACB Bearings
  • Handlebar
    OC1 All Road, reach 80mm, drop 125mm, flare 12º
  • Stem
    OC1 31.8mm interface -6º
  • Shifters
    Shimano ST-RX600
  • Brakes
    Shimano RX400 Hydraulic disc
  • Cassette
    Shimano 105 R7000 11-34t 11-Speed
  • Rear derailleur
    Shimano RD-RX810
  • Front derailleur
    Shimano GRX RX810
  • Chain
    Shimano HG 601
  • Wheels
    Orbea wheel: Ready GR with 12mm E-Thru hubset Shimano RS470 28H
  • Tyres
    Vittoria Terreno Dry Gravel G2.0 TNT 700x38c
  • Seatpost
    OC2 Carbon 27.2 Offset 20
  • Saddle
    Selle Royal Seta RS
  • Mudguard
  • Handlebar Plugs
    Orbea Eva
  • Front Wheel Axle
    Orbea Thru Axle 12x100mm M12xP1.5 Hollow
  • Rear Wheel Axle
    Orbea Thru Axle 12x142mm M12xP1.5 Hollow
  • KIT TUBELESS
