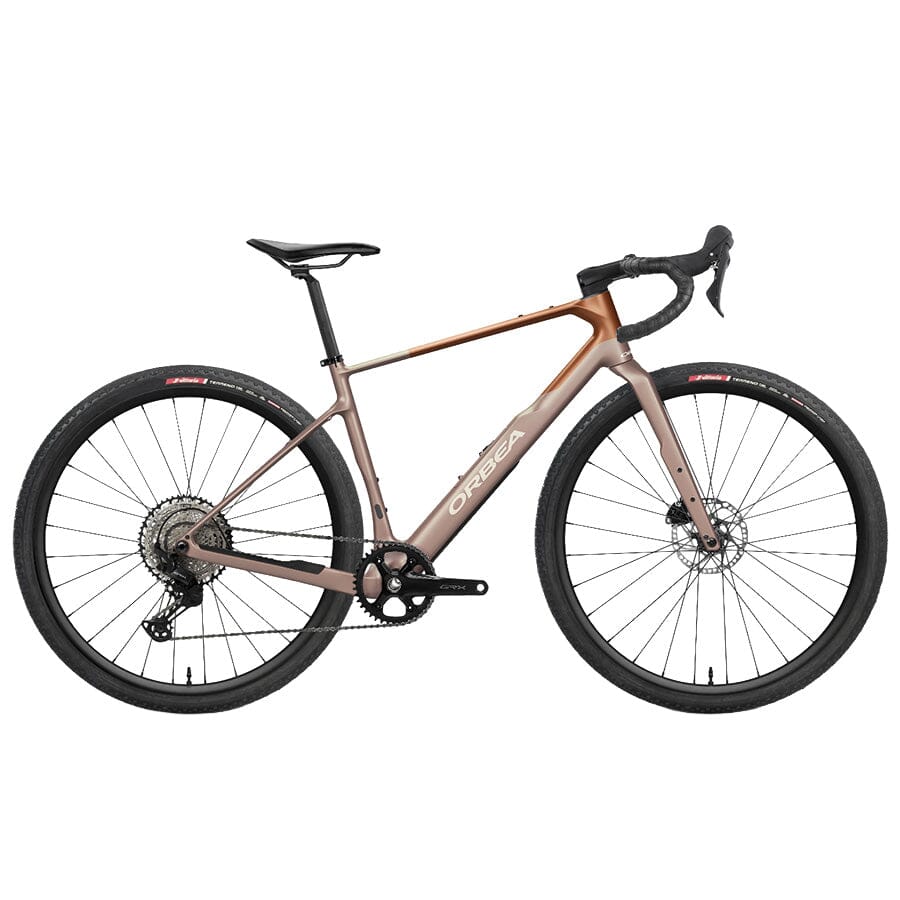

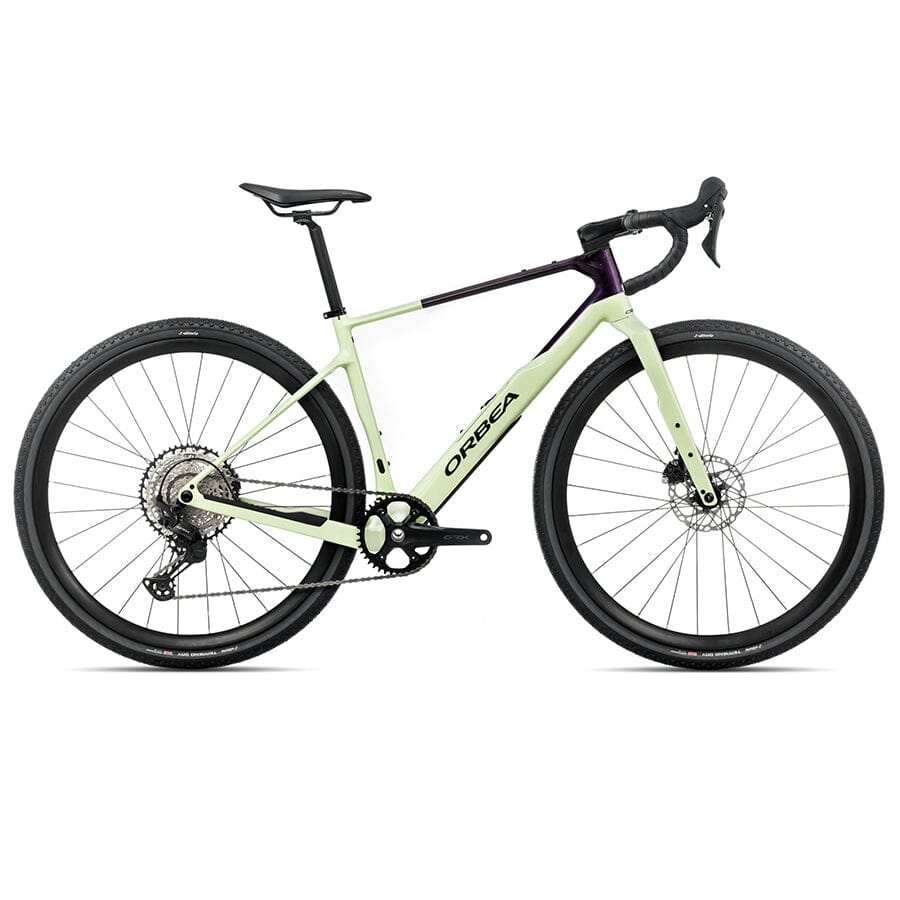

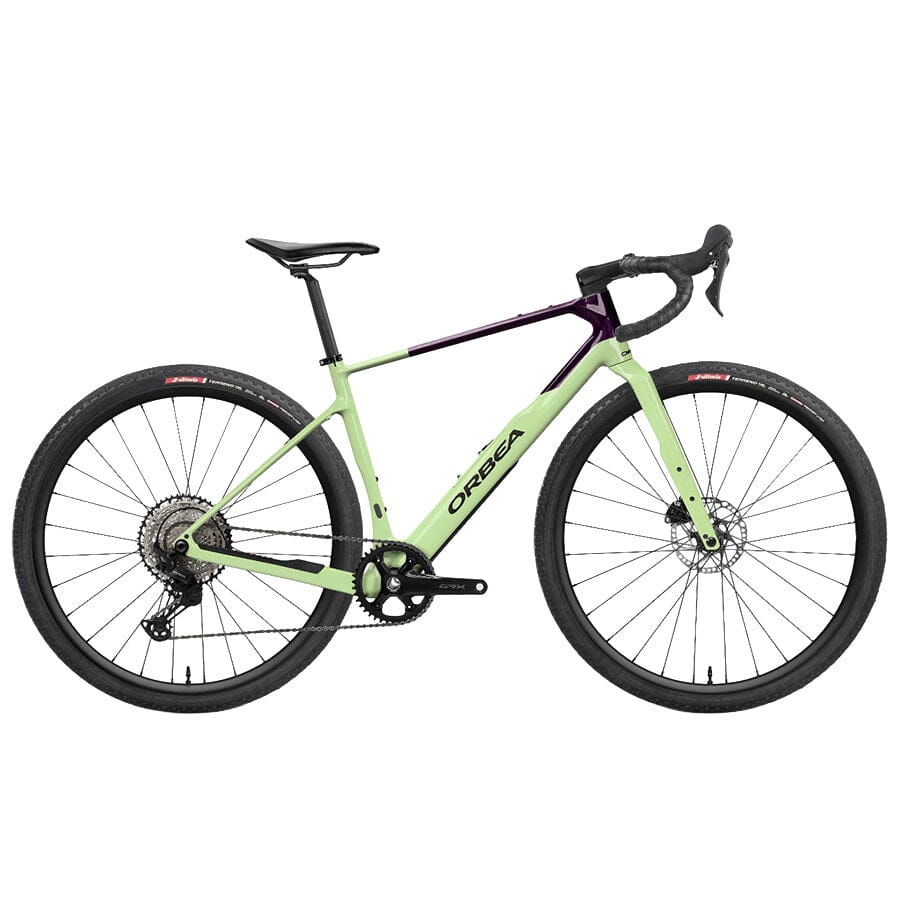

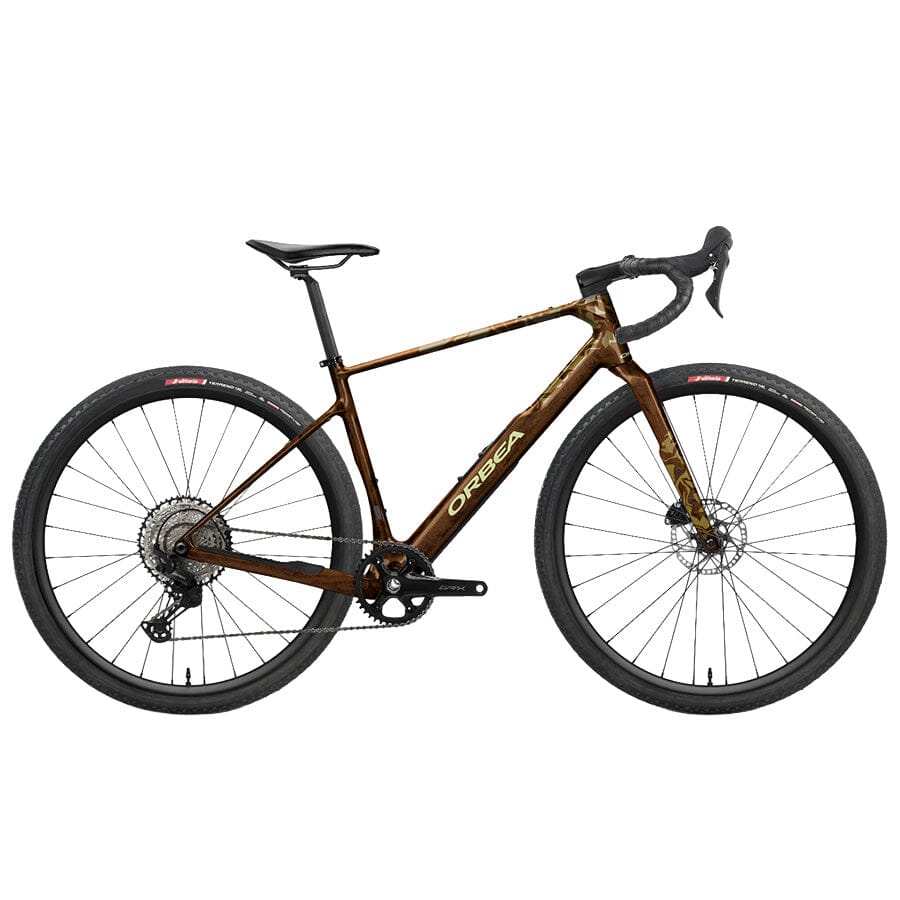

Orbea Terra M30Team 1X
Product Details
The Orbea Terra M30Team 1X brings premium carbon performance to gravel riding, a lightweight, responsive, adventure-ready machine that excels across varied terrain. The 1,040-gram OMR carbon frame combines stiffness, compliance, and vibration-damping design to reduce fatigue on long rides while maintaining efficiency and control.
The OMR carbon frame and fork (440g) work in harmony to absorb vibrations from rough terrain. A shorter seat tube and relaxed seat angle increase seatpost flex, boosting comfort on long rides, while strategic carbon cutouts and a slim top tube smooth trail chatter. Tire clearance up to 50C (45C with mudguards) ensures traction and adaptability across mixed surfaces.
Gravel-optimized geometry provides precise handling and stability: longer reach and higher stack with a shorter stem enhance steering precision, while a longer wheelbase improves comfort on technical descents and extended rides. Size-specific fork trail maintains consistent handling across frame sizes, making the Terra M30 responsive when you need accuracy and composed when the terrain turns rough.
Adaptability is central to the Terra M30’s design. Multiple mounting points, 1x/2x drivetrain compatibility, dropper post support, and UDH hanger integration make it ideal for bikepacking, ultra-distance racing, or mixed-terrain adventures. This thoughtfully engineered platform transforms to match the rider’s vision, whether exploring remote gravel roads or tackling long all-day rides.
Premium components ensure reliable, precise performance on any terrain. The Shimano GRX RX822 12-speed drivetrain with Shadow Plus technology provides secure shifting over rough surfaces, while durable alloy tubeless-ready wheels complement the compliant carbon frame for smooth, confident handling. Every detail—from carbon layup to frame geometry—supports exploration, endurance, and gravel adventure.
Key Features
-
Frame: Orbea Terra OMR Carbon
- Drivetrain: Shimano GRX RX822 12-Speed with Shadow Plus
- Wheelset: Alloy, Tubeless, 700c, 21c
| Specification | Detail |
|---|---|
| Frame | Orbea Terra Carbon OMR Disc, monocoque construction, HS 1.5", BB386EVO, powermeter compatible, Thru Axle 12x142mm rear (M12xP1), UDH dropout, LOCKR XXL service box, MMS multi mount system, fender ready |
| Fork | Orbea Terra Race ICR, full carbon, 1-1/8"–1.5" tapered steerer, Thru Axle 12x100mm (M12xP1), MMS multi mount system, fender ready |
| Steerer Tube | FSA 1-1/2" Integrated Aluminium Cup |
| Crankset | Shimano GRX RX610, 40T |
| Shifters | Shimano GRX RX610 |
| Rear Derailleur | Shimano GRX RX822 SGS |
| Cassette | Shimano CS-M7100, 10-51T, 12-Speed |
| Chain | Shimano M6100 |
| Handlebar | OC Gravel GR31, Reach 70mm, Drop 110mm |
| Stem | OC Road Performance RP23, -5° |
| Brakes | Shimano RX410 Hydraulic Disc |
| Wheelset | Alloy, Tubeless Ready, 700c, 21mm Internal Width |
| Tires | Vittoria Terreno T30 Fine Loose Gravel Endurance G2.0, 700x45c |
| Front Wheel Axle | Orbea Thru Axle 12x100mm M12xP1 Hollow |
| Rear Wheel Axle | Orbea Thru Axle 12x142mm M12xP1 Solid Inner Threaded |
| Seatpost | SP 0.2 Carbon, 27.2mm, 20mm Setback |
| Saddle | Fizik Terra Argo X7, Aluminium Rails, 150mm |
| Handlebar Tape | Orbea Anti-Slippery / Shock Proof |
| Accessories | LOCKR XXL Service Box, Storage Containers |
| Size | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|
| Seat Tube (C-T) | 410 | 440 | 470 | 505 | 540 | 575 |
| Top Tube (EFF) | 535 | 547 | 561 | 573 | 585 | 596 |
| Head Tube | 110 | 132.5 | 153.5 | 175 | 198 | 218 |
| Chainstay | 430 | 430 | 430 | 430 | 430 | 430 |
| BB Drop | 80 | 80 | 80 | 80 | 80 | 80 |
| BB Height | 261 | 261 | 261 | 261 | 261 | 261 |
| Wheelbase | 1031 | 1041 | 1052 | 1061 | 1072 | 1081 |
| Head Angle | 69 | 69.5 | 70 | 70.5 | 70.8 | 71 |
| Seat Angle | 74° | 74° | 74° | 74° | 74° | 74° |
| Rake | 45 | 45 | 45 | 45 | 45 | 45 |
| Standover | 690 | 717 | 743 | 772 | 801 | 828 |
| Reach | 386 | 392 | 400 | 406 | 412 | 417 |
| Stack | 535 | 558 | 580 | 602 | 625 | 645 |
| Fork Length | 395 | 395 | 395 | 395 | 395 | 395 |
| Trail | 82.7 | 79.5 | 76.2 | 73 | 71.4 | 69.8 |
