Product Details

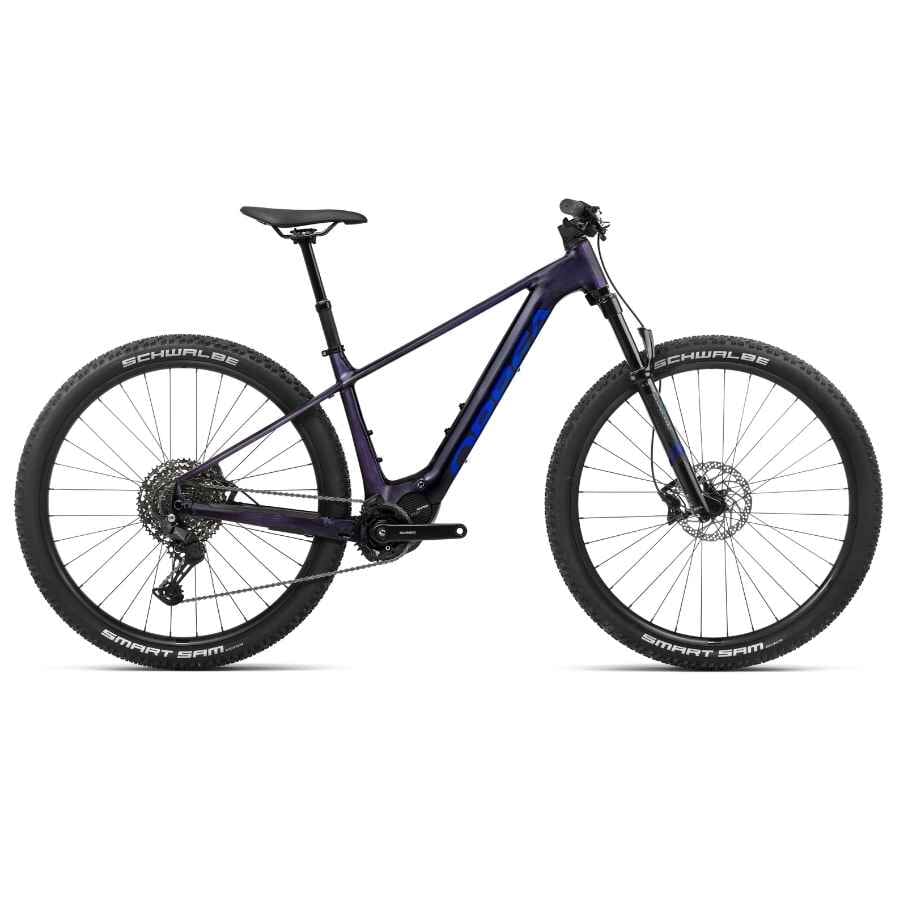

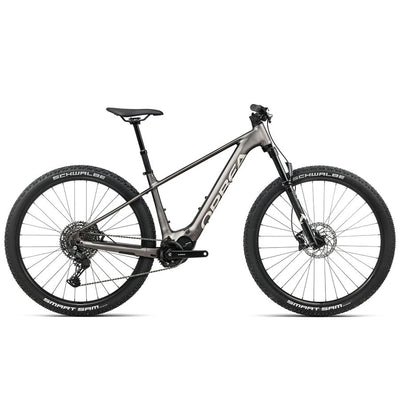

The Orbea Urrun 20 is a high-performance e-MTB designed for long-distance exploration, technical trails, and all-day adventures. Combining natural-feeling pedal assistance, trail-ready stability, and lightweight responsiveness, the Urrun empowers riders to go further and ride with confidence across any terrain where curiosity leads.
Built on a hydroformed alloy frame that balances stiffness and compliance for optimal control and comfort, the Urrun 20 delivers precise, responsive handling on demanding trails. Internal SIC cable routing reduces noise and clutter while protecting components from the elements, and strategic frame compliance improves traction and reduces fatigue during extended rides on rough terrain.
The Shimano EP600 motor system delivers up to 85Nm of configurable, natural assistance with multiple riding modes that can be customized via the Shimano E-Tube app. The 630Wh internal battery provides substantial range for epic rides, with the option to add a 210Wh range extender for a total capacity of 840Wh when exploration demands maximum distance capability.
Trail-optimized geometry ensures stability and control across varied terrain. The sloping top tube, longer reach, and slacker fork angle combined with the Marzocchi Bomber Z2's 120mm of front travel provide high-speed stability and precise handling on descents. The uninterrupted seat tube accommodates longer dropper posts for enhanced control, while the modular mounting system supports racks, mudguards, or the range extender without compromising ride quality.
Perfect for riders seeking an e-MTB that balances capability, range, and trail performance, the Orbea Urrun 20 with Shimano Cues drivetrain and tubeless-ready 29" wheels delivers confident handling on technical trails and the endurance needed for exploration without limits.
Key Features
- Frame: Orbea Urrun Hydroformed Alloy with SIC Cable Routing
- Motor: Shimano EP600 (85Nm)
- Battery: Internal 630Wh Battery
- Suspension: Marzocchi Bomber Z2 120mm Fork
- Drivetrain: Shimano Cues GS Shadow
- Wheelset: Alloy Tubeless 29"
| Specification | Detail |
|---|---|
| Frame | Orbea Urrun |
| Fork | Marzocchi Bomber Z2, 120mm travel, QR15x110, E-Bike Optimized |
| Steerer Tube | Alloy 1-1/2", Black Oxidated Bearing |
| Battery | Orbea Internal 630Wh |
| Range Extender | N/A |
| Motor | Shimano EP600 RS Gen2 MC |
| Display | Shimano EN500 |
| Charger | Orbea 2nd Generation eBike Smart Charger, 42V / 2–4A |
| Chainring | Alloy EP8/6, 32T |
| Crank | Shimano EN500 |
| Shifters | Shimano Cues SL-U6000 |
| Cassette | Shimano CS-LG400, 11–50T, 11-Speed |
| Rear Derailleur | Shimano Cues U6000 GS Shadow |
| Chain | Shimano LG500 |
| Chainguide | Orbea eBike Chainguide |
| Handlebar | OC Mountain Control MC31, Rise 20mm, Width 800mm |
| Stem | OC Mountain Control MC20, 0° |
| Brakes | Shimano MT420 Hydraulic Disc |
| Wheels | Alloy, Tubeless Ready, 29”, 29c, 32H |
| Tires | Schwalbe Smart Sam Performance, 29x2.35, Addix, Black |
| Pedals | VP-537 Black |
| Seatpost | OC Mountain Control MC22, 31.6mm, Dropper |
| Seatpost Lever | Shimano SL-MT500 I-Spec EV |
| Saddle | Fortune QF-3091 |
| Size | S | M | L | XL |
|---|---|---|---|---|
| Seat Tube (C-T) | 400 | 420 | 450 | 500 |
| Top Tube (EFF) | 575 | 596 | 624 | 649 |
| Head Tube | 100 | 105 | 115 | 135 |
| Chainstay | 445 | 445 | 445 | 445 |
| BB Drop | 63 | 63 | 63 | 63 |
| BB Height | 314 | 314 | 314 | 314 |
| Wheelbase | 1149 | 1171 | 1200 | 1228 |
| Head Angle | 66 | 66 | 66 | 66 |
| Seat Angle | 74.5 | 74.5 | 74.5 | 74.5 |
| Rake | 44 | 44 | 44 | 44 |
| Standover | 775 | 780 | 791 | 814 |
| Reach | 410 | 430 | 455 | 475 |
| Stack | 625 | 630 | 639 | 657 |
| Fork Length | 534 | 534 | 534 | 534 |
