Product Description

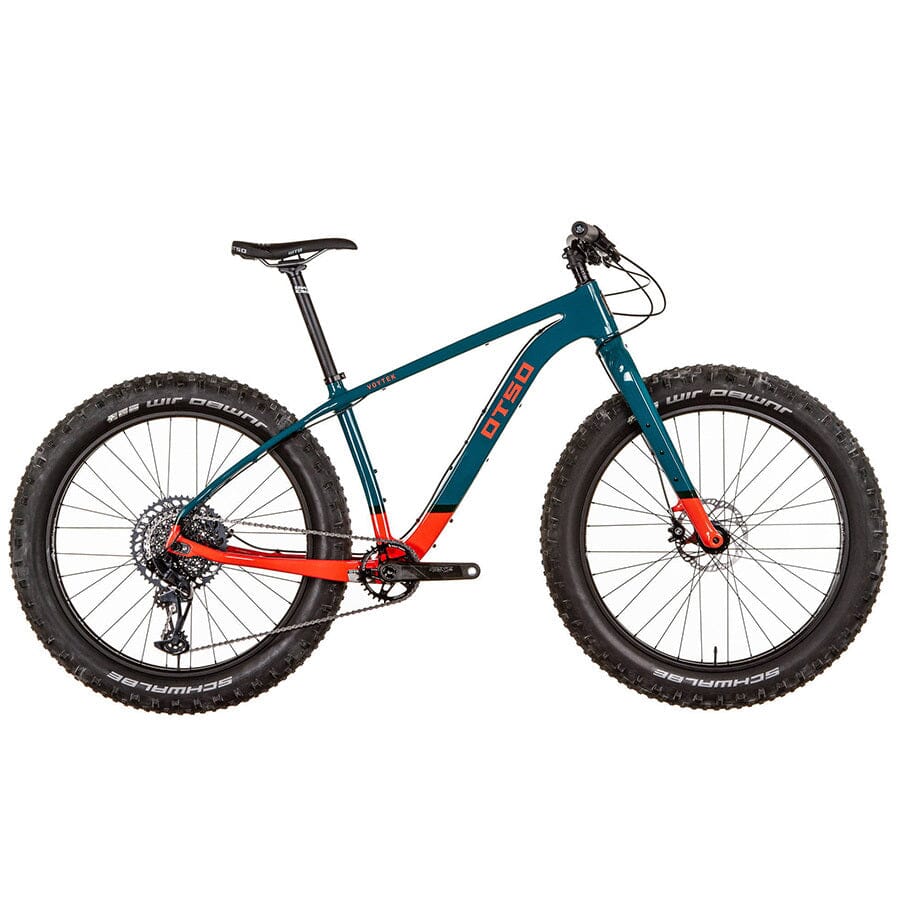

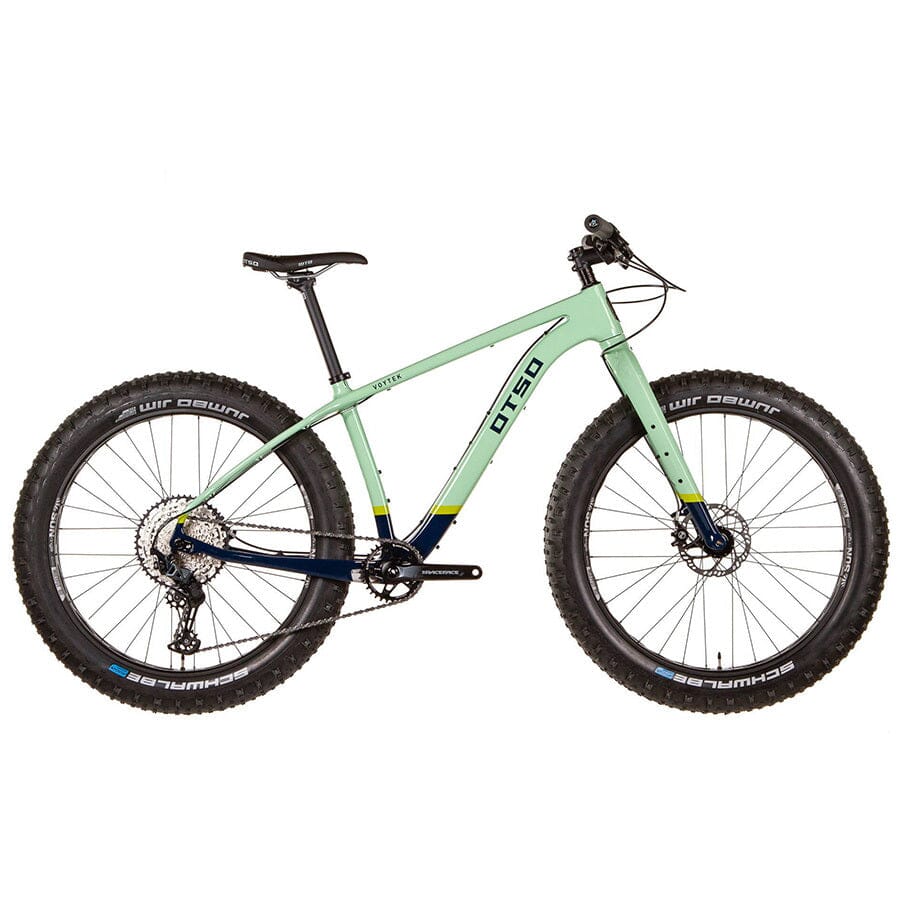

Experience the ultimate in fat bike performance with the Otso Voytek GX AXS Build, now enhanced with carbon upgrades. This meticulously engineered fat bike is a testament to precision and innovation. Voytek's narrow Q-factor helps reduce the breeze between your knees, enhancing comfort and making it ride like a traditional mountain bike. With its cutting-edge carbon handlebar, seatpost, and crankset, every ride on this fat bike becomes a symphony of performance and style. The GX AXS Build ensures you conquer any fat biking trail with ease, offering a blend of durability, lightweight design, and responsive control that's second to none.
The Otso Voytek GX AXS Build features the innovative Plus-Fat System, which allows you to seamlessly switch between two tire sizes using a single set of wheels. Whether you're craving the versatility of plus-sized tires or the supreme traction of fat tires, Voytek does it all! But that's not all—Voytek also introduces the patent-pending Tuning Chip system, providing you with 20mm of chainstay length and 4mm of bottom bracket height adjustment. This revolutionary feature allows you to fine-tune your ride to perfection, ensuring that every pedal stroke is precisely tailored to your preferences.
REVIEWS
Specifications
*Please note that bike specifications are subject to change without prior notice |
Drivetrain - MTB* | 1x12 Shimano SLX M7100 with 10-51T Cassette |
Chainring - Drop-Stop ST - Wolf Tooth CAMO* | 32T Round Aluminum |
Crankset - Voytek* | Race Face Next SL G5 170mm 83mm BB with Wolf Tooth CAMO Spider [+$ 350.00] |
Brakes - MTB* | Magura MT4 |
Wheel Size* | 26" Fat |
Wheelset - Fat Bike - 26* | Fat: SUNringle Mulefut 26" 80mm with SUNringle Hubs |
Tires - Fat Bike - 26* | 45NRTH Dillinger 4 26x4.0 Custom Studdable 120tpi |
Tubes or Tubeless - 26 Fat* | Tubeless Kit |
Stem - MTB* | Aluminum - 60mm +/- 7 deg |
Handlebar - MTB* | Race Face SixC Carbon 31.8 x 785mm 3/4" Rise - Black/White [+$ 100.00] |
Grips - MTB* | Wolf Tooth Fat Paw - Black |
Seatpost - MTB* | Race Face Next SL Carbon, 30.9 400mm [+$ 80.00] |
Saddle* | WTB Volt Medium, 142mm width |
Seatpost Clamp 34.9* | Black |
Headset - IS42 Upper / IS52 Lower* | Wolf Tooth Performance Headset - Black - 7mm top cap |
Cage Bolt (8 pcs) & Headset Spacer Color* | Black |
Geometry
Recommended rider height | 4'9"-5'5" | 5'4-5'9" | 5'8"-6'1" | 6'0"-6'7" |
Recommended rider inseam | 29"-32" | 31"-33" | 32"-35" | 34"-37" |
Effective top tube | 585mm | 610mm | 630mm | 645mm |
Nominal head tube angle (rigid and 100mm suspension fork) | 69° | 69° | 69° | 69° |
Nominal head tube angle (120mm suspension fork) | 68.5° | 68.5° | 68.5° | 68.5° |
Tuning Chip induced head/seat tube angle change | ±0.2° | ±0.2° | ±0.2° | ±0.2° |
Head tube length | 90mm | 115mm | 130mm | 150mm |
Nominal seat tube angle | 73° | 73° | 73° | 73° |
Seat tube length | 381mm | 432mm | 483mm | 533mm |
Bottom bracket drop | 58-62mm | 58-62mm | 58-62mm | 58-62mm |
Chainstay length | 430-450mm | 430-450mm | 430-450mm | 430-450mm |
Wheelbase | 1092-1112mm | 1118-1138mm | 1139-1159mm | 1156-1176mm |
Trail | 85.5mm | 85.5mm | 85.5mm | 85.5mm |
Fork offset | 51mm | 51mm | 51mm | 51mm |
Rigid fork axle to crown length | 485mm | 485mm | 485mm | 485mm |
Stack | 581mm | 602mm | 616mm | 634mm |
Reach | 407mm | 426mm | 442mm | 451mm |
Standover | 697mm | 739mm | 780mm | 815mm |
