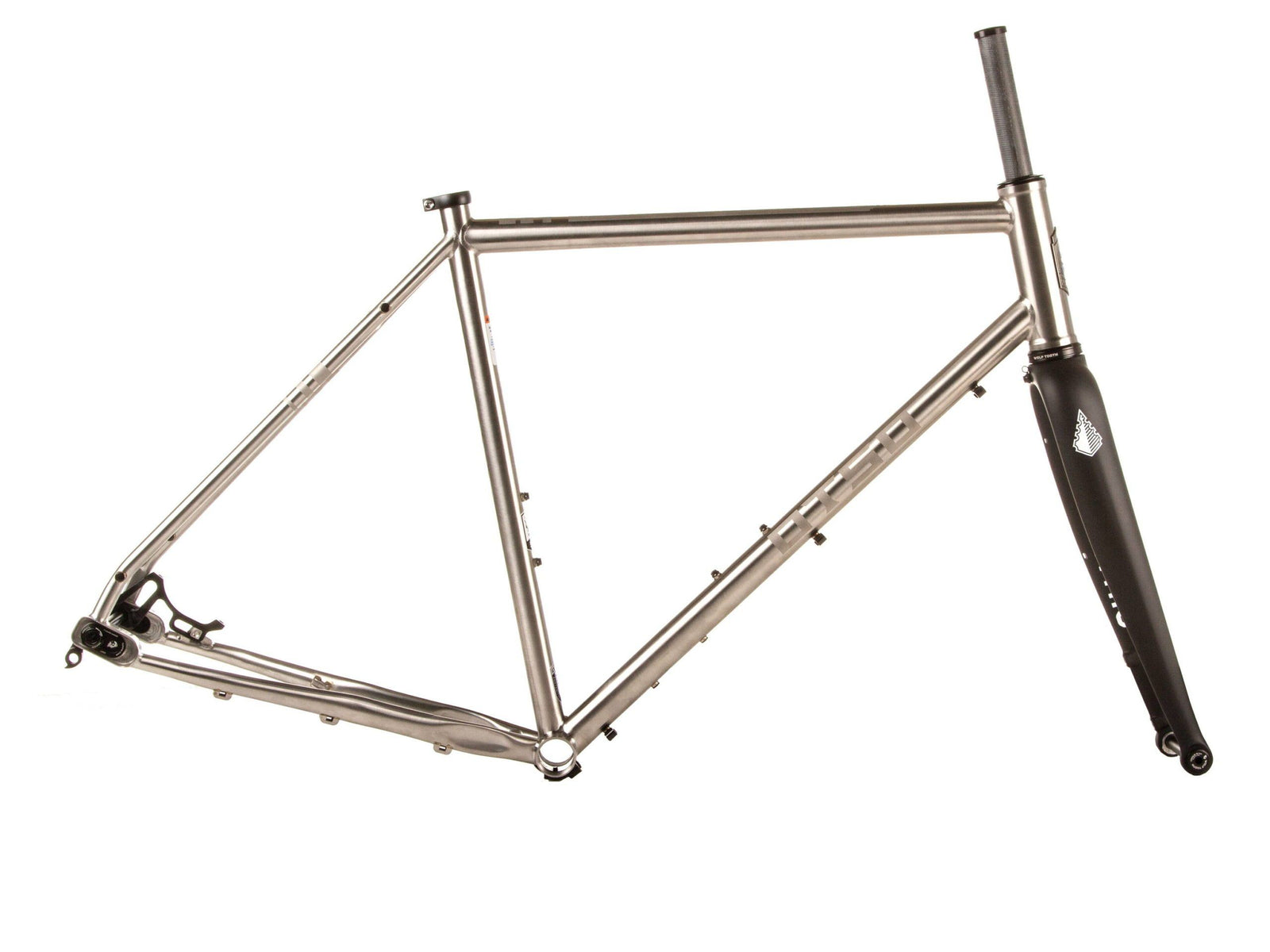

Otso Warakin Stainless Frameset (no headset)

Regular price $1,950.00
Regular price $1,950.00 Sale price $1,950.00
Size Guide (Opens in a new tab)
contact us
Your satisfaction is our top priority.

Product Details

The Otso Warakin Stainless is made from Austenitic steel that provides a lively, supple ride quality. Super strong, unexpectedly lightweight and with a classic aesthetic whether matte or glossy, steel is as real as it gets.

The Otso Warakin Stainless frameset is certain to gain a loyal following, much like it’s siblings in the stainless steel bike family. Seamless, internally butted tubing with a primarily glossy finish and brushed matte accents make the corrosion resistant frame timelessly beautiful.

A feature of the Otso Warakin sure to please the incorporation of the patented Tuning Chip on the rear dropout system. The Tuning Chip allows the rider to lengthen or shorten the wheelbase to create a more customizable ride by moving 20mm forward or back at the rear dropout. This not only adjusts the wheelbase, but raises or lowers the bottom bracket by 4mm. Set it in the middle for a mid-lever adjustment.

Taking a page from a cross country mountain bike book, the Warakin Stainless has an increased top tube length and shorter stem to maintain stack and reach while improving handling capabilities for rougher terrain.

A Lithic carbon fork helps take the buzz out of rougher roads and trails to help you maintain speed and handling. If you need to customize the fork to your tastes, swapping out for a Lauf Grit or other suspension fork is entirely within the realm of possibilities.

Bike packing should be on any Otso Warakin Stainless owner’s agenda and several braze-on locations accommodate racks, fenders, frame bags and water bottle cages.

Visit the shop, give us a call, or send us an email anytime to info@contenderbicycles.com.

Size 49cm 52cm 54cm 56cm 58cm 60m
Recommended rider height 5'0"-5'2" 5'1-5'4" 5'3"-5'8" 5'7"-6'0" 5'11"-6'2" 6'1"-6'5"
Recommended rider inseam 27"-29" 28"-30" 30"-33" 32"-34" 33"-35" 34"-37"
Effective top tube 510mm 530mm 545mm 565mm 580mm 600mm
Nominal head tube angle 70° 70.5° 71° 71.5° 72° 72°
Tuning Chip induced head/seat tube angle change ±0.2° ±0.2° ±0.2° ±0.2° ±0.2° ±0.2°
Head tube length 90mm 115mm 135mm 160mm 185mm 205mm
Nominal seat tube angle 75° 74.5° 74° 73° 72.5° 72°
Seat tube length 470mm 505mm 530mm 550mm 570mm 590mm
Bottom bracket drop 68-72mm 68-72mm 68-72mm 68-72mm 68-72mm 68-72mm
Chainstay length 420-440mm 420-440mm 420-440mm 420-440mm 420-440mm 420-440mm
Wheelbase 1010 - 1030mm 1017-1037mm 1023-1043mm 1028-1048mm 1032-1052mm 1046-1066mm
Trail 72mm 71mm 70mm 67.5mm 65mm 65mm
Fork offset 47mm 47mm 47mm 47mm 47mm 47mm
Rigid fork axle to crown length 400mm 400mm 400mm 400mm 400mm 400mm
Stack 524mm 549mm 570mm 596mm 622mm 641mm
Reach 370mm 378mm 381mm 383mm 384mm 392mm
Standover 730mm 760mm 780mm 800mm 820mm 840 mm
*Please note that bike specifications are subject to change without prior notice
Bottom Bracket Standard 68mm BSA threaded
Q-Factor 146mm with Shimano RS510 crankset
Maximum Chainring Size 2x 53T round; 1x 50T round or 46T oval
Front Derailleur Type 31.8mm clamp, bottom pull
Headset ZS44/28.6 upper, EC44/40.0 lower
Seatpost Diameter Ø27.2mm
Internal Dropper Post Routing Yes. Exit port on the bottom of the seat tube
Seatpost Clamp Ø31.8mm
Front/Rear Hub Standard 100x12mm thru axle / 142x12mm thru axle
Front/Rear Axle Ø12x125mm front, TP=1.5, TL=15mm / Ø12x180mm rear, TP=1.5, TL=12mm
Derailleur Hanger Wolf Tooth Tuning Chip Right Dropout
Rear Brake (Rotor) Flat mount, 74mm post mount available (160mm)
Front Brake (Rotor) Flat mount native, 74mm post mount adapter available (160mm)
Fork Axle-to-Crown 420mm
Fork Offset 47mm
Bare Frame Weight (54cm) 4.7lbs (2120g)
Fork Weight (Lithic Hiili) 490g
Tire Clearance (Frame) 40mm at 420mm chainstay position, 50mm at 430/440mm chainstay positions
Tire Clearance (Fork) Max clearance 29" x 2.1" (54-622)
Braze-ons Three bottle frame mounts, fender, rack, cable clamps, two three-pack mounts on fork
Frame Bag Dimensions 49cm 52cm 54cm 56cm 58cm 60cm
Seatpost Insertion Depth Small 250mm; Medium 290mm; Large 320mm; X-Large 310mm
Max Weight (Rider + Gear) 275 lbs.
Max Spacer Stack Under Stem 40mm
Max Spacer Stack Above Stem 10mm
Max Stem Bolt Torque 6 Nm
