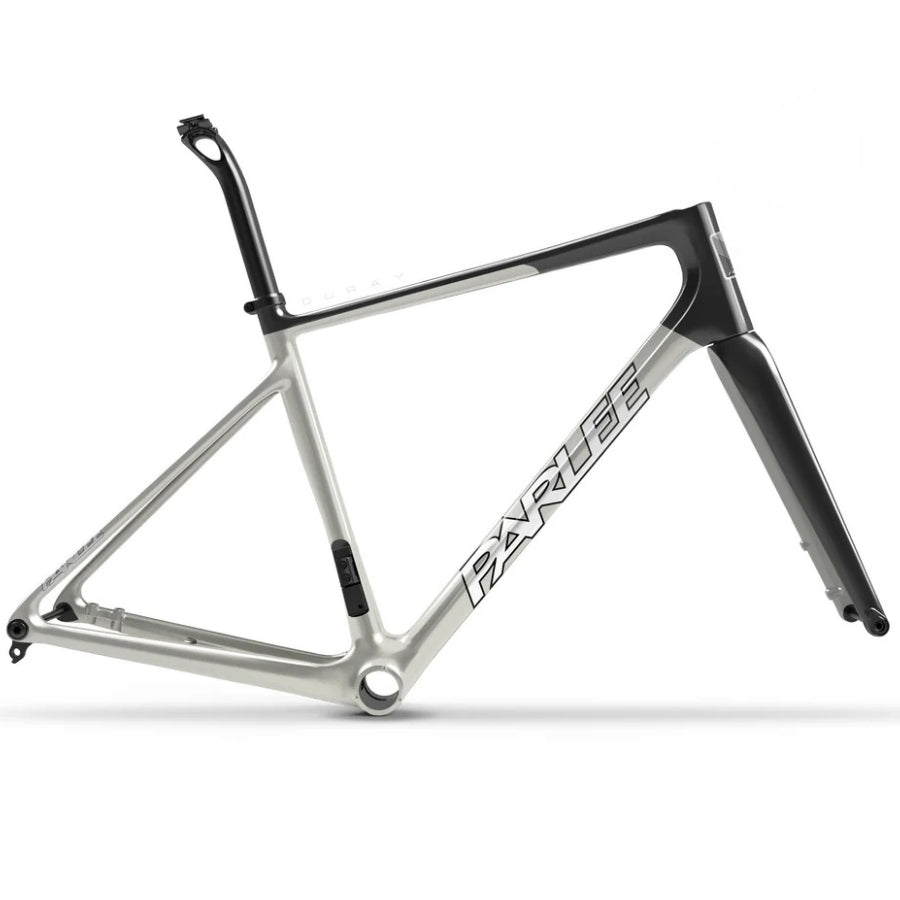

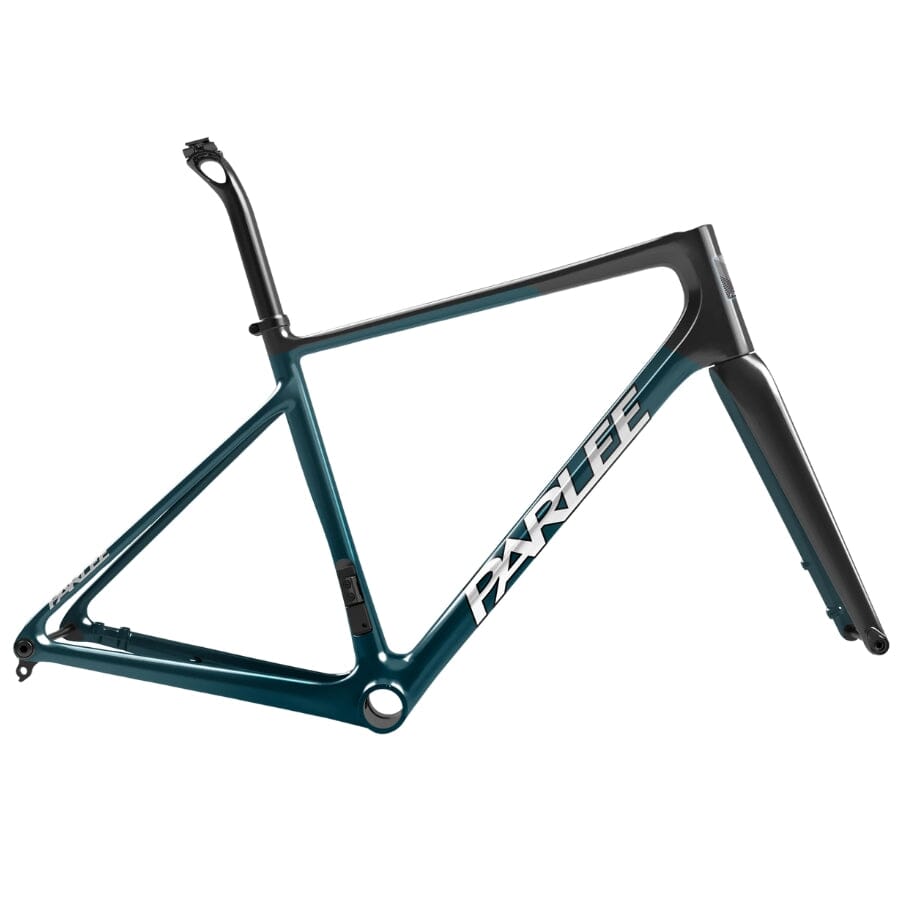

Parlee Ouray Frameset
Product Details
The Parlee Ouray represents a refined approach to modern road bike engineering. Built using Parlee's proprietary carbon layup process, this frameset is carefully engineered to reduce fatigue while maintaining the stiffness needed for confident power transfer. At its core is precision-engineered, unidirectional monocoque construction that delivers a smooth, composed ride quality across varied terrain and extended efforts.
Every bit of material has been placed with purpose. Strategic layup tuning creates a frameset that balances lightweight performance with the stability required for modern road riding. The vertical compliance absorbs road vibration and surface imperfections, keeping you fresher over longer distances, while preserved lateral stiffness through the bottom bracket and head tube ensures responsive, predictable handling when you need it. The result is a frameset that feels calm and composed, even on rough pavement or during all-day efforts where fatigue begins to accumulate.
The one-piece UD carbon monocoque construction delivers structural efficiency without compromise. This approach allows Parlee engineers to tune stiffness and compliance precisely across different zones of the frame, creating a platform that works harmoniously with the rider rather than fighting against road imperfections. The frameset is finished in striking nude carbon wax with holographic accents, offering a sophisticated aesthetic that celebrates the materials and craftsmanship within.
As a frameset offering, the Ouray provides total freedom in component selection, allowing you to build exactly the bike you envision. Whether you're planning a dedicated climbing machine, a mixed-terrain explorer, or an endurance-focused platform, this frame adapts to your vision while delivering the composed, efficient ride quality Parlee is known for.
Key Features
- Frame - Parlee one-piece UD carbon monocoque
- Weight - 830g (size M)
- Tire Clearance - up to 40 mm
| Specification | Detail |
|---|---|
| Frame Material | One-piece, uni-directional monocoque carbon frame and fork |
| Weight | 830g (size M) |
| Fork | Carbon, tapered steerer |
| Seatpost | Parlee Carbon post, 25mm offset / Deda RS Carbon post, 0mm offset, 31.6 diameter, or similar |
| Measurement | XS | S | M | L | XL |
|---|---|---|---|---|---|
| TT Length (Virtual) | 507 | 526 | 547 | 568 | 588 |
| Stack | 536 | 558 | 579 | 606 | 628 |
| Reach | 363 | 366 | 375 | 382 | 393 |
| Head Angle | 70.75 | 71 | 71.5 | 72 | 72.5 |
| Seat Tube Angle | 75 | 74 | 73.5 | 73 | 72.5 |
| ST Length (Actual) | 415 | 455 | 492 | 537 | 574 |
| Chainstay Length | 420 | 420 | 420 | 420 | 420 |
| BB Drop | 80 | 80 | 80 | 80 | 77 |
| Fork Rake | 53 | 53 | 45 | 45 | 45 |
| Standover Height | 693 | 728 | 759 | 798 | 831 |
| Head Tube Length | 125 | 147 | 164 | 191 | 214 |
| Front Center | 584 | 592 | 595 | 606 | 619 |
| Wheelbase | 991 | 999 | 1002 | 1013 | 1027 |
| Fork Length | 380 | 380 | 380 | 380 | 380 |
