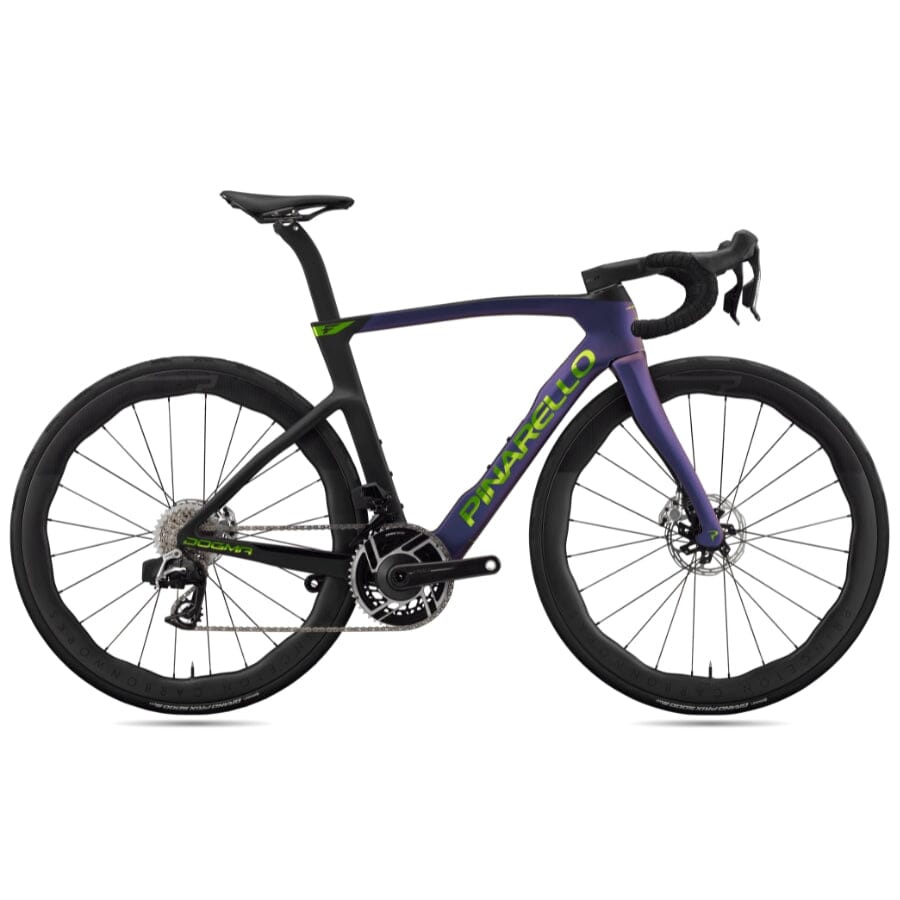

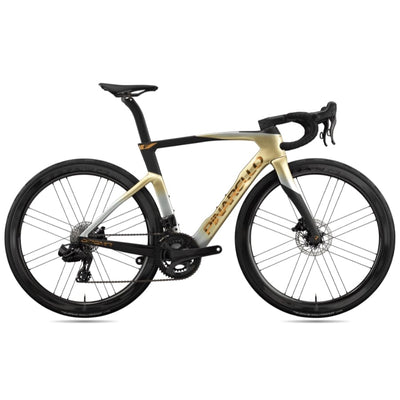

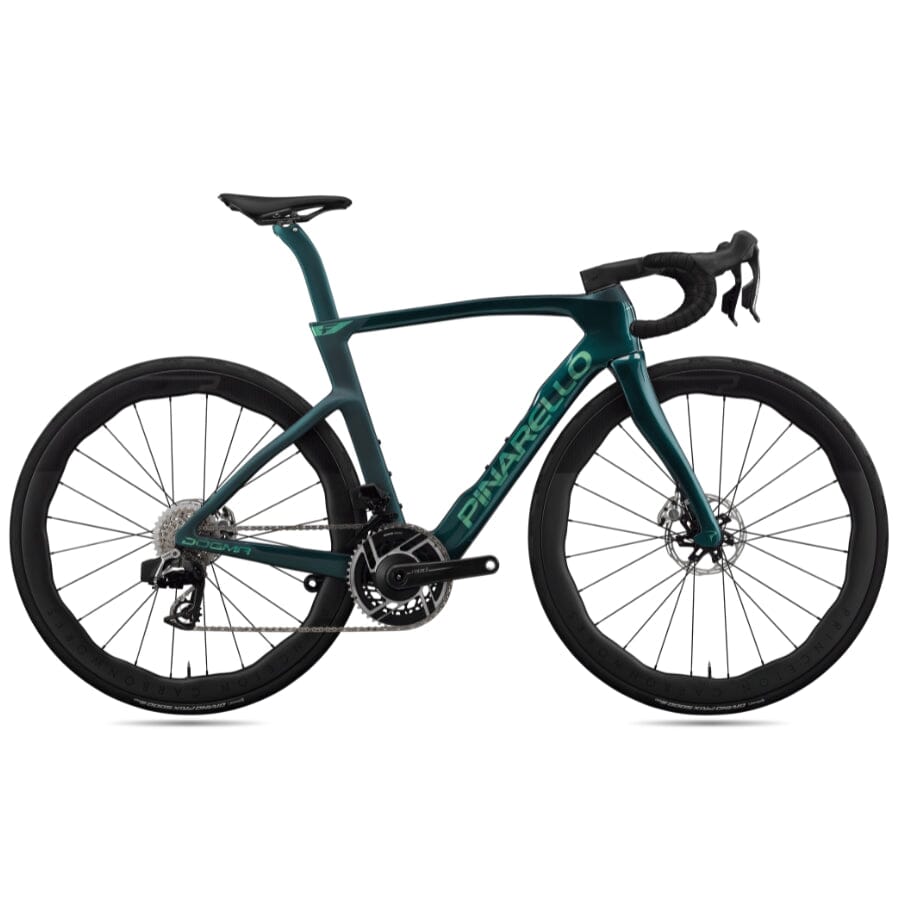

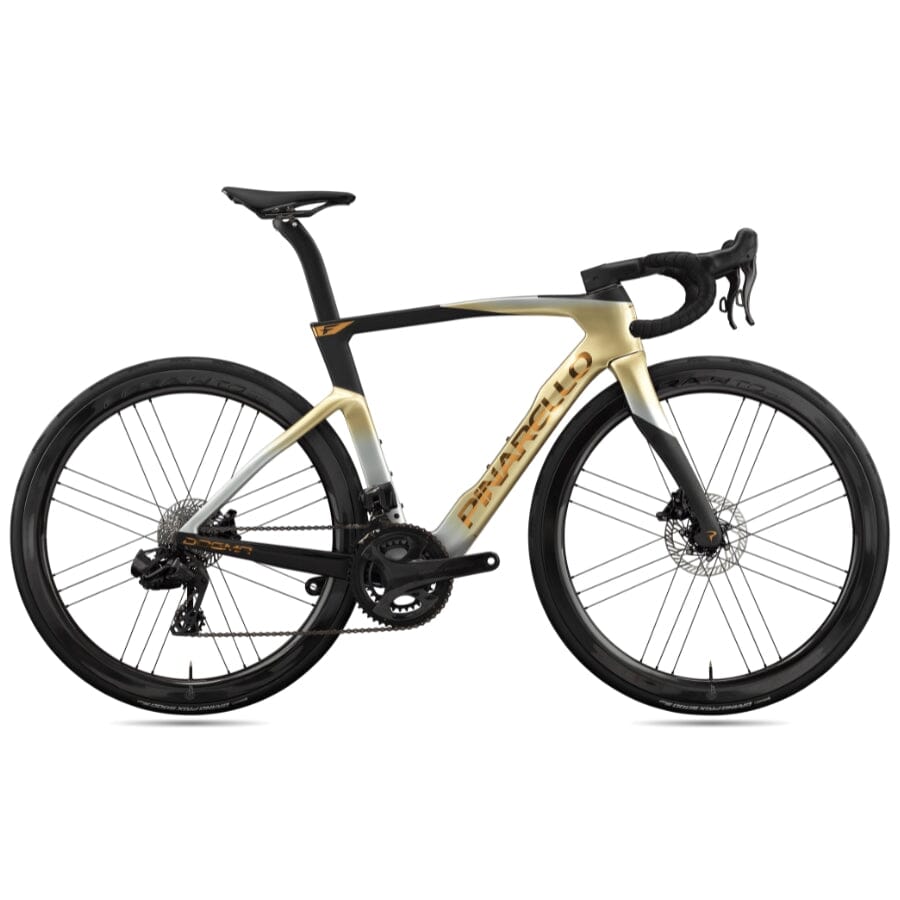

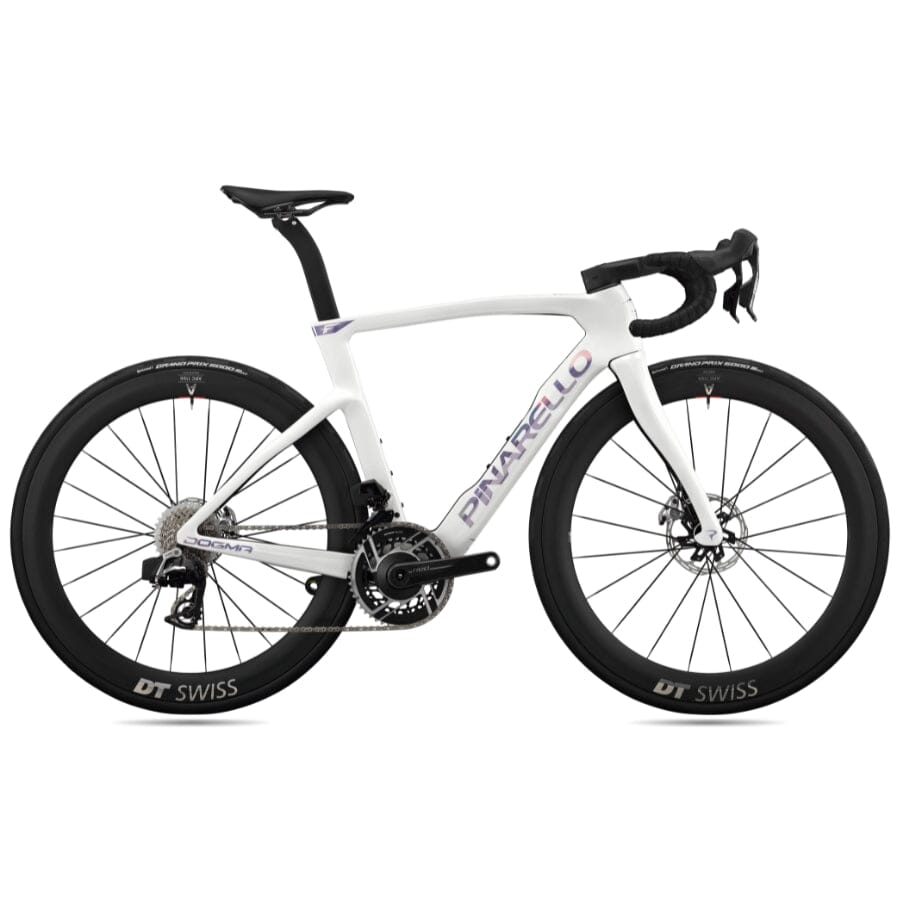

Pinarello Dogma F SRAM RED ETAP AXS
Product Details
The Pinarello Dogma F represents the ultimate expression of Italian framebuilding innovation combined with cutting-edge aerodynamic engineering. This is a machine refined through countless hours of professional racing, where every millimeter counts and the difference between victory and defeat lies in relentless attention to detail. Built for riders who demand the best, the Dogma F delivers a perfect blend of form and function.
The Carbon M40X fiber represents Pinarello's latest evolution in frame construction, extensively tested on Ineos Grenadiers team bikes and refined through Hour Record efforts. This advanced carbon layup delivers exceptional tensile modulus, unlocking a new level of lateral stiffness that translates directly to responsive, efficient power transfer at speed. Every tube has been engineered for aerodynamic precision. The completely redesigned downtube reduces thickness while improving frontal aero drag, while the innovative aero-keel BB design rotates the down tube by 3.5 degrees to enhance aerodynamic performance around the bottom bracket by 1.2 percent.
The iconic head tube "nose" shape evolves with an 8mm reduction in volume and width for more streamlined frontal penetration. To achieve this, Pinarello engineered an innovative elliptical steering tube and completely new headset with differentiated bearing diameters. New integrated thru axles eliminate external holes and improve both design and aerodynamic performance throughout the frame and fork.
The new Onda fork features a slimmer profile with a 47-degree rake, tested extensively with pro riders to enhance handling and descent speed. An integrated seat post clamp sits fully within the seat tube, reducing weight and improving system cleanliness. The Talon Ultra Fast integrated cockpit features a naturally twisted lever position enabling safe, aerodynamic hand positioning.
SRAM RED ETAP AXS wireless electronic shifting delivers instant, precise power changes with zero lag, while Princeton Peak 4550 wheels combine lightweight construction with aerodynamic efficiency. Built for those who refuse to compromise, the Dogma F demands excellence.
Key Features
- Frame - Pinarello Dogma F Carbon M40X, TiCR cable routing, Italian BB
-
Drivetrain - SRAM RED ETAP AXS
- Wheelset - Princeton Peak 4550 DB
| Specification | Detail |
|---|---|
| Frame | TorayCa M40X, TiCR™ Cable Routing, Italian BB |
| Fork | NEW eTICR Onda Fork with ForkFlap™, 1.5" upper and lower steerer |
| Weight | 6.63kg (Size 53, SRAM RED eTap, Princeton Peak 4550 wheels, without pedals and bottles) |
| Crankset & Chainrings | SRAM Red eTap AXS 12S |
| Front Derailleur | SRAM Red eTap AXS 12S |
| Rear Derailleur | SRAM Red eTap AXS 12S |
| Cassette | SRAM Red XG-1290 |
| Bottom Bracket | SRAM Red |
| Front Brake | SRAM Red 2-piston caliper, 160mm rotor |
| Rear Brake | SRAM Red 2-piston caliper, 160mm rotor |
| Integrated Handlebar | MOST Talon Ultra Fast |
| Bar Tape | MOST Bar Tape |
| Saddle | MOST Lynx Ultrafast Superflow L Carbon Large, 145mm |
| Seatpost | Pinarello Aero Seatpost with 3D Printed Titanium Top Seat Clamp and Bolts |
| Wheelset | Princeton Peak 4550 DB |
| Tyres | Continental Grand Prix 5000S TR 28-622 |
| Axles | NEW MOST Ultra Light Custom Axle 12x100 & 12x142, Tool-Free Removal |
| Bottles & Bottle Cages | Bottlecage Trap PACF Ø74mm, Fly Bottle Pinarello Bottle 550ml Black |
| Measurement | 43 | 46.5 | 50 | 51.5 | 53 | 54 | 55 | 56 | 57.5 | 59.5 | 62 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Seat Tube Center - Center (mm) | 430 | 465 | 500 | 515 | 530 | 540 | 550 | 560 | 575 | 595 | 620 |
| Top Tube Center - Center (mm) | 500 | 515 | 525 | 535 | 545 | 550 | 557 | 565 | 575 | 587 | 620 |
| Seat Tube Angle (°) | 74.4 | 74.4 | 74 | 73.7 | 73.7 | 73.4 | 73.4 | 73 | 73 | 72.4 | 72 |
| Head Tube Angle (°) | 69.5 | 70.5 | 71.4 | 72 | 72.5 | 72.8 | 72.8 | 73.2 | 73.7 | 73.4 | 73.4 |
| Chainstay (mm) | 407 | 407 | 407 | 407 | 407 | 408 | 408 | 409 | 409 | 409 | 411 |
| Head Tube (mm) | 102 | 109 | 114 | 119 | 128 | 136 | 147 | 154.5 | 168 | 204 | 244 |
| BB Drop (mm) | 67 | 72 | 72 | 72 | 72 | 72 | 72 | 72 | 72 | 67 | 67 |
| Fork Rake (mm) | 47 | 47 | 47 | 47 | 47 | 47 | 47 | 47 | 47 | 47 | 47 |
| Fork Height (mm) | 373 | 373 | 373 | 373 | 373 | 373 | 373 | 373 | 373 | 373 | 373 |
| Reach (mm) | 351.5 | 365.4 | 372.2 | 378.2 | 383.3 | 385.3 | 389.2 | 390.8 | 396.7 | 393.4 | 410 |
| Stack (mm) | 502 | 517.3 | 525.2 | 532.1 | 542.4 | 551 | 561.5 | 570.1 | 584.8 | 613.2 | 651.6 |
