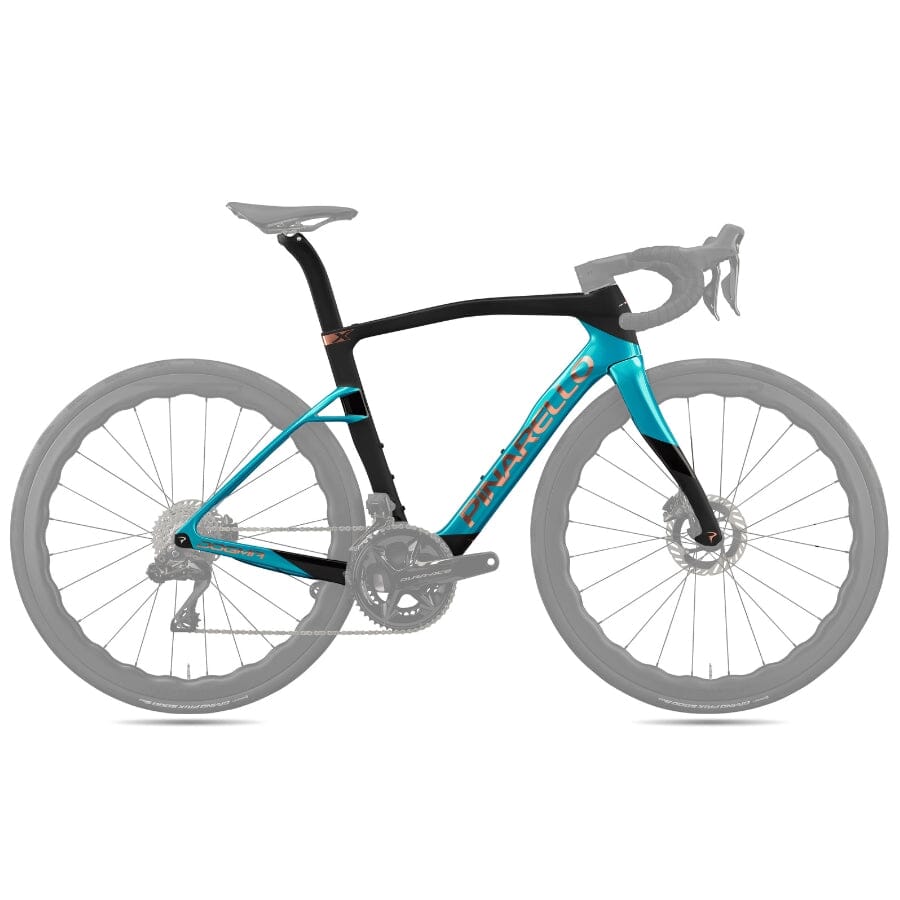

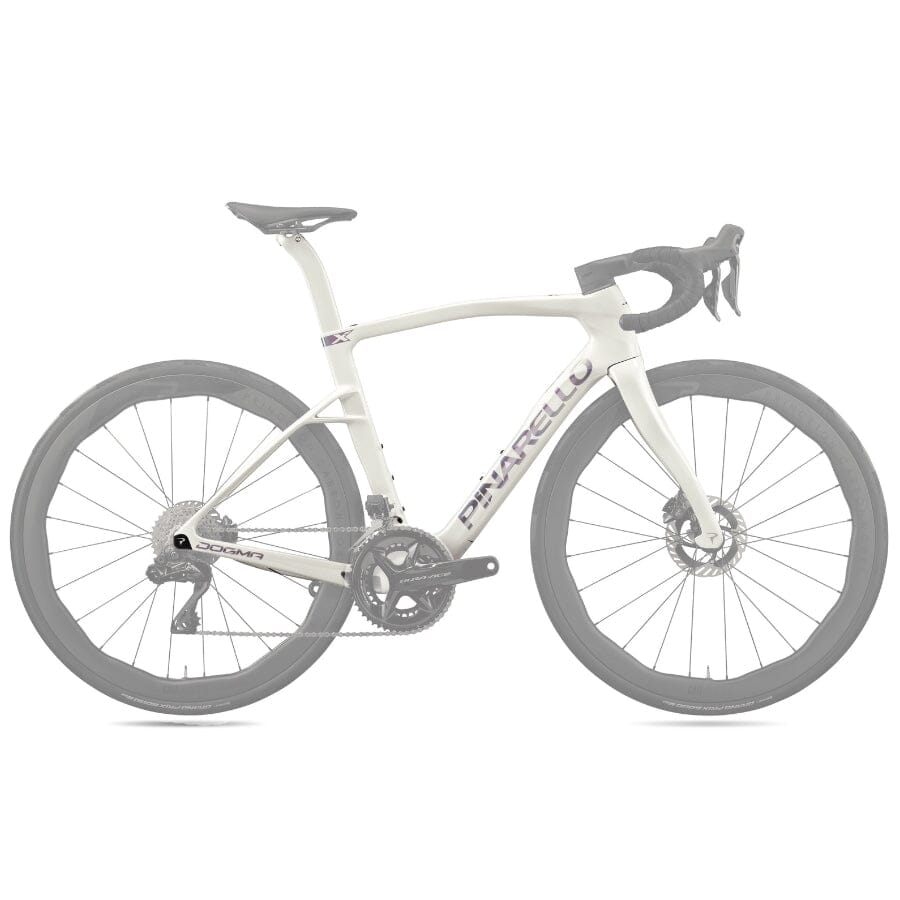

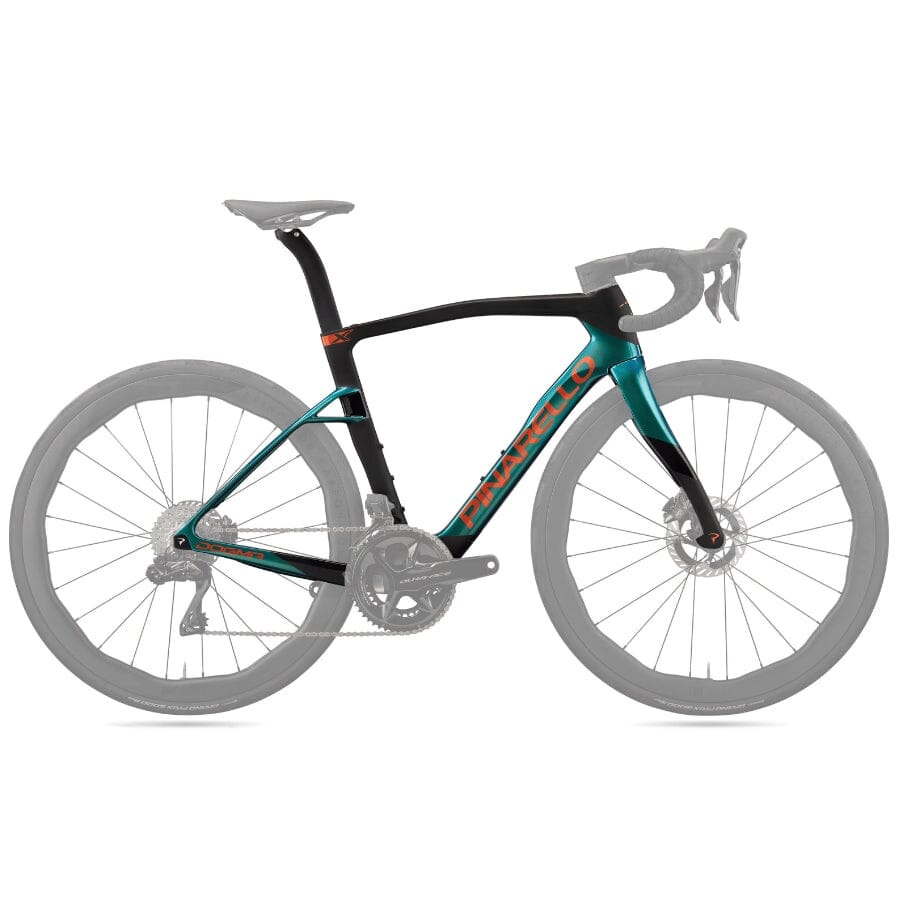

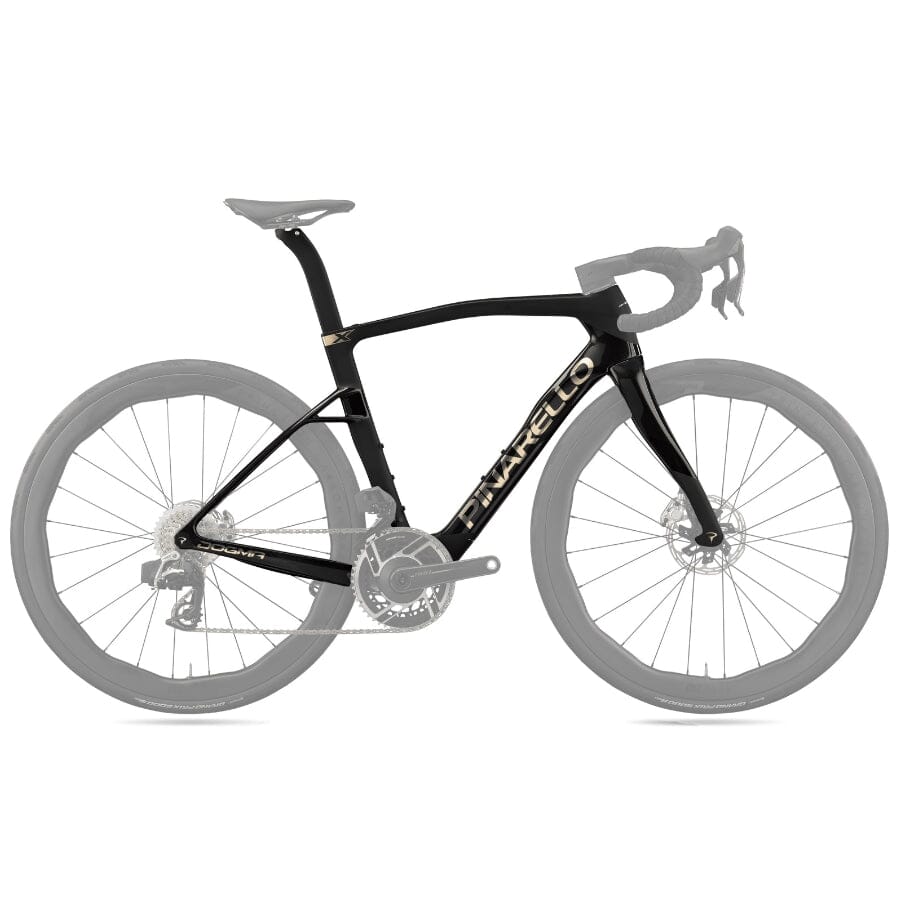

Pinarello Dogma X Disc Frameset

The Pinarello Dogma X Disc redefines what an endurance road bike frameset can achieve. Built for riders who live for long days in the saddle, this machine borrows the unmistakable speed and precision of the legendary Dogma family while introducing a remarkably smoother, more forgiving ride. Whether you're tackling rough mountain pavement, century rides, or fast group rides stretching well beyond four hours, the Dogma X delivers race-inspired efficiency with all-day composure—proving that performance and comfort are not opposites, but two sides of the same perfection.

At the heart of the frame is Pinarello's most advanced multi-material carbon construction, strategically combining six distinct carbon fiber types to optimize stiffness, responsiveness, and vibration control. M40X carbon provides maximum lateral stiffness and responsiveness, while T1100 delivers ultra-high tensile performance. T900 offers balanced race-level reactivity with comfort characteristics, T700 handles vibration absorption for long-distance compliance, T600 provides comfort-focused damping in key zones, and M40J ensures extreme stiffness in performance-critical areas. This layered approach allows frame engineers to tune stiffness and compliance more precisely than ever before.

The X-Stays 2.0 design features a lower attachment point that enhances vibration damping through four connection points, minimizing rebound for a smoother, more controlled ride. An elliptical steering tube with integrated front cable routing reduces overall width while increasing head tube depth for improved aerodynamic efficiency and torsional stiffness. The new aero downtube is narrower and tapered to enhance aerodynamics while increasing lateral stiffness, creating a frame that's more reactive on climbs and faster on flats and descents.

Endurance-focused geometry promotes a sustainable riding position that reduces fatigue without dulling the connected, lively feel defining every Dogma. Generous 35mm tire clearance lets you fully benefit from modern tubeless technology for enhanced comfort and control. The frameset is supplied complete with frame, fork, and headset, ready for your preferred drivetrain and wheelset choice.

Key Features

• Frame - Pinarello Dogma X multi-material carbon
• Tire Clearance - 35mm
• X STAYS 2.0 - Dampens road vibrations more efficiently through the four connection points
