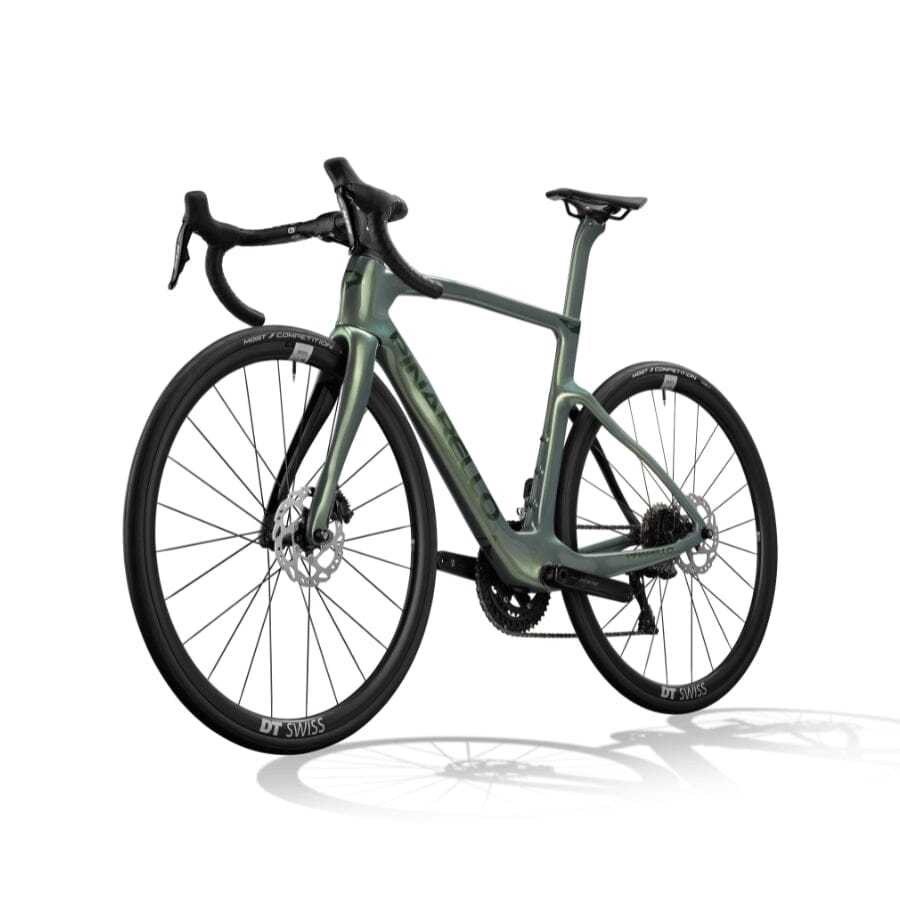

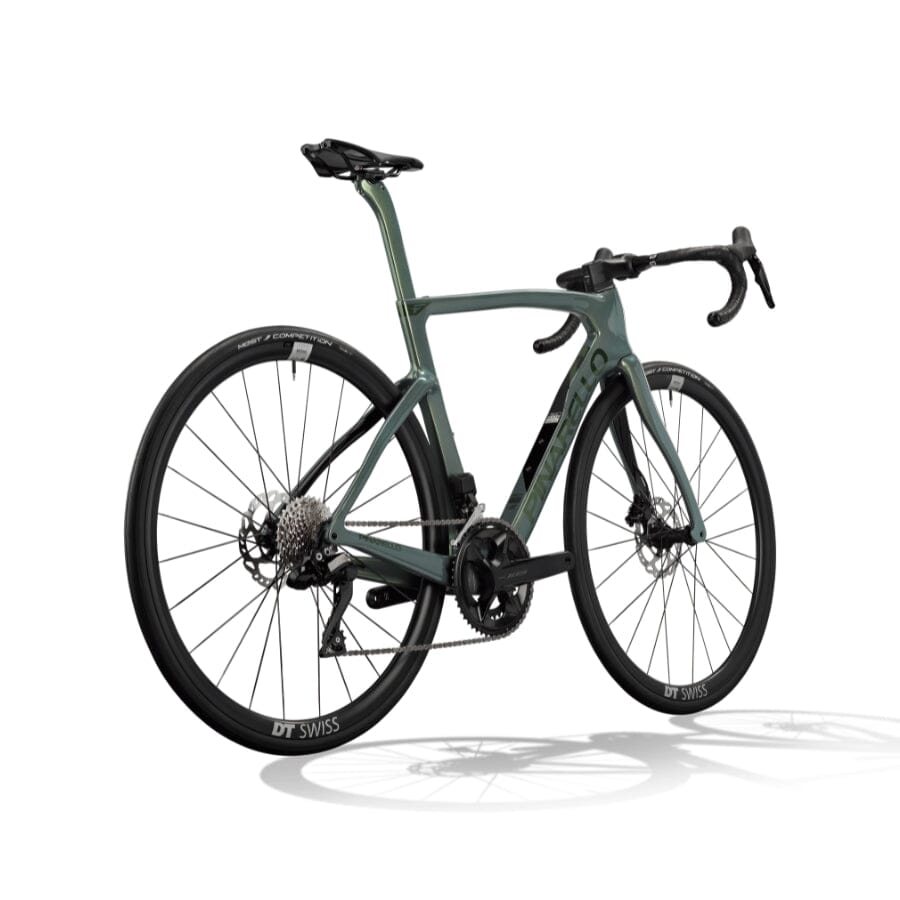

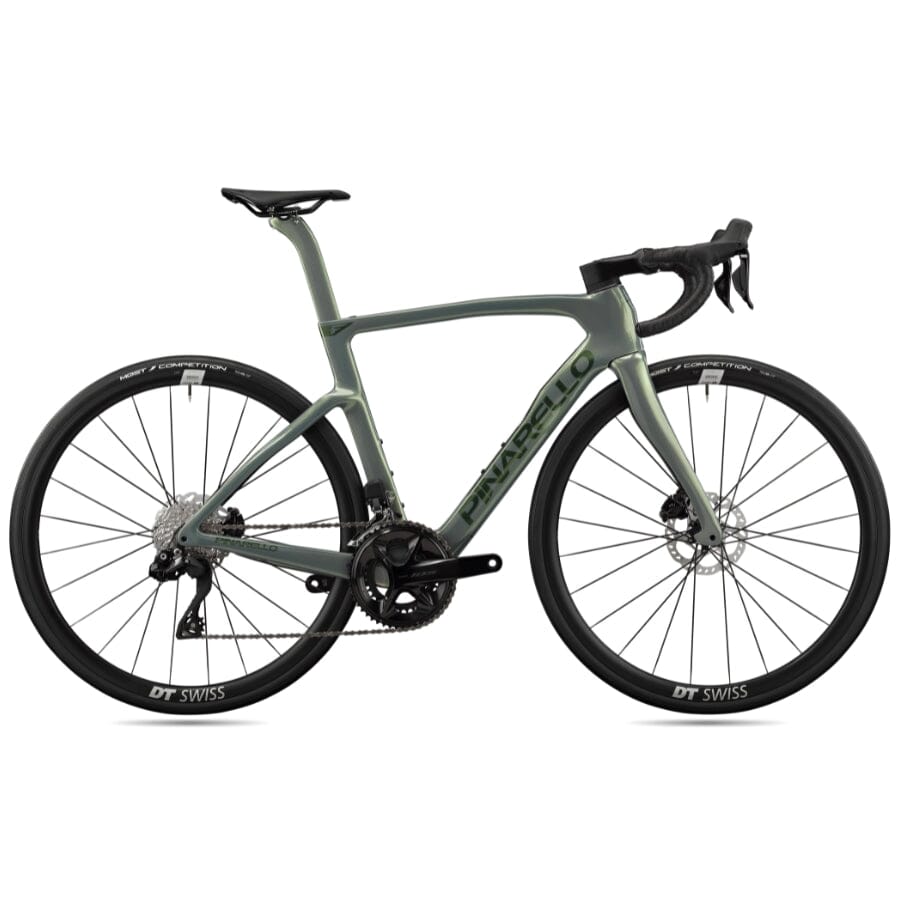

Pinarello F3 105 Di2 - DT Swiss A1800
Product Details
The Pinarello F3 105 15 Di2 proves that exceptional road bike performance doesn't require a premium price tag. Built on Pinarello's proven F Series platform and refined through years of professional racing feedback, the F3 delivers genuine speed, responsive handling, and aerodynamic efficiency at a competitive price point. This is a bike engineered for cyclists who want a high-performance road platform without compromise—whether you're chasing personal bests, joining group rides, or exploring longer distances.
The T700 carbon frame strikes the proven balance between responsiveness and performance while maintaining excellent capacity to absorb road vibration. The new aerodynamic headtube features increased surface area with softer lines that improve both aerodynamics and stiffness, while the innovative E-TICR headset uses an elliptical steering tube with completely new bearings—wider on the bottom and narrower at the top—to reduce headtube width without sacrificing precision. Internal cable routing has been repositioned to the front of the steering tube for improved aerodynamics and a cleaner aesthetic.
The refined downtube features a new shape with reduced thickness that improves aerodynamic performance across the entire frame. An optimized Aero Keel at the bottom bracket delivers improved stiffness with reduced volume and a cleaner look compared to previous generations. The new slimmer ONDA fork with 47mm rake improves aerodynamics while benefiting from pro rider feedback to enhance handling and speed on descents. An integrated seatclamp positioned at the front of the seat tube creates a cleaner look while protecting against sweat and dust accumulation.
Shimano 105 Di2 12-speed electronic drivetrain provides precise, reliable shifting with the responsiveness serious cyclists demand. DT Swiss A1800 30DB wheels deliver dependable performance and responsive acceleration. The F3 accommodates up to 32mm tire clearance, allowing modern tubeless technology for superior grip, control, and vibration absorption.
Key Features
- Frame - Pinarello F Torayca T700 Carbon
-
Drivetrain - Shimano 105 Di2 12-speed
- Wheelset - DT Swiss A1800 30DB
| Specification | Detail |
|---|---|
| Frame | Torayca T700 UD, TiCR™ internal cable routing, Italian BB, UCI approved |
| Crankset and Chainrings | Shimano 105 Di2 12S |
| Front Derailleur | Shimano 105 Di2 12S |
| Cassette | Shimano 105 Di2 12S |
| Bottom Bracket | Shimano 105 Di2 12S |
| Front Brake Disc | Shimano 105 2 pistons, 160mm rotor |
| Rear Brake Disc | Shimano 105 2 pistons, 160mm rotor |
| Handlebar | JAGUAR CLAW ULTRA ALU |
| Stem | CLAW ULTRA AERO ALU |
| Bar Tape | most bar tape |
| Saddle | Most Lynx My26 |
| Seatpost | FSC Frontal Seat Clamp |
| Tyres Disc | MOST 30 |
| Wheelset Disc | DT SWISS A1800 30DB |
| Axles Disc | NEW MOST Ultra Light Custom Axle 12x100 & 12x142, tool free removal |
| Size | 43 | 46.5 | 50 | 51.5 | 53 | 54.5 | 56 | 57.5 | 59.5 |
|---|---|---|---|---|---|---|---|---|---|
| Seat Tube Center – End | 425 | 450 | 465 | 485 | 500 | 515 | 525 | 560 | 580 |
| Seat Tube Center – Center | 430 | 465 | 500 | 515 | 530 | 545 | 560 | 575 | 595 |
| Top Tube Center – Center | 500 | 515 | 525 | 535 | 545 | 555 | 565 | 578 | 600 |
| Seat Tube Angle | 74.4° | 74.4° | 74° | 73.7° | 73.7° | 73.4° | 73° | 73° | 72.4° |
| Headtube Angle | 69.5° | 70.5° | 71.4° | 72° | 72.5° | 72.8° | 73.2° | 73.7° | 73.4° |
| Chainstay | 406 | 406 | 408 | 408 | 408 | 410 | 410 | 410 | 410 |
| Headtube | 97 | 104 | 109 | 114 | 123 | 138 | 149.5 | 178 | 220 |
| BB Drop | 67 | 72 | 72 | 72 | 72 | 72 | 72 | 72 | 67 |
| Fork Rake | 43 | 43 | 43 | 43 | 43 | 43 | 43 | 43 | 43 |
| Fork Height | 373 | 373 | 373 | 373 | 373 | 373 | 373 | 373 | 373 |
| Reach | 351.3 | 365.2 | 372.1 | 378.1 | 385.6 | 388.3 | 390.8 | 395.4 | 400.3 |
| Stack | 502.5 | 517.7 | 525.5 | 532.3 | 542.6 | 557.9 | 570.3 | 599.3 | 633.5 |
