Product Details

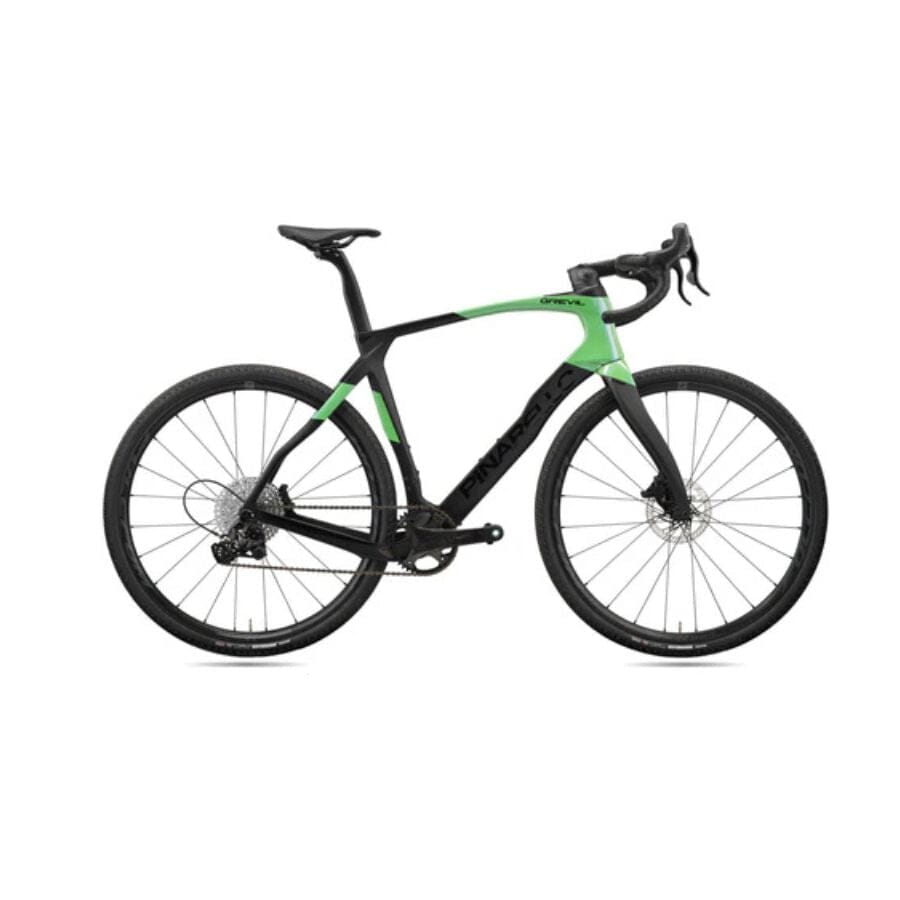

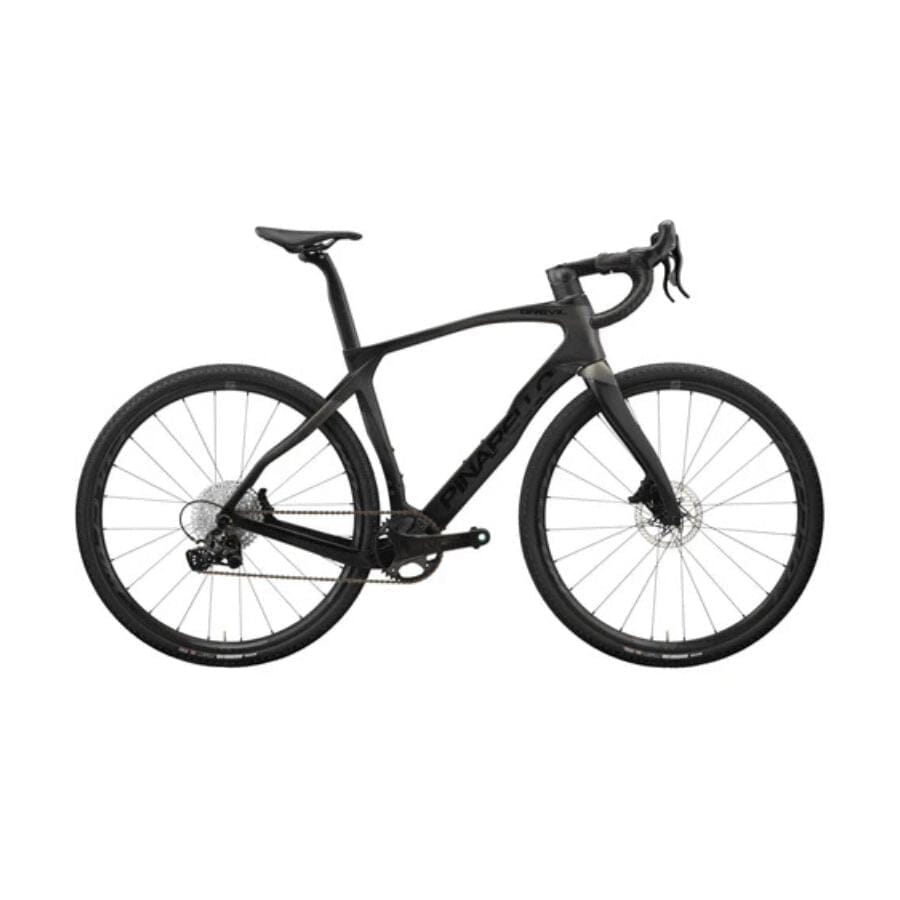

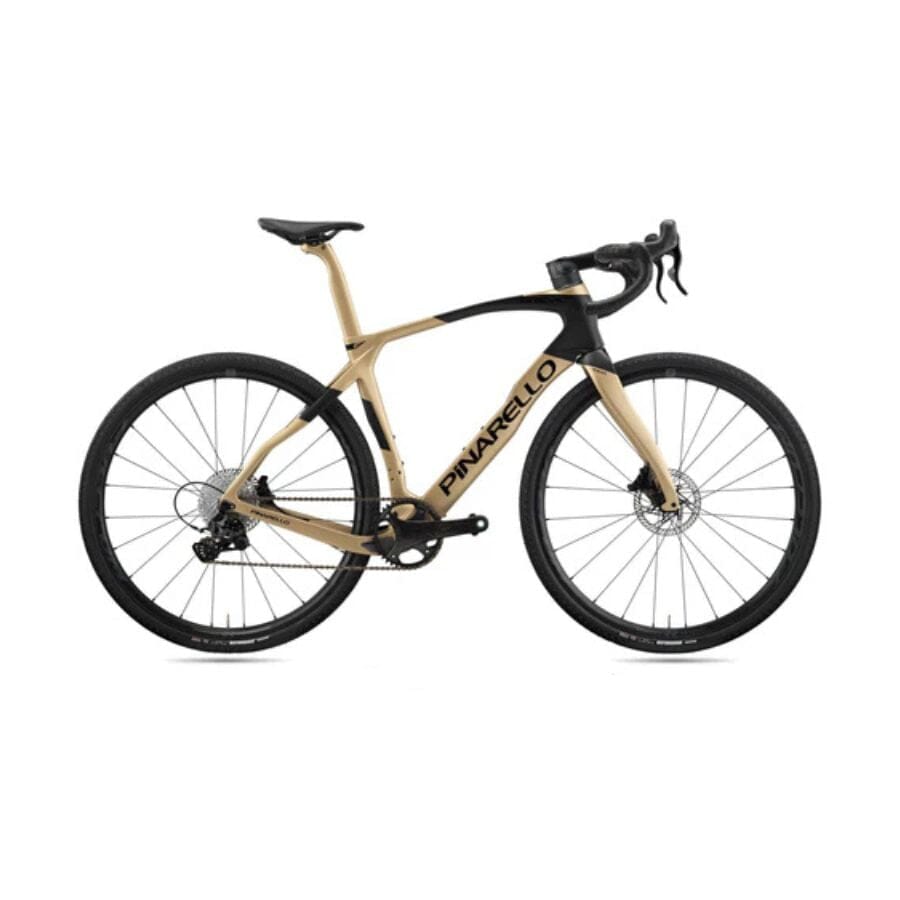

The Pinarello Grevil Frameset is a no-compromise gravel race machine that redefines what off-road performance looks like. Inspired by the legendary DOGMA, this bike is built with racing DNA, delivering full-gas speed, control, and aerodynamics over any terrain. Designed for riders who demand more from their gravel experience, the Grevil is your weapon of choice for high-speed competition and adventure.
Aerodynamically refined with features like the Fork Flap and FlatBack Profile, it reduces drag even when fully loaded with bottles or bags. Internal cable routing (TICR) keeps the cockpit clean and efficient for fast-paced, long-distance efforts. The gravel-specific geometry includes a higher stack and shorter reach for comfort, with chainstays between 422–425mm that support both 700c and 650b wheels for versatile terrain handling.
The Twin Arms rear triangle ensures even energy transfer and exceptional vibration damping, while the frame is constructed from Toray T700 carbon—balancing high strength and low weight for ultimate ride quality. Whether you're lining up for a gravel race or heading off-grid, the Grevil delivers uncompromising speed, control, and endurance.
Key Features:
-
Aerodynamic Design – Fork Flap, FlatBack profile, and internal cable routing for maximum aero gains
-
Gravel Geometry – Optimized comfort and handling across all frame sizes
-
T700 Carbon Frame – Lightweight and stiff, with excellent vibration absorption
Measurement | 410 | 445 | 475 | 500 | 520 | 550 |
---|---|---|---|---|---|---|
CC (Seat Tube Length) | 470 | 500 | 530 | 550 | 575 | 600 |
L (Top Tube Length) | 520 | 535 | 547 | 560 | 577 | 597 |
A (Seat Tube Angle) | 74.5° | 74° | 73.75° | 73.5° | 73° | 72.5° |
B (Head Tube Angle) | 70.25° | 70.5° | 70.75° | 71.75° | 72° | 72.25° |
P (Chainstay Length) | 422 | 422 | 422 | 425 | 425 | 425 |
T (Head Tube Length) | 120 | 135 | 155 | 165 | 180 | 200 |
D (Fork Rake) | 72 | 72 | 67 | 67 | 67 | 67 |
R (BB Drop) | 55 | 55 | 55 | 50 | 50 | 50 |
G (Fork Length) | 395 | 395 | 395 | 395 | 395 | 395 |
Reach | 360.1 | 367.8 | 374.4 | 382 | 389.7 | 398.5 |
Stack | 548.4 | 563.5 | 578.4 | 593.5 | 608.8 | 628.8 |
