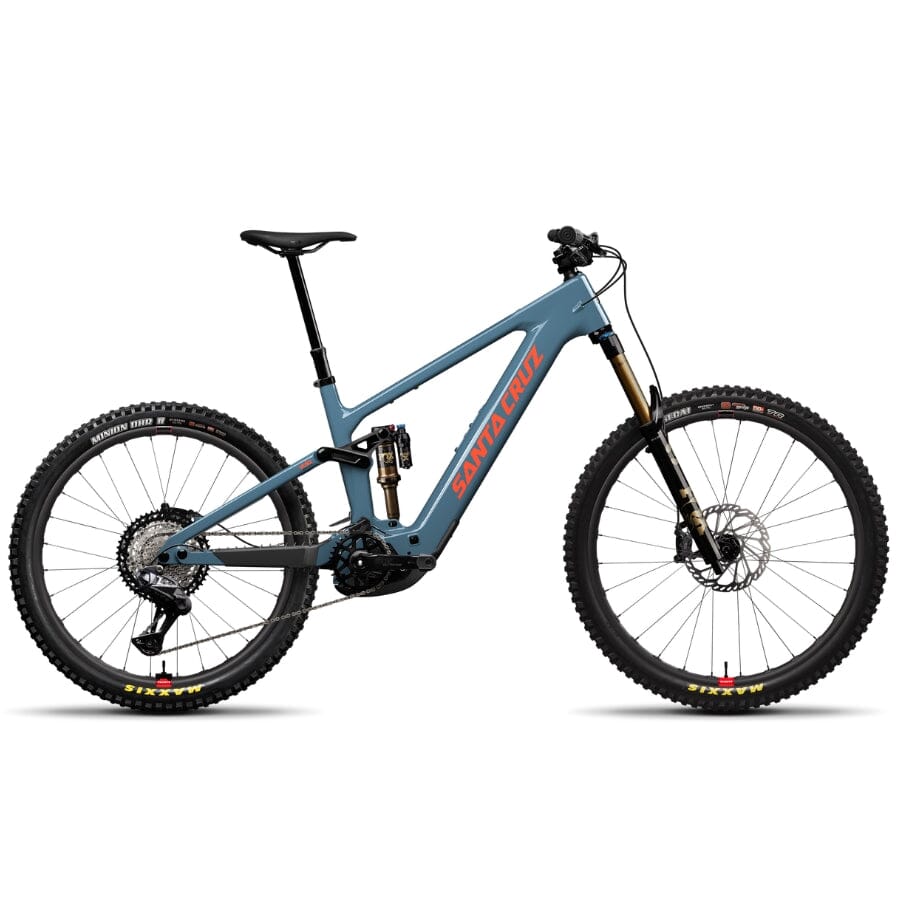

Santa Cruz Vala 1 CC MX XT Di2 Lite RSV
Product Details
The Santa Cruz Vala 1 CCC MX XT Di2 Lite RSV brings full-power electric performance to the heart of the trail with a premium all-new carbon chassis, refined suspension kinematics, and the latest Bosch drive system. Built around a mixed wheel setup, 150mm of rear travel, and a 160mm fork, the Vala is purpose-built for serious riders who want confidence on the descents and support on the climbs without sacrificing the traditional trail riding experience.
At its core is the Bosch Performance CX BDU38 motor delivering 85Nm of torque, paired with a 600Wh integrated PowerTube battery for big days and big terrain. Compatible with the Bosch PowerMore 250Wh range extender, it's ready for even longer missions when adventure calls. The updated VPP-based 4-bar suspension layout is tuned specifically for electric mountain biking, providing active pedaling support, strong braking performance, and plush travel through rough trails while maintaining the playful, responsive character Santa Cruz is known for.
The Vala CC rolls on a mixed wheel (MX) platform with 29" up front for stability and rollover capability, and 27.5" out back for quick, nimble handling, giving riders the best of both worlds. The FOX 36 Float Factory fork and FOX Float X Factory shock deliver premium suspension performance with precise damping control, while the Shimano Deore XT M8260 Di2 drivetrain provides crisp, reliable electronic shifting. Size-specific chainstays ensure consistent ride feel across the range, while internal frame storage and long dropper compatibility bring practical, ride-enhancing details into focus.
Perfect for riders seeking the ultimate combination of carbon performance and electric assistance, the Vala 1 CC features Reserve 30|HD carbon wheels with DT Swiss 350 hubs for lightweight strength and reliable performance across demanding terrain. This represents Santa Cruz's commitment to creating electric mountain bikes that enhance rather than compromise the trail riding experience, delivering confidence, capability, and Santa Cruz's legendary ride quality in an electric package.
Key Features
- Frame - Santa Cruz Carbon CC
- Motor - Bosch Performance CX BDU38 Drive Unit (85Nm)
- Battery - 600Wh PowerTube Battery
- Suspension - FOX 36 Float Factory 160mm Fork with FOX Float X Factory Shock
- Drivetrain - Shimano Deore XT Di2 M8260 Electronic 12-Speed
- Wheelset Reserve 30|HD Carbon Wheels with DT Swiss 350 Hubs
| Specification | Detail |
|---|---|
| Frame Material | Carbon C |
| Frame | Carbon C MX 150mm Travel 4-Bar |
| Travel | 150mm |
| Weight | 46.00 lbs / 20.87 kg |
| Wheel Size | MX |
| Fork | FOX 36 Float Factory, Grip X2, 160mm |
| Shock | FOX Float X Factory, 205x60 |
| Cassette | Shimano XT M8200, 10-51t |
| Chain | Shimano XT M8100, 12spd |
| Chainguide | OneUp Chainguide |
| Crankset | e13 Helix Race Alloy e*spec All Sizes: 160mm |
| Rear Derailleur | Shimano Deore XT Di2 M8260, SGS, 12spd |
| Right Shifter | Shimano Deore XT M8250 Shift Switch |
| Brakes | Shimano XT M8220 |
| Front Rotor | Shimano RT750, 6-Bolt, 200mm |
| Rear Rotor | Shimano RT750, 6-Bolt, 200mm |
| Grips | Santa Cruz Bicycles House Grips |
| Handlebars | OneUp Carbon Bar, 35mm S: 760mm, 20mm Rise M-XXL: 800mm, 35mm Rise |
| Headset | Cane Creek 50 IS Integrated Headset |
| Saddle | WTB Silverado Medium Fusion, CroMo SL |
| Seatpost | OneUp Dropper Post, 31.6 S: 120mm, M: 180mm, L: 210mm, XL-XXL: 240mm |
| Stem | Santa Cruz CNC All Sizes: 40mm |
| Front Rim | Reserve 30|HD Carbon |
| Front Hub | DT Swiss 350, 15x110, 6-Bolt, 28h |
| Front Tire | Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+ |
| Rear Rim | Reserve 30|HD Carbon |
| Rear Hub | DT Swiss 350 DEG DF, 12x148, MicroSpline, 6-Bolt, 28h |
| Rear Tire | Maxxis Minion DHRII 27.5x2.5, 3C MaxxTerra, EXO+ |
| Valves | Reserve Fillmore Valves |
| Battery | Bosch PowerTube Battery 600Wh |
| Drive Unit | Bosch Performance CX BDU38 |
| Bottom Bracket Shell | EMTB |
| Rear Brake Mount | 200mm PM |
| Shock Length | 205mm |
| Fork Axle to Crown | 571mm |
| Fork Offset | 44mm |
| Front Derailleur Mount | No Compatibility |
| Headset Type | Integrated (IS41/52) |
| Max Chainring Size | 36t |
| Max Rotor Size | 220mm |
| Max Tire Clearance | 2.5" (may vary according to tire and rim model) |
| Rear Spacing | 148mm |
| Rear Travel | 151mm |
| Recommended Sag | 30% |
| Seat Clamp Diameter | 36.4mm |
| Seat Post Diameter | 31.6mm |
| Shock Stroke | 60mm |
| Suspension System | Four-bar |
| UDH Compatible | Yes |
| Water Bottle Mounts | 1 |
| Size | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Reach (Hi/Lo) (mm) | 435/432 | 460/456 | 480/477 | 500/497 | 525/522 |
| Stack (Hi/Lo) (mm) | 623/625 | 632/635 | 641/643 | 655/657 | 668/670 |
| Head Tube Angle (Hi/Lo) | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° |
| Head Tube Length (mm) | 110 | 120 | 130 | 145 | 160 |
| Rear Center (mm) | 439 | 440 | 443 | 446 | 450 |
| Front Center (mm) | 771 | 800 | 825 | 851 | 883 |
| BB Height (Hi/Lo) (mm) | 344/340 | 344/340 | 344/340 | 344/340 | 344/340 |
| BB Drop Front (Hi/Lo) (mm) | 28/32 | 28/32 | 28/32 | 28/32 | 28/32 |
| BB Drop Rear (Hi/Lo) (mm) | 11/15 | 11/15 | 11/15 | 11/15 | 11/15 |
| Wheelbase (mm) | 1210 | 1240 | 1268 | 1297 | 1333 |
| Top Tube Length (mm) | 573 | 601 | 622 | 645 | 673 |
| Seat Tube Length (mm) | 380 | 400 | 420 | 460 | 500 |
| Seat Tube Angle (Hi/Lo) | 77.5°/77.2° | 77.5°/77.2° | 77.5°/77.2° | 77.5°/77.2° | 77.5°/77.2° |
| Standover Height (Hi/Lo) (mm) | 741/741 | 735/735 | 734/734 | 734/734 | 728/728 |
