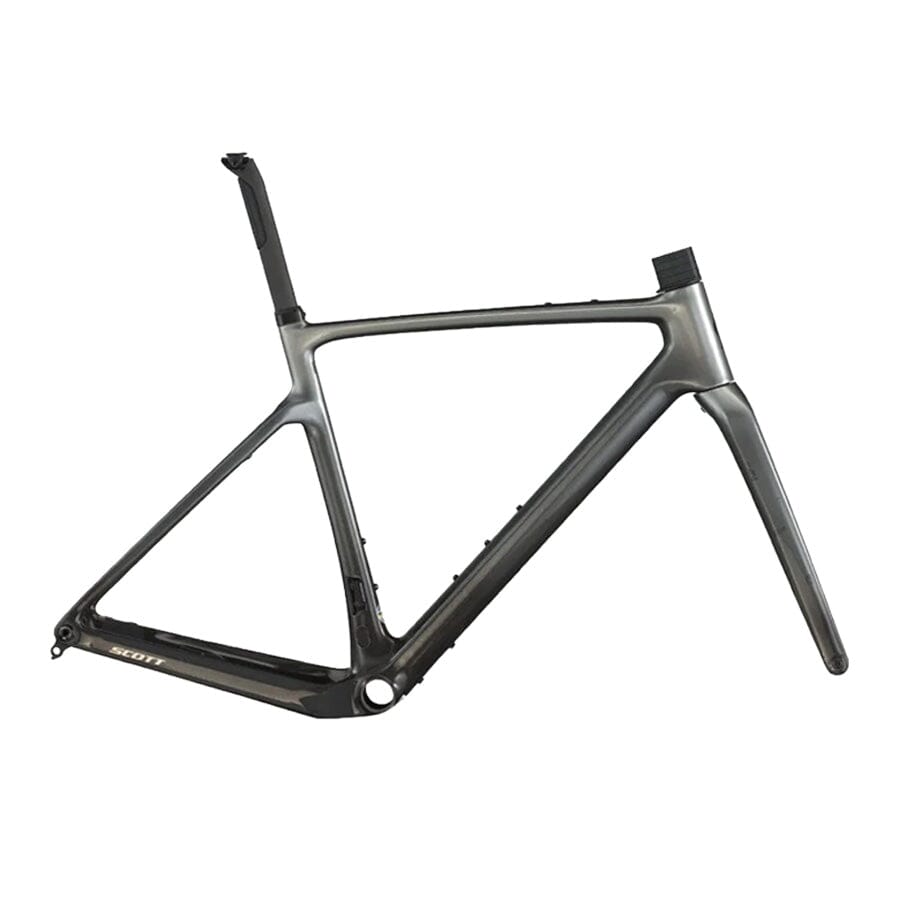

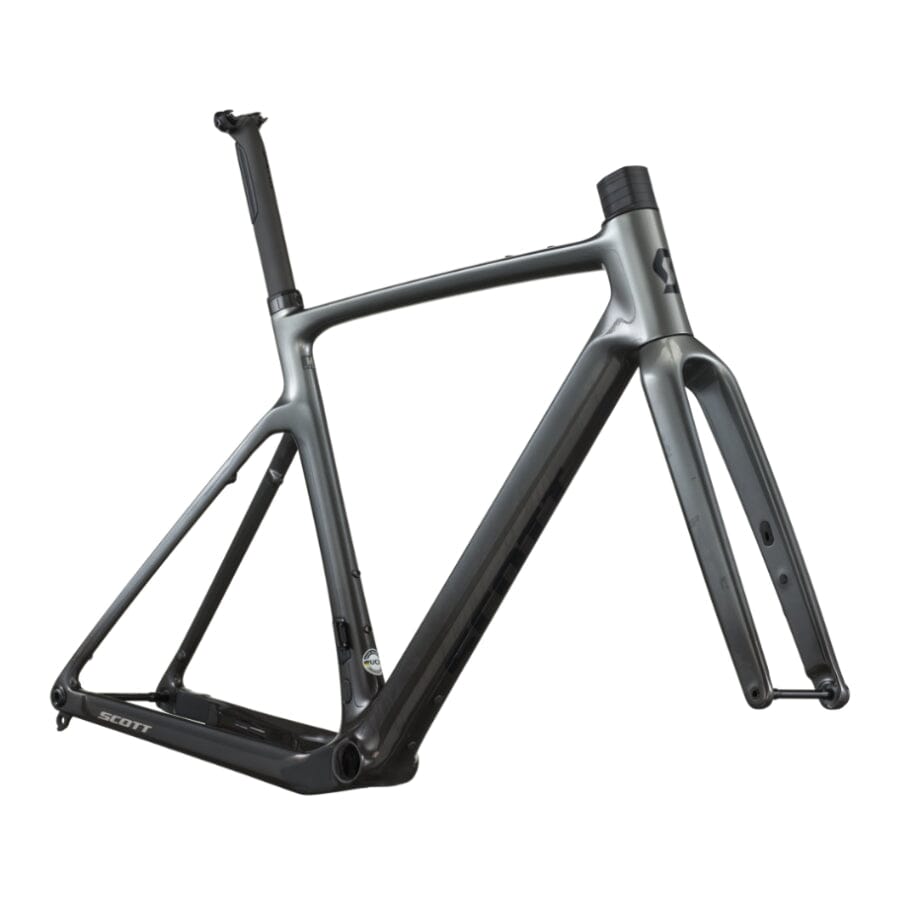

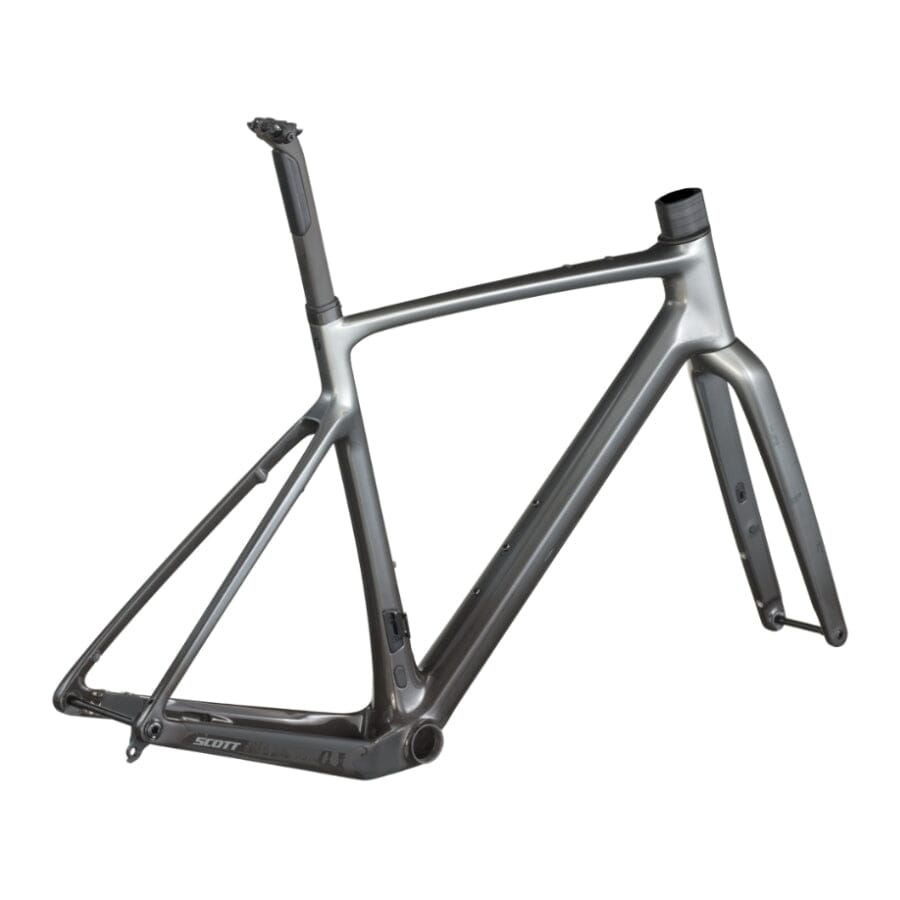

SCOTT Addict Gravel Team HMF Frameset
Product Details
The SCOTT Addict Gravel Team HMF Frame Set is engineered for adventure riders who demand versatility, control, and comfort on every surface. Designed to tackle gravel, rough trails, and long-distance rides, this frame combines progressive geometry with smart features to make every ride smooth, efficient, and enjoyable.
Comfort and compliance are prioritized with increased tire clearance up to 45mm, lowered seat stays, and optimized carbon layering that balances pedaling efficiency with vibration damping. This ensures controlled handling and a smooth ride, even when the terrain gets rough.
The frame features fully integrated cable routing for both mechanical and electronic drivetrains, as well as hydraulic brake hoses. Internal routing keeps the cockpit clean, improves airflow, and provides extra space for handlebar bags without cable interference. A variety of mounts allow for versatile gear setups, including top-tube bags, multiple bottle cage positions, and a down tube mount for additional accessories. Hidden fender mounts and 40mm clearance with fenders make the Addict Gravel equally suited for commuting and adventure riding.
SCOTT’s patented airfoil tube shapes optimize aerodynamics across the main tubes without compromising comfort or compliance, while the frame is compatible with both 1x and 2x drivetrains, offering flexibility for any build.
Key Features
- Comfort-Oriented Carbon Layering – Balanced pedaling efficiency and vibration damping for rough terrain
- Integrated Cable Routing – Clean, internal routing for mechanical or electronic drivetrains and hydraulic hoses
- Versatile Mounting Options – Multiple mounts for bags, bottles, and accessories, plus hidden fender mounts for all-weather capability
| Specification | Detail |
|---|---|
| Frame | HMF Carbon Disc Mainframe with UDH hanger, compatible for eletr. and mech. Shifting |
| Fork | HMF Carbon fork for Disc Brake |
| Accessories | ACROS AIF-1135 Headset, Expander for Carbon Steertube and Topcap, Syncros SP-R101-CF seatpost, Syncros SL ROAD plug-in thru axle |
| Approx weight in KG | Frame 990g, Fork 435g |
| Approx weight in LBS | Frame 2.18lbs, Fork 0.95lbs |
| Max. System Weight | 120kg (The overall weight includes the bike, the rider, the equipment, and possible additional luggage) |
| Measurement | XS/49 | S/52 | M/54 | L/56 | XL/58 |
|---|---|---|---|---|---|
| Head Tube Angle | 70.0° | 70.0° | 71.0° | 71.0° | 71.0° |
| Head Tube Length (mm) | 95.0 | 122.0 | 140.0 | 166.0 | 187.0 |
| Top Tube Horizontal (mm) | 518.0 | 534.5 | 554.5 | 578.5 | 592.5 |
| Standover Height (mm) | 759.0 | 786.0 | 807.0 | 828.0 | 847.0 |
| BB Offset (mm) | -71.0 | -71.0 | -71.0 | -71.0 | -71.0 |
| BB Height (mm) | 283.0 | 283.0 | 283.0 | 283.0 | 283.0 |
| Wheel Base (mm) | 1,009.4 | 1,022.9 | 1,029.2 | 1,048.7 | 1,063.5 |
| BB Center To Toptube Center (mm) | 447.0 | 477.0 | 498.0 | 516.0 | 536.0 |
| BB Center To Top Of Seattube (mm) | 477.0 | 507.0 | 528.0 | 546.0 | 566.0 |
| Seat Angle | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° |
| Chainstay (mm) | 425.0 | 425.0 | 425.0 | 425.0 | 425.0 |
| Reach (mm) | 374.1 | 378.4 | 387.1 | 398.2 | 406.1 |
| Stack (mm) | 519.0 | 544.4 | 565.3 | 589.9 | 609.7 |
| Stem Length (mm) | 83.0 | 93.0 | 103.0 | 103.0 | 113.0 |
