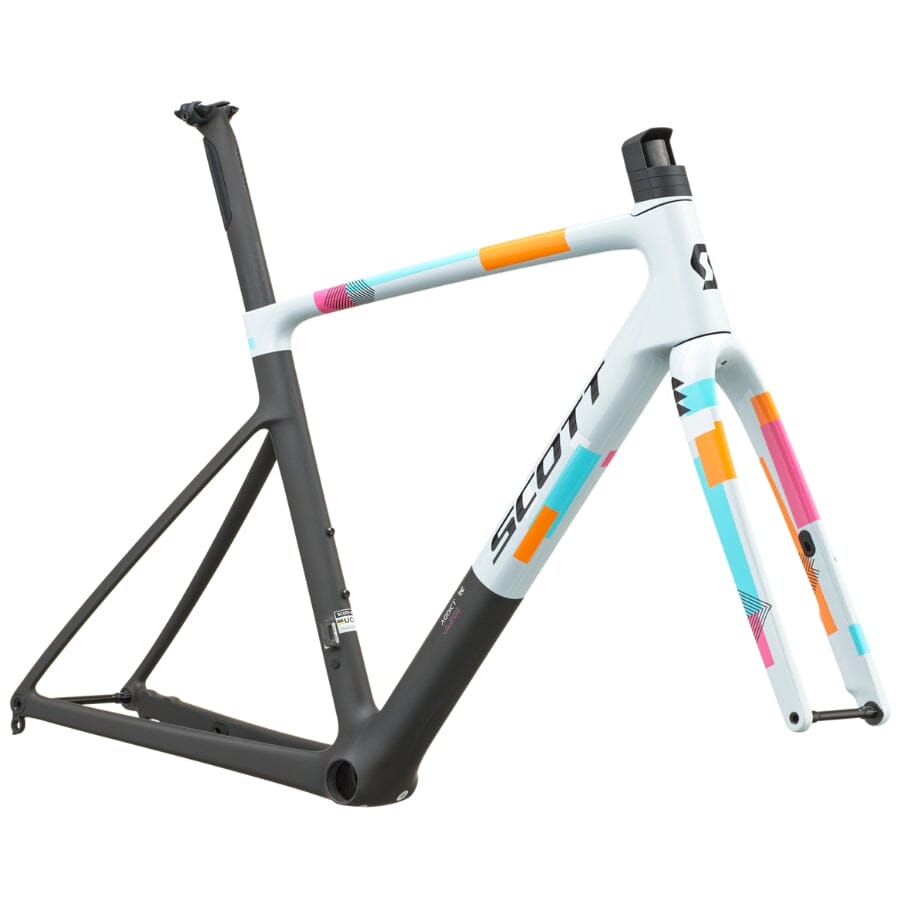

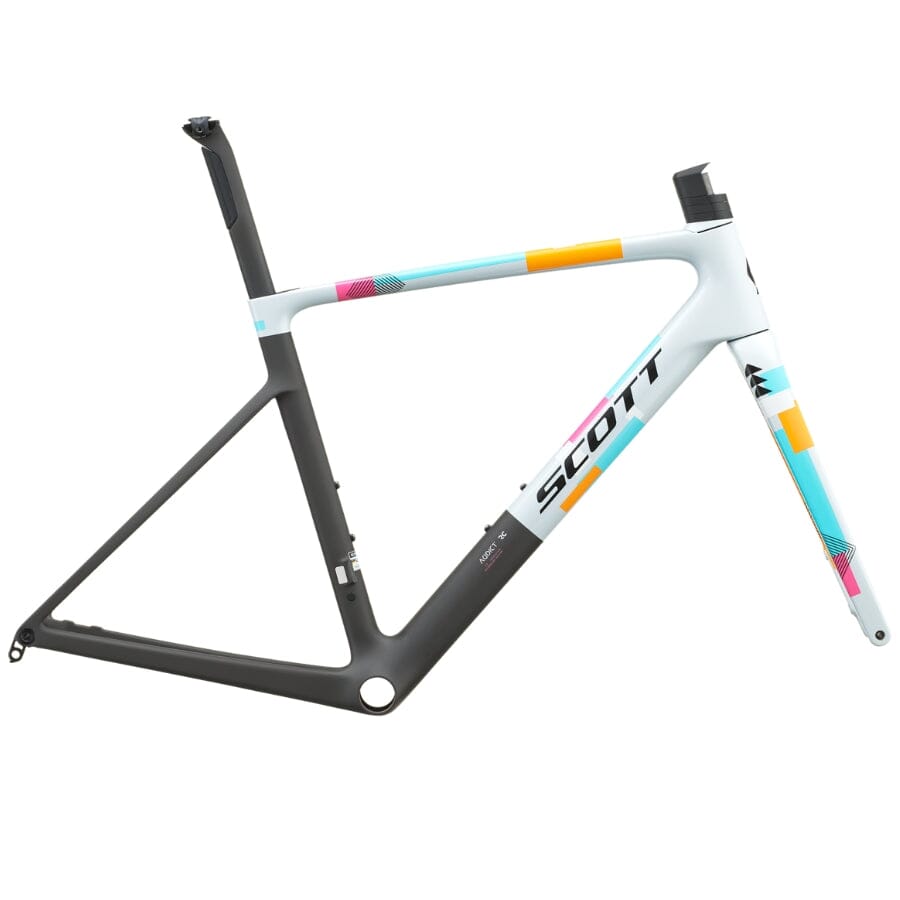

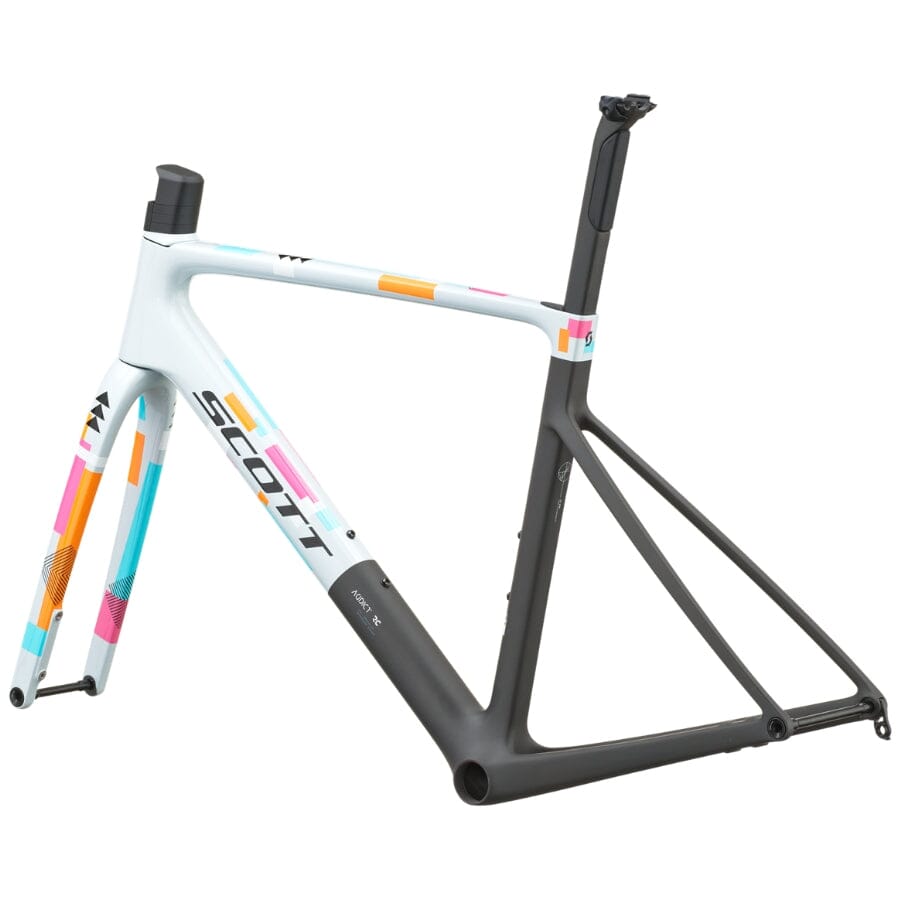

SCOTT Addict RC Team Replica Frameset
Product Details
The SCOTT Addict RC Team Replica Frameset is SCOTT's lightest production race bike ever, engineered to defy gravity and elevate your performance on every climb and sprint.
Built for the elite athletes of the NSN Cycling Team, the Spanish-Swiss WorldTour outfit co-founded by Spanish football legend Andrés Iniesta, this frameset represents the pinnacle of lightweight racing technology. Racing around 250 days annually across the Tour de France, Giro d'Italia, Vuelta a España, and over 20 countries worldwide, NSN's sprinters, climbers, and attackers demand equipment that converts every watt into forward motion, and the Addict RC delivers exactly that.
SCOTT's commitment to lightweight expertise is inseparable from deep carbon technology knowledge and manufacturing innovation. For the Addict RC, SCOTT fundamentally reimagined its approach to carbon road bike construction, drawing inspiration from mountain bike manufacturing techniques. The result is a remarkable 300-gram reduction in frame kit weight compared to its predecessor, achieved without any compromise on race performance or stiffness.
The innovation begins with precision engineering. SCOTT's proprietary PP Mandrel molding process enables high-precision shaping of inner surfaces and transition zones, paired with strength-optimized tube profiles that eliminate additional reinforcements and unnecessary filler material. This delivers best-in-class tube profiles and surfaces that significantly reduce total frame weight while maintaining structural integrity.
The geometry has undergone comprehensive redesign to align with modern specifications, accommodating wider tires while enhancing handling consistency across all frame sizes. The new seat tube clamping system, paired with advanced molding technology, allows thinner seat tube walls and reduced material usage, enhancing flexibility and comfort during longer efforts. Generous 34mm tire clearance ensures comfort on challenging terrain without sacrificing performance.
Key Features
- Frame - SCOTT Addict RC HMX, race geometry
- Weight - 3.02 lbs
- Tire Clearance - 34mm
| Specification | Detail |
|---|---|
| Frame | Addict RC HMX, race geometry, replaceable derailleur hanger, internal cable routing |
| Fork | Addict RC HMX Flatmount Disc, 27.2mm eccentric carbon steerer |
| Seatpost | Syncros SP-R101-CF |
| Headset | Acros AIF-1317 |
| Approx. Weight (KG) | 1.37 |
| Approx. Weight (LBS) | 3.02 |
| Measurement | XXS/47 | XS/49 | S/52 | M/54 | L/56 | XL/58 | XXL/61 |
|---|---|---|---|---|---|---|---|
| Head Tube Angle | 71.3° | 71.8° | 72.3° | 72.8° | 73.4° | 73.6° | 73.8° |
| Head Tube Length (mm) | 90 | 100 | 113 | 130 | 150 | 170 | 190 |
| Top Tube Horizontal (mm) | 519 | 528 | 542 | 555 | 572 | 586 | 602 |
| Standover Height (mm) | 725 | 740 | 758 | 778 | 799 | 820 | 840 |
| BB Offset (mm) | -74 | -74 | -73 | -72 | -72 | -72 | -72 |
| BB Height (mm) | 270.5 | 270.5 | 271.5 | 272.5 | 272.5 | 272.5 | 272.5 |
| Wheelbase (mm) | 977 | 983.2 | 988.8 | 990.8 | 999 | 1,006.4 | 1,015.4 |
| BB Center to Toptube Center (mm) | 412.5 | 432.5 | 452.1 | 472 | 492.2 | 512.3 | 532.4 |
| BB Center to Top of Seat Tube (mm) | 422.5 | 442.5 | 462.1 | 482 | 502.2 | 522.3 | 542.4 |
| Seat Angle | 74.5° | 74.5° | 74.0° | 73.6° | 73.3° | 72.8° | 72.5° |
| Chainstay (mm) | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| Reach (mm) | 379.4 | 386.3 | 391.6 | 395.2 | 402.6 | 406.1 | 411.3 |
| Stack (mm) | 501.3 | 512.5 | 525.5 | 543.3 | 564.5 | 584.3 | 604.2 |
| Cockpit Min. Stack (mm) | 562 | 573 | 586 | 604 | 623 | 643 | 662 |
| Fork Offset (mm) | 47 | 47 | 47 | 44 | 44 | 44 | 44 |
