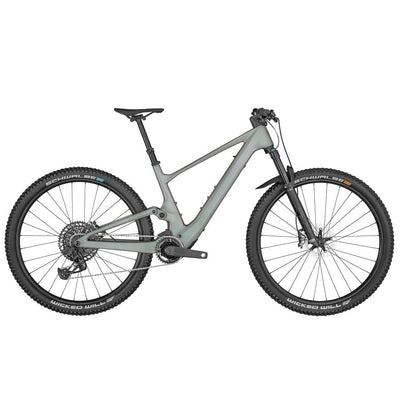

A gray SCOTT Lumen eRide 900 Transmission mountain bike with a flat handlebar
SKU: 210000144345
In Stock
On Sale

SCOTT Lumen eRide 900 TR

Regular price $8,999.99
Regular price $9,999.99 Sale price $8,999.99
Size Guide (Opens in a new tab)
contact us
Your satisfaction is our top priority.

Product Details


The SCOTT Lumen eRide 900 Transmission is a groundbreaking E-MTB that defies expectations with its remarkably low weight, starting at just 15.5kg. Combining the excellence of the Spark 900 Cross-Country/Trail platform with 130mm of travel, this bike delivers the ultimate off-road experience. With the integration of a powerful and nearly silent TQ-HPR50 electric assistance system, it opens up a world of possibilities while retaining its legendary lightweight DNA, allowing you to ride with the agility and speed of a pro.

Equipped with the latest SRAM transmission groupset, the Lumen eRide 900 TR ensures smooth and precise shifting, providing seamless power delivery in any terrain. Its advanced technology enables riders to conquer steep climbs and challenging trails with ease, making every ride a thrilling adventure. Experience the freedom and excitement of off-road exploration like never before, as this E-MTB seamlessly blends the joy of traditional mountain biking with cutting-edge electric assistance.

With the SCOTT Lumen eRide 900 Transmission, you'll not only enjoy the thrill of high-speed trail riding but also discover newfound possibilities in conquering rugged landscapes with less effort. The innovative combination of lightweight design, exceptional travel, and reliable SRAM transmission creates a powerful and dynamic E-MTB that's ready to take on any trail with confidence and grace.

*Please note that bike specifications are subject to change without prior notice
Frame Carbon HMX
Integrated Suspension Technology
Flex Pivot / Adjustable head angle
Syncros Cable Integration System
TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline
Travel Front: 130mm / Rear: 130mm
Fork FOX 34 Float Performance Elite Air FIT4
3-Modes with low Speed adj. / Kabolt 15x110mm axle
44mm offset / tapered steerer / Reb. Adj. / Lockout
130mm travel
Rear Shock FOX NUDE 5T EVOL Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
Custom large Air volume / DPS / Reb. Adj.
Travel 130-90-Lockout / T165X45mm
Remote System SCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 Suspension modes
Drive Unit TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph
Battery TQ Internal 360Wh
Display TQ HPR
Bluetooth / ANT+ / Dedicated Smartphone app
Charger TQ 100-240V-4A
Rear Derailleur SRAM GX Eagle AXS Transmission 12 Speed
Wireless Electronic Shift System
Shifters SRAM GX Eagle AXS Rocker Controller
Crankset FSA Carbon crankset / 175mm / 34T
Chainguide e*thirteen / e*spec Slider
Chainring Scott custom spider / SRAM Eagle Transmission 34T chainring
Chain SRAM CN GX Eagle Transmission
Cassette SRAM GX Eagle XS 1275 Transmission 10-52
Brakes Shimano XT / BR-M8120 4 Piston
Rotor Front: RT-MT800 CL 180mm / Rear: RT-EM810 CL 180mm
Handlebar Syncros Fraser iC SL DC Carbon
0° rise / back sweep 8° / mini Rise / 760mm
Syncros Performance XC lock-on grips
Seatpost FOX Transfer Dropper Post
31.6mm / S size 125mm / M size 140mm
L size 150mm / XL size 175mm

Syncros Tofino 1.5 Regular
Titanium rails

Headset Syncros - Acros Angle adjust & Cable Routing HS System
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB
Wheelset Syncros Silverton 1.5-30 CL
F: 15x110mm
R: 12x148mm
30mm Tubeless ready rim 28H / XD Driver
Syncros Axle w/Removable Lever
with 6mm Allen
T30 and T25 Tools
Front Tire Schwalbe Wicked Will 29x2.4" EVO
Super Race / TLE / 67EPI / Addix Speed Soft
Rear Tire Schwalbe Wicked Will 29x2.4" EVO
Super Race / TLE / 67EPI / Addix Speed Grip
Extras SRAM AXS Powerpack
Syncros Fork Fender
Accessories Syncros Eco Sealant
Transport Axle
Max. System Weight 128kg The overall weight includes the bike, the rider, the equipment, and possible additional luggage.

2023 Scott Lumen 900l

Head Tube Angle 65.5° 65.5° 65.5° 65.5°
Head Tube Length 110mm 110mm 120mm 135mm
Top Tube Horizontal 562mm 589mm 620mm 645mm
Standover Height 765mm 767mm 780mm 800mm
BB Offset -38.5mm -38.5mm -38.5mm -38.5mm
BB Height 338.5mm 338.5mm 338.5mm 338.5mm
Wheelbase 1,176mm 1,206mm 1,240mm 1,270mm
BB Center to Top of Seattube 415mm 440mm 480mm 520mm
Seat Angle 76.8° 77° 77.2° 77.5°
Chainstay 450mm 450mm 450mm 450mm
Reach 416mm 446mm 476mm 501mm
Stack 615mm 615mm 625mm 638mm
Stem Length 50mm 60mm 70mm 70mm
Trail 126mm 126mm 126mm 126mm
Fork Length 540mm 540mm 540mm 540mm
Maximum Seatpost Insertion 150mm 175mm 215mm 255mm
Crank Length 170mm 170mm 175mm 175mm
