SCOTT Overland 30
Product Details

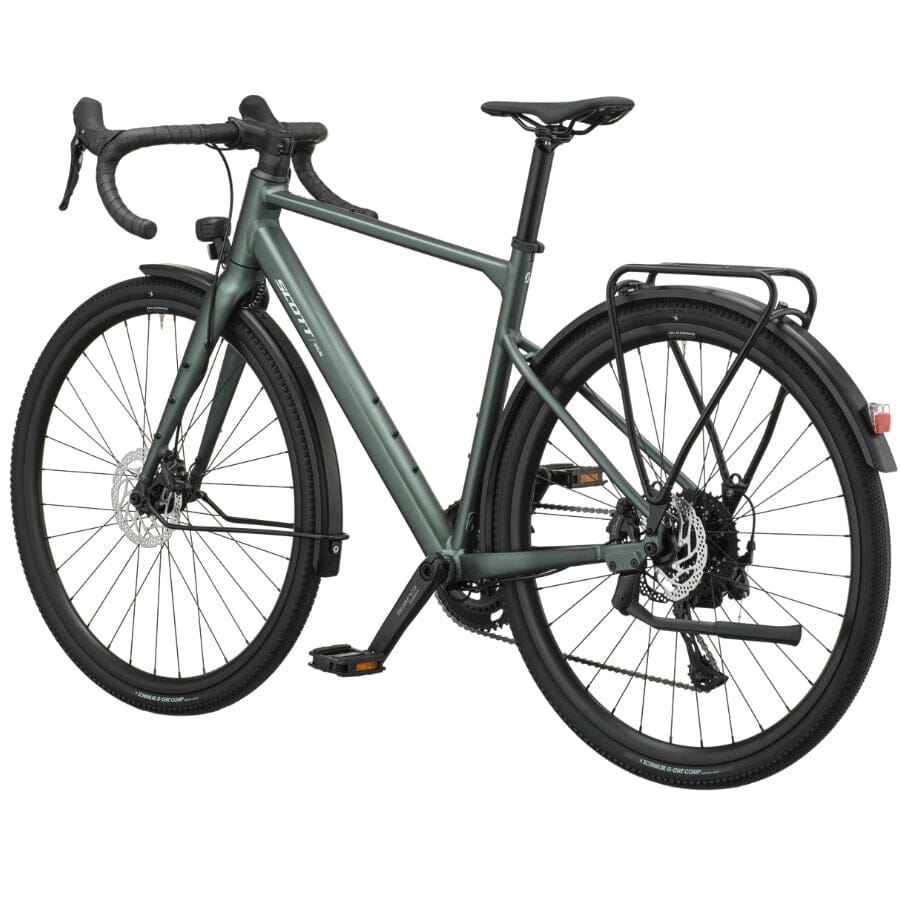

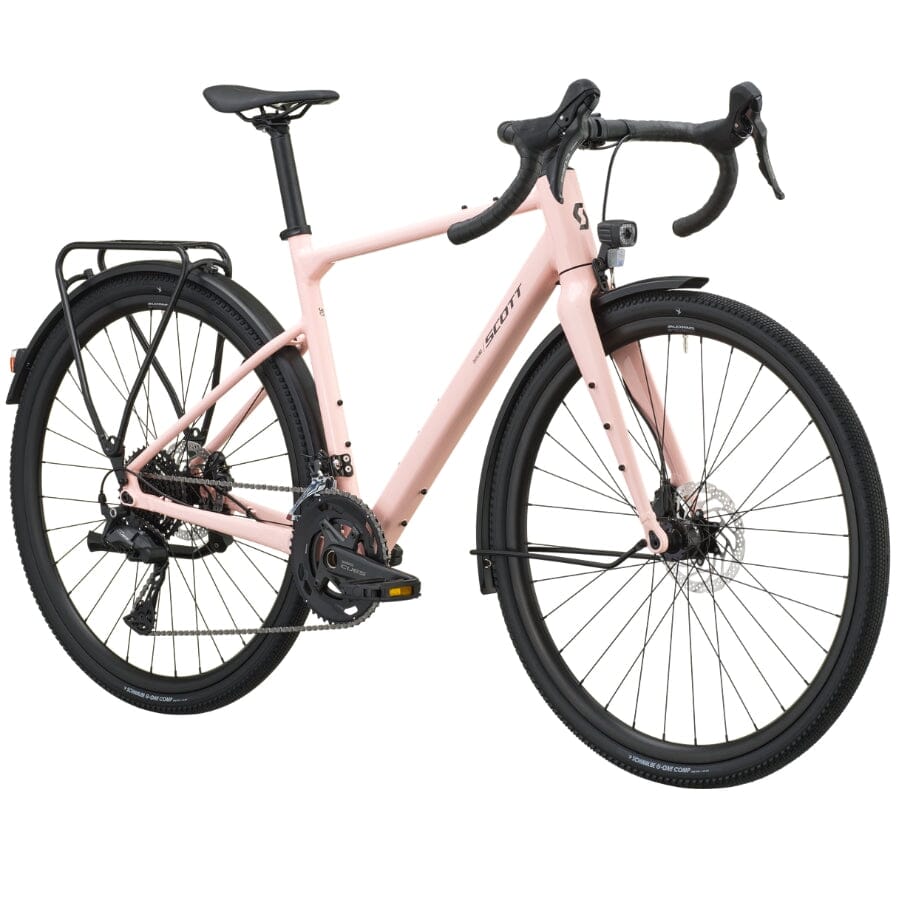

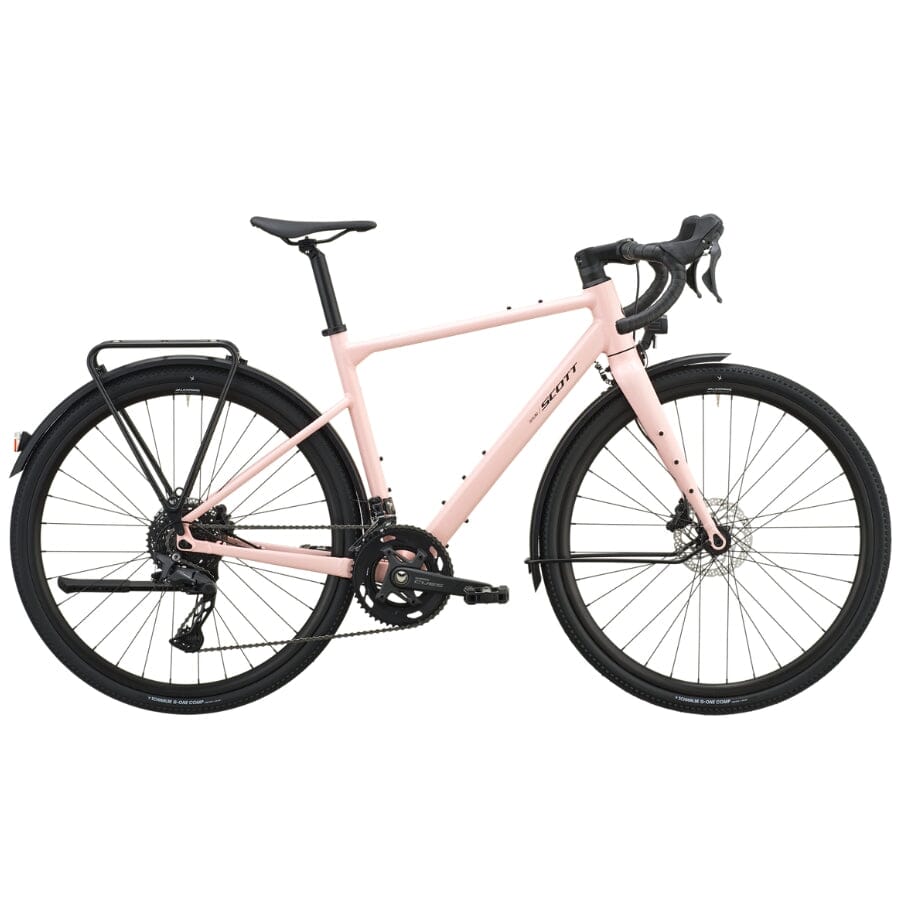

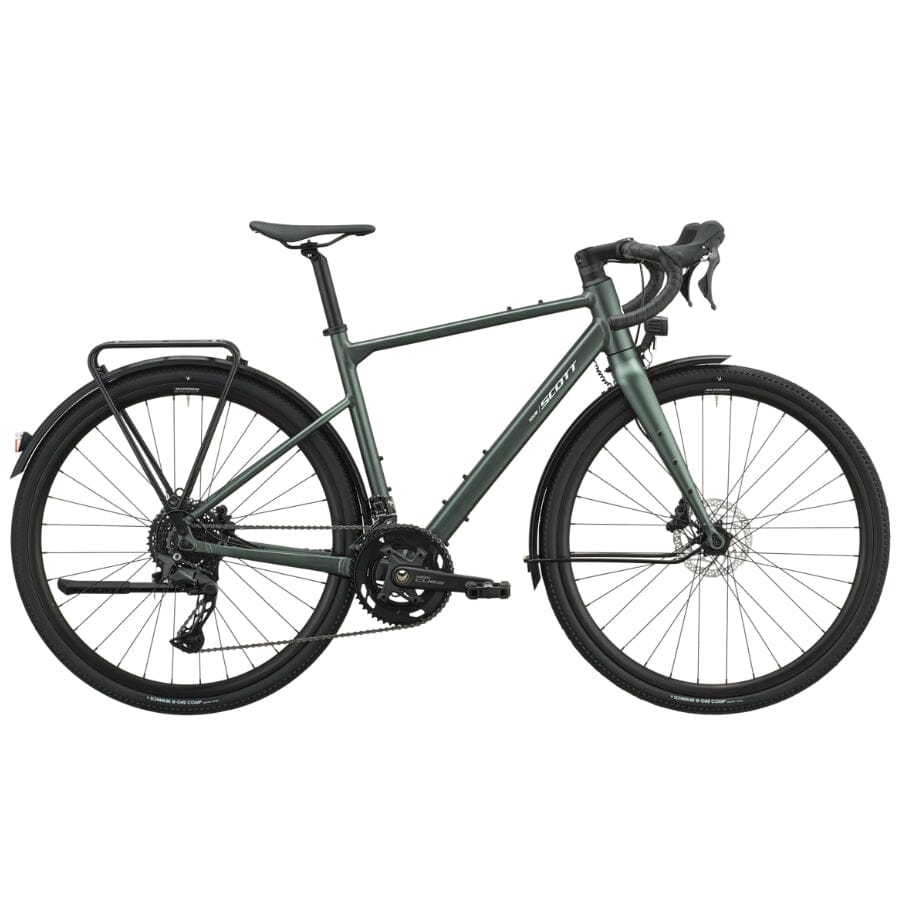

The SCOTT Overland 30 is a gravel bike purpose-built for adventure without compromise. Whether you're commuting daily through city streets, exploring local gravel roads, or embarking on multi-day tours, the Overland 30 delivers the capability, comfort, and carrying capacity to make every ride rewarding. It's the bike that says yes to whatever adventure calls.
Built around a lightweight alloy frame, the Overland 30 strikes the perfect balance between agility and endurance performance. The geometry is dialed for stable, confidence-inspiring handling across varied terrain, while the frame's versatility accommodates everything from quick afternoon rides to extended bikepacking missions. The frame ships with 40mm tires that deliver a smooth yet responsive ride, absorbing bumps without feeling sluggish. Remove the fenders and you unlock the frame's full potential—it can handle tires up to 50mm, giving you extra volume and grip for rougher routes and technical terrain.
Where the Overland 30 truly excels is in its thoughtful carrying capacity. Front-fork mounts support up to 3kg per side, while the rear rack handles an additional 20kg—plenty for overnight camping or longer journeys. Want more space? An optional front rack adds 10kg of capacity, and top-tube mounts provide quick-access storage for smaller essentials. This is a bike that's ready to carry your world. Practicality extends to visibility and reliability. Front and rear lights powered by a dynamo hub charge as you pedal, so you can see and be seen without worrying about batteries. The Shimano Cues 2x10 speed drivetrain offers precise, predictable shifting and proven durability—exactly what you need for long-distance reliability across varied terrain. The Overland 30 is engineered to adapt to your needs, making it the versatile choice for riders who want one bike to handle it all.
Key Features
- Frame - Alloy frame

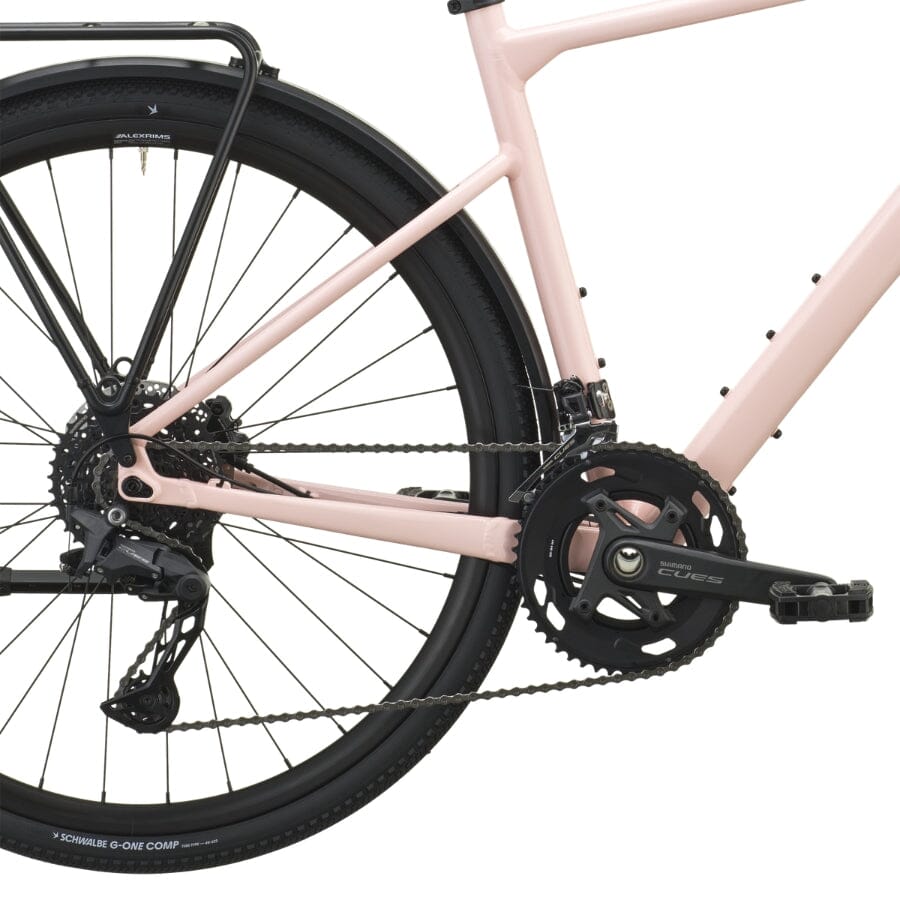

- Drivetrain - Shimano Cues 2x10 speed
- Wheelset - Alexrims race X25
| Specification | Detail |
|---|---|
| Frame | 28", ultra lite AL-6061 |
| Fork | Allroad alloy, 12x100 mm axle, 1 1/8" alloy steerer |
| Rear Derailleur | Shimano Cues RD-U6020 20-Speed |
| Front Derailleur | Shimano Cues FD-U6030 |
| Shifters | Shimano Cues BR-U6030, Shimano ST-U6030 20 Speed |

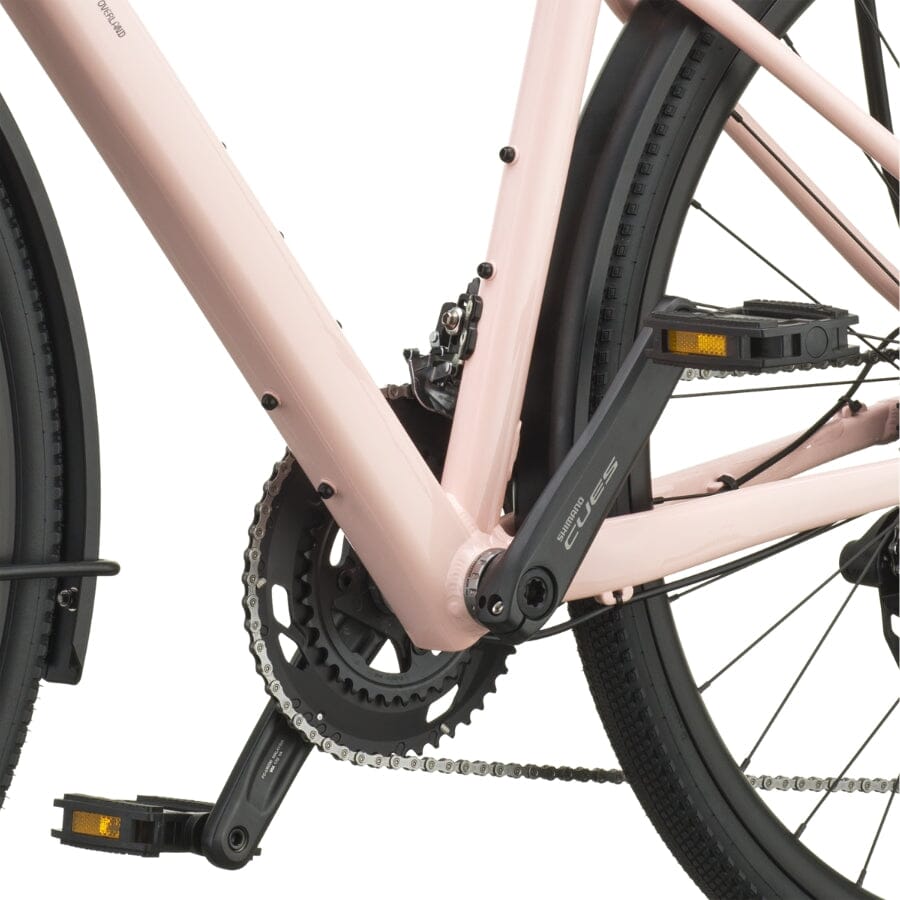

| Crankset | Shimano Cues FC-U6030, 50-34T |
| BB-Set | Shimano BB-RS501 BSA |
| Chain | Shimano CN-LG500 |
| Cassette | Shimano Cues CS-LG300 10-Speed 11-39T |
| Brakes | Shimano Cues BR-UR6030 Hyd. Disc |
| Front Disc Rotor | Shimano RT-CL300, 160mm |
| Rear Disc Rotor | Shimano RT-CL300, 160mm |
| Grips | Syncros RC Bartape |

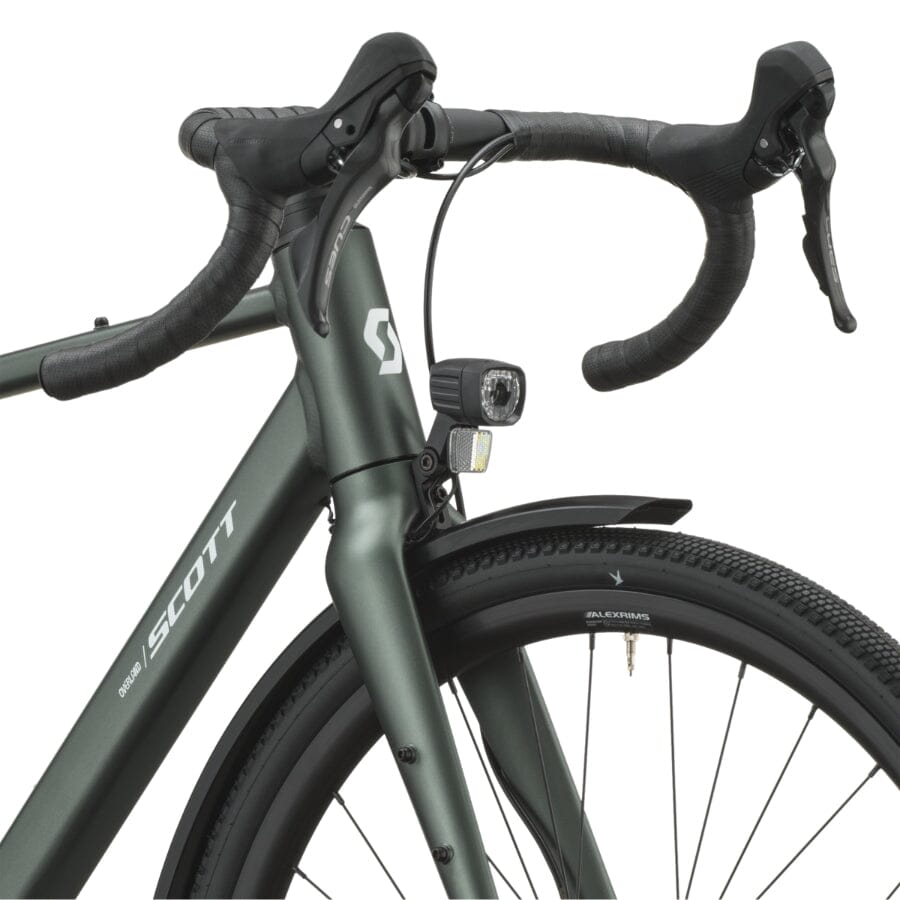

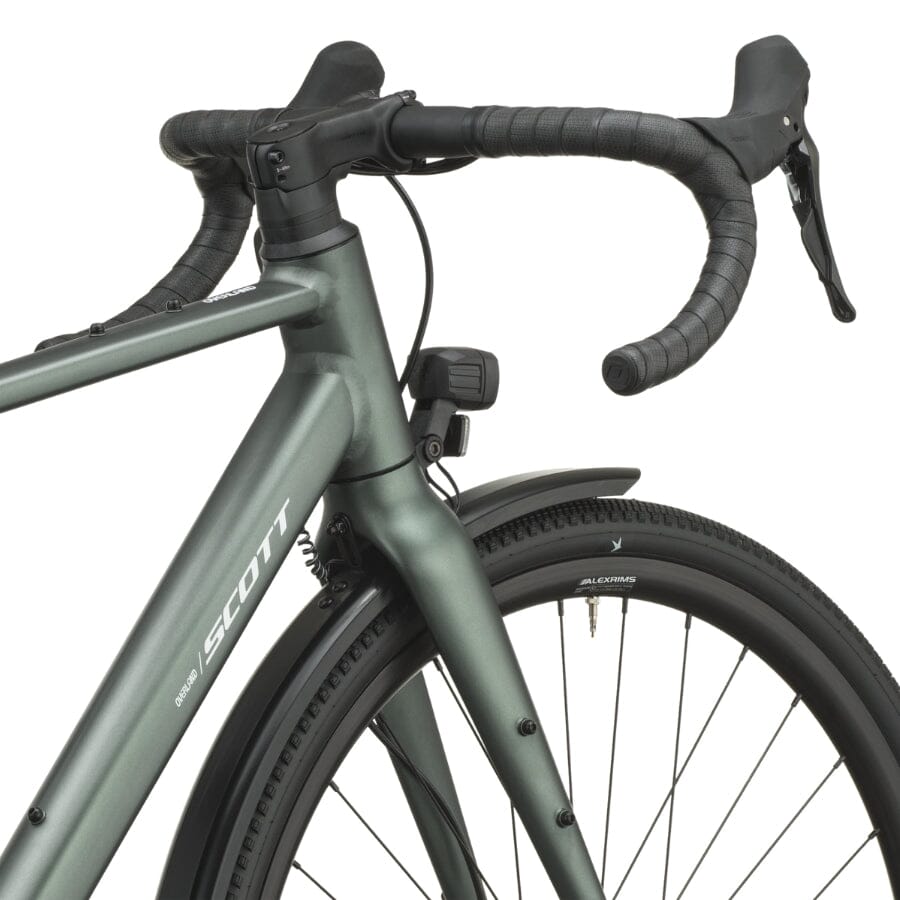

| Handlebar | Syncros Creston 2.0 X, Alloy 31.8mm |
| H'stem | Syncros, 1 1/8", four Bolt 31.8mm, GoPro Mount |

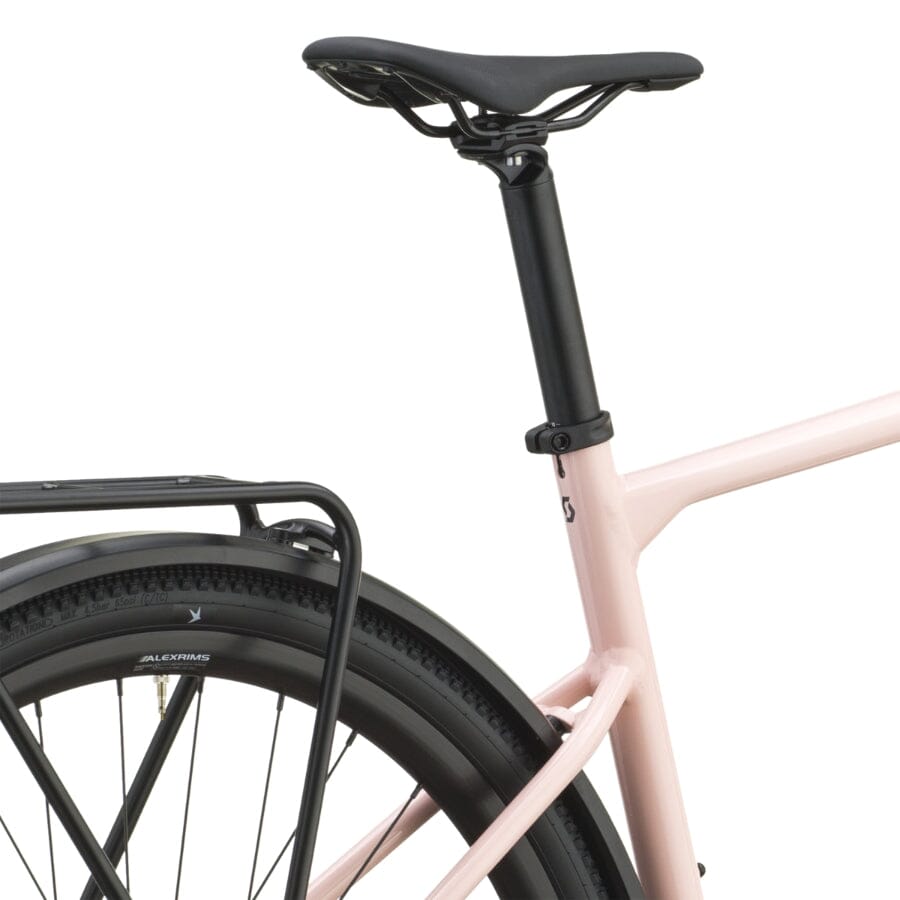

| Seatpost | Syncros alloy, 10mm offset, 31.6x400mm |
| Seat | Syncros Tofino R 2.5 |
| Headset | Acros AZA-812 |
| Front Hub | Shutter Precision PL-7, 32h, Thru axle |
| Rear Hub | Formula CL Disc 32 H |
| Spokes | Black 2mm |
| Front Rim | Syncros Race X25 Disc 32H |
| Rear Rim | Syncros Race X25 Disc 32H |
| Front Tire | Schwalbe G-One Comp, 700x40C |
| Rear Tire | Schwalbe G-One Comp, 700x40C |
| Front Light | Hermanns CL3 |
| Rear Light | Hermanns H-Trace |
| Rack | Racktime carrier SnapIt 2.0 20Kg |
| Fender | Fenderset, alloy |
| Pedals | Marwi SP-827 |
| Approx weight in KG | 14.9 |
| Approx weight in LBS | 32.85 |
| Max. System Weight | 120kg |
| System Weight Information | The overall weight includes the bike, the rider, the equipment and possible additional luggage. |
| Size | 49 | 52 | 54 | 56 | 58 |
|---|---|---|---|---|---|
| Head Tube Angle | 70° | 70° | 70° | 70° | 70° |
| Head Tube Length | 120 | 140 | 160 | 180 | 200 |
| Top Tube Horizontal | 530 | 545 | 560 | 575 | 590 |
| Standover Height | 776 | 798 | 820 | 841 | 930 |
| BB Offset | 70 | 70 | 70 | 70 | 70 |
| BB Height | 425 | 425 | 425 | 425 | 425 |
| Wheel Base | 1041 | 1058 | 1075 | 1091 | 1108 |
| BB Center To Toptube Center | 435 | 455 | 475 | 505 | 525 |
| BB Center To Top Of Seattube | 485 | 510 | 535 | 560 | 585 |
| Seat Angle | 75° | 75° | 75° | 75° | 75° |
| Chainstay | 376 | 376 | 376 | 376 | 376 |
| Reach | 380 | 390 | 400 | 410 | 420 |
| Stack | 560 | 579 | 598 | 617 | 636 |
| Trail | 73 | 73 | 73 | 73 | 73 |
| Fork Length | 417 | 417 | 417 | 417 | 417 |
| Maximum Seatpost Insertion | 230 | 250 | 280 | 300 | 300 |
| Stem Length | 80 | 80 | 80 | 90 | 90 |
| Handlebar Width | 400 | 420 | 420 | 440 | 440 |
| Handlebar Diameter | 32 | 32 | 32 | 32 | 32 |
| Crankarm Length | 165 | 170 | 173 | 173 | 175 |
| Seat Post Length | 400 | 400 | 400 | 400 | 400 |
