SCOTT Scale Gravel 10
Product Details
The SCOTT Scale Gravel 10 is engineered for riders ready to embrace adventure with attitude. Built to go the distance over any and all types of terrain, this lightweight gravel bike combines agile handling with capable geometry that makes every surface feel rewarding. Whether you're exploring backcountry routes, tackling mixed terrain, or pushing through technical sections, the Scale Gravel proves that you don't have to choose between speed and capability.
At the heart of the Scale Gravel is SCOTT's monocoque carbon construction, a production method that uses only one mold for the main front triangle section, reducing the complete frame to just three separate pieces molded together. This innovative approach delivers multiple performance benefits: increased efficiency through reduced junctions, decreased overall weight, and superior stiffness that hardtail race bikes demand. By handling forces as a complete system rather than isolated sections, the monocoque design provides the responsiveness and control needed for technical terrain and high-speed descents. The HMF carbon frame strikes a perfect balance between lightweight construction and structural durability.
Smart engineering details enhance both performance and practicality. Advanced hollow dropout construction saves 7.5 grams while enabling a narrower rear triangle design that reduces weight by an additional 20 grams in this area. The integrated service door, accessible through the downtube cover, provides easy access to frame interior for cable routing and maintenance without removing the bottom bracket. Multiple mounting options throughout the frame ensure you can customize your setup for bikepacking, carrying essentials, or simply personalizing your build.

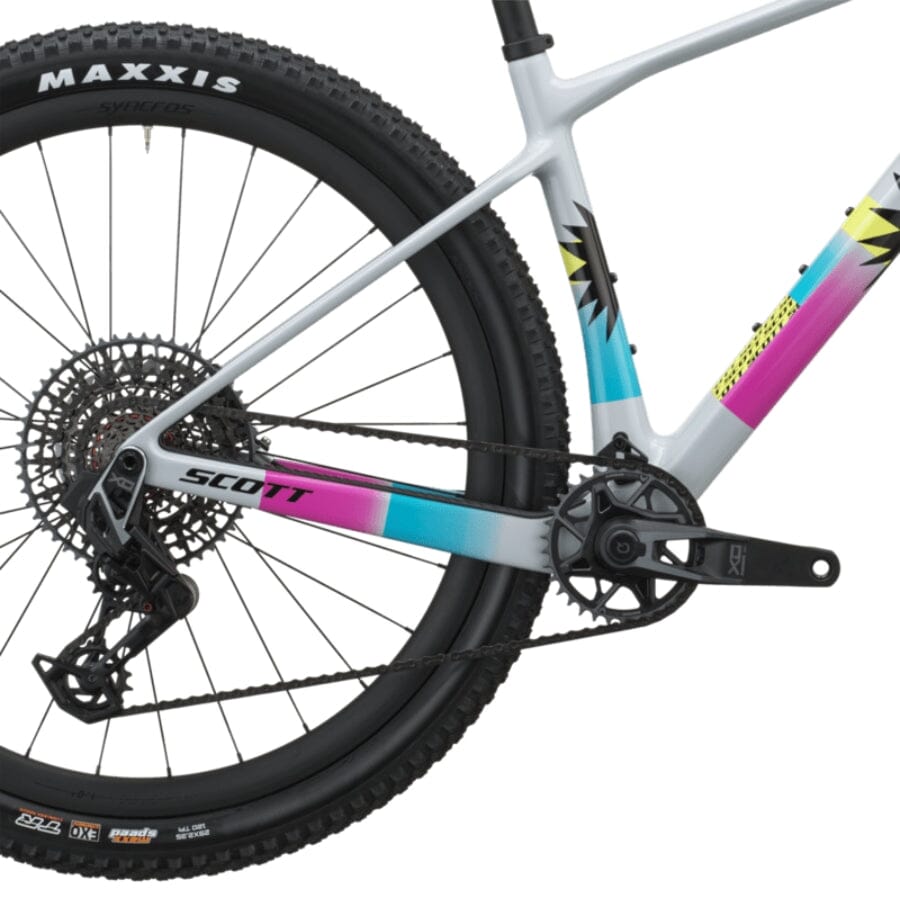

SRAM X0 Eagle AXS Transmission 12-speed drivetrain delivers smooth, wireless shifting with the wide range needed for varied terrain, while Syncros Silverton 1.0X CL wheels provide reliable support across gravel, dirt, and mixed surfaces. The Scale Gravel 10 is ready for your next adventure, whether that's a weekend escape or a commitment to exploring beyond the pavement.
Key Features
-
Frame - SCOTT Scale HMF Carbon monocoque
-
Drivetrain - SRAM X0 Eagle AXS Transmission 12-speed electronic
- Wheelset - Syncros Silverton 1.0X CL
| Specification | Detail |
|---|---|
| Frame | Scale HMF Carbon, adjustable head angle, Syncros Cable Integration System, advanced shock & standing damping system, BB92, UDH interface, 12x148mm with 55mm chainline |
| Fork | Scale Rigid HMF, postmount disc standard, tapered carbon steerer |
| Rear Derailleur | SRAM X0 Eagle AXS Transmission 12 Speed, Wireless Electronic Shift System |
| Shifters | SRAM AXS Rocker Pod Controller |
| Crankset | SRAM X0 Eagle Transmission, Spindle Powermeter, DUB, 55mm CL, 34T |
| Chainguide | SCOTT custom |
| BB-Set | SRAM DUB PF 92 MTB Wide, shell 41x92mm |
| Chain | SRAM X0 Eagle Transmission |
| Cassette | SRAM X0 Eagle XS-1295 Transmission, 10-52T |
| Brakes | SRAM Motive Silver 4-Piston |
| Front Disc Rotor | SRAM HS2 CL, 180mm |
| Rear Disc Rotor | SRAM HS2 CL, 160mm |
| Grips | Syncros Performance XC Lock-On |

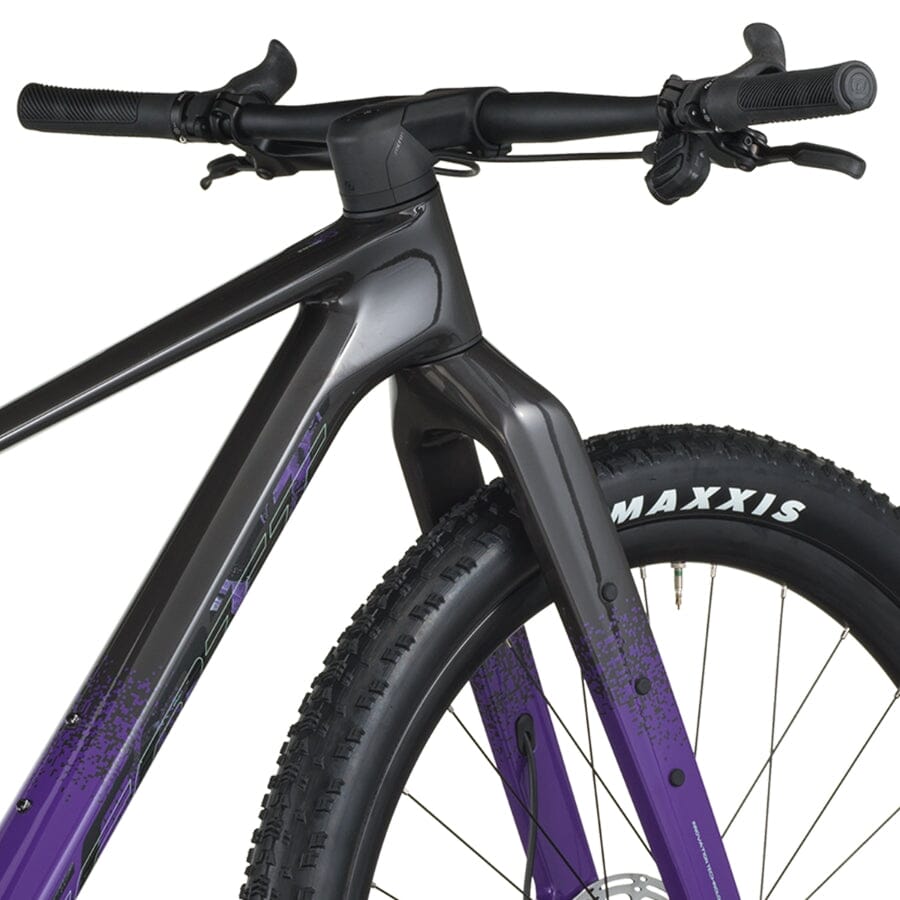

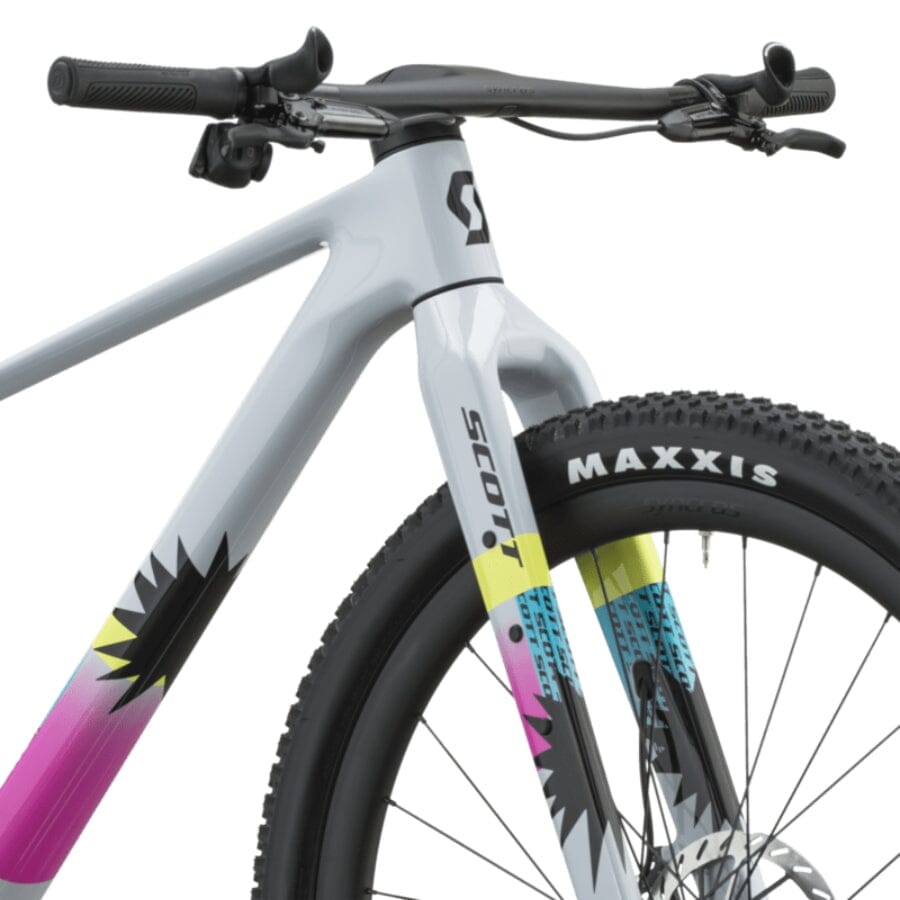

| Handlebar | Syncros Fraser iC SL XC Carbon, -20° rise, back sweep 8°, 740mm |

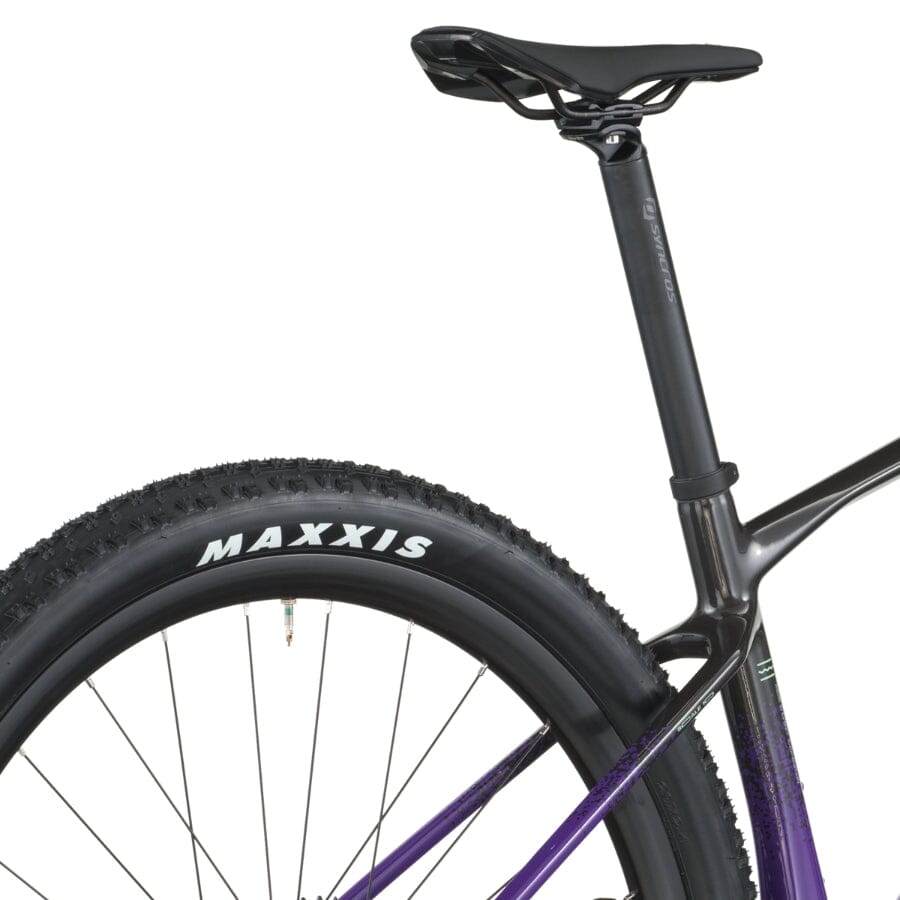

| Seatpost | Syncros Carbon, 10mm offset, 31.6x400mm |
| Seat | Syncros Celista Cut Out, Carbon Rails |
| Headset | Syncros - Acros Angle adjust & Cable Routing HS System, Stainless, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB |
| Wheelset | Syncros Silverton 1.0X CL, F: 15x110mm, R: 12x148mm, Tubeless ready Carbon rim 28H, XD Driver |
| Front Tire | Maxxis Rekon Race 29x2.4”, 60TPI Foldable, Tubeless Ready, EXO |
| Rear Tire | Maxxis Rekon Race 29x2.4”, 60TPI Foldable, Tubeless Ready, EXO |
| Extras | Spirgrips Inner Bar ends, SRAM AXS powerpack |
| Accessories | Milkit sealant |
| Approx weight in KG | 9 Tubeless |
| Approx weight in LBS | 19.84 Tubeless |
| Max. System Weight | 130kg. The overall weight includes the bike, the rider, the equipment and possible additional luggage. |
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Head Tube Angle | 67.9° | 67.9° | 67.9° | 67.9° |
| Head Tube Length (mm) | 90.0 | 95.0 | 110.0 | 120.0 |
| Top Tube Horizontal (mm) | 575.0 | 600.2 | 626.0 | 656.5 |
| Standover Height (mm) | 752.0 | 781.0 | 800.0 | 835.1 |
| BB Offset (mm) | -62.0 | -62.0 | -62.0 | -62.0 |
| BB Height (mm) | 313.0 | 313.0 | 313.0 | 313.0 |
| Wheelbase (mm) | 1105.4 | 1131.1 | 1158.0 | 1189.4 |
| BB Center to Top of Seat Tube (mm) | 390.0 | 440.0 | 480.0 | 530.0 |
| Seat Angle | 75.4° | 75.4° | 75.3° | 75.3° |
| Chainstay (mm) | 425.0 | 425.0 | 425.0 | 425.0 |
| Reach (mm) | 418.5 | 442.3 | 463.6 | 491.2 |
| Stack (mm) | 600.3 | 604.9 | 618.9 | 628.1 |
| Stem Length (mm) | 50.0 | 60.0 | 70.0 | 80.0 |
| Trail (mm) | 105.0 | 105.0 | 105.0 | 105.0 |
| Fork Length (mm) | 506.0 | 506.0 | 506.0 | 506.0 |
| Maximum Seatpost Insertion (mm) | 160.0 | 210.0 | 250.0 | 300.0 |
| Crank Length (mm) | 170.0 | 170.0 | 175.0 | 175.0 |
