SCOTT Scale Gravel 20
Product Details

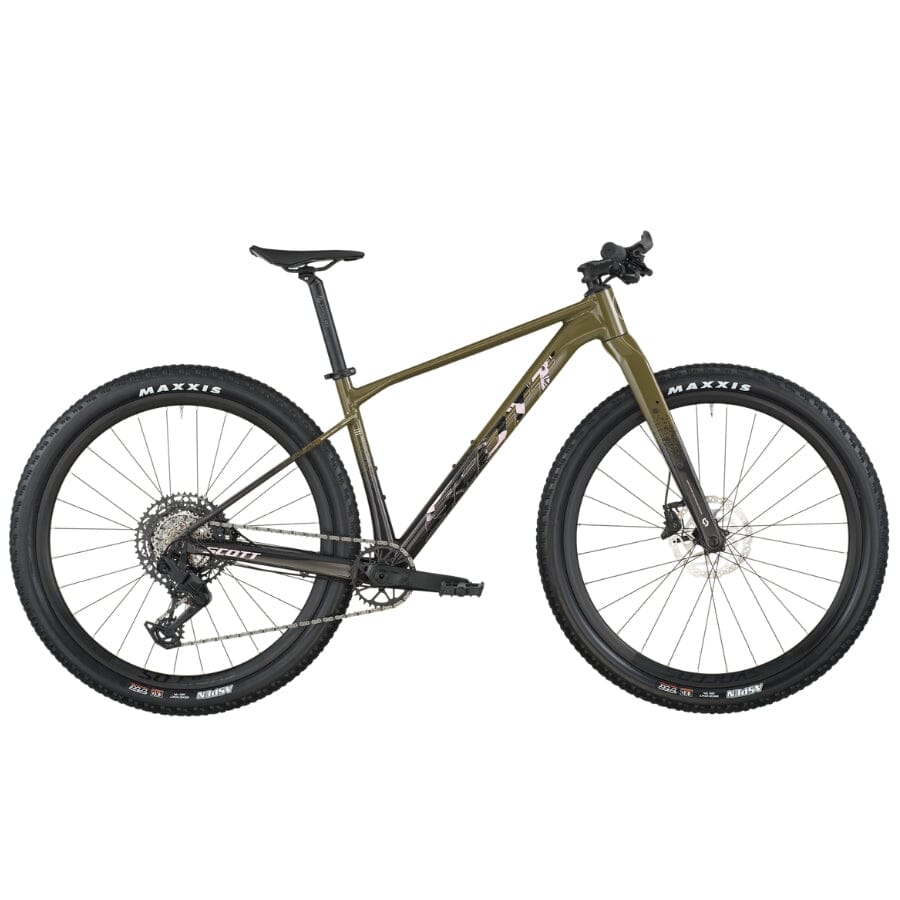

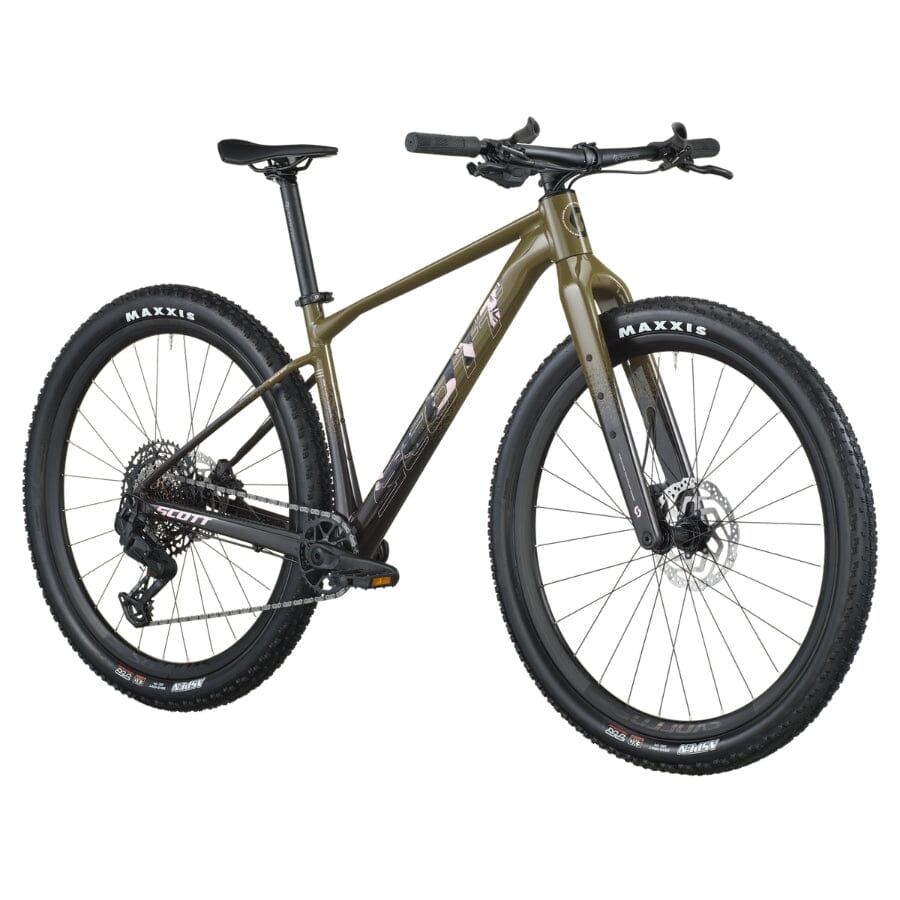

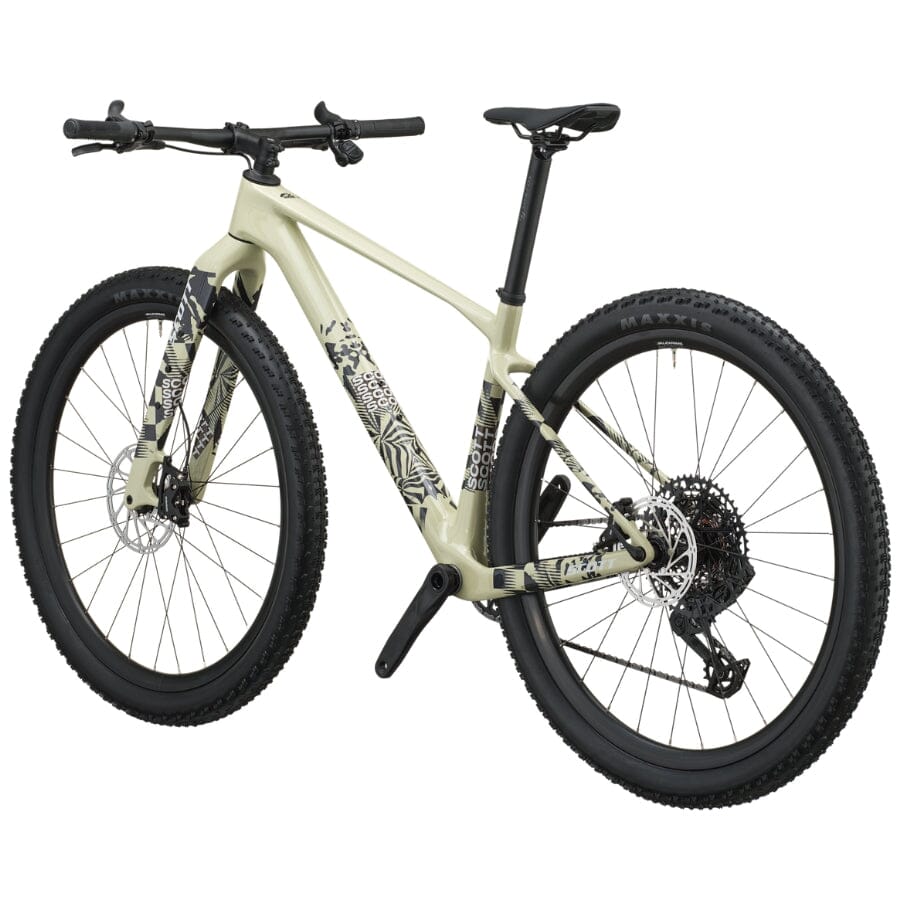

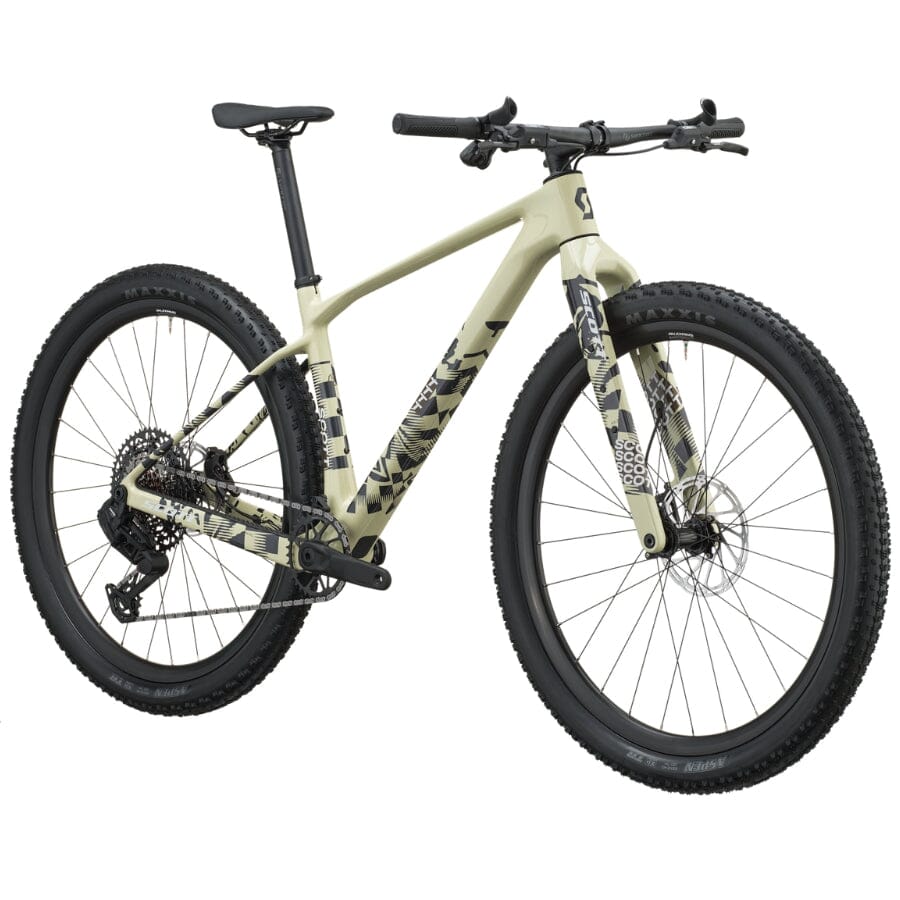

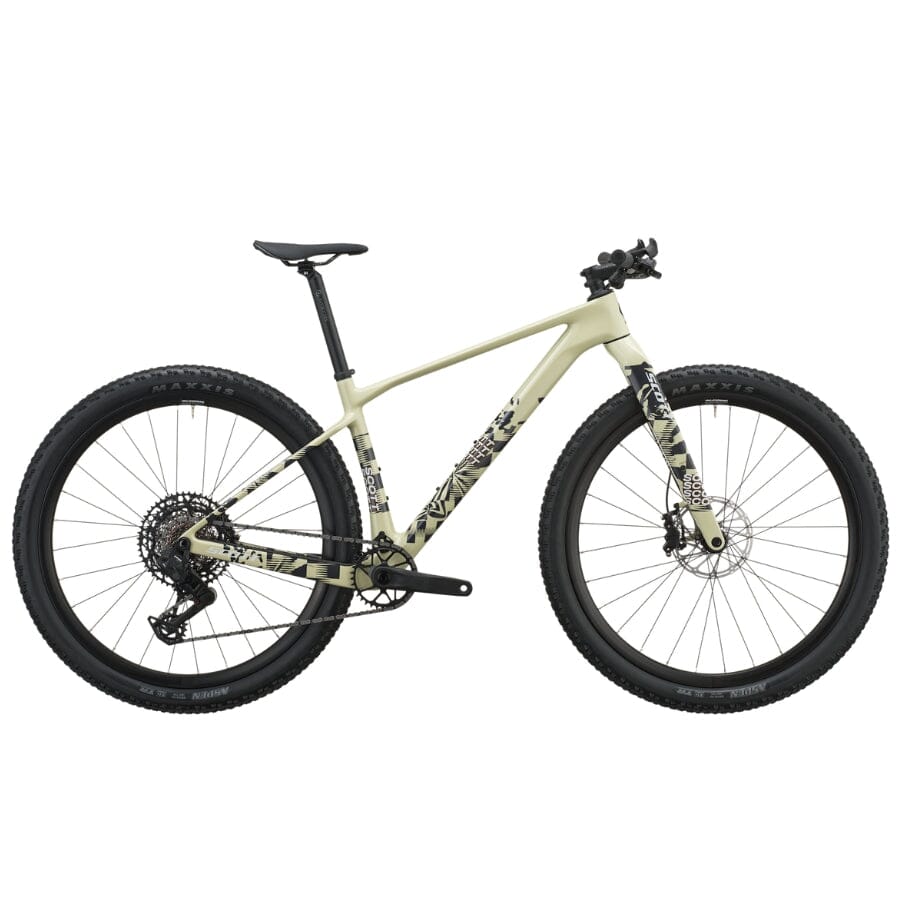

The SCOTT Scale Gravel 20 starts with a cross-country race platform rather than a traditional gravel bike design. Built from the proven Scale RC hardtail, it swaps the suspension fork for a lightweight rigid carbon unit, creating a fast, efficient machine for mixed-terrain riding. The result sits somewhere between gravel and mountain biking, and it feels more like a quick XC bike than a typical drop-bar gravel rig.
That heritage shows in the frame. The Scale HMF carbon chassis uses monocoque construction, with the main front triangle molded in a single piece and the whole frame made from just three molded sections. Fewer junctions mean less weight without giving up the stiffness that makes a hardtail accelerate so well, and because the frame handles loads as one system, it stays composed when the surface gets rough. The hollow dropout design keeps the axle head flush for a clean look and trims weight, while a small service door behind the downtube cover gives easy access to the inside of the frame for cable maintenance, with no need to remove the bottom bracket.

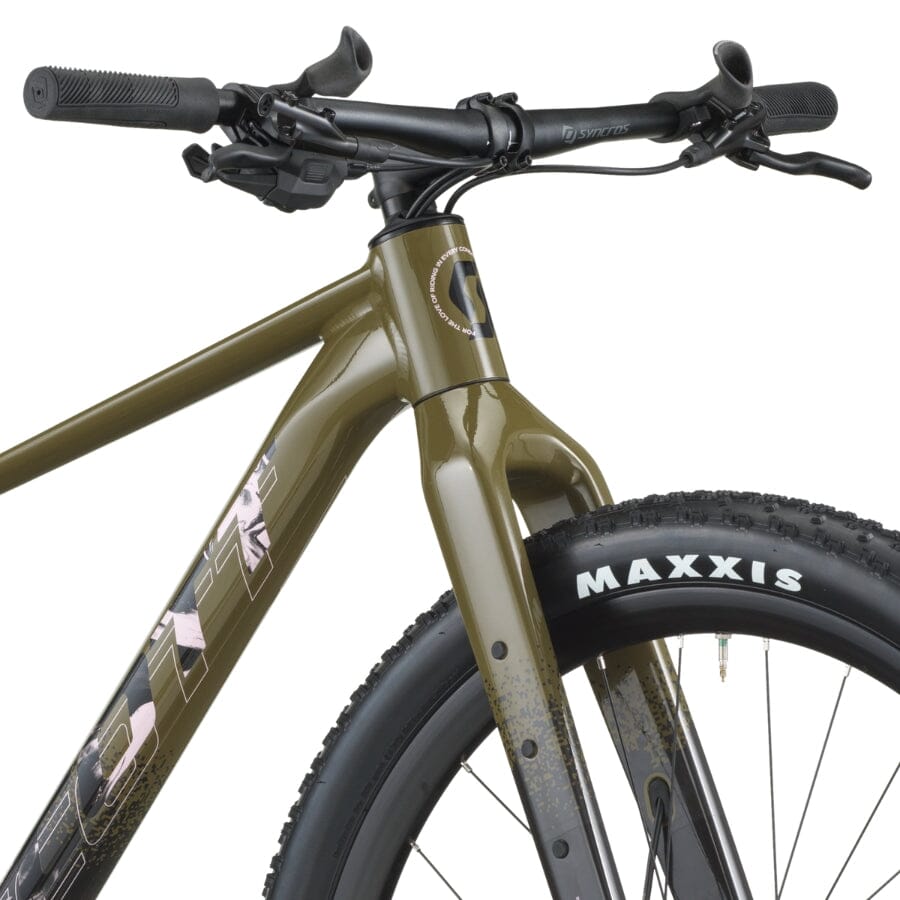

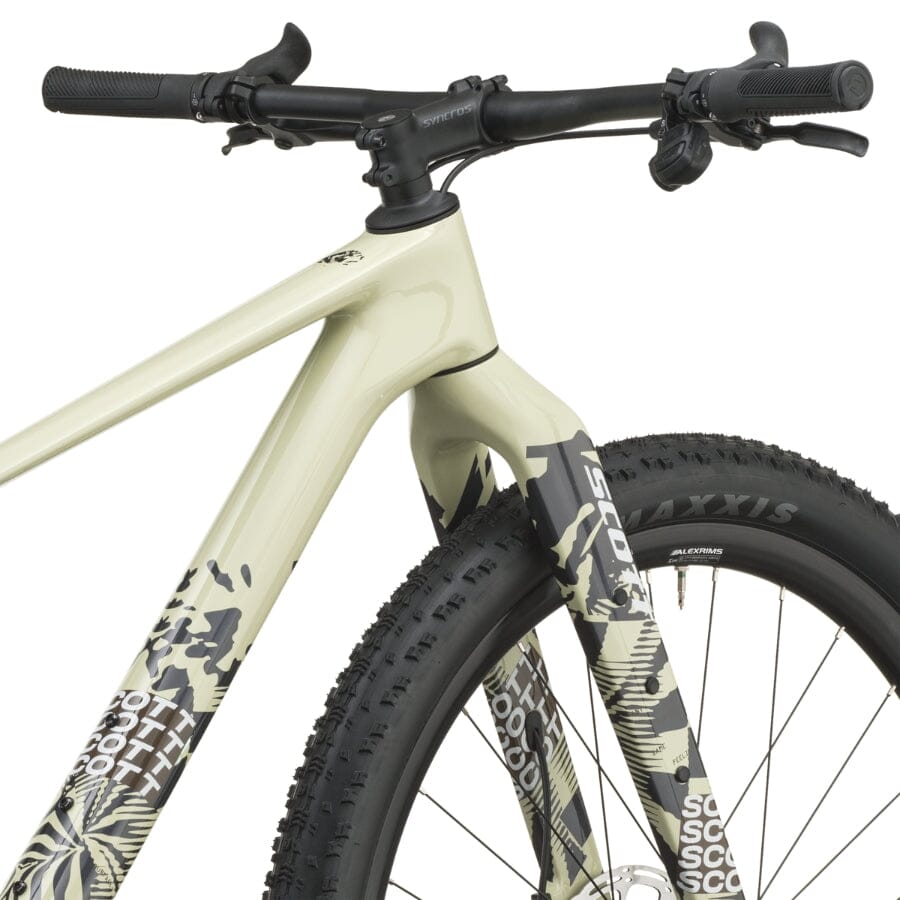

Out on the trail, the rigid fork improves pedaling efficiency and cuts weight, while the XC-inspired geometry keeps handling responsive and stable across changing terrain. Clearance for tires up to 2.4 inches lets riders run high-volume rubber for extra traction and vibration damping, which makes a real difference on washboard roads and loose corners. The flat handlebar adds leverage and steering control, and it will feel instantly familiar to anyone coming from a mountain bike background.

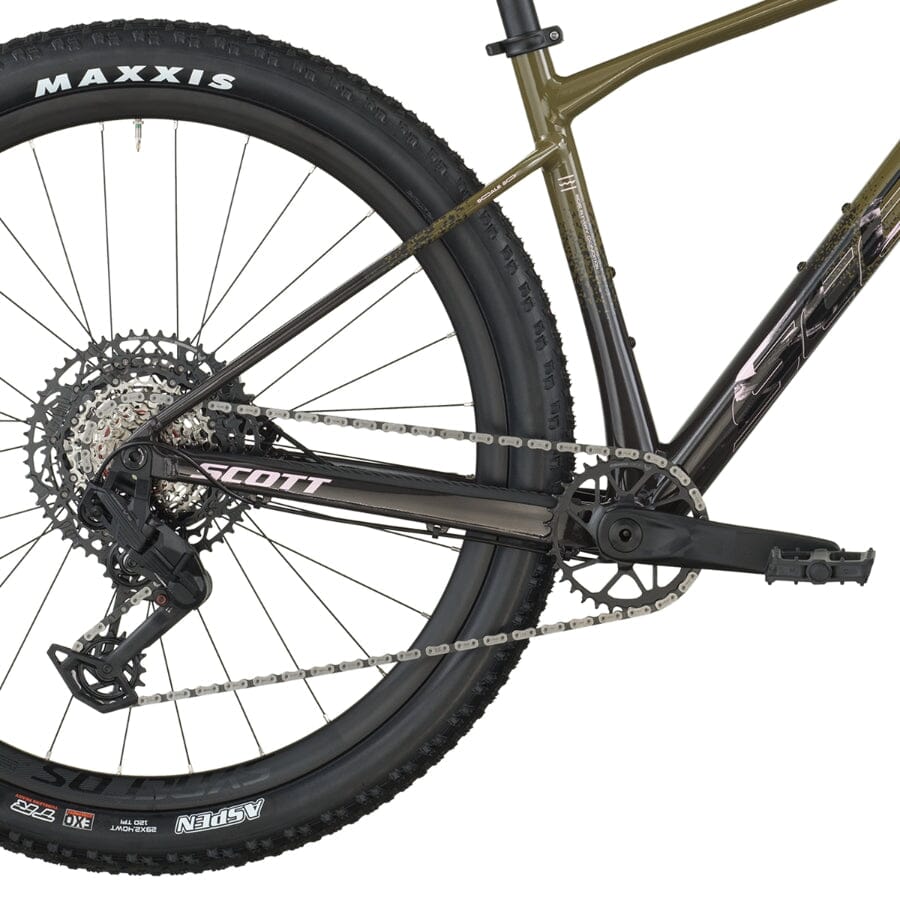

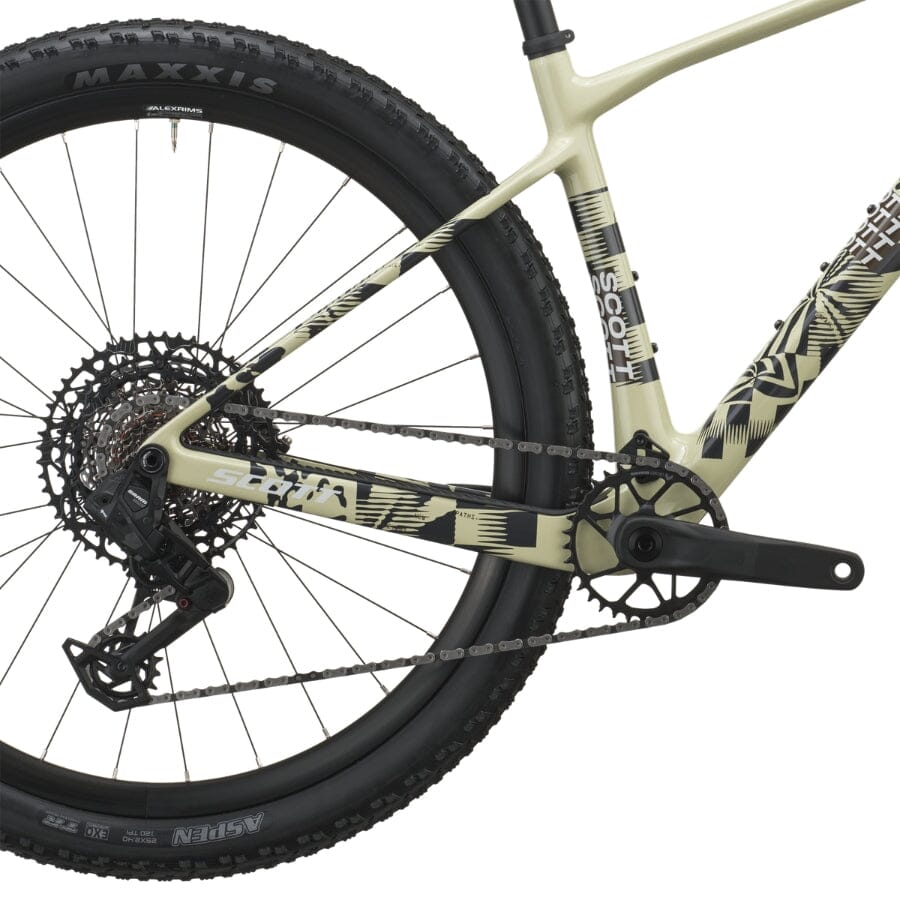

The SRAM S1000 Eagle AXS Transmission provides crisp, reliable 12-speed shifting with wireless convenience, and Alex Rims X-30S wheels with 32 spokes offer a durable, confidence-inspiring foundation for rough miles. Multiple mounting options make the Scale Gravel 20 a natural fit for bikepacking trips, long gravel routes, and dirt-road loops that mix in some light singletrack. It is an ideal choice for mountain bikers spending more time on gravel, or for any rider who wants to move fast and go further.
Key Features
- Frame - Scale HMF Carbon
-
Drivetrain - SRAM S1000 Eagle AXS Transmission 12-speed
- Wheelset - Alex Rims X-30S 32H
| Specification | Detail |
|---|---|
| Frame | Scale HMF Carbon, adjustable head angle, Syncros Cable Integration System, advanced shock & standing damping system, BB92, UDH interface, 12x148mm with 55mm chainline |
| Fork | Scale Rigid HMF, postmount disc standard, tapered carbon steerer |
| Rear Derailleur | SRAM S1000 Eagle AXS Transmission 12 Speed, Wireless Electronic Shift System |
| Shifters | SRAM AXS Pod Controller |

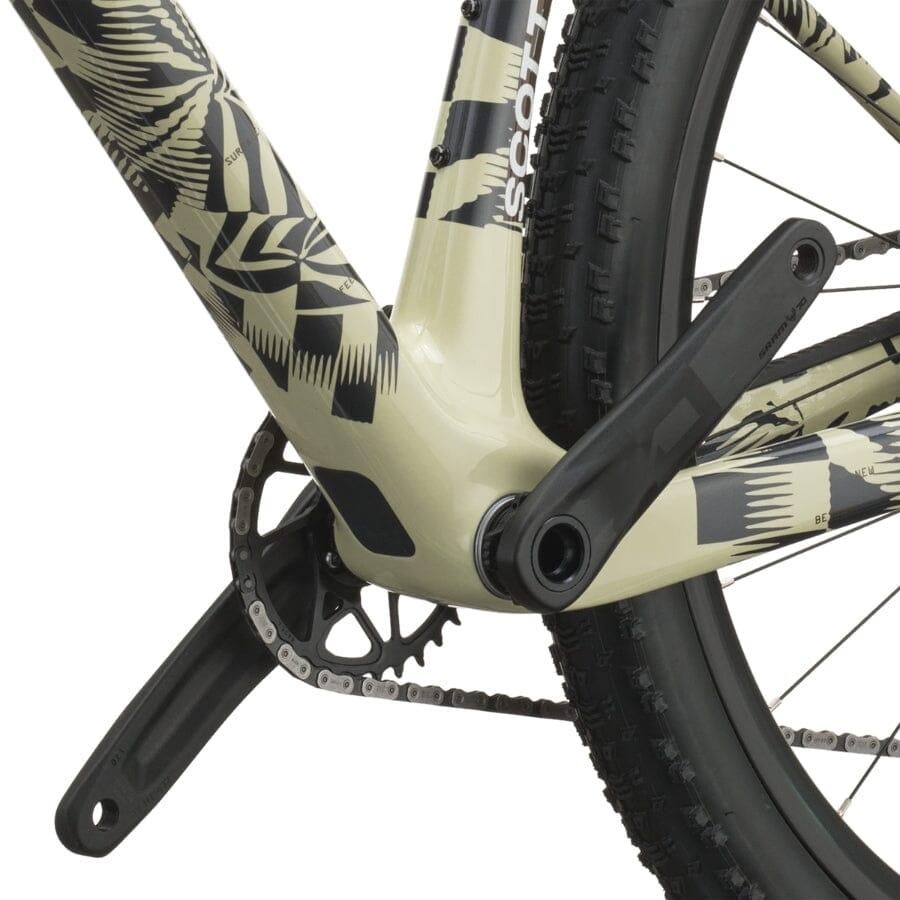

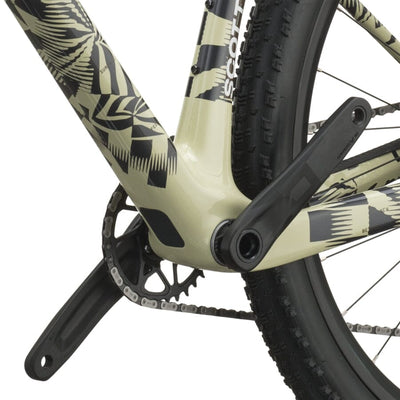

| Crankset | SRAM Eagle 70 Transmission, DUB, 55mm CL, 34T |
| Chainguide | SCOTT custom |
| BB-Set | SRAM DUB PF 92 MTB Wide, shell 41x92mm |
| Chain | SRAM Eagle 70 Transmission |
| Cassette | SRAM Eagle XS-1270 Transmission, 10-52T |
| Brakes | SRAM DB6 4-Piston |
| Front Disc Rotor | SRAM Centerline CL, 180mm |
| Rear Disc Rotor | SRAM Centerline CL, 160mm |
| Grips | Syncros Performance XC Lock-On |
| Handlebar | Syncros Alloy 6061, T shape Flat, 9°, 740mm |
| H'stem | Syncros Alloy 6061, oversized 31.8mm, 1 1/8", 6° angle |

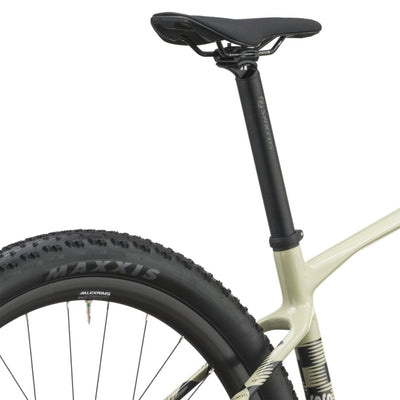

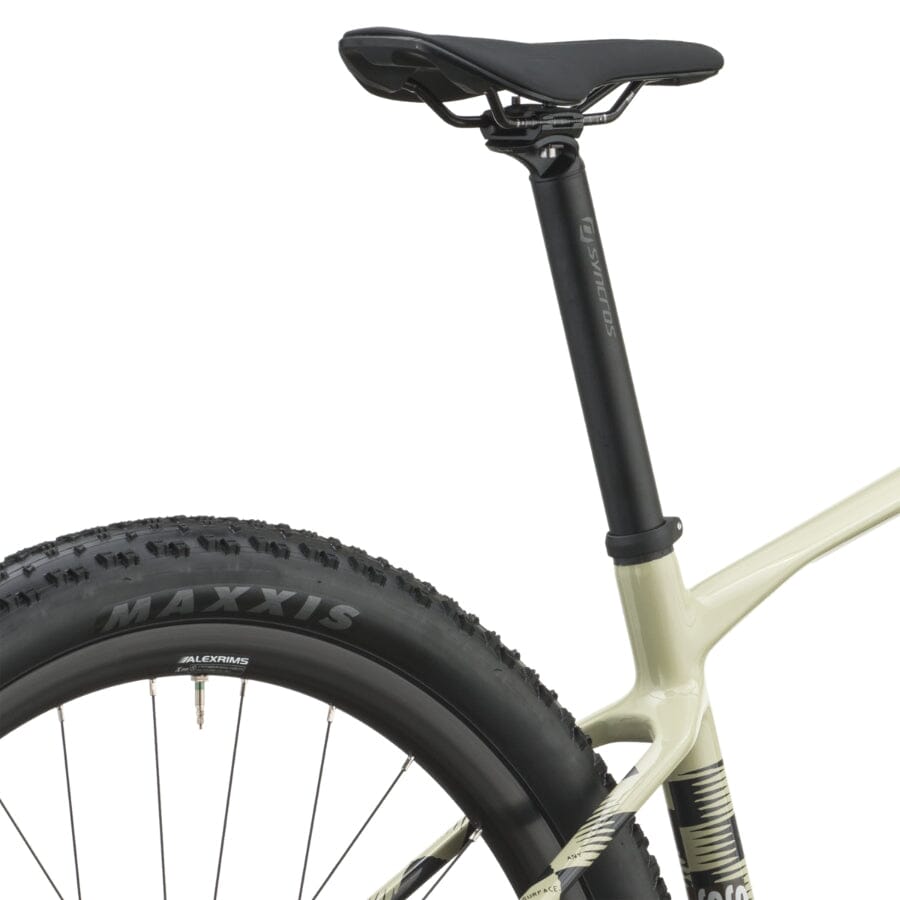

| Seatpost | Syncros alloy, 10mm offset, 31.6x400mm |
| Seat | Syncros Celista Cut Out |
| Headset | Syncros - Acros Angle adjust & Cable Routing HS System, Stainless, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB |
| Front Hub | Formula CL-811, 15x110mm |
| Rear Hub | Formula CL-3248, 12x148mm |
| Spokes | Stainless Black |
| Front Rim | Alex Rims X-30S 32H, Sleeve Joint, Tubeless ready |
| Rear Rim | Alex Rims X-30S 32H, Sleeve Joint, Tubeless ready |
| Front Tire | Maxxis Aspen 29x2.4", 120TPI Foldable Bead, Tubeless Ready, EXO |
| Rear Tire | Maxxis Aspen 29x2.4", 120TPI Foldable Bead, Tubeless Ready, EXO |
| Extras | Spirgrips Inner Bar ends, SRAM AXS powerpack |
| Approx weight in KG | 11.4 Tubeless |
| Approx weight in LBS | 25.13 Tubeless |
| Max. System Weight | 130kg. The overall weight includes the bike, the rider, the equipment and possible additional luggage. |
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Head Tube Angle | 67.9° | 67.9° | 67.9° | 67.9° |
| Head Tube Length (mm) | 90.0 | 95.0 | 110.0 | 120.0 |
| Top Tube Horizontal (mm) | 575.0 | 600.2 | 626.0 | 656.5 |
| Standover Height (mm) | 752.0 | 781.0 | 800.0 | 835.1 |
| BB Offset (mm) | -62.0 | -62.0 | -62.0 | -62.0 |
| BB Height (mm) | 313.0 | 313.0 | 313.0 | 313.0 |
| Wheelbase (mm) | 1105.4 | 1131.1 | 1158.0 | 1189.4 |
| BB Center to Top of Seat Tube (mm) | 390.0 | 440.0 | 480.0 | 530.0 |
| Seat Angle | 75.4° | 75.4° | 75.3° | 75.3° |
| Chainstay (mm) | 425.0 | 425.0 | 425.0 | 425.0 |
| Reach (mm) | 418.5 | 442.3 | 463.6 | 491.2 |
| Stack (mm) | 600.3 | 604.9 | 618.9 | 628.1 |
| Stem Length (mm) | 50.0 | 60.0 | 70.0 | 80.0 |
| Trail (mm) | 105.0 | 105.0 | 105.0 | 105.0 |
| Fork Length (mm) | 506.0 | 506.0 | 506.0 | 506.0 |
| Maximum Seatpost Insertion (mm) | 160.0 | 210.0 | 250.0 | 300.0 |
| Crank Length (mm) | 170.0 | 170.0 | 175.0 | 175.0 |
