SCOTT Scale Gravel 30
Product Details
The SCOTT Scale Gravel 30 is built for adventure riders who refuse to be limited by terrain or conditions. Engineered to go the distance over any and all types of surfaces, this lightweight gravel bike combines agile handling with practical durability, designed to handle everything from smooth gravel to technical terrain with equal confidence. The Scale Gravel is where attitude meets capability—a bike ready for serious off-road exploration without compromise.
Built on a lightweight Scale low-impact alloy frame, this gravel platform delivers the responsive character the Scale line is known for while offering proven reliability and durability for demanding adventures. The frame geometry prioritizes the agility and control necessary for technical gravel terrain while maintaining the efficiency required for covering long distances. Multiple mounting options throughout the frame make it straightforward to load up for bikepacking or bikecamping, allowing you to carry the gear needed for extended adventures without sacrificing handling or responsiveness.
Smart engineering details enhance both practicality and performance. A dedicated service door accessible through the downtube cover provides easy cable routing maintenance without requiring bottom bracket removal—keeping your bike dialed in the field without unnecessary complexity. Advanced hollow dropout construction reduces weight while maintaining strength, contributing to the bike's overall responsiveness and agility. The streamlined design proudly shows off the engineering that makes it capable.

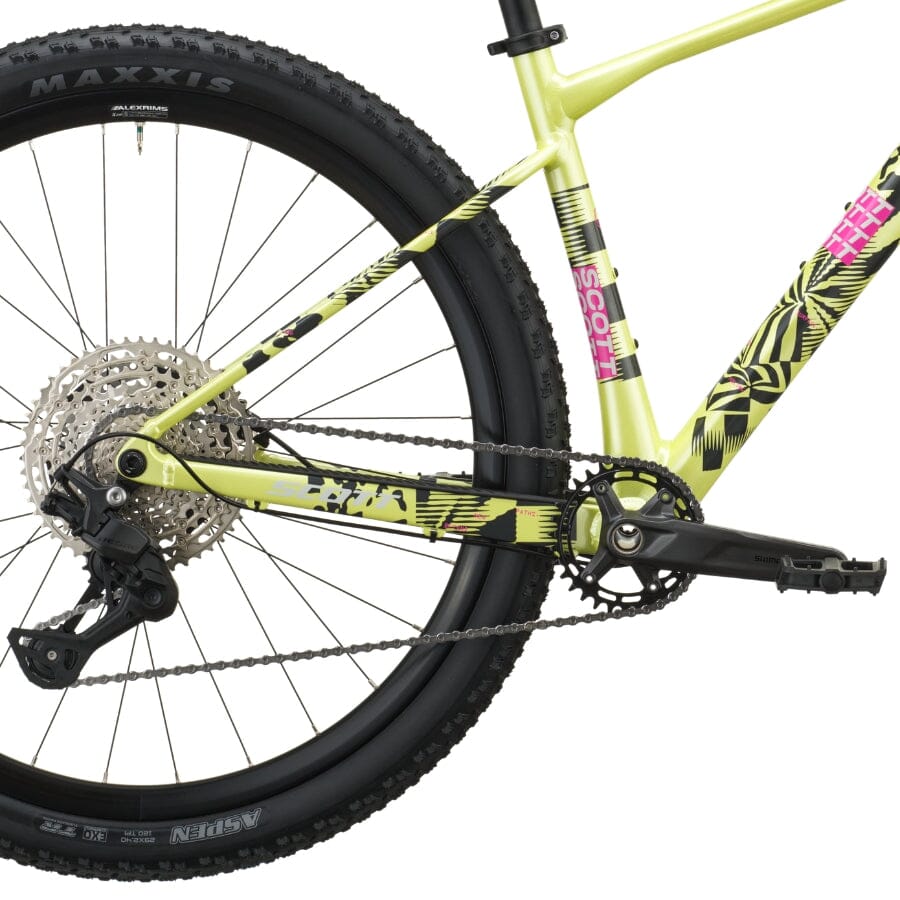

Drivetrain and wheels are thoughtfully selected for gravel riding demands. Shimano Deore 12-speed provides reliable, straightforward shifting across varied terrain and conditions, while Alex Rims X-30S wheels feature 32-spoke construction with tubeless-ready setup. This wheelset balances durability with efficient rolling, ready for both packed gravel and technical sections. Sleeve joint construction enhances reliability, while tubeless compatibility allows you to reduce rolling resistance and improve traction when needed.
The Scale Gravel 30 is lightweight, responsive, and genuinely ready for whatever adventure awaits—whether that's weekend gravel missions or multi-day expeditions.
Key Features
- Frame - SCOTT Scale low-impact alloy
-
Drivetrain - Shimano Deore 12-speed mechanical
- Wheelset - Alex Rims X-30S 32H, sleeve joint, tubeless-ready
| Specification | Detail |
|---|---|
| Frame | Scale Alloy 6061 Custom Butted Tubing, Tapered Headtube, BB92, UDH interface, Boost 12x148mm with 55mm chainline |
| Fork | Scale Rigid HMF, postmount disc standard, tapered carbon steerer |
| Rear Derailleur | Shimano Deore RD-M7200 12-speed |
| Shifters | Shimano Deore SL-M6200 |
| Crankset | Shimano FC-MT520, 34T |
| BB-Set | Shimano BB-MT500 PF |
| Chain | Shimano CN-M6100 |
| Cassette | Shimano Deore CS-M6200, 10-51T |
| Brakes | Shimano BR-MT401 2-Piston |
| Front Disc Rotor | Shimano SM-RT10 CL, 180mm |
| Rear Disc Rotor | Shimano SM-RT10 CL, 160mm |
| Grips | Syncros Performance XC |
| Handlebar | Syncros Alloy 6061, T shape Flat, 9°, 740mm |
| H'stem | Syncros Alloy 6061, oversized 31.8mm, 1 1/8", 6° angle |
| Seatpost | Syncros alloy, 10mm offset, 31.6x400mm |
| Seat | Syncros Celista Cut Out |
| Headset | Cable Routing Headset ZS56/28.6 – ZS56/40 |
| Front Hub | Formula CL-811, 15x110mm |
| Rear Hub | Formula FCL-548M, 148x12mm, Micro Spline |
| Spokes | Stainless Black |
| Front Rim | Alex Rims X-30S 32H, Sleeve Joint, Tubeless ready |
| Rear Rim | Alex Rims X-30S 32H, Sleeve Joint, Tubeless ready |
| Front Tire | Maxxis Aspen 29x2.4", 120TPI Foldable Bead, Tubeless Ready, EXO |
| Rear Tire | Maxxis Aspen 29x2.4", 120TPI Foldable Bead, Tubeless Ready, EXO |
| Pedals | Feimin FP-873ZU |
| Extras | Spirgrips Inner Bar ends |
| Approx weight in KG | 11.7 without pedals |
| Approx weight in LBS | 25.79 without pedals |
| Max. System Weight | 130kg. The overall weight includes the bike, the rider, the equipment and possible additional luggage. |
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Head Tube Angle | 67.9° | 67.9° | 67.9° | 67.9° |
| Head Tube Length (mm) | 90.0 | 95.0 | 110.0 | 120.0 |
| Top Tube Horizontal (mm) | 575.0 | 600.2 | 626.0 | 656.5 |
| Standover Height (mm) | 752.0 | 781.0 | 800.0 | 835.1 |
| BB Offset (mm) | -62.0 | -62.0 | -62.0 | -62.0 |
| BB Height (mm) | 313.0 | 313.0 | 313.0 | 313.0 |
| Wheelbase (mm) | 1105.4 | 1131.1 | 1158.0 | 1189.4 |
| BB Center to Top of Seat Tube (mm) | 390.0 | 440.0 | 480.0 | 530.0 |
| Seat Angle | 75.4° | 75.4° | 75.3° | 75.3° |
| Chainstay (mm) | 425.0 | 425.0 | 425.0 | 425.0 |
| Reach (mm) | 418.5 | 442.3 | 463.6 | 491.2 |
| Stack (mm) | 600.3 | 604.9 | 618.9 | 628.1 |
| Stem Length (mm) | 50.0 | 60.0 | 70.0 | 80.0 |
| Trail (mm) | 105.0 | 105.0 | 105.0 | 105.0 |
| Fork Length (mm) | 506.0 | 506.0 | 506.0 | 506.0 |
| Maximum Seatpost Insertion (mm) | 160.0 | 210.0 | 250.0 | 300.0 |
| Crank Length (mm) | 170.0 | 170.0 | 175.0 | 175.0 |
