Product Details

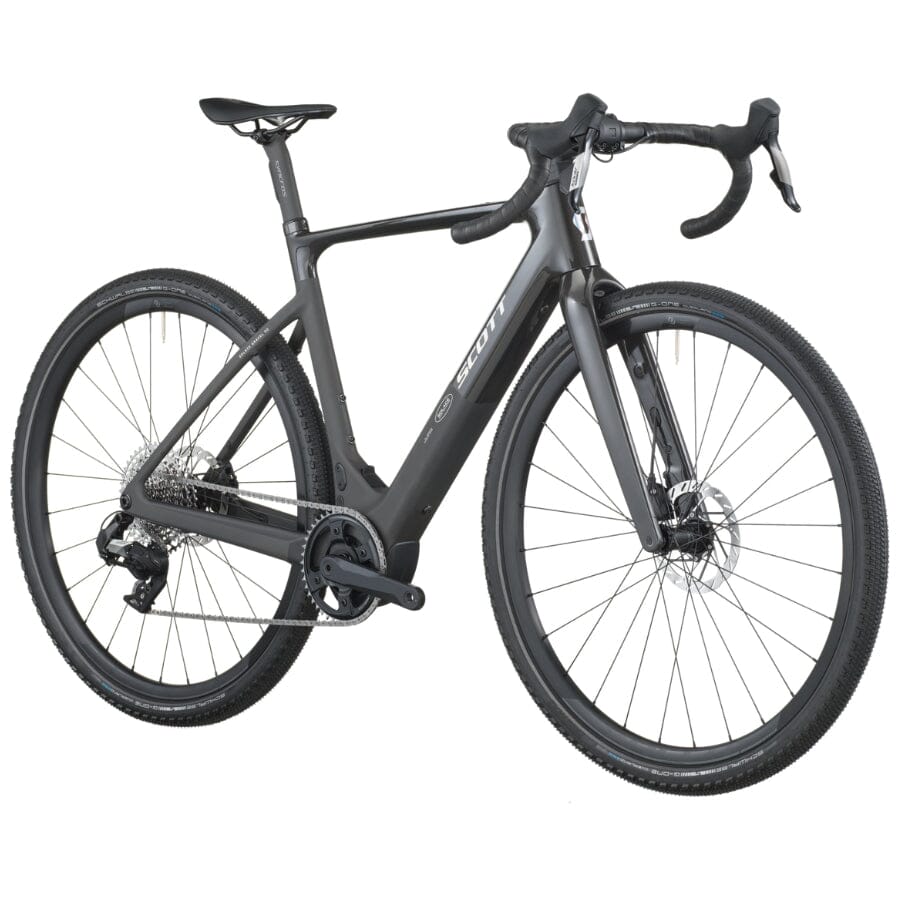

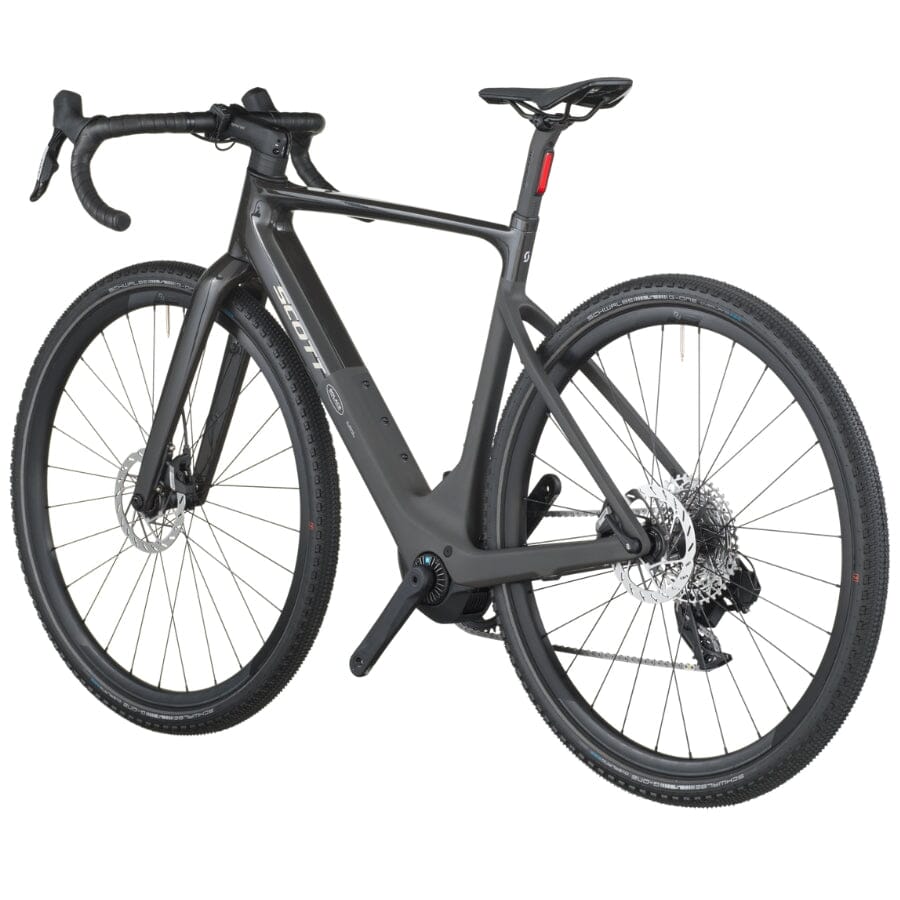

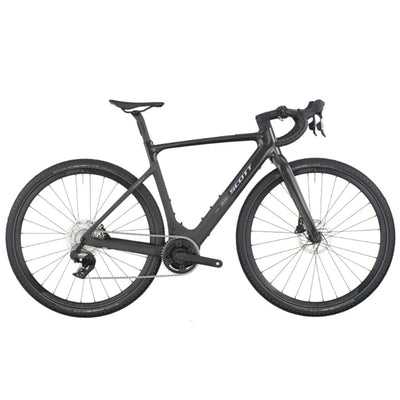

The SCOTT Solace Gravel 30 is built for riders who want to explore farther and climb steeper without sacrificing the agile, natural ride feel that defines great gravel cycling. By pairing lightweight electric assistance with balanced gravel geometry, it expands your range while preserving the character of a traditional gravel bike.
At the core is the TQ HPR60 motor, delivering 60Nm of torque with 20% more performance than its predecessor. Power delivery is smooth, quiet, and intuitive, amplifying your effort on steep climbs and long ascents while maintaining responsive handling and a lively, natural feel whether the motor is engaged or not.
Rolling on 50mm Schwalbe G-One Overland tires, the Solace Gravel 30 provides confident traction on loose climbs and added comfort over rough terrain. A SRAM Apex XPLR AXS 12-speed wireless drivetrain delivers precise electronic shifting with gravel-specific gearing at an accessible price point, making it an ideal entry into e-assisted gravel riding.
The result is a boosted gravel bike that proves electric assistance doesn’t require compromise, just more distance, more elevation, and more freedom to explore.
Key Features
- Frame - Solace eRIDE Disc HMX Carbon Frame
- Motor - TQ HPR60 Mid Motor drive
- Battery - TQ Internal 360Wh

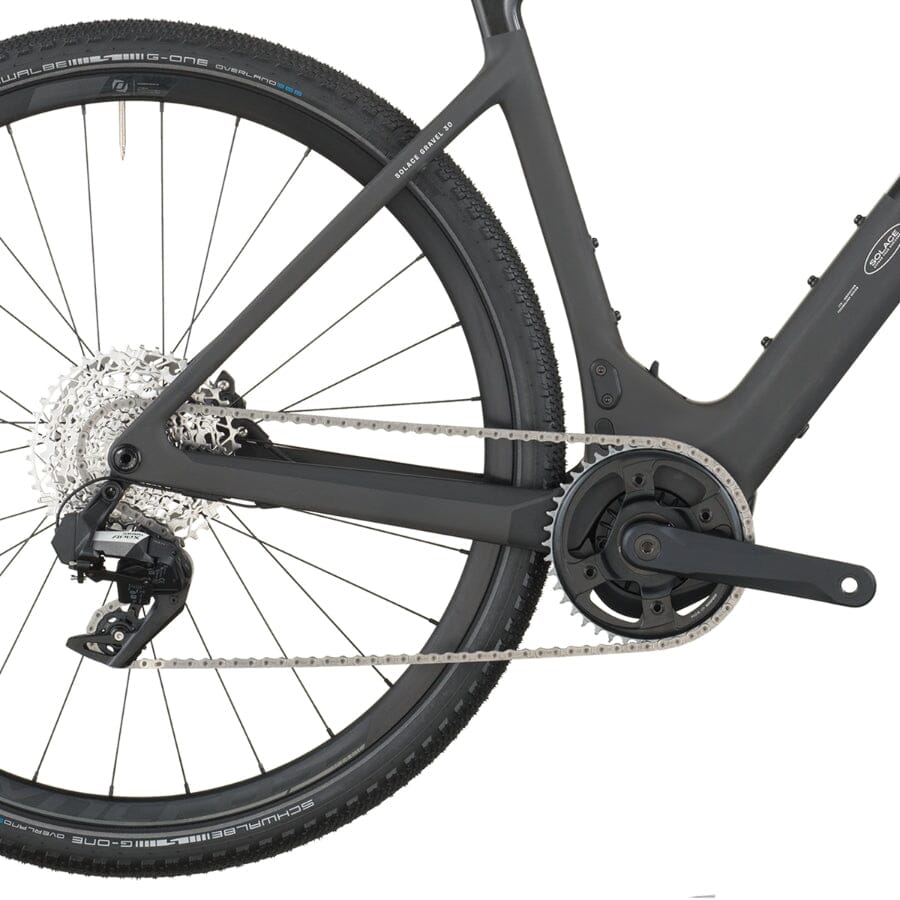

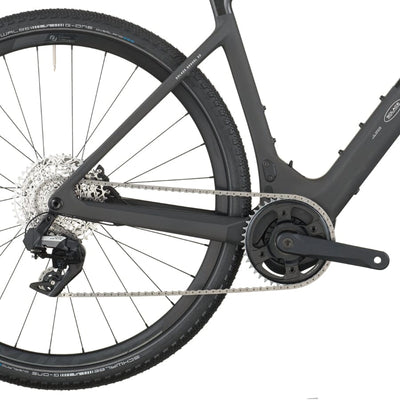

- Drivetrain - SRAM Apex XPLR AXS 12-Speed
- Wheelset - Syncros Capital 2.0 Disc
| Specification | Details |
|---|---|
| Frame | Solace Gravel Disc HMX, Endurance geometry, Syncros Cable Integration System, TQ HPR60, UDH Interface, Range Extender Ready |
| Fork | Solace Gravel HMF Flatmount Disc, 1 1/4"–1 1/2" Eccentric Carbon steerer |
| Drive Unit | TQ HPR60 Mid Motor drive, 60Nm max torque, EU: 25km/h, US: 28mph |
| Battery | TQ Internal 360Wh |
| Display | TQ HPR 60, Bluetooth, ANT+, AXS, dedicated smartphone app |
| Charger | TQ AC 90–264V, 2A |
| Rear Derailleur | SRAM APEX XPLR eTap AXS, 12-speed |
| Shifters | SRAM APEX AXS HRD Shift-Brake System |
| Crankset | FSA eBike Alloy CK-746 |
| Chainring | SRAM X-SYNC, 42T, 107 BCD |
| Chain | SRAM APEX |
| Cassette | SRAM XPLR PG1231, 11-44 |
| Brakes | SRAM APEX eTap AXS HRD Shift-Brake System, Flatmount |
| Rotor | SRAM HS2 rotor, 160mm front / 160mm rear |

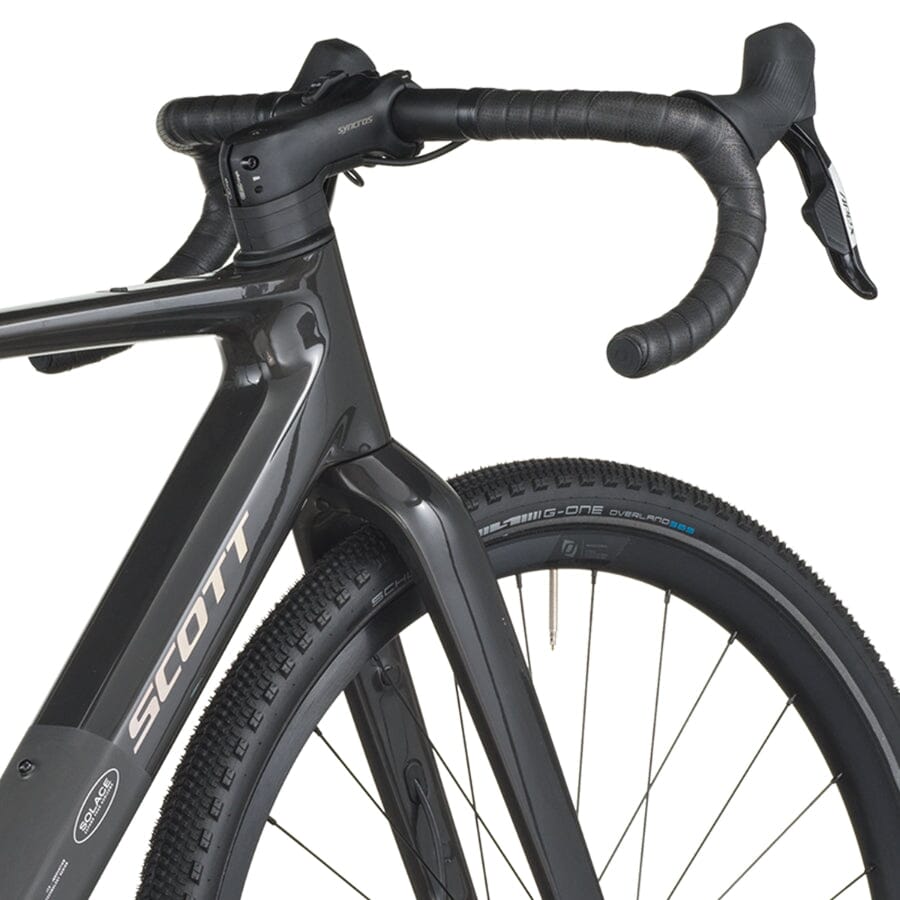

| Handlebar | Syncros Creston 2.0 X, Alloy, 31.8mm |
| Stem | Syncros RR-2.5, 1 1/4", four-bolt, 31.8mm |
| Seatpost | Syncros Duncan 1.0 iL, D-shape |
| Seat | Syncros Tofino Regular 2.0 Cutout |
| Headset | Acros AIF-1112 |
| Wheelset | Syncros Capital 2.0 Disc, 28h Front 12x100mm TA / 28h Rear 12x142mm TA, Syncros axle w/ removable lever & tool |
| Front Tire | Schwalbe G-One Overland 365 Performance, 700x50C |
| Rear Tire | Schwalbe G-One Overland 365 Performance, 700x50C |
| Lights | Syncros Campbell iL rear |
| Approx. Weight (kg) | 14.3 |
| Approx. Weight (lbs) | 31.53 |
| Max. System Weight | 120kg |
| Measurement | XS / 49 | S / 52 | M / 54 | L / 56 | XL / 58 |
|---|---|---|---|---|---|
| Head Tube Angle | 69.5° | 70.0° | 71.0° | 71.0° | 71.0° |
| Head Tube Length (mm) | 85 | 110 | 128 | 154 | 175 |
| Top Tube Length, Horizontal (mm) | 518 | 534.2 | 554.5 | 578.4 | 592.5 |
| Standover Height (mm) | 759 | 785 | 803 | 824 | 841 |
| BB Drop (mm) | 76 | 76 | 76 | 76 | 76 |
| BB Height (mm) | 294 | 294 | 294 | 294 | 294 |
| Wheelbase (mm) | 1021.5 | 1030.1 | 1036.8 | 1056.2 | 1071.1 |
| Seat Tube Length (mm) | 477 | 507 | 527 | 547 | 567 |
| Seat Tube Angle | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° |
| Chainstay Length (mm) | 435 | 435 | 435 | 435 | 435 |
| Reach (mm) | 374 | 378 | 387 | 398 | 406 |
| Stack (mm) | 519.3 | 544.7 | 565.6 | 590.2 | 610 |
| Stem Length (mm) | 80 | 90 | 100 | 100 | 110 |
| Trail (mm) | 80.8 | 77.5 | 70.7 | 70.7 | 70.7 |
