SCOTT Spark RC Expert
Product Details
The SCOTT Spark RC Expert is a lightweight XC race machine engineered for riders who demand precision, speed, and reliability on demanding cross-country terrain. Built in close collaboration with SCOTT's professional racing team, this bike strikes the ideal balance between elite performance and real-world practicality, delivering championship-level capability without the elite-tier price tag.
At the core of the Spark RC Expert is SCOTT's HMF Carbon frame, one of the lightest 120mm XC platforms available. The sub-1.5kg frameset achieves this remarkable weight through intelligent engineering and refined layup rather than fragility, meticulously balancing stiffness, compliance, and durability for long-term reliability. The modern race-inspired geometry includes head angle adjustability of plus or minus 0.5 degrees, allowing you to fine-tune the bike to your terrain and riding style. A thoughtfully designed low center-of-mass positions the shock optimally within the chassis, creating improved stability, precise cornering control, and confident technical climbing.

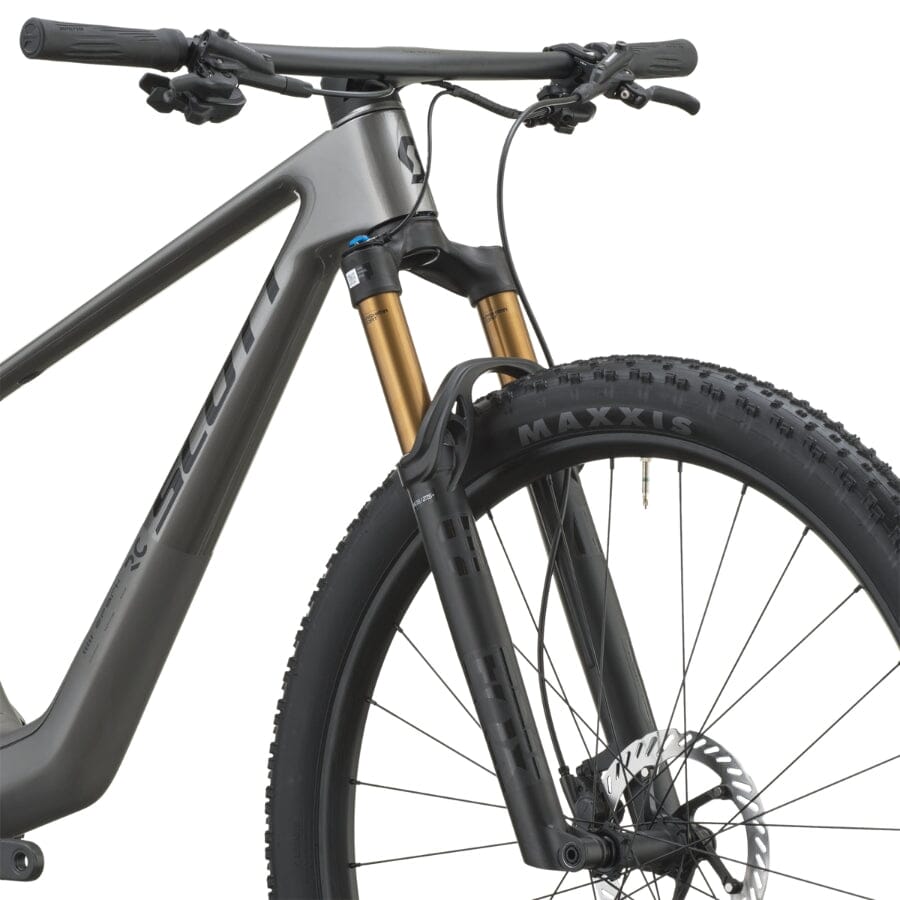

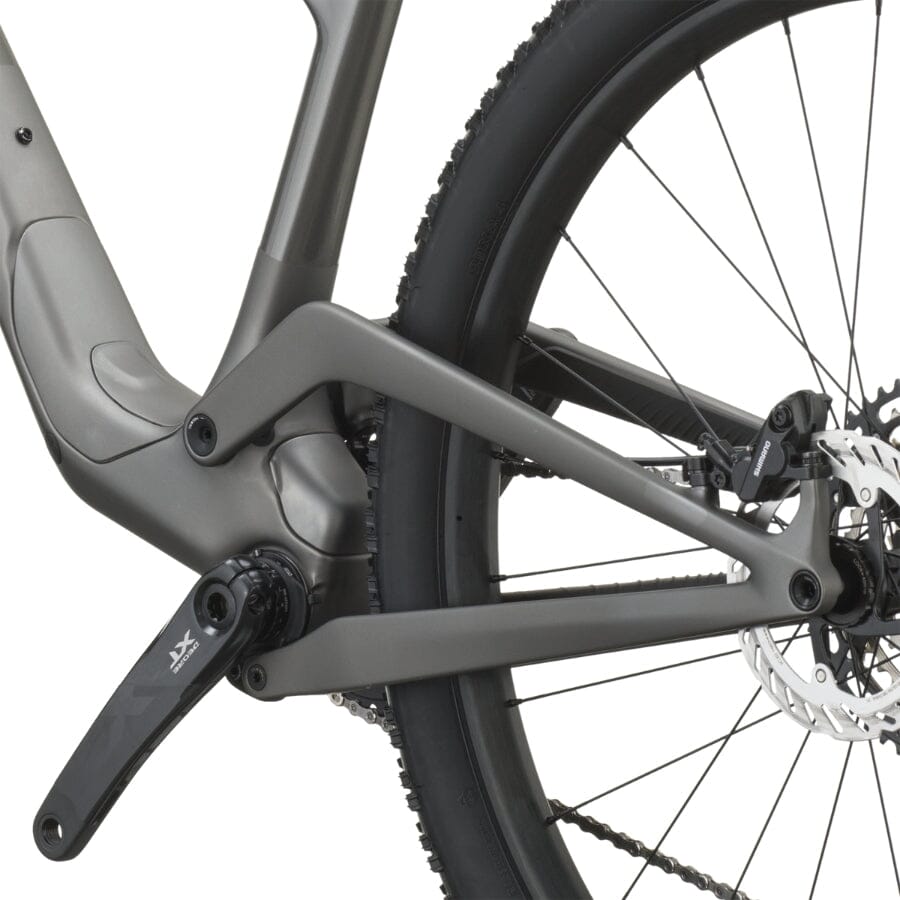

The suspension setup is exceptionally well-executed. SCOTT's proprietary flex pivot kinematic minimizes deflection while delivering excellent traction under power, stability under braking, and climbing efficiency. The Fox 120mm 34SL Factory Grip SL fork and Fox Float Factory shock are custom-tuned specifically for the Spark RC platform, ensuring predictable, responsive performance straight out of the box. The frame accommodates dropper posts up to 150mm on medium frames and 200mm on larger sizes, giving you the modern trail bike versatility XC racing increasingly demands.
Every component is chosen for speed and durability. Shimano XT Di2 delivers smooth, race-ready wireless shifts under pressure. SCOTT's OCT cable-routing technology uses color-coded ducts for intuitive, error-free setup and quick serviceability. Additional thoughtful touches include integrated Save-the-Day storage, easy shock access, and a fully sealed frame cover that keeps internals clean and protected.
Key Features
-
Frame - SCOTT Spark RC HMF Carbon
-
Suspension - Fox 34SL Factory Grip SL fork and Fox Float Factory shock
- Drivetrain - Shimano XT Di2 12-speed wireless
| Specification | Detail |
|---|---|
| Frame | Spark RC HMF Carbon Gen5, adjustable head angle and fork lock, Syncros Octopus cable integration system Gen2, BSA BB, UDH interface, 12x148mm with 55mm chainline |
| Travel | Front: 120mm, Rear: 120mm |
| Fork | Fox 34SL Factory Grip SL, Kashima, 3P, Kabolt 15x110mm axle, tapered steerer, rebound adjustment, lockout |
| Rear Shock | Fox Float Factory Traction Control EVOL, Kashima, SCOTT custom with travel and geometry adjustment, 3P: Lockout-Traction Control-Descend, low speed and rebound adjustment, bearing hardware 20x8mm, 190x45mm |
| Remote System | SCOTT TwinLoc Technology, Suspension & Dropper Remote, 3 Suspension Modes |
| Rear Derailleur | Shimano XT Di2 RD-M8250 12-Speed Wireless Electronic Shift System |
| Shifters | Shimano Deore Di2 SW-M6250 |
| Crankset | Shimano XT FC-M8200, 34T |
| Chainguide | Spark RC Gen5 chainguide |
| BB-Set | Shimano BB-MT501 BSA |
| Chain | Shimano CN-M7100 |
| Cassette | Shimano Deore CS-M7200, 10-51T |
| Brakes | Shimano Deore BR-M6220 4-Piston |
| Front Disc Rotor | Shimano RT-CL700, 180mm |
| Rear Disc Rotor | Shimano RT-CL700, 160mm |
| Grips | Syncros XC Lock-On, ready for Tubeless Plug Kit Storage |
| Handlebar | Syncros IC-M100-AL2, -10° angle, 7° backsweep, 740mm |
| Seatpost | Syncros Dropper Post SP-M100-AL2, 31.6mm |
| Seat | Syncros Celista Cut Out, Cr-Mo Rails |
| Headset | Syncros - Acros angle adjust ±0.5°, fork lock & cable routing Gen2 system, stainless bearings, IS52 |
| Front Tire | Maxxis Aspen 29x2.4", 120TPI Foldable Bead, Tubeless Ready, EXO |
| Rear Tire | Maxxis Aspen 29x2.4", 120TPI Foldable Bead, Tubeless Ready, EXO |
| Extras | Syncros Tool, Shimano Di2 Powerpack |
| Accessories | Milkit Sealant |
| Approx Weight in KG | 11.8kg Tubeless |
| Approx Weight in LBS | 26.01lbs Tubeless |
| Max. System Weight | 130kg |
| Weight Limit Notes | The overall weight includes the bike, the rider, the equipment and possible additional luggage. |
| MEASUREMENT | S | M | L | XL |
|---|---|---|---|---|
| Fork Rake | 44 | 44 | 44 | 44 |
| Wheel OD | 753 | 753 | 753 | 753 |
| Head Tube Angle | 65.4 | 65.9 | 66.4 | 65.4 | 65.9 | 66.4 | 65.4 | 65.9 | 66.4 | 65.4 | 65.9 | 66.4 |
| Head Tube Length | 88 | 88 | 95 | 112 |
| Top Tube Horizontal | 572.3 | 573 | 573.7 | 610.8 | 610.1 | 609.4 | 636 | 636.7 | 637.5 | 665 | 665.8 | 666.7 |
| Standover Height | 732.7 | 474.2 | 766.7 | 790.4 |
| BB Offset | -44.9 | -44 | -43.1 | -44.9 | -44 | -43.1 | -44.9 | -44 | -43.1 | -44.9 | -44 | -43.1 |
| BB Height | 331.6 | 332.5 | 333.4 | 331.6 | 332.5 | 333.4 | 331.6 | 332.5 | 333.4 | 331.6 | 332.5 | 333.4 |
| Wheel Base | 1159.1 | 1154.7 | 1150.2 | 1184.1 | 1179.7 | 1175.2 | 1212 | 1207.5 | 1203.1 | 1244 | 1239.5 | 1235 |
| BB Center To Top Of Seattube | 385 | 410 | 460 | 510 |
| Seat Angle | 76.5 | 76.4 | 76.3 | 75.4 | 75.3 | 75.2 | 75.4 | 75.3 | 75.2 | 75.4 | 75.3 | 75.2 |
| Chainstay | 434 | 434 | 434 | 434 |
| Reach | 429.1 | 430 | 430.9 | 454.2 | 455 | 455.9 | 479.2 | 480 | 480.8 | 504.2 | 505 | 505.7 |
| Stack | 590 | 591.1 | 592.1 | 590 | 591.1 | 592.2 | 596.3 | 597.5 | 598.6 | 611.8 | 613 | 614.2 |
| Trail | 123.1 | 120.2 | 117.3 | 123.1 | 120.2 | 117.3 | 123.1 | 120.2 | 117.3 | 123.1 | 120.2 | 117.3 |
| Fork Length | 531 | 531 | 531 | 531 |
| Maximum Seatpost Insertion | 295 | 320 | 370 | 420 |
