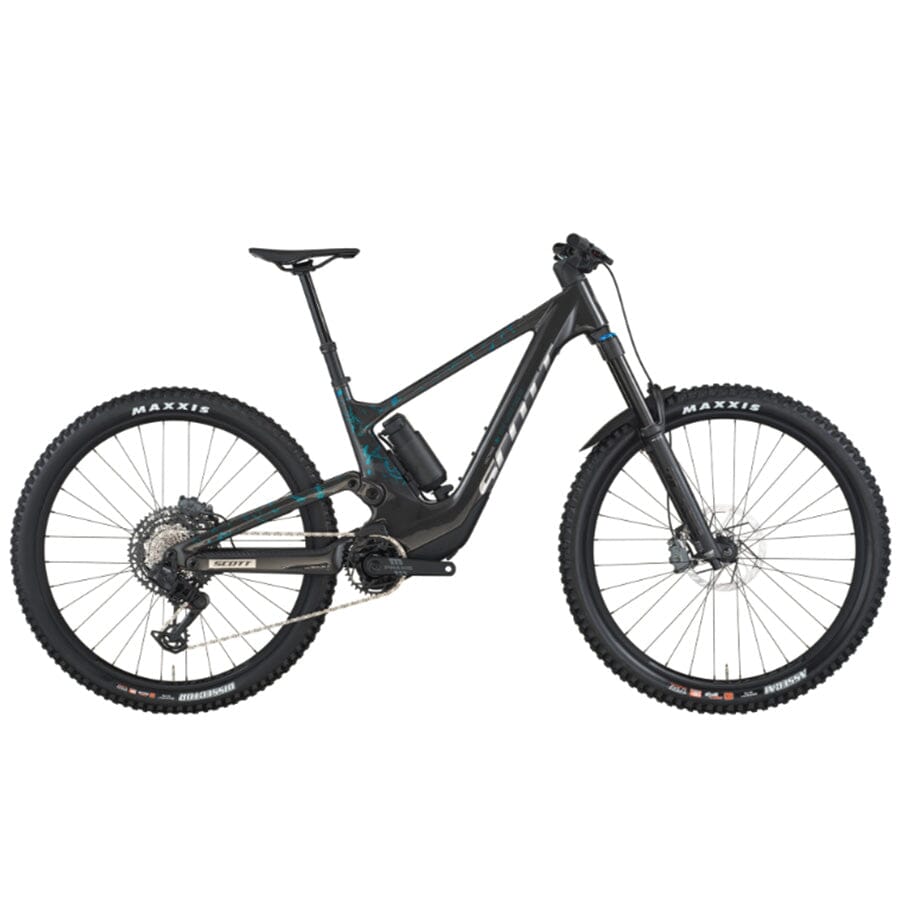

SCOTT Voltage 910
Product Details
The SCOTT Voltage 910 takes your trail riding and shuttle laps to the next level with long-travel performance, boosted power, and extended range. At the heart of this e-MTB is the TQ HPR60 motor, delivering 60Nm of torque, 20% more power than the previous Voltage, making short switchbacks, steep climbs, and technical obstacles feel effortless. Whether you’re your own shuttle or chasing the next peak, the Voltage 910 gives you the confidence to ride harder and longer.
Range is enhanced with the TQ HPR 360Wh internal battery, complemented by a quick-release 160Wh Range Extender, giving you the flexibility to explore bigger trails and tackle longer laps without compromise. Two bottle mounts mean hydration or energy is never limited, while a minimalistic TQ HPR display keeps the cockpit clean and intuitive.
The Voltage 910’s NUDE Suspension technology, featuring a FOX 36 Rhythm Air Grip fork and FOX FLOAT X NUDE EVOL rear shock, ensures smooth pedaling efficiency on climbs and full performance on descents. Easy shock access and an external sag indicator simplify tuning for optimal suspension response, while the integrated platform maintains precise handling and a low center of gravity for confidence at every speed.
Performance is completed with a SRAM S1000 Eagle AXS 12-speed drivetrain and Maven four-piston brakes, providing precise wireless shifting and powerful stopping performance across demanding terrain. Lightweight Carbon HMF construction and durable Formula CL-811 wheels keep the bike fast, agile, and capable.
The SCOTT Voltage 910 is the ultimate trail e-MTB, powerful, versatile, and ready to elevate every ride.
Key Features
- Frame – Carbon HMF
- Motor – TQ HPR60
- Battery – TQ Internal 360Wh with 160Wh Range Extender
- Suspension – FOX 36 Rhythm Air Grip Fork & FOX FLOAT X NUDE EVOL Shock
- Drivetrain – SRAM S1000 Eagle AXS 12-Speed
- Wheelset – Formula CL-811
| Specification | Detail |
|---|---|
| Frame | Carbon HMF, Integrated Suspension Technology, Virtual 4 Link kinematic, Adjustable head angle, Syncros Cable Integration System, TQ HPR60, UDH Interface, 12x148mm with 55mm Chainline |
| Travel | Front: 160mm, Rear: 155mm |

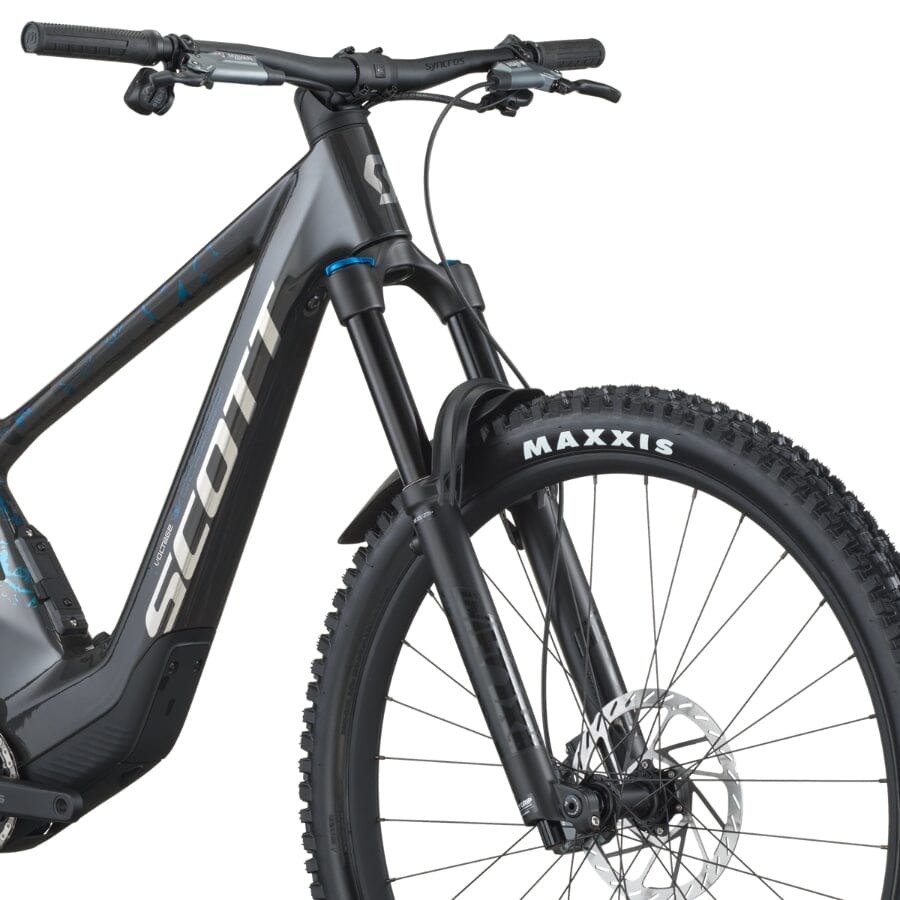

| Fork | FOX 36 Rhythm Air Grip, Sweep Adj., 15x110mm QR axle, tapered steerer, 44mm offset, Rebound Adjust, Lockout, 160mm travel |
| Rear Shock | FOX FLOAT X NUDE EVOL Piggy Back Trunnion, SCOTT custom w. travel & geo adjustment, 3 modes: Climb-Ramp Control-Descend, Custom large Air volume, Comp & Rebound Adjust, Travel 155-100-Climb, T185X55mm |
| Remote System | TracLoc Technology, Rear Suspension & Dropper Remote, 3 Rear Suspension modes |

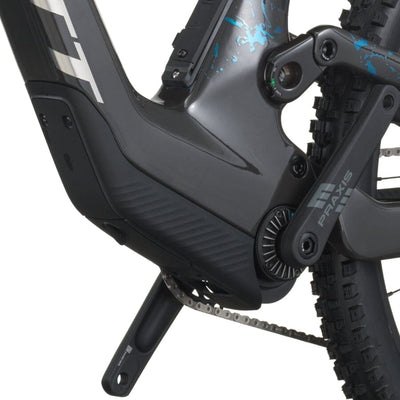

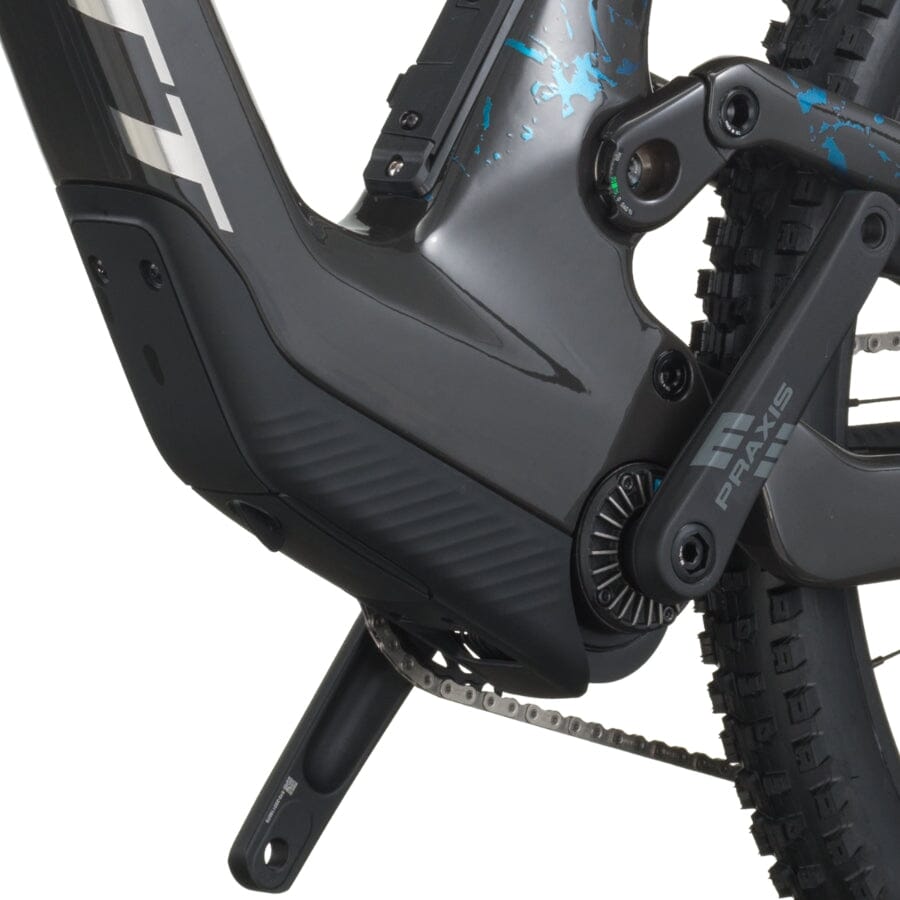

| Drive Unit | TQ HPR60 Mid Motor, 60Nm max Torque, EU: 25km/h, US: 20mph |
| Battery | TQ Internal 360Wh + TQ Range Extender 160Wh |
| Display | TQ HPR, Bluetooth, ANT+, Dedicated Smartphone App |
| Charger | TQ 100-240V-4A |

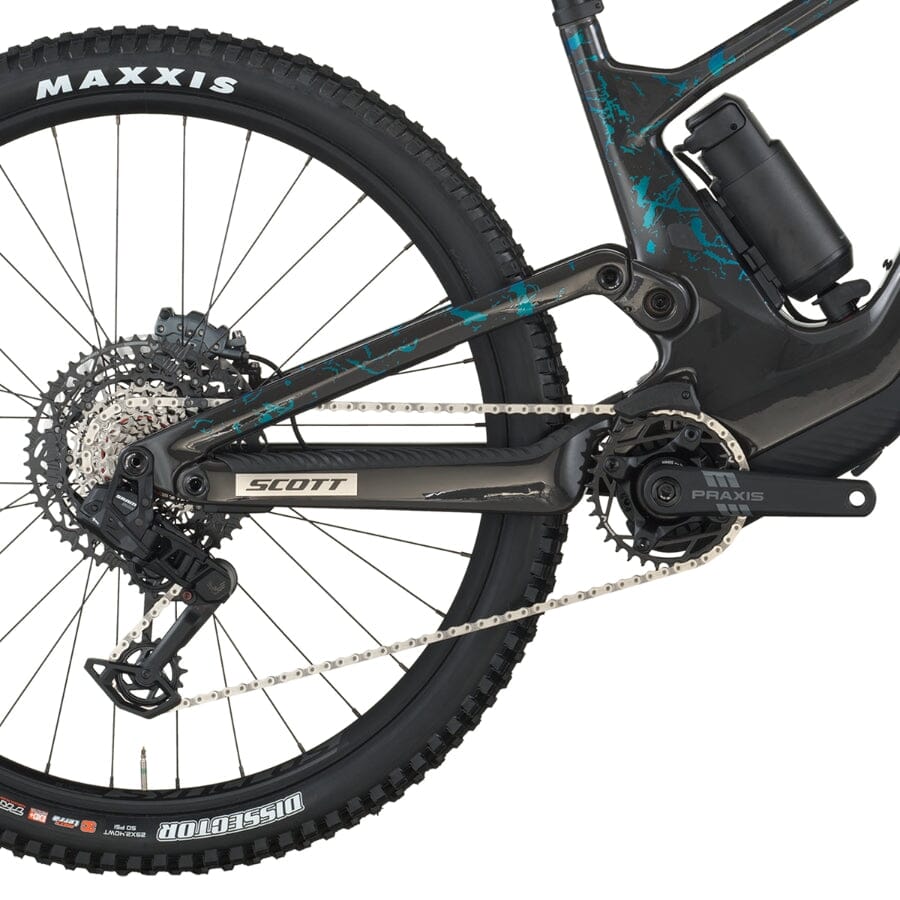

| Rear Derailleur | SRAM S1000 Eagle AXS Transmission, 12 Speed, Wireless Electronic Shift System |
| Shifters | SRAM AXS Rocker Pod Controller |
| Crankset | Praxis Alloy |
| Chainguide | e*thirteen e*spec Slider |
| Chainring | Praxis alloy spider, SRAM Eagle Transmission 34T |
| Chain | SRAM CN GX Eagle Transmission |
| Cassette | SRAM Eagle XS 1270 Transmission 10-52 |
| Brakes | SRAM Maven Bronze Stealth 4-Piston Disc |
| Rotors | SRAM HS2 Rotors Front & Rear 200mm |

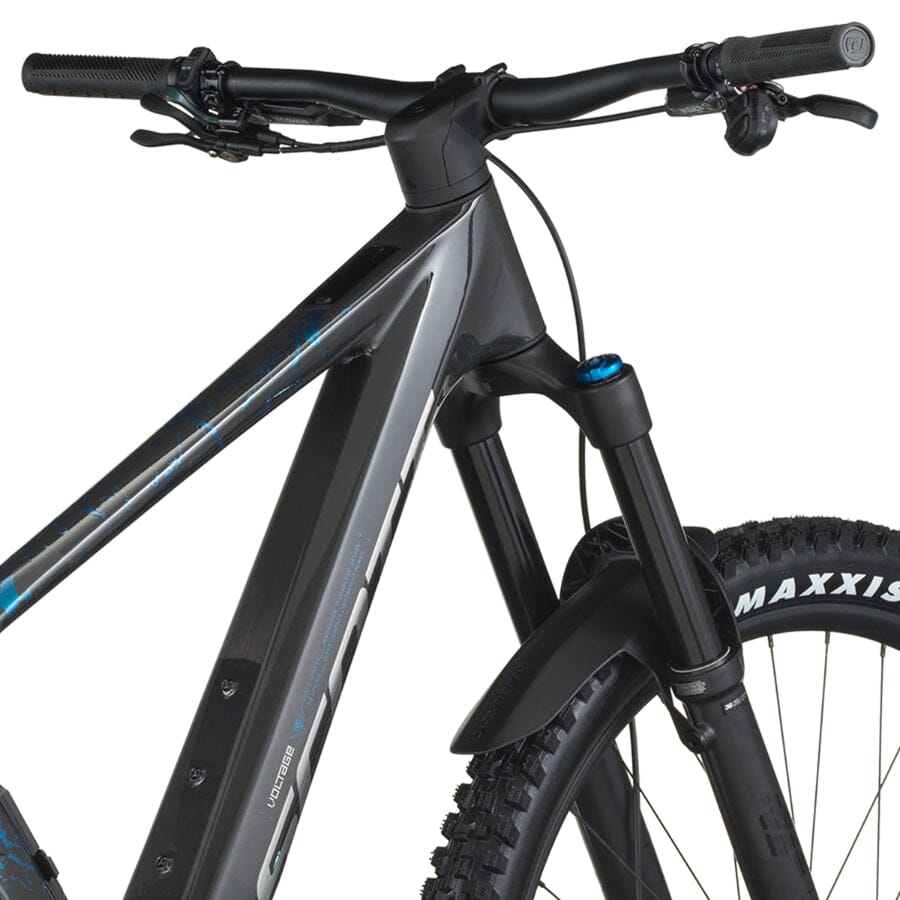

| Handlebar | Syncros Hixon 1.5 Alloy 7050, S & M: 15mm rise, L & XL: 25mm rise, back sweep 8°, 780mm, Syncros Endurance lock-on grips |
| Stem | Syncros AM 1.5, 4° rise, 7050 Alloy, 31.8mm, 1 1/8" |
| Seatpost | Syncros Duncan Dropper Post 1.5s, Travel Adjust, 31.6mm (S:140mm, M:180mm, L:180mm, XL:210mm) |
| Seat | Syncros Tofino 1.5 Regular, Titanium rails |
| Headset | Syncros - Acros Angle adjust & Cable Routing HS System, Stainless, ±0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB |
| Front Hub | Formula CL-811, 15x110mm |
| Rear Hub | Formula CL-148S, 12x148mm |
| Spokes | Stainless Black 15G, 1.8mm |
| Rims | Syncros X-30S, 32H, 30mm, Sleeve Joint, Tubeless ready |
| Front Tire | Maxxis Assegai, 2.5", 60TPI Foldable, Tubeless Ready, EXO+ 3C Maxx Terra |
| Rear Tire | Maxxis Dissector, 2.5", 60TPI Foldable, Tubeless Ready, EXO+ 3C Maxx Terra |
| Extras | SRAM AXS Extension Cord |
| Approx. Weight | 19.9kg / 43.87 lbs (Tubeless setup without RE 1.1kg) |
| Max System Weight | 130kg (includes bike, rider, equipment, and additional luggage) |
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Head Tube Angle (°) | 63.9 | 63.9 | 63.9 | 63.9 |
| Head Tube Length (mm) | 110.0 | 110.0 | 120.0 | 130.0 |
| Top Tube Horizontal (mm) | 580.2 | 600.0 | 629.9 | 659.8 |
| Standover Height (mm) | 765.0 | 765.0 | 772.0 | 788.0 |
| BB Offset (mm) | 27.4 | 27.5 | 27.4 | 27.3 |
| BB Height (mm) | 349.6 | 349.5 | 349.6 | 349.7 |
| Wheel Base (mm) | 1,232.8 | 1,252.6 | 1,284.8 | 1,316.9 |
| BB Center To Top Of Seattube (mm) | 404.6 | 424.5 | 449.6 | 479.7 |
| Seat Angle (°) | 77.1 | 77.1 | 77.1 | 77.1 |
| Chainstay (mm) | 455.0 | 455.0 | 455.0 | 455.0 |
| Reach (mm) | 437.4 | 457.2 | 485.0 | 512.7 |
| Stack (mm) | 622.3 | 622.4 | 631.3 | 640.2 |
| Stem Length (mm) | 40.0 | 40.0 | 50.0 | 50.0 |
| Trail (mm) | 135.7 | 135.7 | 135.7 | 135.7 |
| Fork Length (mm) | 571.0 | 571.0 | 571.0 | 571.0 |
| Maximum Seatpost Insertion (mm) | 190.0 | 210.0 | 235.0 | 265.0 |
| Crank Length (mm) | 170.0 | 170.0 | 175.0 | 175.0 |
