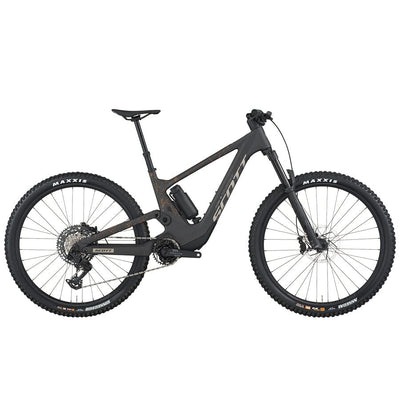

SCOTT Voltage 920
Product Details
The SCOTT Voltage 920 is designed for riders who want all the heart-pumping excitement of a top-tier long-travel e-MTB without the top-tier price tag. This trail bike combines a lightweight carbon main frame with an alloy rear triangle, delivering 160mm front and 155mm rear travel suspension for the ideal big riding, epic sending e-rig that handles its own shuttle laps with confidence and capability.

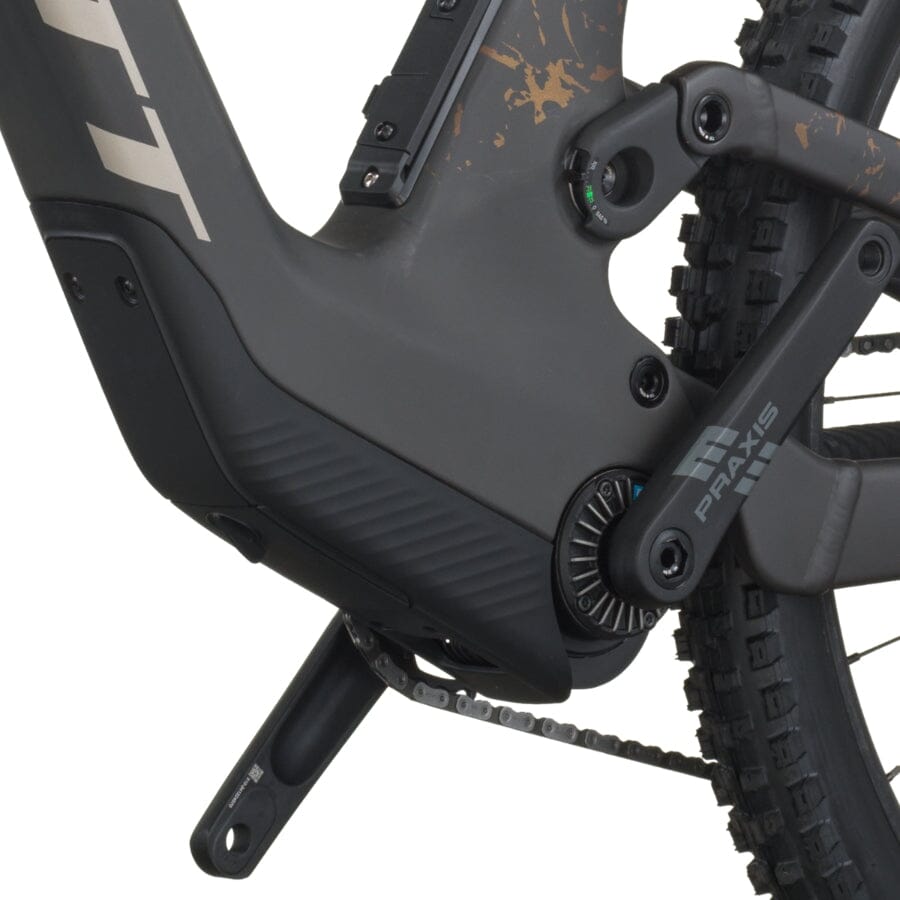

Power is boosted significantly thanks to TQ's new HPR60 motor delivering 60Nm of torque, a notable upgrade from the previous 50Nm, leaving riders feeling like no switchback is too tight and no obstacle too challenging. The TQ Internal 360Wh battery is complemented by an included 160Wh Range Extender that attaches via quick-release mount, providing the extra assist needed to enjoy bigger days on the trails while remaining small enough to pack along on any given ride for extended range when adventure calls.
SCOTT's patented NUDE Suspension technology features the X-Fusion NUDE 5 RLX Trunnion shock favoring adjustability for riders who pedal up to have maximum fun on the way down. The shock delivers full factory performance when things point downwards while maintaining efficiency on climbs. Easy shock access via push-button design and an external sag indicator simplify setup and maintenance, while the TQ motor allows a standard Q-factor with 55mm chainline for natural pedaling feel.
Perfect for riders seeking trail capability with electric assistance at an accessible price point, the Voltage 920 pairs its capable platform with SRAM Eagle Transmission 12-speed drivetrain and SRAM DB4 Stealth 4-piston disc brakes for the range and stopping power to make every ride memorable. Unlike most full suspension e-bikes, the Voltage accommodates dual water bottles without sacrificing range or utility.
Key Features
- Frame - Carbon Main Frame with Alloy Rear Triangle
- Motor & Battery - TQ HPR60 Mid Motor (60Nm, 20mph)
- Battery - 360Wh Internal + 160Wh Range Extender
- Suspension - Marzocchi Z2 Air Rail Fork and X-Fusion NUDE 5 RLX Trunnion Shock)

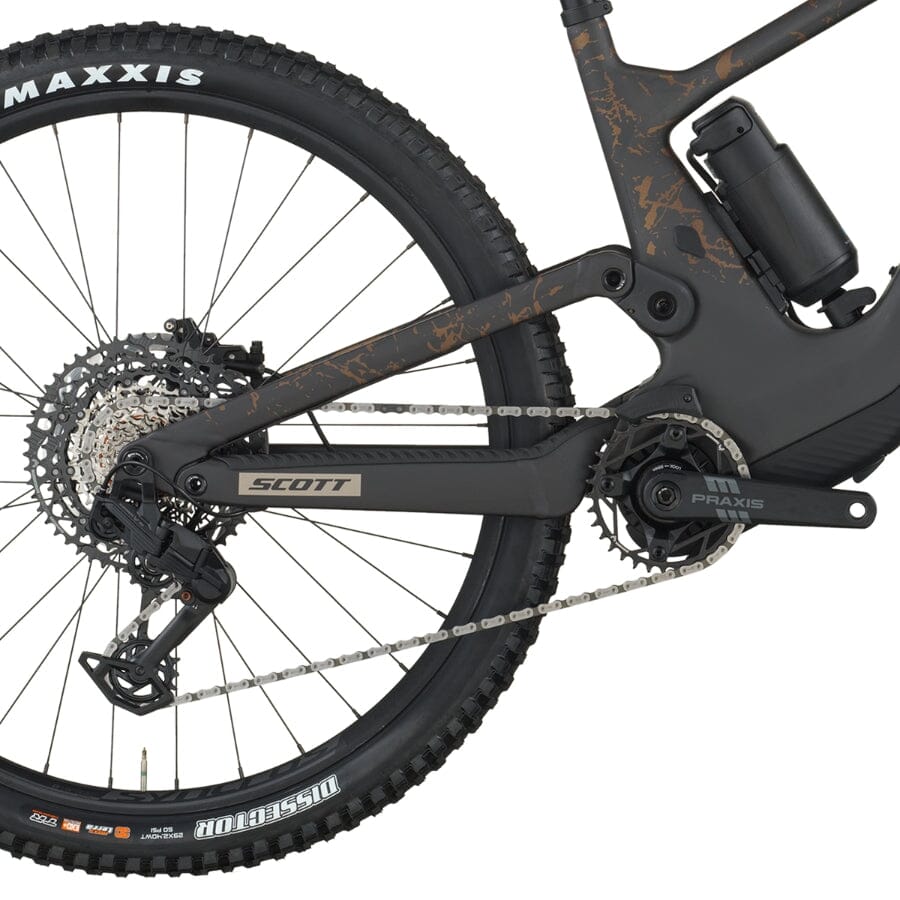

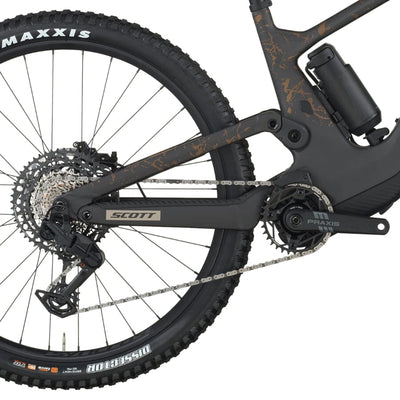

- Drivetrain - SRAM Eagle 70 Transmission 12 Speed
- Wheelset - Syncros X-30S Tubeless Ready
| Specification | Detail |
|---|---|
| Frame | Carbon HMF, Integrated Suspension Technology, Virtual 4 Link kinematic, Adjustable head angle, Syncros Cable Integration System, TQ HPR60, UDH Interface, 12x148mm with 55mm Chainline |
| Travel | Front: 150mm, Rear: 155mm |
| Fork | Marzocchi Z2 Air Rail, Sweep Adj, 15x110mm QR axle, tapered steerer, 44mm offset, Reb. Adj., Lockout, 150mm travel |
| Rear Shock | X-Fusion NUDE 5 RLX Trunnion, SCOTT custom w. travel & geo adj., 3 modes: Lockout-Traction Control-Descend, Reb. Adj., Travel 155-100-Lockout, T185X55mm |
| Remote System | SCOTT TracLoc 2 Technology, Suspension & Dropper Remote, 3 Suspension modes |
| Drive Unit | TQ HPR60 Mid Motor drive 60Nm max Torque, EU: 25km/h, US: 20mph |
| Battery | TQ Internal 360Wh + TQ Range Extender 160Wh |
| Display | TQ HPR, Bluetooth, ANT+, Dedicated Smartphone app |
| Charger | TQ 100-240V-4A |
| Rear Derailleur | SRAM Eagle 70 Transmission 12 Speed |
| Shifters | SRAM Eagle 70 Shifter |
| Crankset | Praxis Alloy |
| Chainguide | e*thirteen, e*spec Slider |
| Chainring | Praxis alloy spider, SRAM Eagle Transmission 34T |
| Chain | SRAM CN Eagle 70 Transmission |
| Cassette | SRAM Eagle XS 1270 Transmission 10-52 |
| Brakes | SRAM DB4 Stealth 4-Piston Disc |
| Rotors | SRAM HS2 Rotors F&R 200mm |
| Handlebar | Syncros Hixon 2.0 Alloy 6061, S & M: 15mm rise, L & XL: 25mm rise, back sweep 8°, 780mm, Syncros Endurance lock-on grips |
| Stem | Syncros AM 2.0, 4° rise, 6061 Alloy, 31.8mm, 1 1/8", Cable Integration System |
| Seatpost | Syncros Duncan Dropper Post 1.5s, Travel Adjust, 31.6mm, S: 140mm, M: 180mm, L: 180mm, XL: 210mm |
| Seat | Syncros Tofino 2.0 Regular |
| Headset | Syncros - Acros Angle adjust & Cable Routing HS System, Stainless, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB |
| Front Hub | Formula CL-811, 15x110mm |
| Rear Hub | Formula CL-148S, 12x148mm |
| Spokes | Stainless Black 15G, 1.8mm |
| Rims | Syncros X-30S, 32H, 30mm, Sleeve Joint, Tubeless ready |
| Front Tire | Maxxis Assegai, 2.5", 60TPI Foldable, Tubeless Ready, EXO+ 3C Maxx Terra |
| Rear Tire | Maxxis Dissector, 2.5", 60TPI Foldable, Tubeless Ready, EXO+ 3C Maxx Terra |
| Approx Weight | 19.8 kg Tubeless setup without RE (1.1kg) |
| Approx Weight (LBS) | 43.65 lbs Tubeless setup without RE (1.1kg) |
| Max System Weight | 130kg (includes bike, rider, equipment, and possible additional luggage) |
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Head Tube Angle (°) | 63.9 | 63.9 | 63.9 | 63.9 |
| Head Tube Length (mm) | 110.0 | 110.0 | 120.0 | 130.0 |
| Top Tube Horizontal (mm) | 580.2 | 600.0 | 629.9 | 659.8 |
| Standover Height (mm) | 765.0 | 765.0 | 772.0 | 788.0 |
| BB Offset (mm) | 27.4 | 27.5 | 27.4 | 27.3 |
| BB Height (mm) | 349.6 | 349.5 | 349.6 | 349.7 |
| Wheel Base (mm) | 1,232.8 | 1,252.6 | 1,284.8 | 1,316.9 |
| BB Center To Top Of Seattube (mm) | 404.6 | 424.5 | 449.6 | 479.7 |
| Seat Angle (°) | 77.1 | 77.1 | 77.1 | 77.1 |
| Chainstay (mm) | 455.0 | 455.0 | 455.0 | 455.0 |
| Reach (mm) | 437.4 | 457.2 | 485.0 | 512.7 |
| Stack (mm) | 622.3 | 622.4 | 631.3 | 640.2 |
| Stem Length (mm) | 40.0 | 40.0 | 50.0 | 50.0 |
| Trail (mm) | 135.7 | 135.7 | 135.7 | 135.7 |
| Fork Length (mm) | 571.0 | 571.0 | 571.0 | 571.0 |
| Maximum Seatpost Insertion (mm) | 190.0 | 210.0 | 235.0 | 265.0 |
| Crank Length (mm) | 170.0 | 170.0 | 175.0 | 175.0 |
