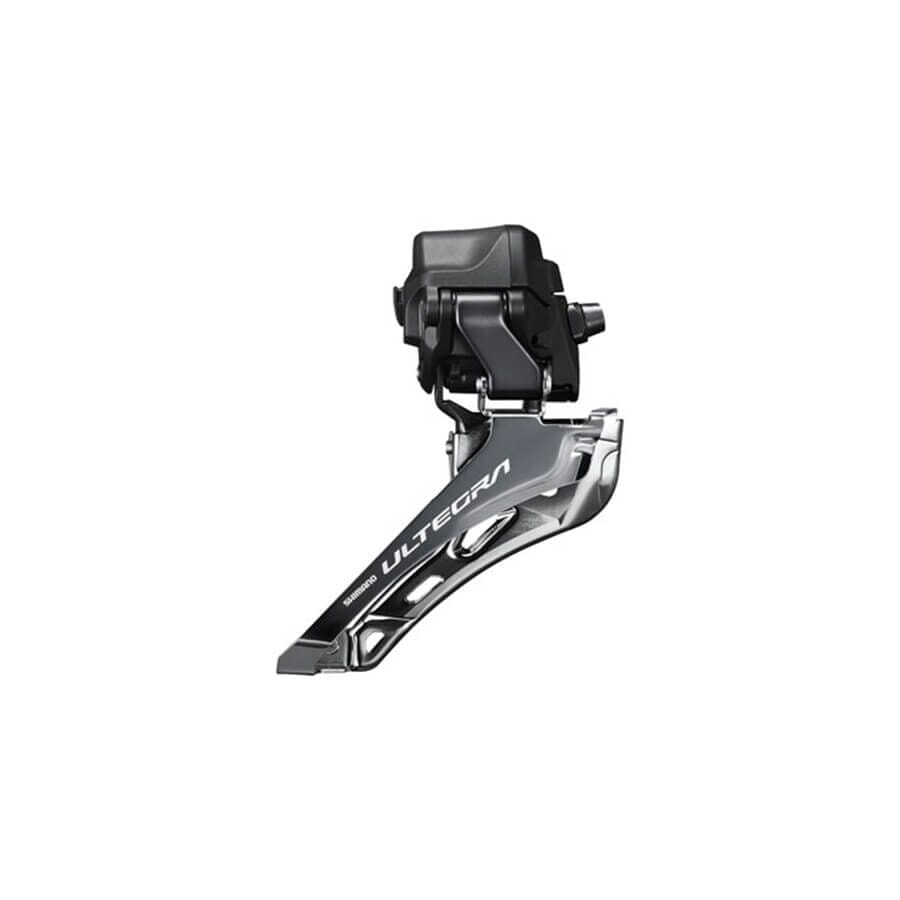

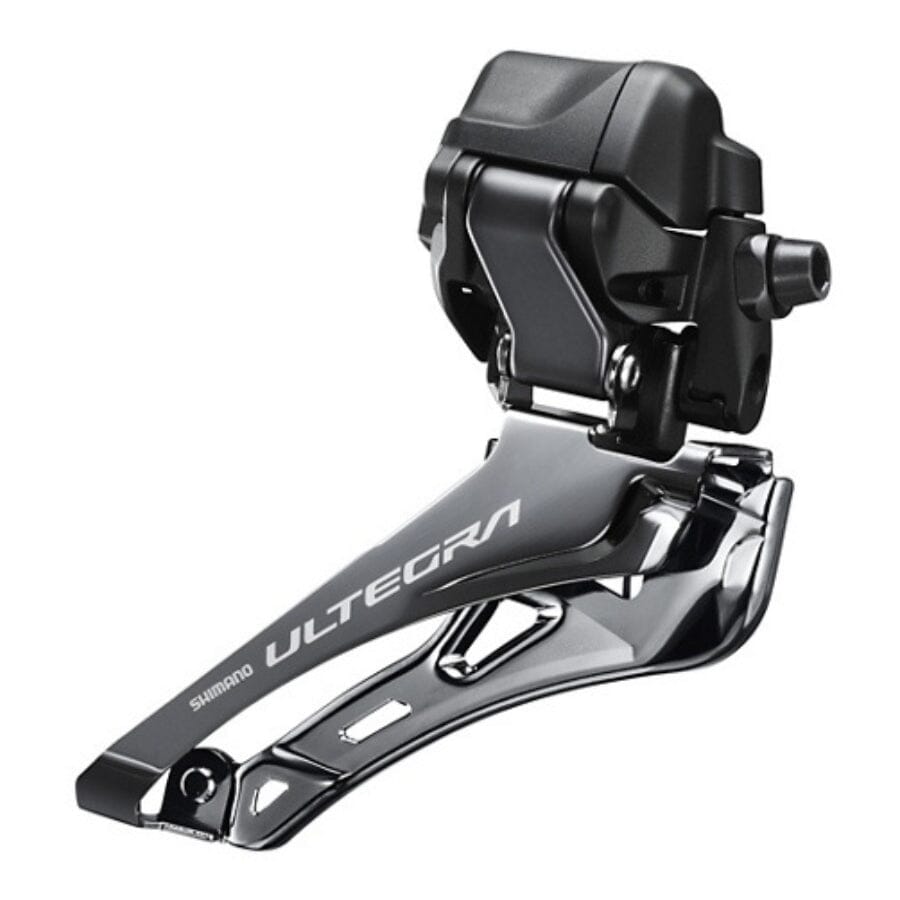

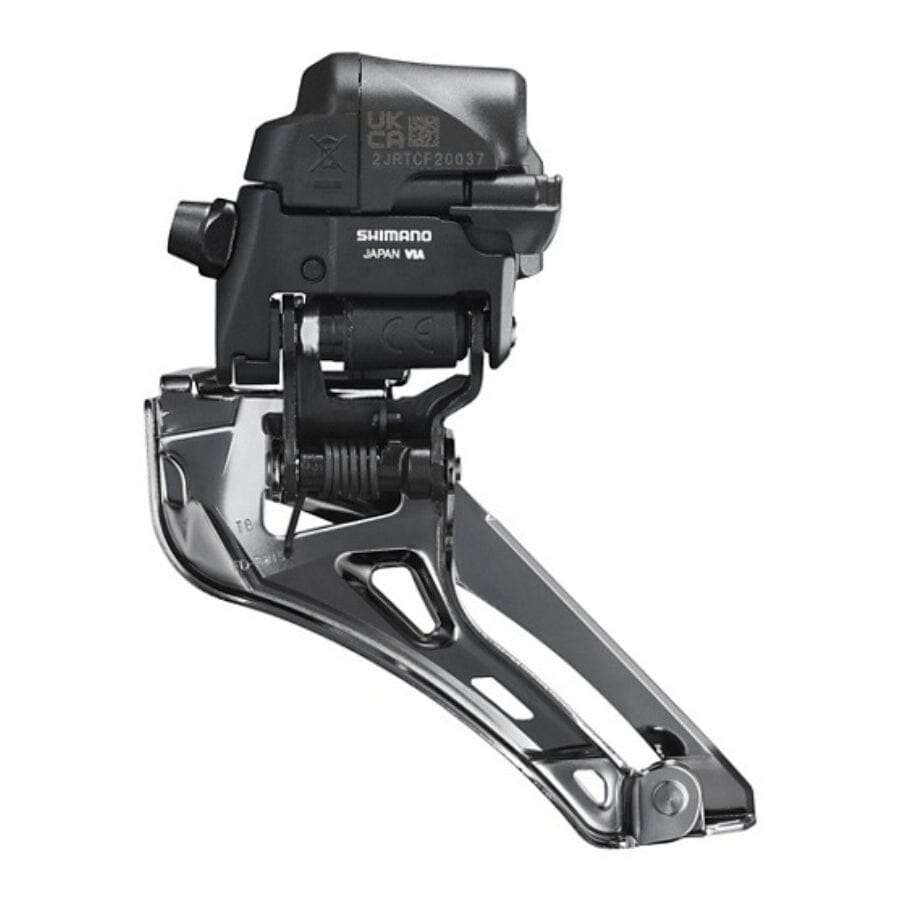

Shimano Ultegra Di2 Front Derailleur, FD-R8150, 12-Speed
Product Details
The Shimano Ultegra FD-R8150 front derailleur is a compact, lightweight Di2 component designed to reduce frontal area and improve aerodynamic efficiency. Despite its minimal profile, it delivers fast, precise, and seamless electronic shifting as part of Shimano’s latest 12-speed road platform, ensuring smooth front gear transitions under load or at speed.
Engineered for modern performance road setups, the FD-R8150 is compatible with chainrings in the 50–54T range and integrates Shimano’s Hyperglide+ shifting logic for consistent drivetrain performance. Its Di2 architecture and SD300 port connection ensure stable communication and reliable operation within the full electronic system, making it a key component in high-performance road builds focused on speed, efficiency, and control.
Key Features
- Aerodynamic Compact Design – Reduced frontal area helps minimize drag for improved road efficiency.
- Di2 Electronic Precision Shifting – Fast, seamless front shifts with consistent reliability under load.
- Hyperglide+ System Integration – Optimized for smooth, coordinated drivetrain performance across Shimano 12-speed setups.
| Specification | Detail |
|---|---|
| Model No | FD-R8150 |
| Series | ULTEGRA |
| Front Speeds | 2 |
| Rear Speeds | 12 |
| Compatible Chain | HG 12-speed |
| Action | Down swing |
| Mount | Brazed-on |
| Chain Line (mm) | 44.5 |
| Chainstay Angle (deg.) | 61-66 |
| Top Gear Teeth | 46-52T |
| Total Capacity | 16T |
| Link Bushings | 4 |
| Firmware Update by E-TUBE PROJECT | ✔ |
| SD50 Port (pcs) | 0 |
| SD300 Port (pcs) | 1 |
| SD50 Connector (pcs) | 0 |
| SD300 Connector (pcs) | 0 |
| Average Weight | 110g |
| Color | Series color |
