Specialized S-Works Tarmac SL9 - Shimano Dura-Ace Di2
Product Details
The Specialized S-Works Tarmac SL9 redefines what it means to build the fastest road bike. Rather than chasing isolated metrics like lowest drag or lightest weight, Specialized engineered this machine around a single outcome: Time to Finish, the actual elapsed time to complete a real-world race course. Through what the brand calls the Equation of Speed, every design decision factors in aerodynamics, weight, mechanical efficiency, rolling resistance, and rider dynamics working together, not separately.

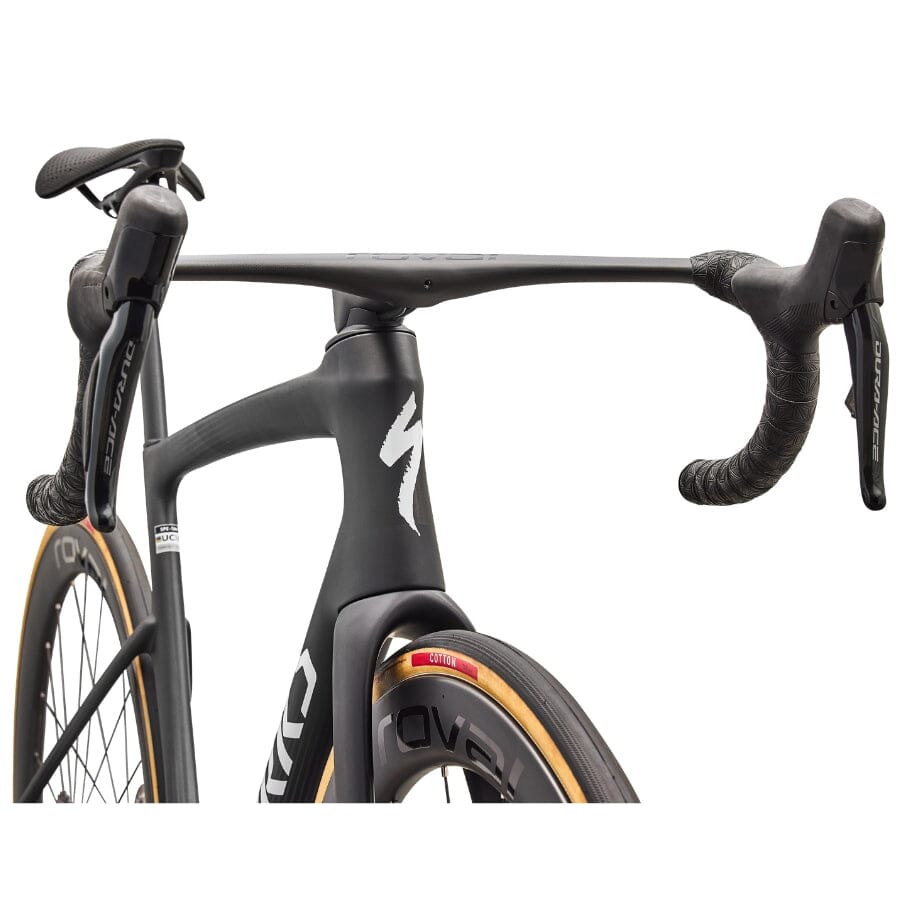

The FACT 12r carbon frame weighs just 687 grams while standing alone at the top of the aero race bike category. This unprecedented combination is achieved through Flow State Design, where tube shapes are engineered to carry structural load efficiently without excess material. Every surface has been reshaped for aerodynamic precision. The Speed Sniffer head tube, narrowed by an innovative offset steerer design, reduces frontal area by 10 percent while saving 4 watts of drag compared to the SL8. The dropped down tube keeps disturbed air from spilling into the frame, while the Flow Fork twists outward to guide airflow more efficiently. The Win Fin rear end, inspired by real-race observation that breakaway riders carry one bottle, not two, saves an additional 0.5 watts through dedicated single-bottle aerodynamics.
Every innovation was validated through Specialized's sixth-generation Moving Leg Mannequin, a rider-inclusive wind tunnel test that accounts for the real aerodynamic effects of pedaling motion, not static assumptions. This testing was calibrated to race-specific postures observed during high-speed breakaways, where aero efficiency decides races.
Shimano's Dura-Ace Di2 electronic drivetrain delivers instantaneous, precise shifting in all conditions, while Roval Rapide CLX III wheels provide the perfect aerodynamic and weight complement. Specialized's simulations show the SL9 finishing 14 seconds faster than the previous generation on Grand Tour stages—the difference between losing and winning at the highest levels of professional cycling.
Key Features
-
Frame - Specialized FACT 12r carbon
-
Drivetrain - Shimano Dura-Ace Di2 with with 4iiii Precision Pro Dual-Sided Power Meter
- Wheelset - Roval Rapide CLX III
| Specification | Detail |
|---|---|
| Frame | S-Works Tarmac SL9 FACT 12r Carbon, Rider First Engineered, Win Tunnel Engineered, CeramicSpeed SLT headset bearings, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout |
| Fork | S-Works FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc |
| Front Brake | Shimano Dura-Ace BR-R9270 |
| Rear Brake | Shimano Dura-Ace BR-R9270 |
| Shift Levers | Shimano Dura-Ace ST-R9270 |
| Front Derailleur | Shimano Dura-Ace FD-R9250, Braze-On |
| Rear Derailleur | Shimano Dura-Ace RD-R9250, 12-Speed |
| Cassette | Shimano Dura-Ace CS-R9200, 12-Speed, 11-34T |
| Chain | Shimano XTR M9100, 12-Speed with Quick Link |
| Crankset | Shimano Dura-Ace FC-R9200 HollowTech II, 12-Speed, 52/36T, with 4iiii Precision Pro Dual-Sided Power Meter |
| Bottom Bracket | CeramicSpeed Alpha Bottom Bracket, BSA Threaded Shimano |
| Front Tire | Cotton TLR, 700x30 |
| Front Wheel | Roval Rapide CLX III, Tubeless, 21mm Internal Width Carbon Rim, 51mm Depth, Win Tunnel Engineered, Roval LF18F 18H Hub with Sinc Ceramic Bearings, Roval by ARRIS Composite Aero Spokes with Titanium End Fittings |
| Rear Tire | Cotton TLR, 700x30 |
| Rear Wheel | Roval Rapide CLX III, Tubeless, 21mm Internal Width Carbon Rim, 48.5mm Depth, Win Tunnel Engineered, Roval LF19-R 24H Hub with Sinc Ceramic Bearings, Roval by ARRIS Composite Aero Spokes with Titanium End Fittings |
| Inner Tubes | 700x25-35mm, 65mm Presta Valve, TPU Tube |
| Handlebars | Roval Rapide Cockpit, Integrated Bar/Stem |
| Tape | Supacaz Super Sticky Kush |
| Saddle | S-Works Power with Mirror |
| Seatpost | S-Works Rapide Post, FACT Carbon, 15mm Offset |
| Seat Binder | Tarmac Integrated Wedge |
| Weight | 6.6 kg (14 lb, 8.8 oz) |
| Weight Size | 56 |
| Frame Size | 16 | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Frame Stack | 501 mm | 514 mm | 527 mm | 544 mm | 565 mm | 591 mm | 612 mm |
| Frame Reach | 366 mm | 375 mm | 380 mm | 384 mm | 395 mm | 402 mm | 408 mm |
| Head Tube Length | 100 mm | 109 mm | 120 mm | 140 mm | 157 mm | 184 mm | 204 mm |
| Head Tube Angle | 70.5° | 71.8° | 72.5° | 72.5° | 73.5° | 73.5° | 74° |
| BB Height | 266 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| BB Drop | 74 mm | 74 mm | 74 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Trail | 71 mm | 63 mm | 58 mm | 58 mm | 55 mm | 55 mm | 52 mm |
| Fork Length (full) | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm | 370 mm |
| Fork Rake/Offset | 47 mm | 47 mm | 47 mm | 47 mm | 44 mm | 44 mm | 44 mm |
| Front Center | 567 mm | 570 mm | 572 mm | 582 mm | 587 mm | 602 mm | 609 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 970 mm | 973 mm | 975 mm | 986 mm | 991 mm | 1005 mm | 1012 mm |
| Top Tube Length, Horizontal | 496 mm | 508 mm | 531 mm | 540 mm | 562 mm | 577 mm | 595 mm |
| Bike Standover Height | 722 mm | 734 mm | 745 mm | 767 mm | 785 mm | 807 mm | 833 mm |
| Seat Tube Length | 433 mm | 445 mm | 456 mm | 473 mm | 494 mm | 515 mm | 545 mm |
| Seat Tube Angle | 75.5° | 75.5° | 74° | 74° | 73.5° | 73.5° | 73° |
